8. Install the PCV hose.

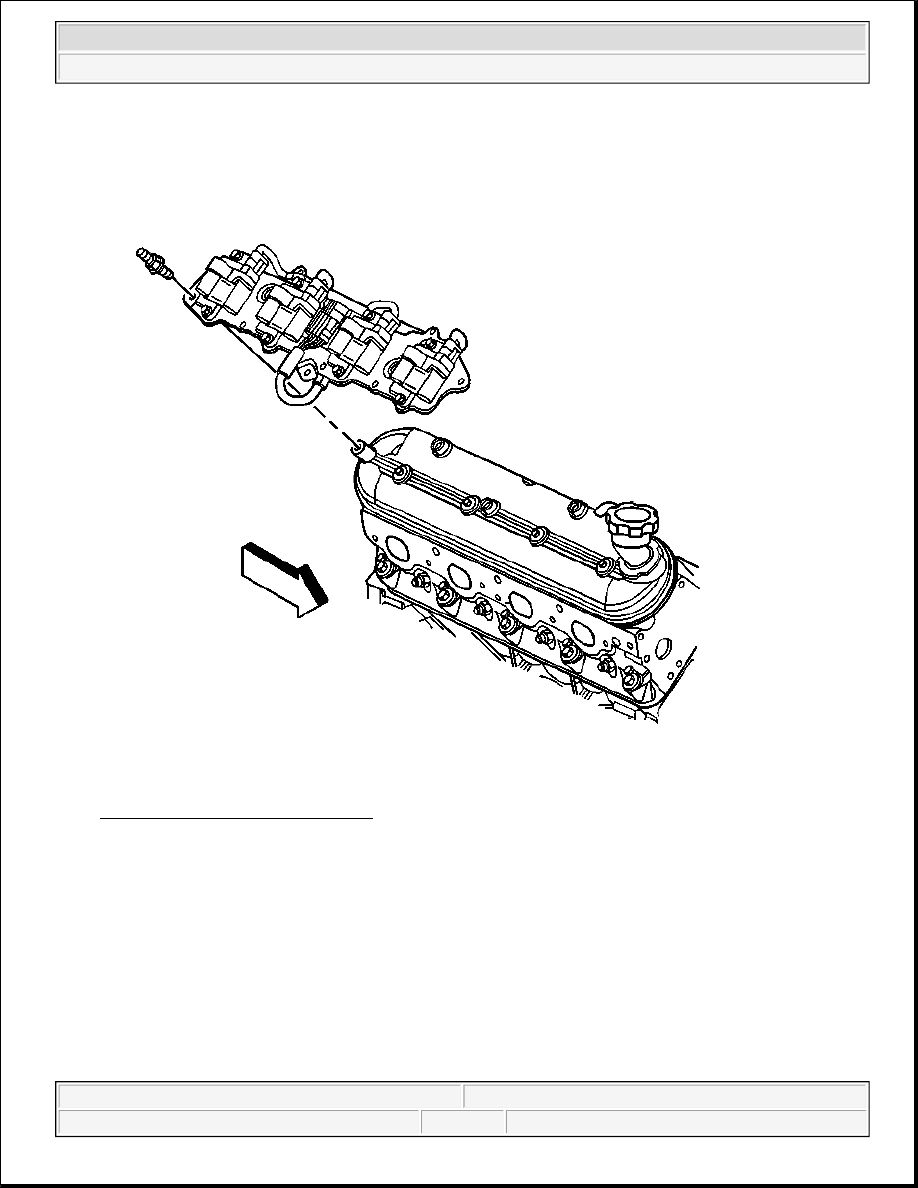

Fig. 91: Ignition Coil Bracket Studs
Courtesy of GENERAL MOTORS CORP.

9. Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the threads of the

bracket bolts.

10. Install the ignition coils and bracket to the rocker arm cover.

11. Install the ignition coil bracket studs to the rocker cover.

Tighten: Tighten the studs to 12 N.m (106 lb in).



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



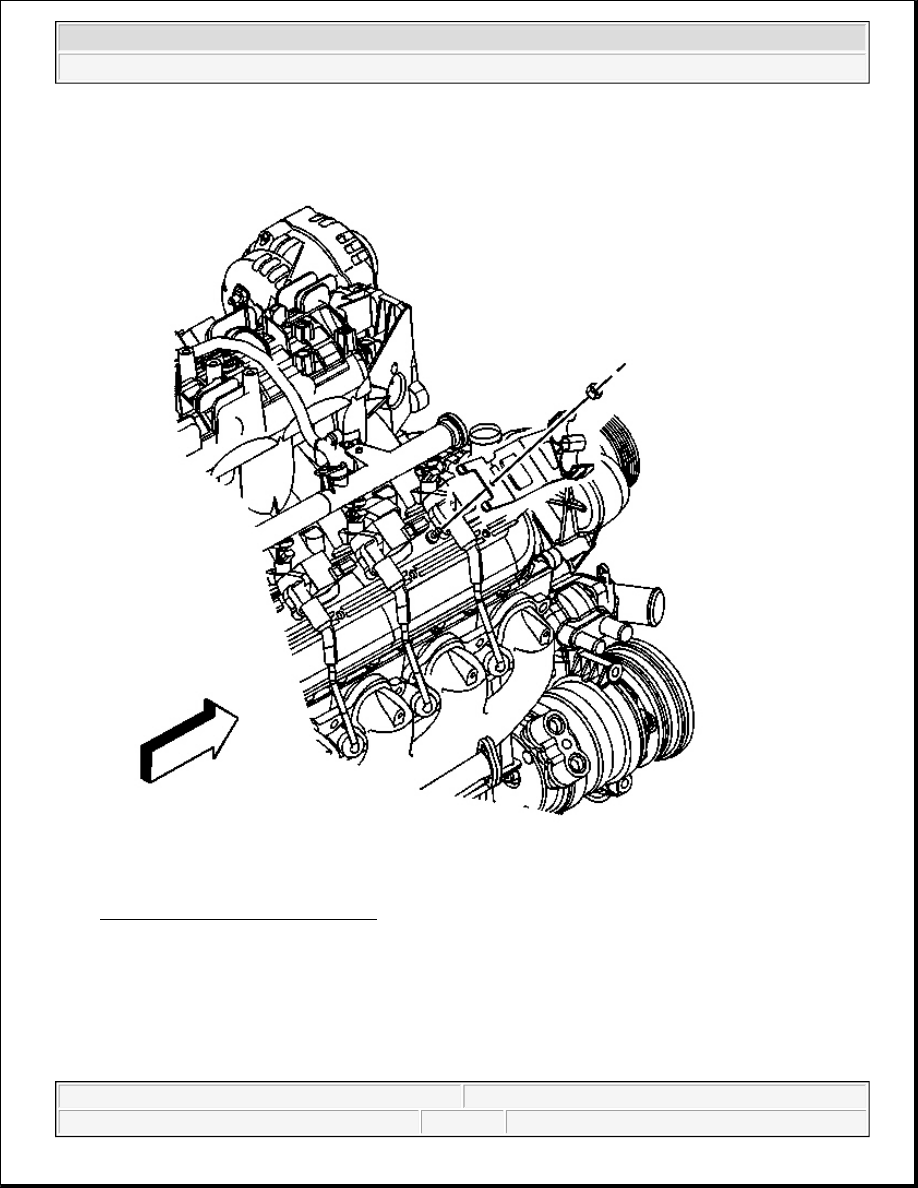

Fig. 92: Heater Hose Bracket & Nut
Courtesy of GENERAL MOTORS CORP.

12. Install the heater hose bracket and nut.

Tighten: Tighten the nut to 9 N.m (80 lb in).

13. Position the surge tank/heater hoses to the heater hose bracket.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



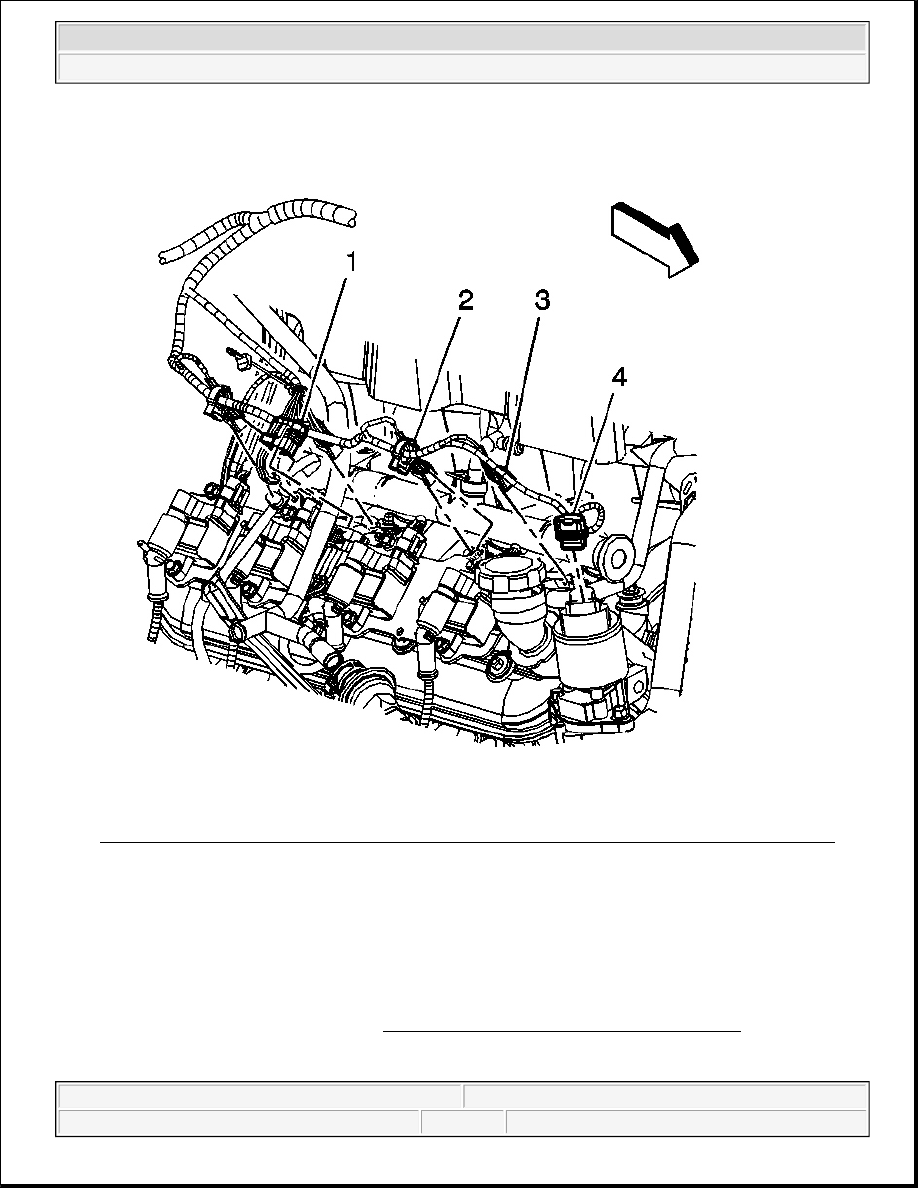

Fig. 93: Harness Clips, Main Coil Harness, Fuel Injectors & (EGR) Valve Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

14. Install the spark plug wires to the ignition coils.

15. Re-position the engine harness.

16. Install the harness clips (2).

17. Connect the main electrical connector (1) feeding the ignition coils.

18. Install the CPA lock.

19. Install the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) .

VALVE ROCKER ARM AND PUSH ROD REPLACEMENT



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Removal Procedure

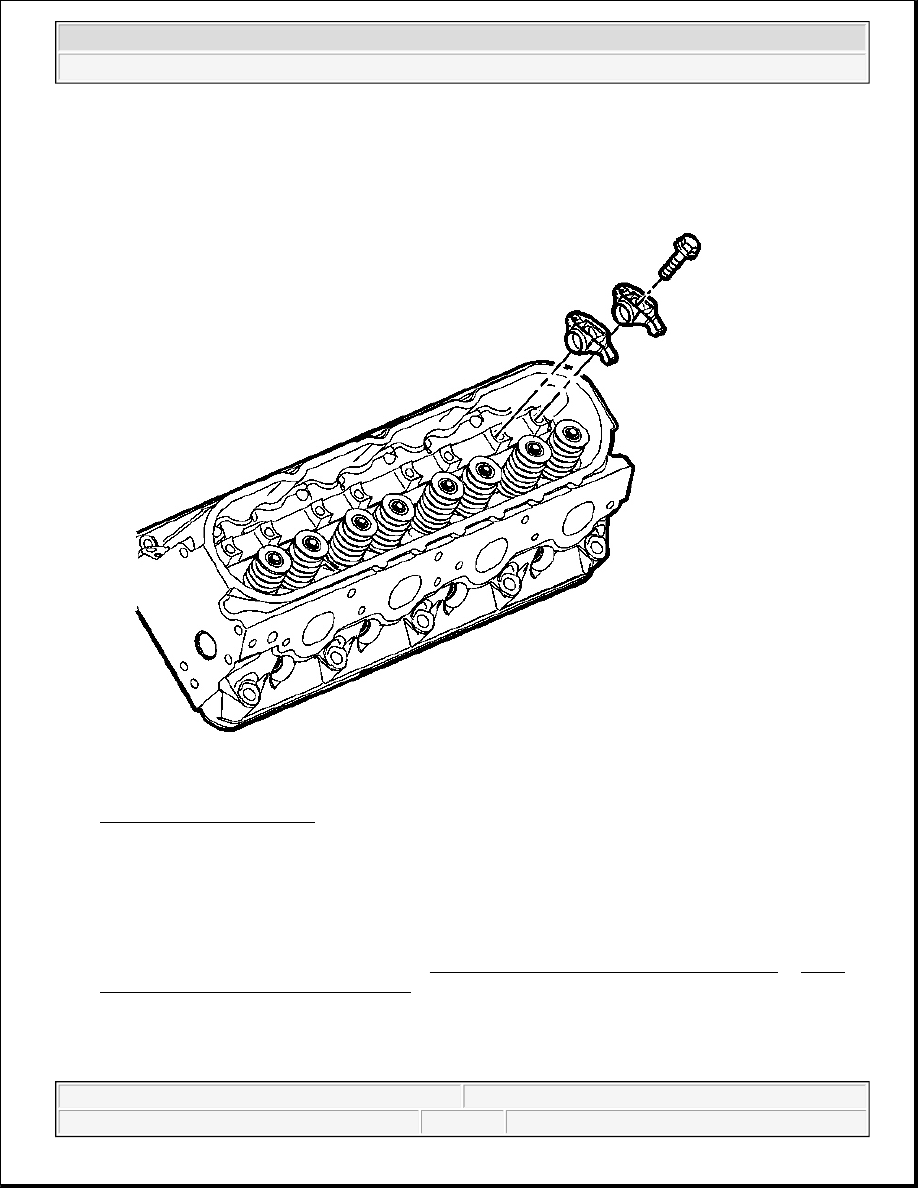

Fig. 94: Valve Rocker Arms
Courtesy of GENERAL MOTORS CORP.

1. Remove the valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement - Left or Valve

Rocker Arm Cover Replacement - Right .

2. Remove the valve rocker arm bolts.

3. Remove the valve rocker arms.

IMPORTANT: Place the valve rocker arms, pushrods, and pivot support, in a rack so

that the can be installed in the same location from which they were
removed.
