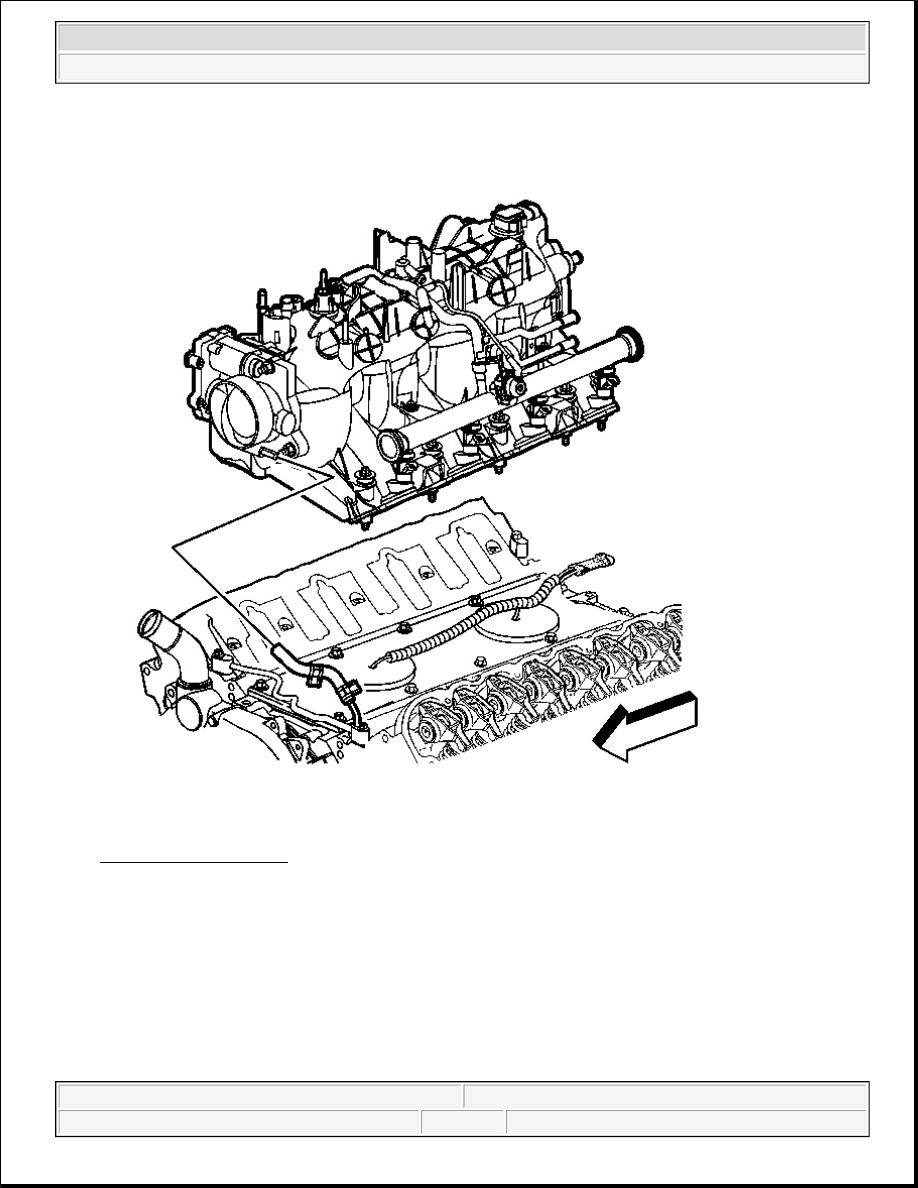

Fig. 60: Intake Manifold
Courtesy of GENERAL MOTORS CORP.

9. Remove the intake manifold bolts.

10. Remove the intake manifold.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

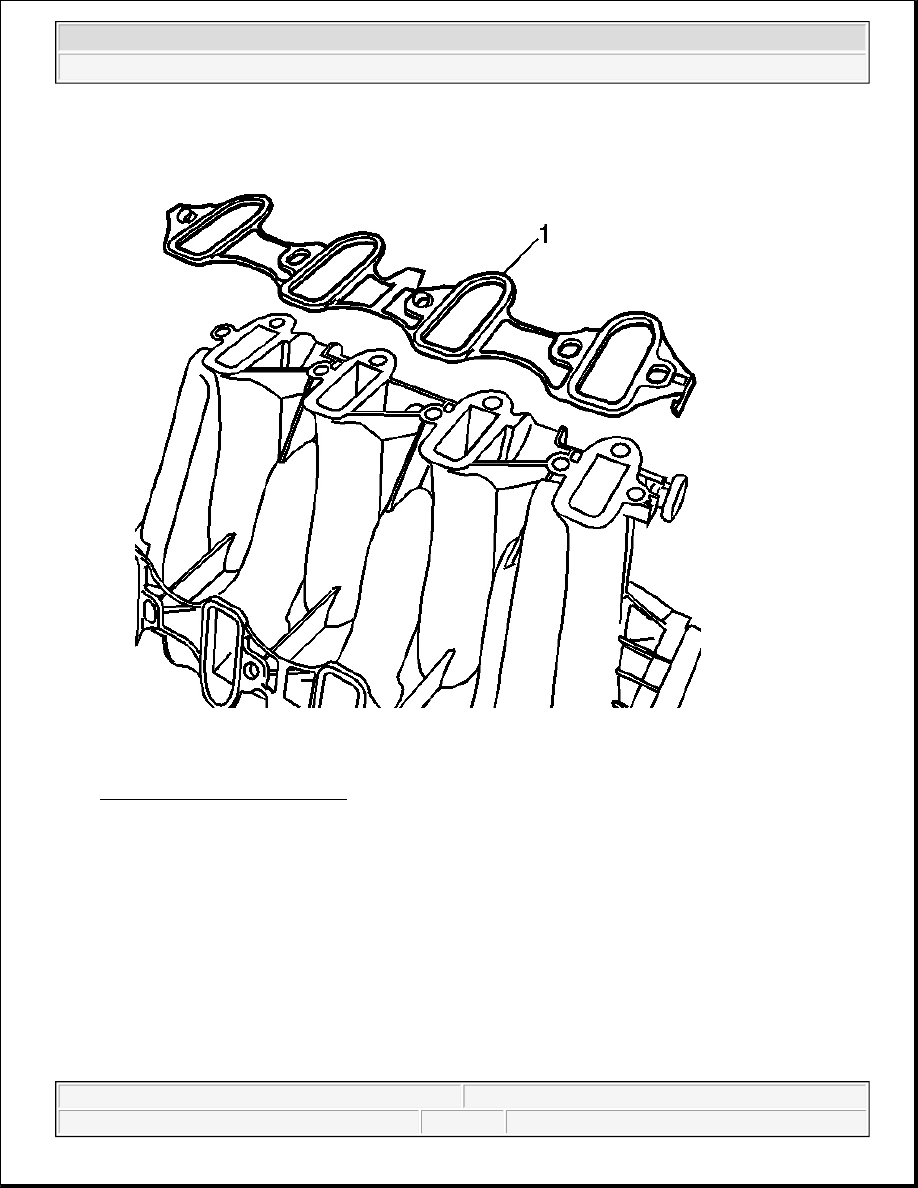

Fig. 61: Intake Manifold Gasket
Courtesy of GENERAL MOTORS CORP.

11. Remove the intake manifold gaskets (1) from the intake manifold.

12. Discard the old intake manifold gaskets.

13. Clean and inspect the intake manifold. Refer to Intake Manifold Cleaning and Inspection .

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Fig. 62: Intake Manifold Gasket
Courtesy of GENERAL MOTORS CORP.

1. Install new intake manifold gaskets (1) to the intake manifold.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Fig. 63: Intake Manifold
Courtesy of GENERAL MOTORS CORP.

2. Install the intake manifold.

3. Apply a 5 mm (0.20 in) band of threadlock GM U.S. P/N 12345382 (Canadian P/N 10953489) or

equivalent to the threads of the intake manifold bolts.
