2. Install the intake manifold sight shield to the retainer.

Tighten: Tighten the bolt to 10 N.m (89 lb in).

CRANKCASE VENTILATION HOSES/PIPES REPLACEMENT

Removal Procedure

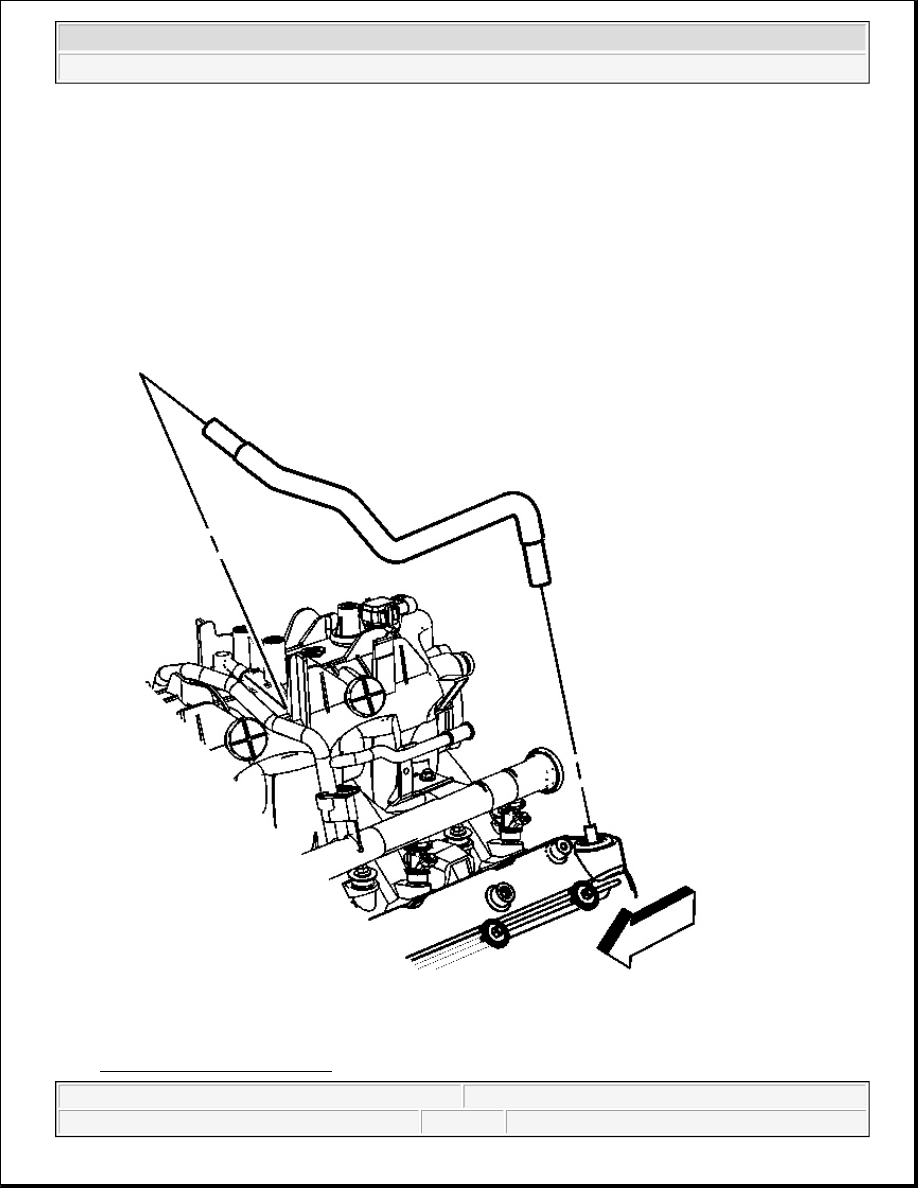

Fig. 52: Identifying PCV Hose



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Courtesy of GENERAL MOTORS CORP.

1. Remove the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) .

2. Remove the positive crankcase ventilation (PCV) hose from the intake manifold and valve rocker arm

cover.

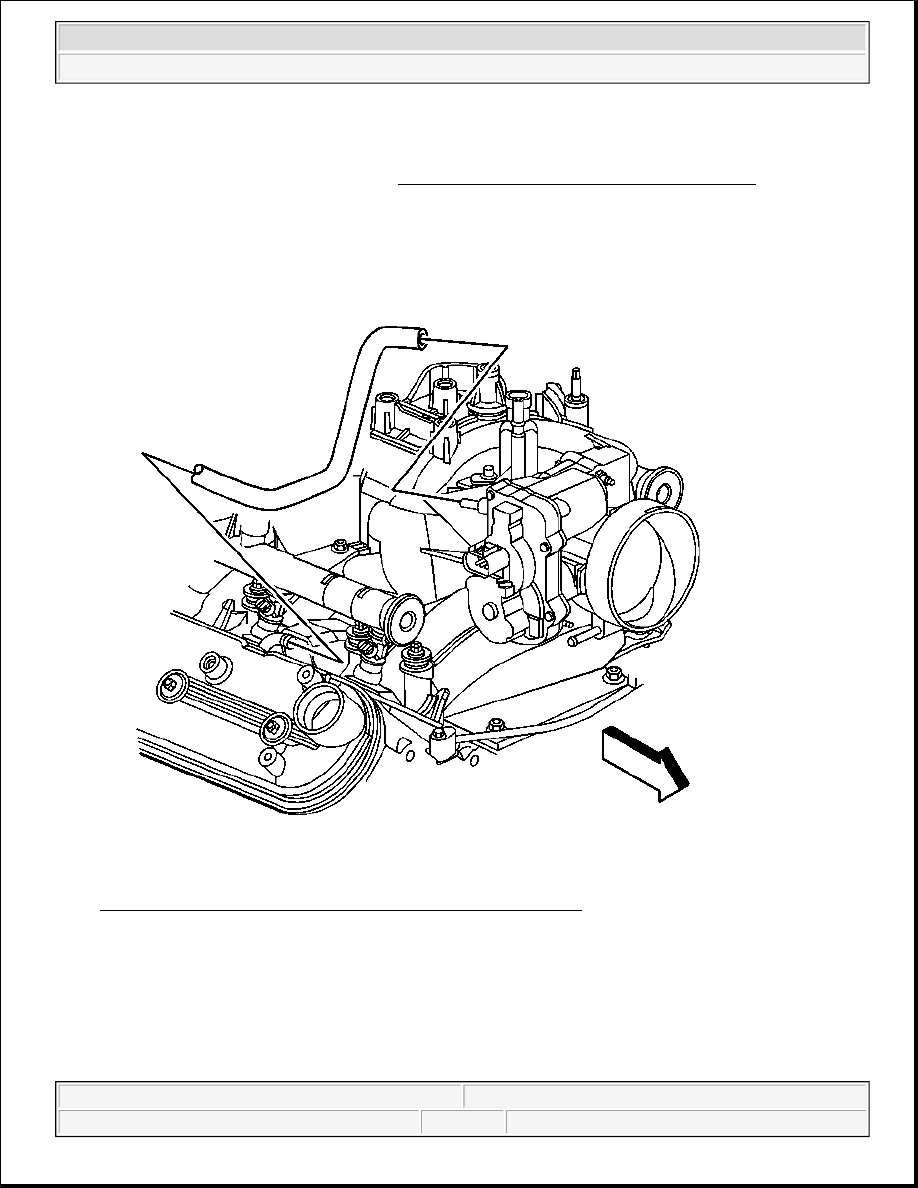

Fig. 53: Throttle Body To Valve Rocker Arm Cover PCV Hose
Courtesy of GENERAL MOTORS CORP.

3. Remove the vent hose from the throttle body and the valve rocker arm cover.

4. Replace the hose as necessary.

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



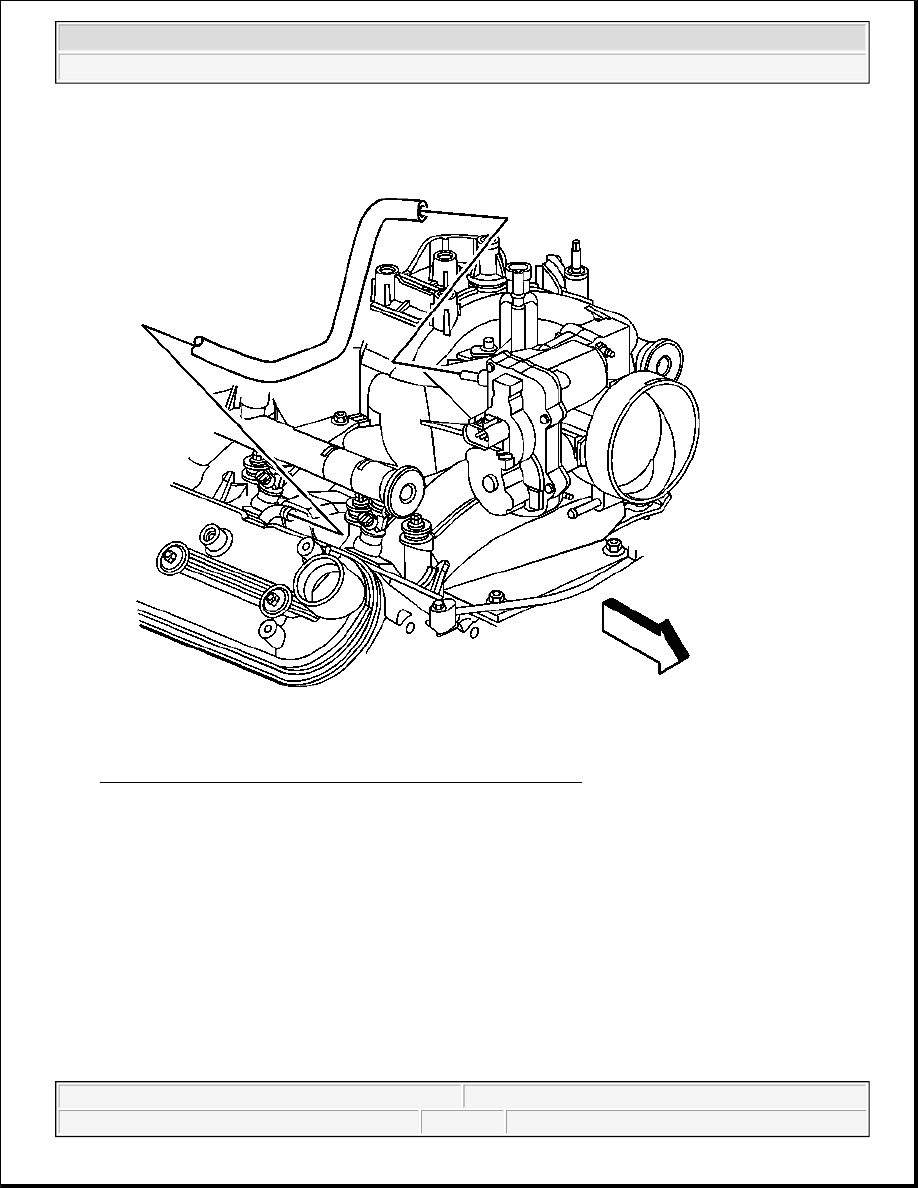

Fig. 54: Throttle Body To Valve Rocker Arm Cover PCV Hose
Courtesy of GENERAL MOTORS CORP.

1. Install the hose as necessary.

2. Install the vent hose to the throttle body and the valve rocker arm cover.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



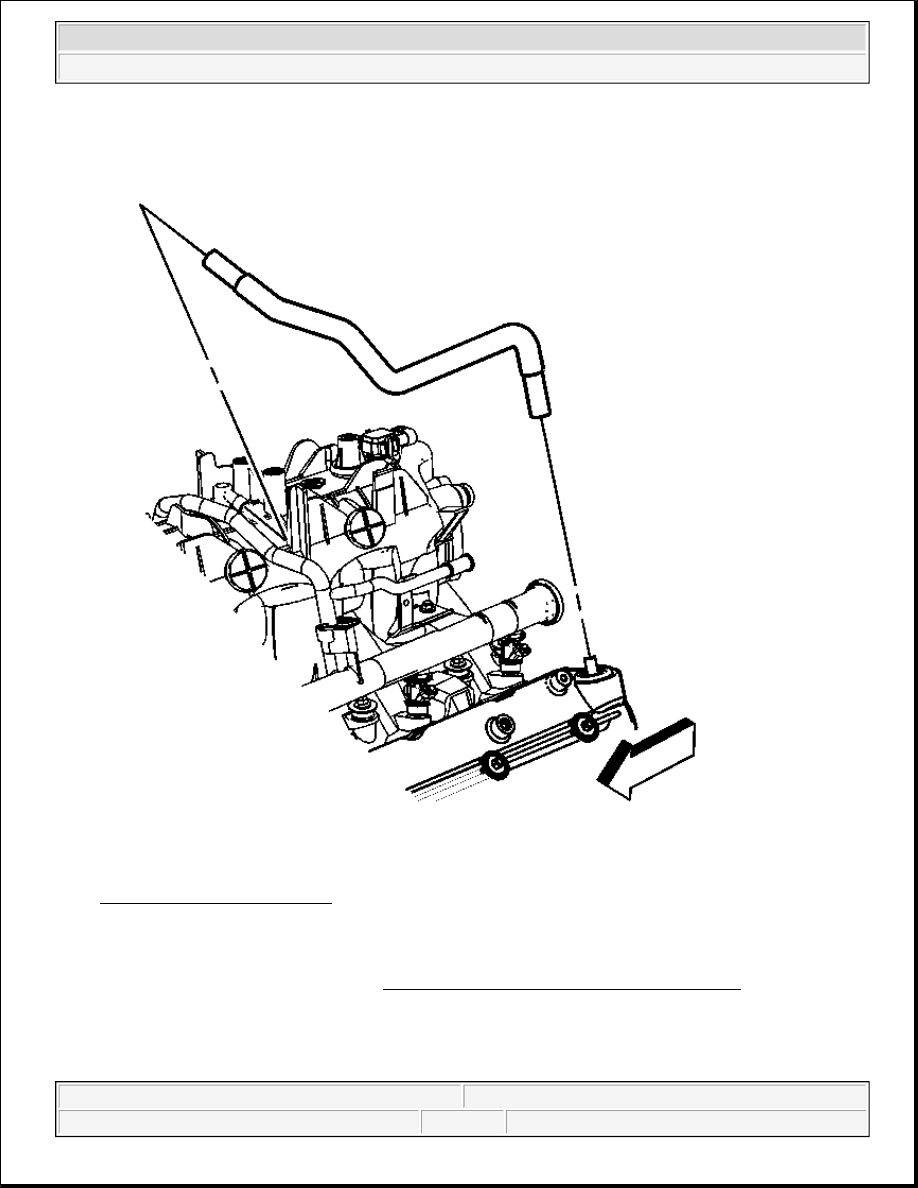

Fig. 55: Identifying PCV Hose
Courtesy of GENERAL MOTORS CORP.

3. Install the PCV hose to the intake manifold and valve rocker arm cover.

4. Install the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) .

INTAKE MANIFOLD REPLACEMENT

Removal Procedure
