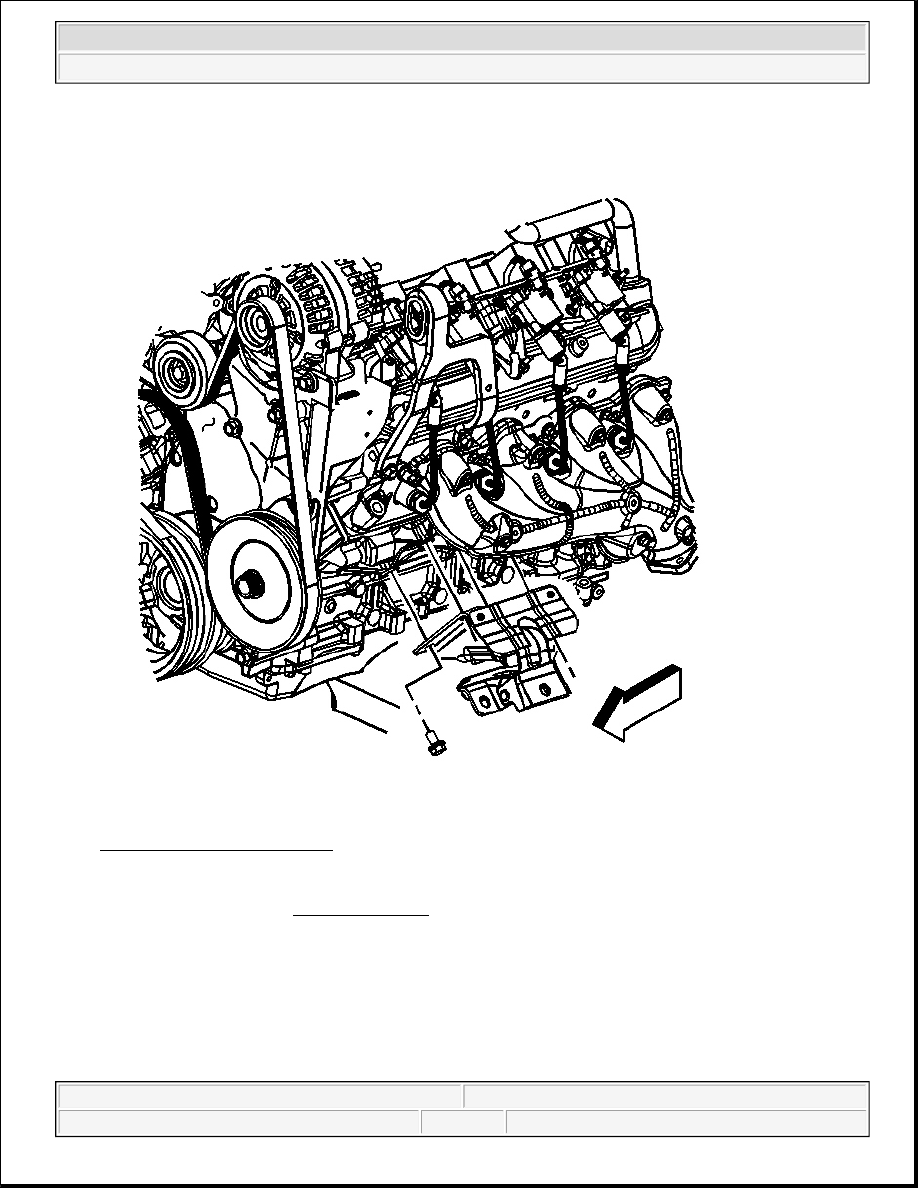

Fig. 45: Engine Mount (Right)
Courtesy of GENERAL MOTORS CORP.

1. Position the right engine mount to the engine. (Left side shown, right side similar).

2. Install the engine mount bolts.

Tighten: Tighten the engine mount bolts to 50 N.m (37 lb ft).

3. Lower the engine.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



4. Remove the adjustable jack stands.

5. Install the starter motor. Refer to Starter Motor Replacement in Engine Electrical.

6. Install the A/C compressor. Refer to Compressor Replacement in Heating, Ventilation, and Air

Conditioning.

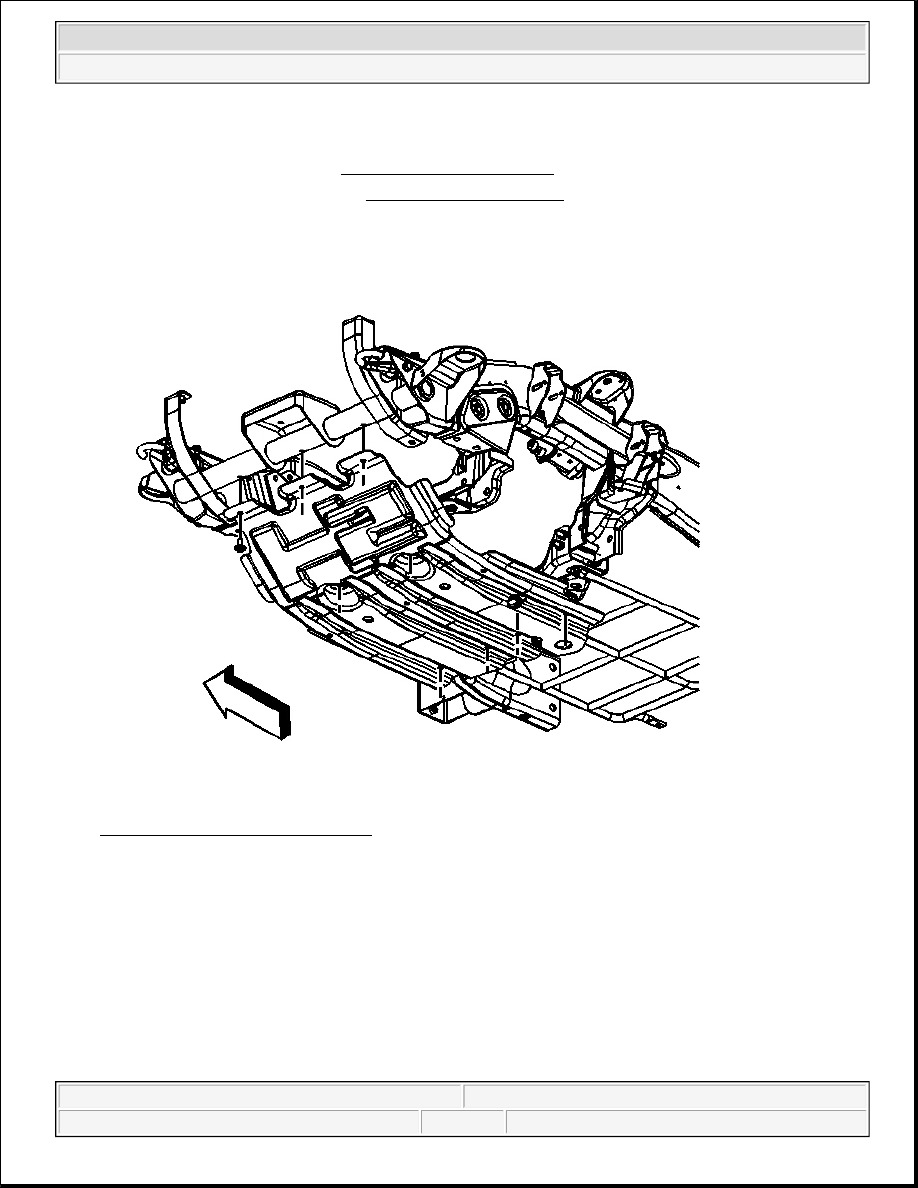

Fig. 46: Engine Shield Bolts (Right)
Courtesy of GENERAL MOTORS CORP.

7. Position the engine shield to the vehicle.

8. Install the engine shield bolts.

Tighten: Tighten the engine shield bolts to 30 N.m (22 lb ft).

9. Lower the vehicle.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



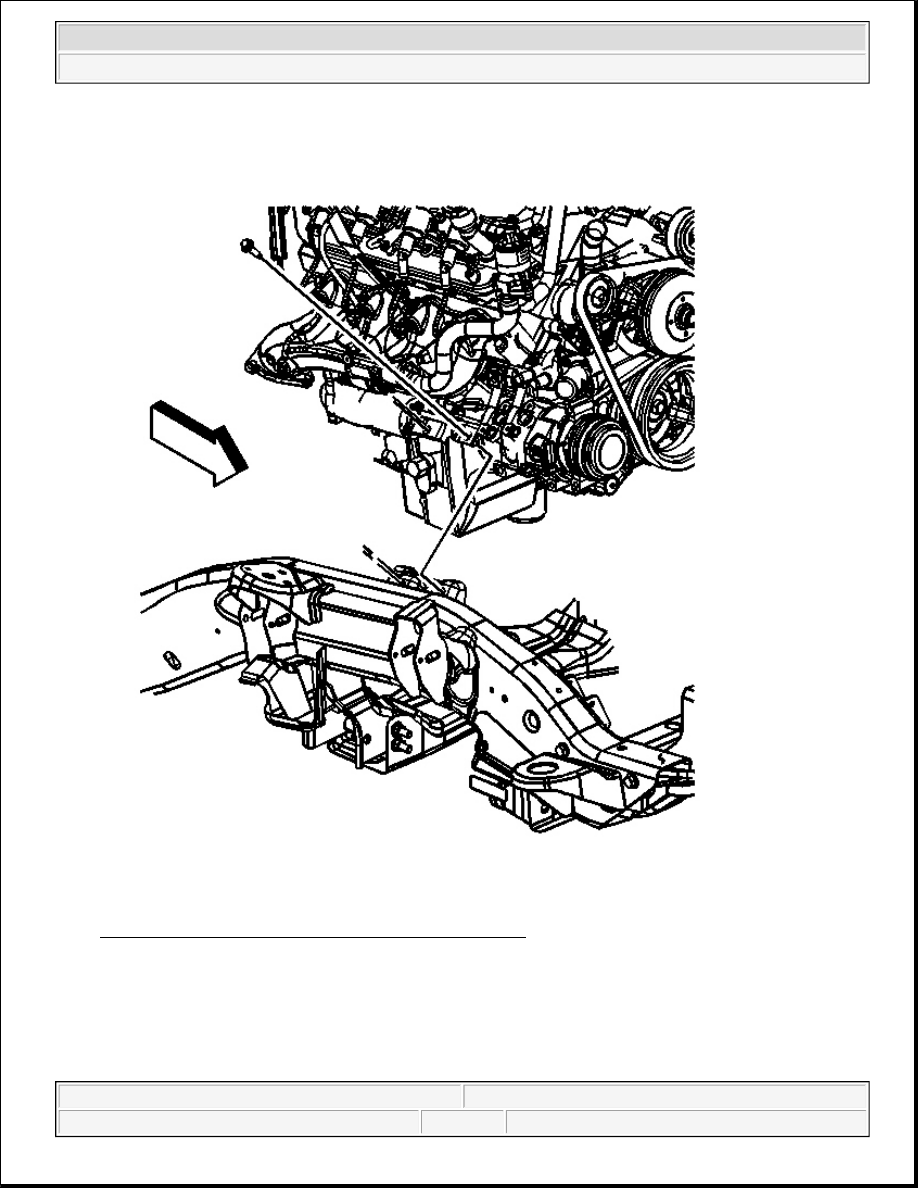

Fig. 47: Engine Mount-To-Frame Bracket Bolts (Right)
Courtesy of GENERAL MOTORS CORP.

10. Install the engine mount-to-frame bracket bolts.

Tighten: Tighten the engine mount-to-frame bracket bolts to 65 N.m (48 lb ft).

ENGINE MOUNT BRACKET REPLACEMENT - RIGHT



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Removal Procedure

Fig. 48: Engine Mount Bracket (Right)
Courtesy of GENERAL MOTORS CORP.

1. Remove the engine mount. Refer to Engine Mount Replacement - Right .

2. Remove the engine mount bracket bolts.

3. Remove the engine mount bracket.

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2
