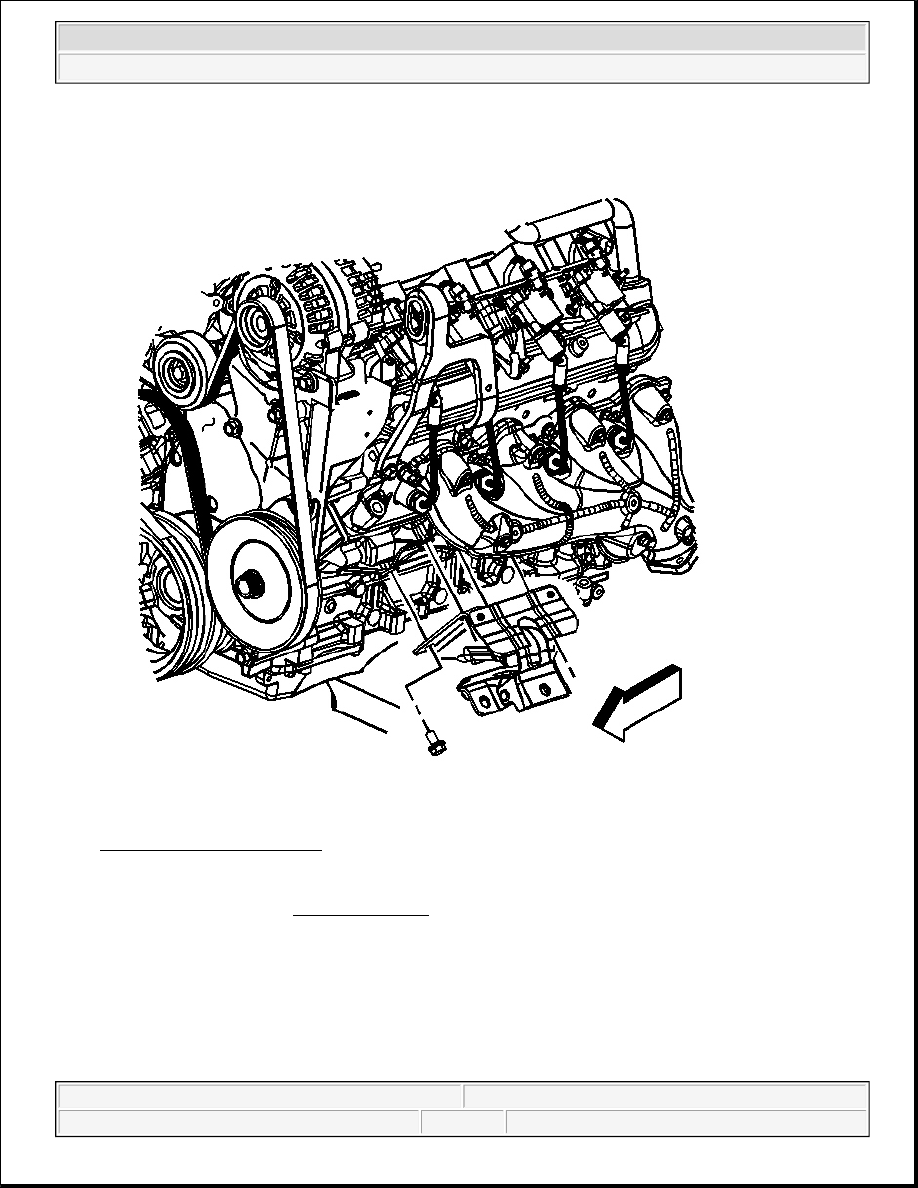

Fig. 37: Engine Mount (Left)
Courtesy of GENERAL MOTORS CORP.

1. Position the engine mount to the engine.

2. Install the engine mount bolts.

Tighten: Tighten the engine mount bolts to 50 N.m (37 lb ft).

3. Lower the engine.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



4. Remove the adjustable jack stands.

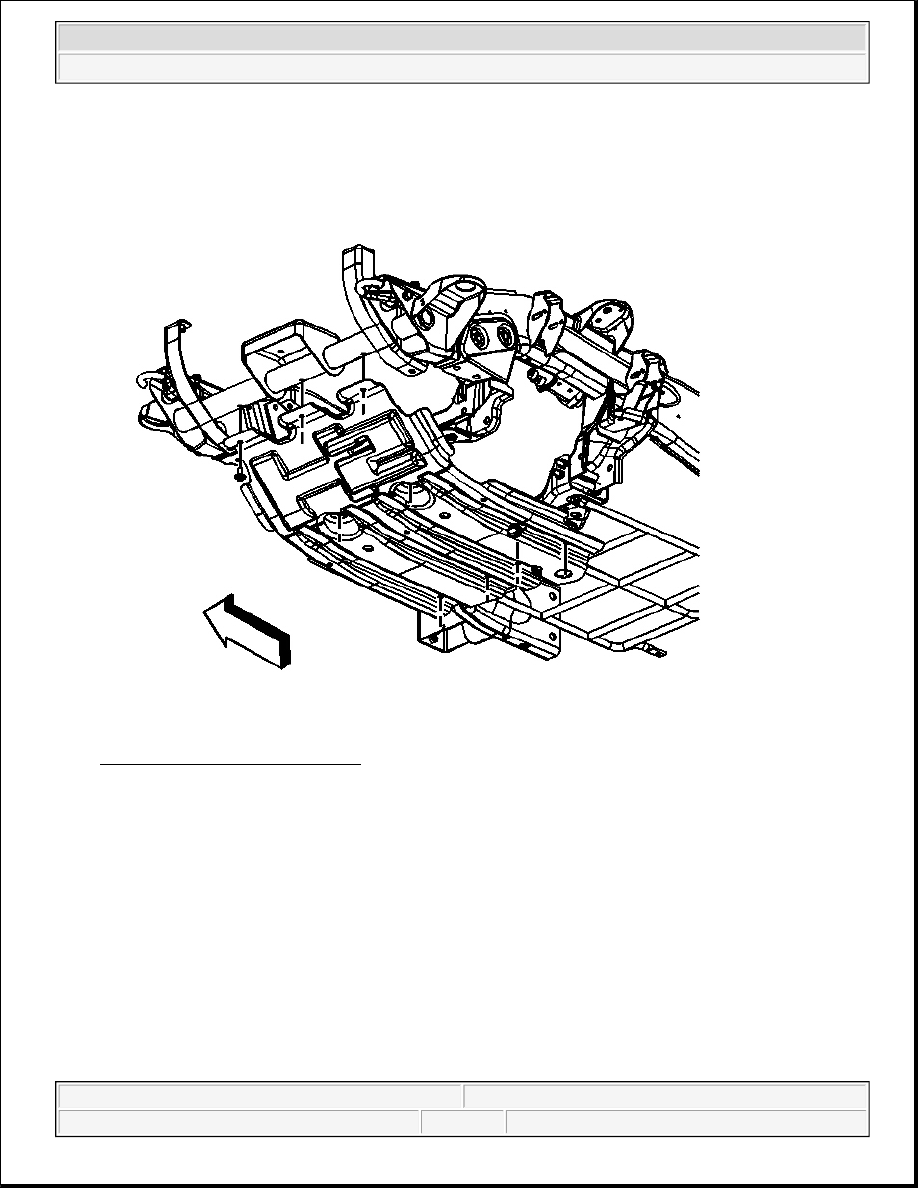

Fig. 38: Engine Shield Bolts (Left)
Courtesy of GENERAL MOTORS CORP.

5. Position the engine shield to the vehicle.

6. Install the engine shield bolts.

Tighten: Tighten the engine shield bolts to 30 N.m (22 lb ft).

7. Lower the vehicle.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



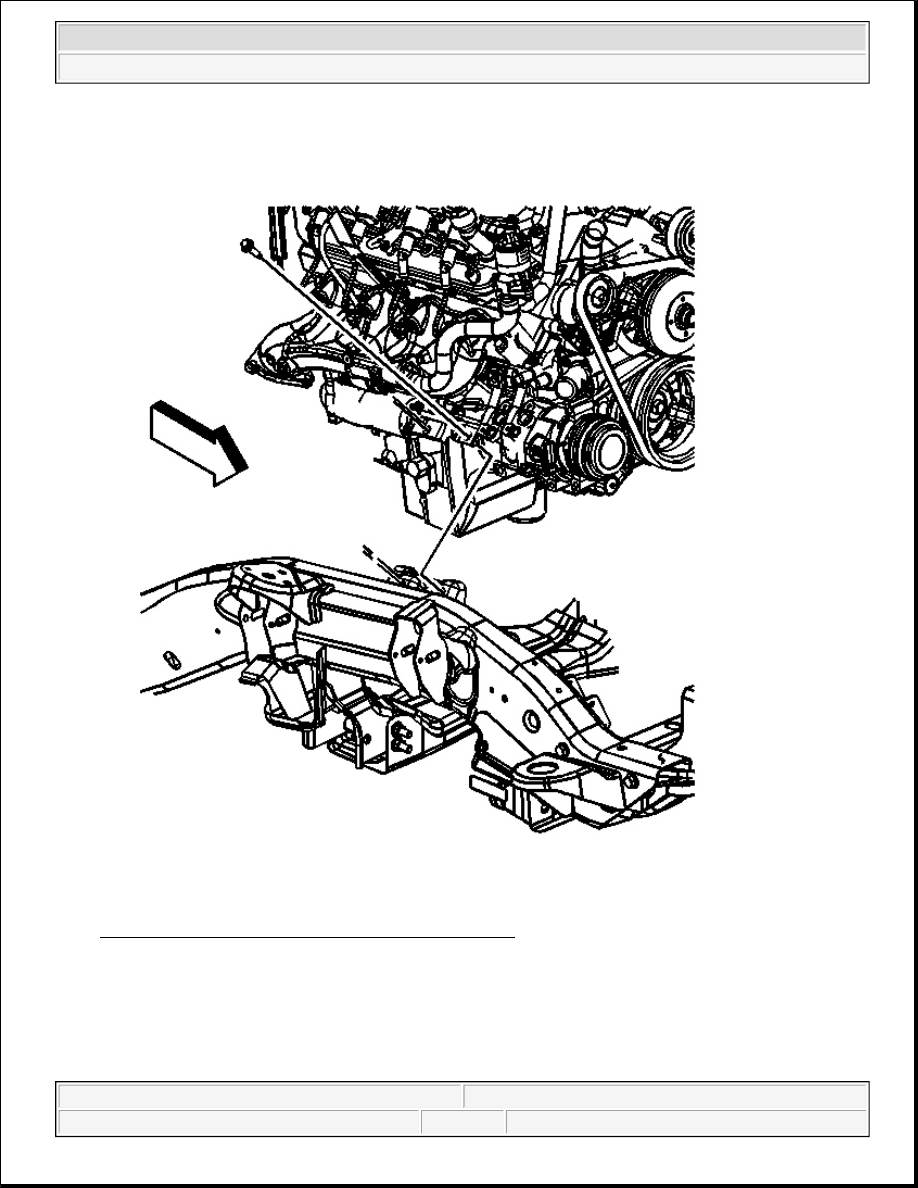

Fig. 39: Engine Mount-To-Frame Bracket Bolts (Left)
Courtesy of GENERAL MOTORS CORP.

8. Install the engine mount-to-frame bracket bolts. (Right side shown, left side similar).

Tighten: Tighten the engine mount-to-frame bracket bolts to 65 N.m (48 lb ft).

ENGINE MOUNT BRACKET REPLACEMENT - LEFT



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



Removal Procedure

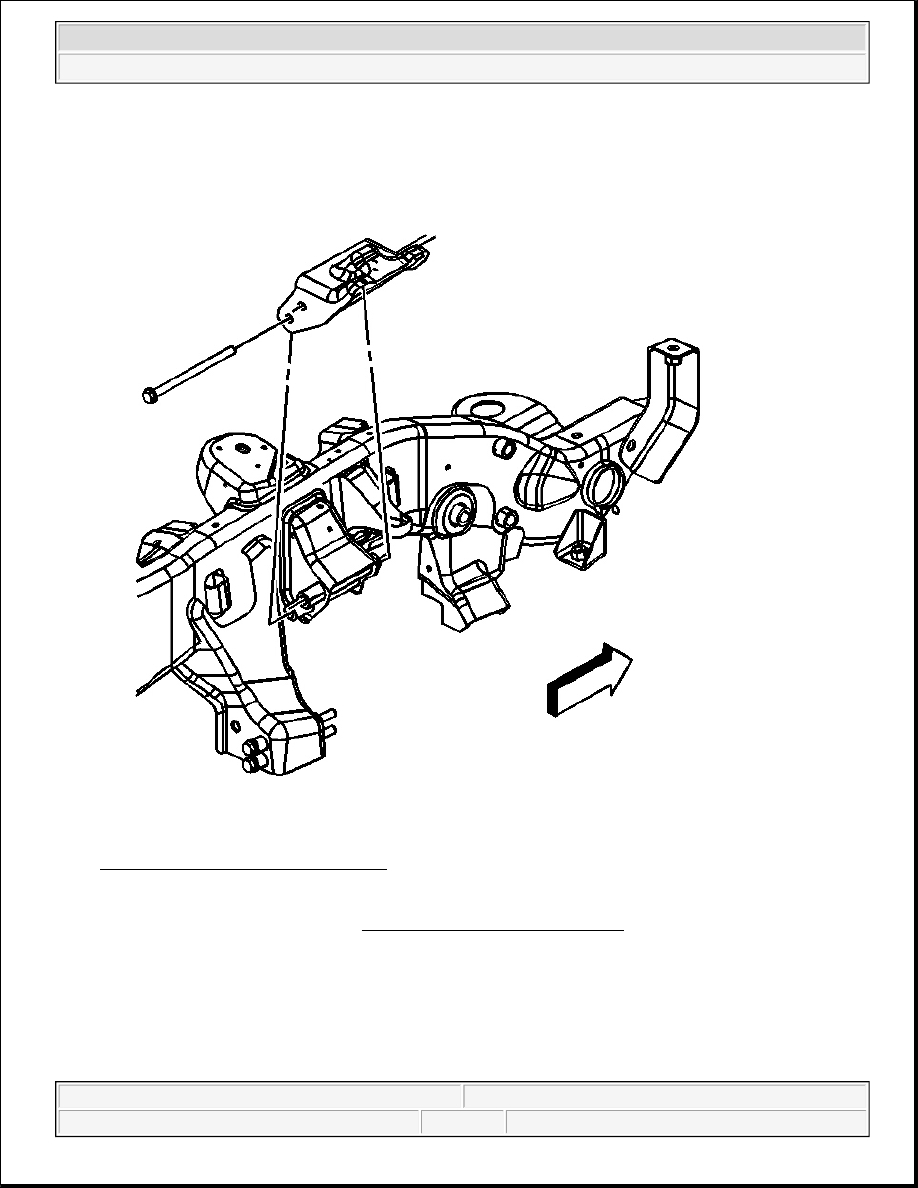

Fig. 40: Engine Mount Bracket (Left)
Courtesy of GENERAL MOTORS CORP.

1. Remove the engine mount. Refer to Engine Mount Replacement - Left .

2. Remove the engine mount bracket bolts.

3. Remove the engine mount bracket.

Installation Procedure
