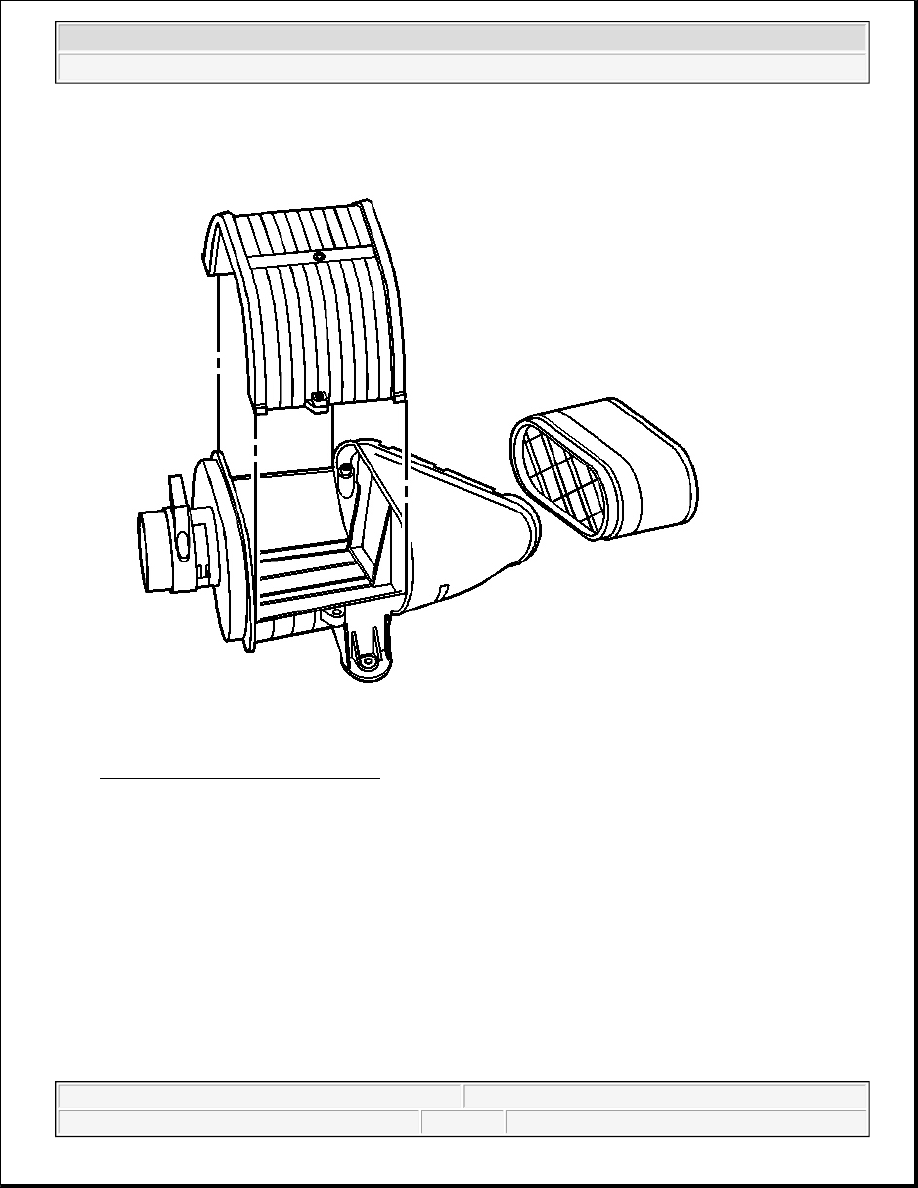

Fig. 183: Air Filter/Cleaner Element
Courtesy of GENERAL MOTORS CORP.

1. Loosen the 2 fasteners securing the air cleaner housing top cover.

2. Lift and rotate the top cover of the air cleaner housing to gain access to the air filter element.

3. Lift out the air filter element.

4. Inspect the air filter element for dust, dirt, or water. Clean or replace the air filter element if required.

Installation Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

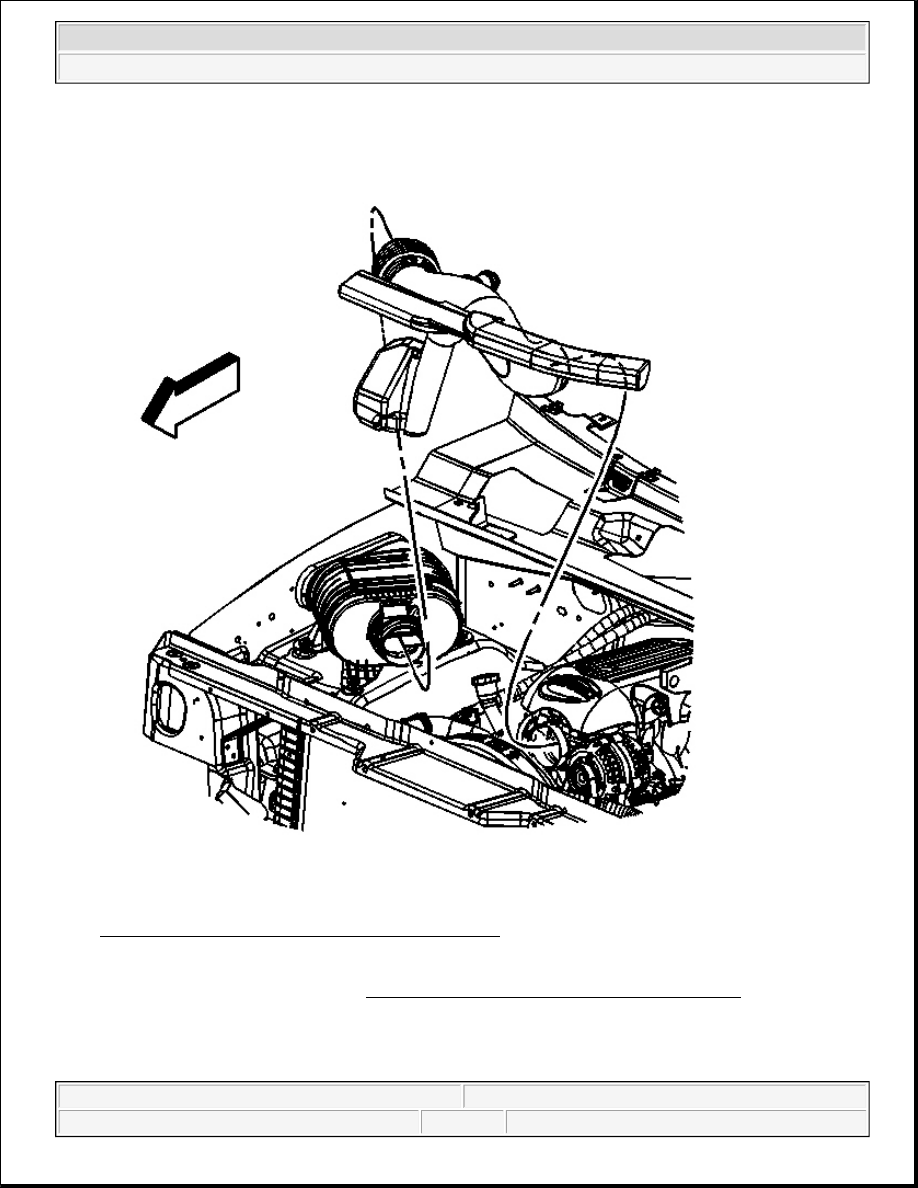

Fig. 184: Air Filter/Cleaner Element
Courtesy of GENERAL MOTORS CORP.

1. Install the air filter element into the air cleaner housing.

2. Rotate and install the top cover to the air cleaner housing.

3. Insert the fasteners to secure the top cover.

AIR CLEANER ASSEMBLY REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



Fig. 185: MAF/IAT Sensor & Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.

1. Remove the air intake duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .

2. Disconnect the mass air flow/intake air temperature (MAF/IAT) sensor connector.

3. Loosen the clamp securing the MAF/IAT sensor to the air cleaner assembly.

4. Remove the MAF/IAT sensor.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

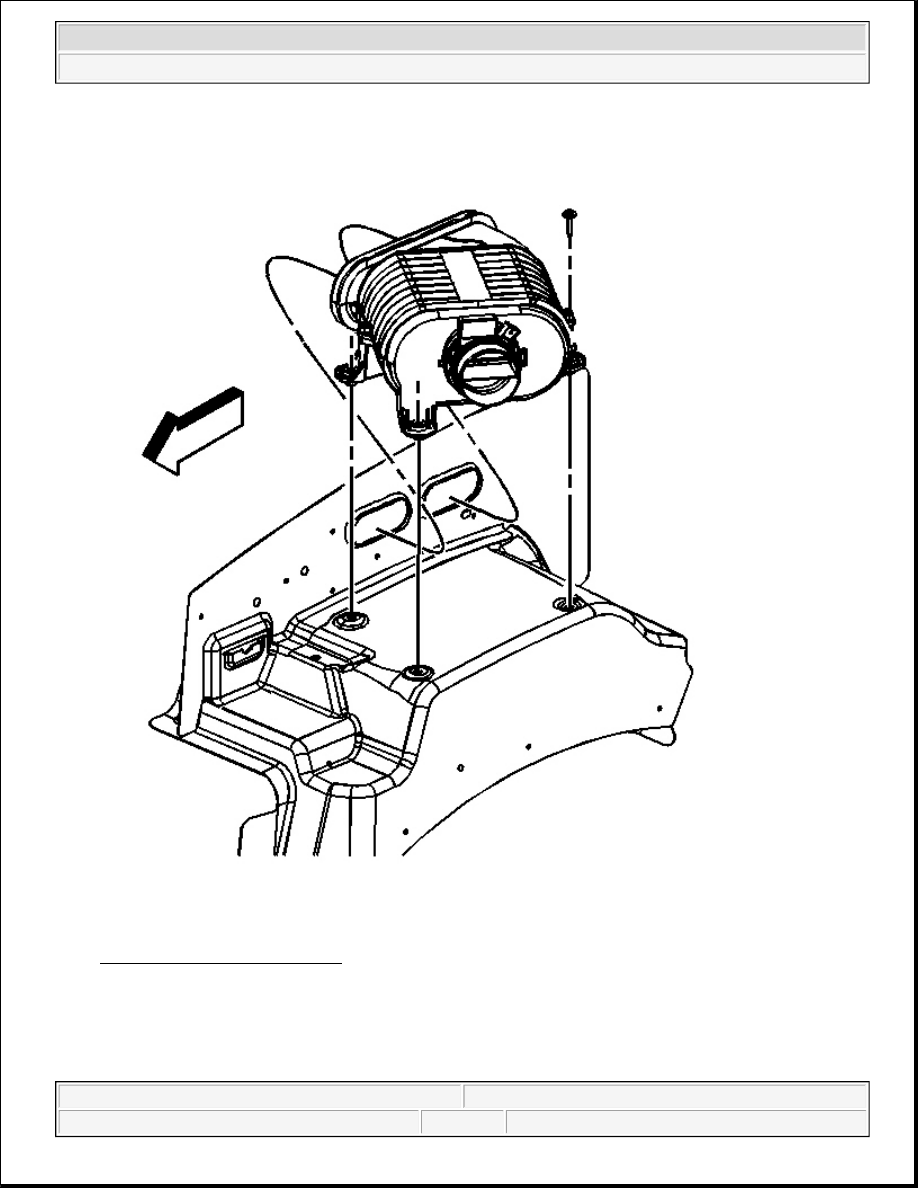

Fig. 186: Air Cleaner Assembly
Courtesy of GENERAL MOTORS CORP.

5. Remove the air cleaner housing fasteners.

6. Remove the air cleaner assembly.
