Tighten: Tighten the bolt to 25 N.m (18 lb ft).

3. Connect the CMP sensor electrical connector.

4. Install the engine sight shield. Refer to Engine Sight Shield Replacement (6.0L (LQ4)) in Engine

Mechanical 6.0L.

KNOCK SENSOR (KS) REPLACEMENT

Removal Procedure

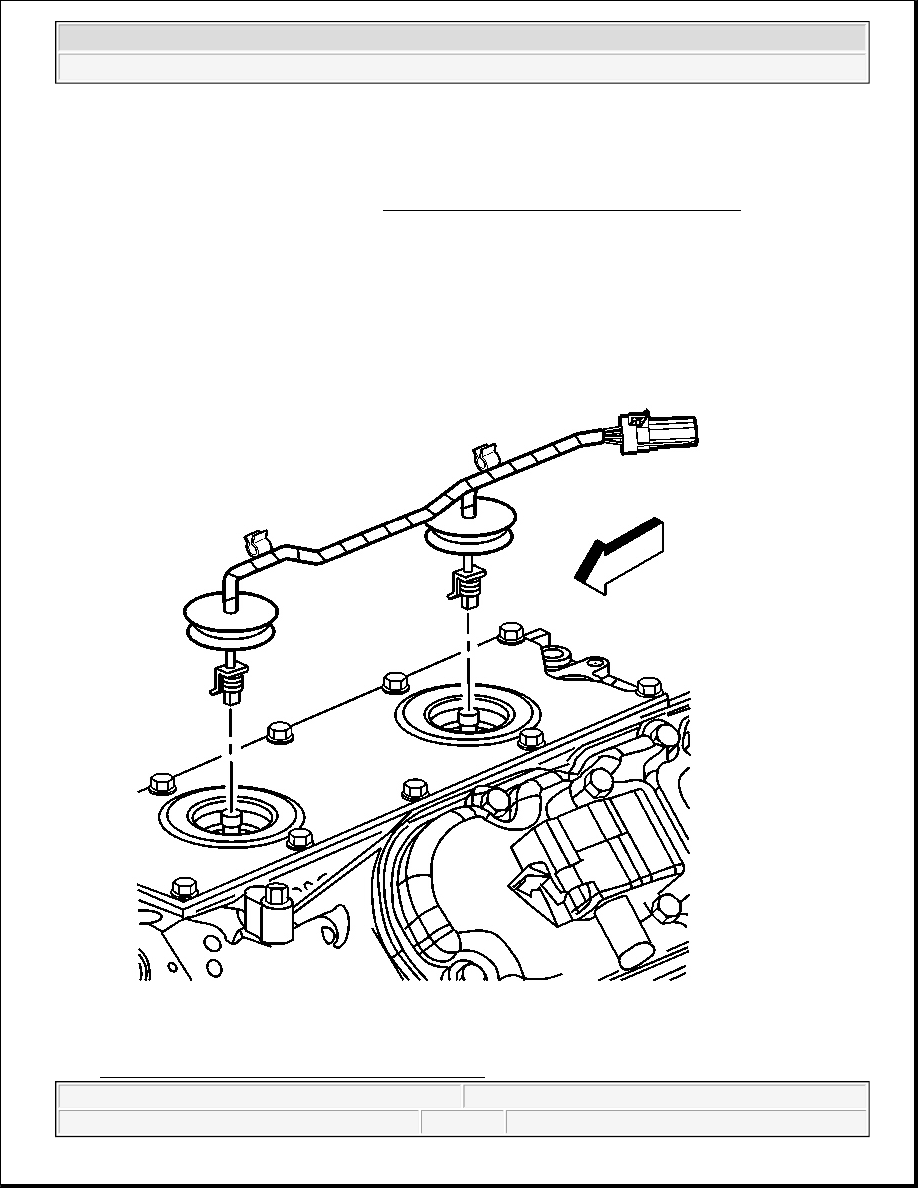

Fig. 179: Knock Sensor Wiring Harness Assembly



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



Courtesy of GENERAL MOTORS CORP.

1. Remove the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical.

2. Remove the knock sensor wiring harness assembly.

Fig. 180: Identifying Knock Sensors
Courtesy of GENERAL MOTORS CORP.

3. Remove the knock sensor (KS).

Installation Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

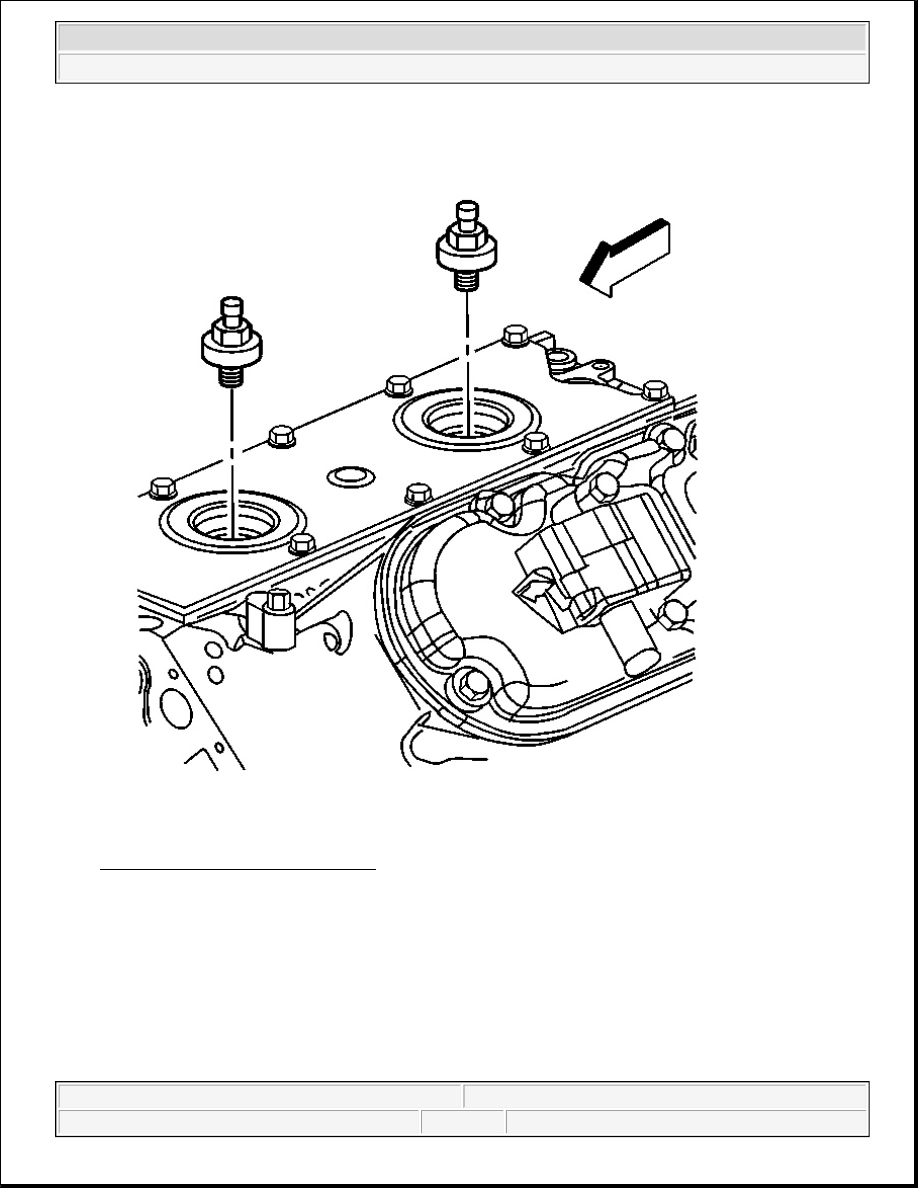

Fig. 181: Identifying Knock Sensors
Courtesy of GENERAL MOTORS CORP.

1. Install the knock sensor.

Tighten: Torque the sensor to 20 N.m (15 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

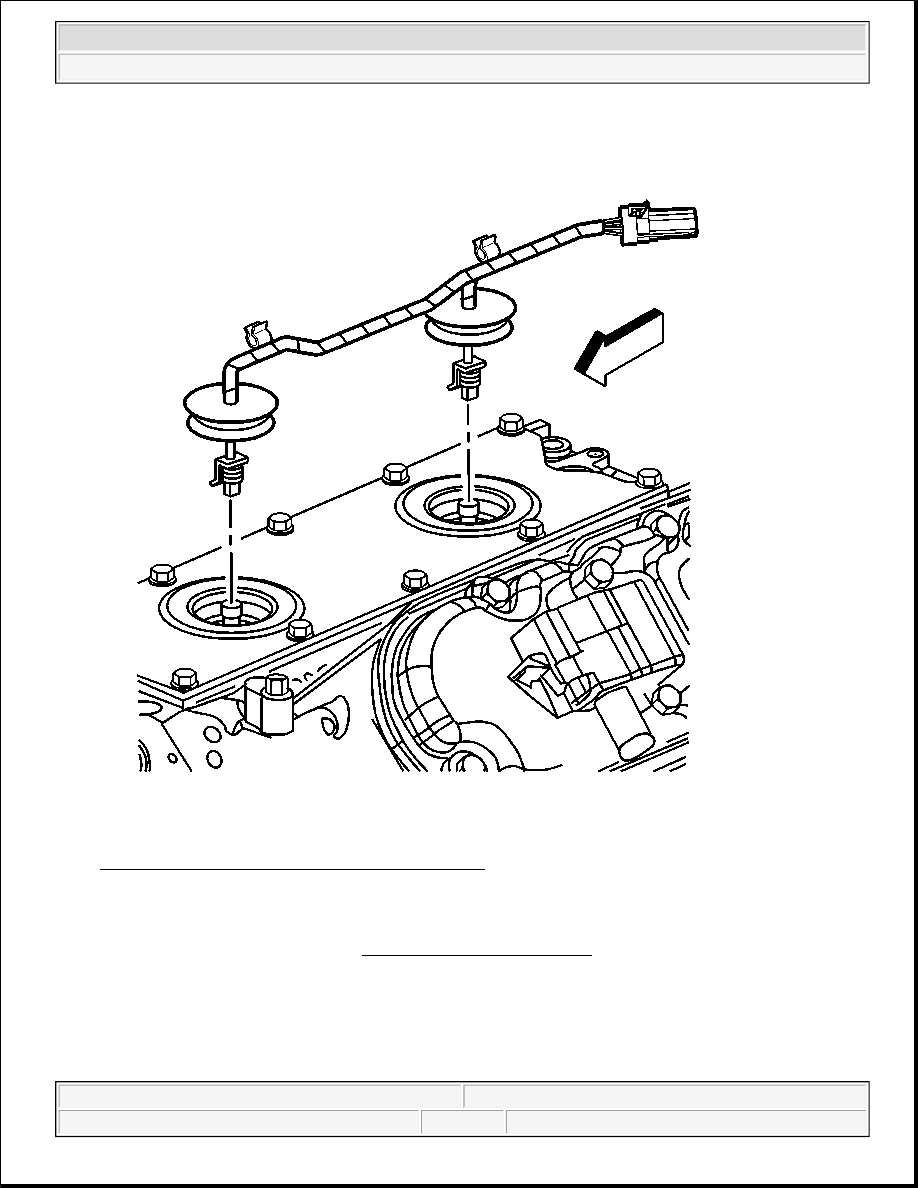

Fig. 182: Knock Sensor Wiring Harness Assembly
Courtesy of GENERAL MOTORS CORP.

2. Install the knock sensor wiring harness assembly.

3. Install the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical.

AIR CLEANER ELEMENT REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2
