Twist each spark plug 1/2 turn.

z

Pull only on the boot in order to remove the wire from each spark plug.

2. Disconnect the spark plug wire from the ignition coil.

z

Twist each spark plug boot 1/2 turn.

z

Pull only on the boot in order to remove the wires from the ignition coil.

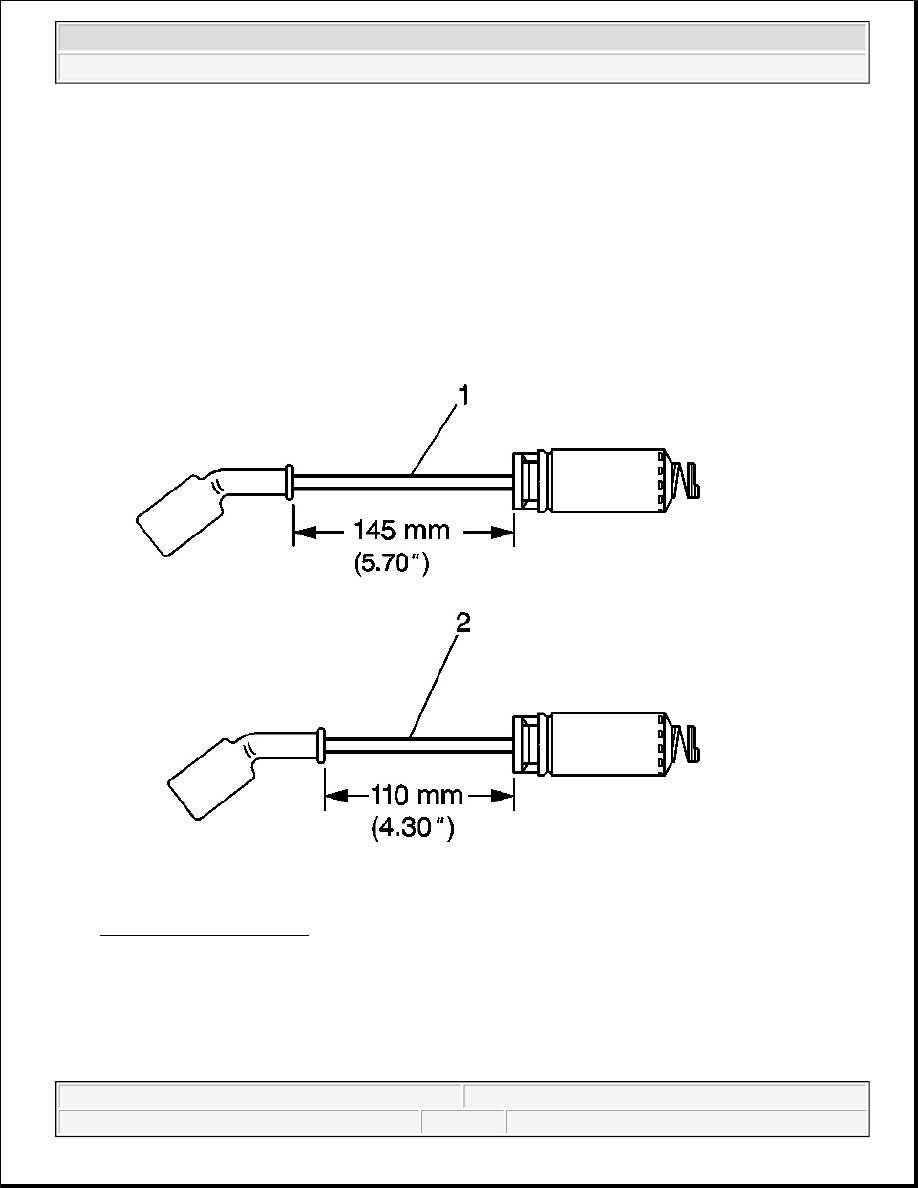

Spark Plug Wire Length V8

Fig. 161: Spark Plug Wires
Courtesy of GENERAL MOTORS CORP.

z

The Melco(R), square design, uses a spark plug wire (1) that is 145 mm (5.70 in) length cable seal to
cable seal.

z

The Delphi(R), round design uses a spark plug wire (2) that is 110 mm (4.30 in) length cable seal to cable
seal.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

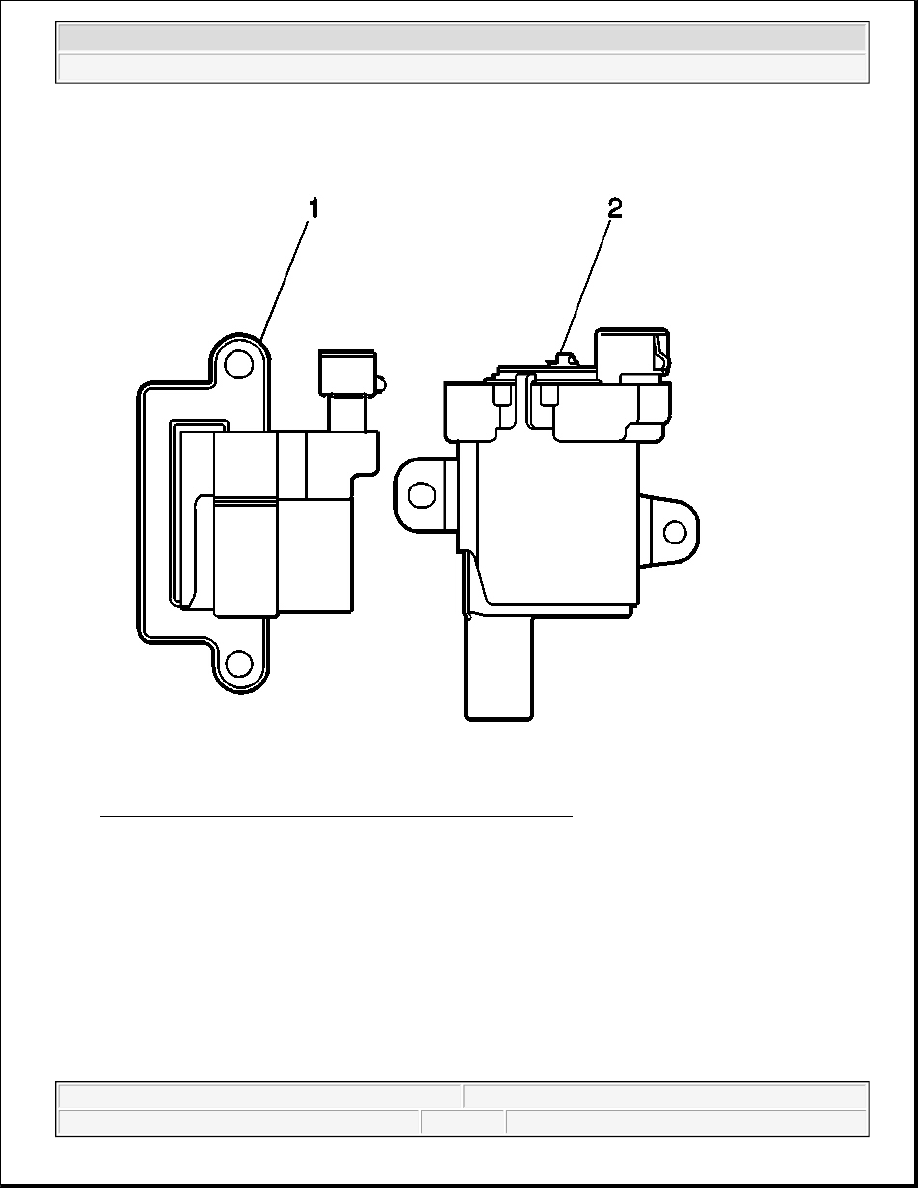

Fig. 162: Melco(R) Square Design & Delphi(R) Round Design
Courtesy of GENERAL MOTORS CORP.

z

There are 2 different manufacturers for the ignition coils. the Melco(R) (1) square design, and the Delphi
(R) (2) round design. These 2 coils use 2 different spark plug wire, and mounting brackets.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

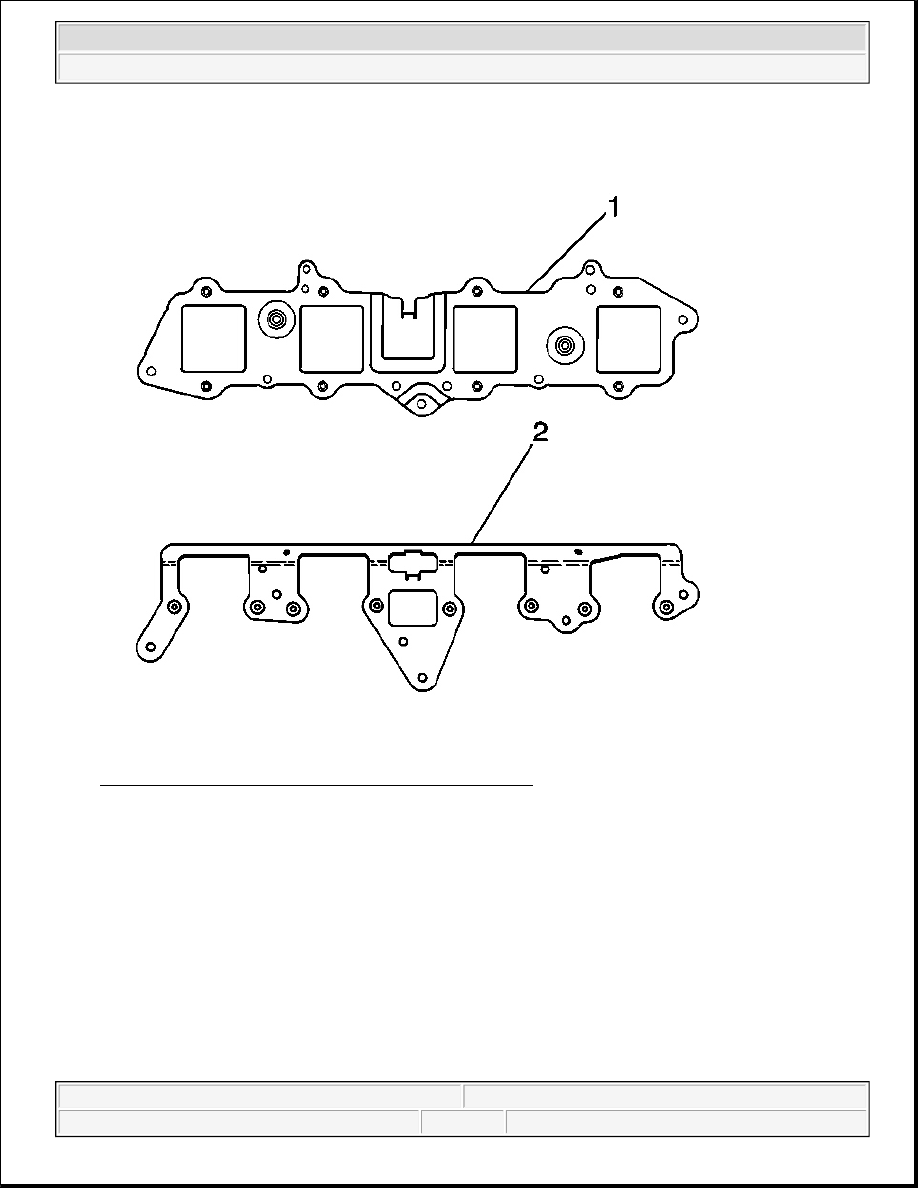

Fig. 163: Melco(R) & Delphi(R) Coil Mounting Brackets
Courtesy of GENERAL MOTORS CORP.

z

Melco(R), square design, coil mounting bracket (1).

z

Delphi(R), round design, coil mounting bracket (2).

Installation Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

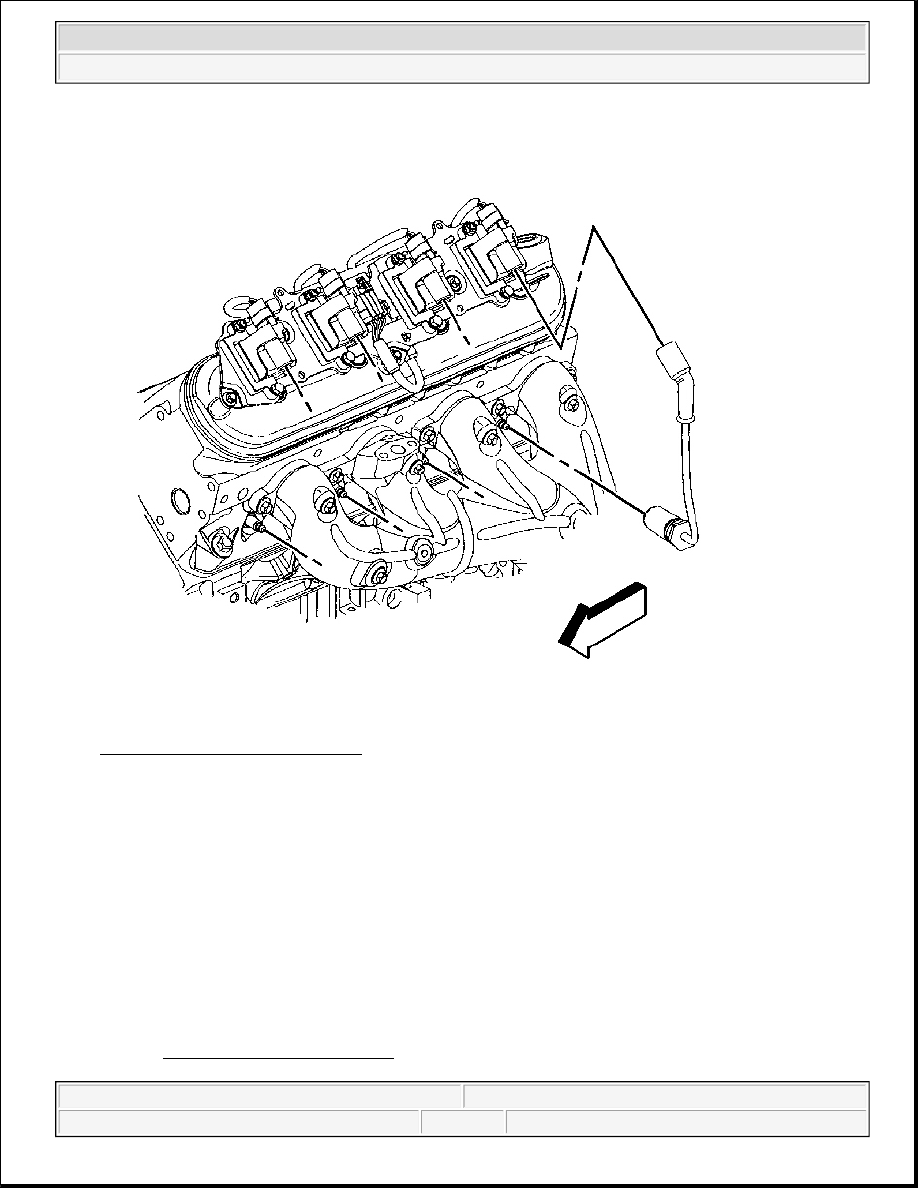

Fig. 164: Spark Plug Wire & Boot
Courtesy of GENERAL MOTORS CORP.

1. Install the spark plug wires at the ignition coil.

2. Install the spark plug wire to each spark plug.

3. Inspect the wires for proper installation:

z

Push sideways on each boot in order to inspect the seating.

z

Reinstall any loose boot.

SPARK PLUG INSPECTION

Spark Plug Usage

z

Verify that the correct spark plug is installed. An incorrect spark plug causes driveability conditions.
Refer to Ignition System Specifications for the correct spark plug.
