Fig. 153: Ignition Coil Harness Connector
Courtesy of GENERAL MOTORS CORP.

2. Disconnect the ignition coil harness connector.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

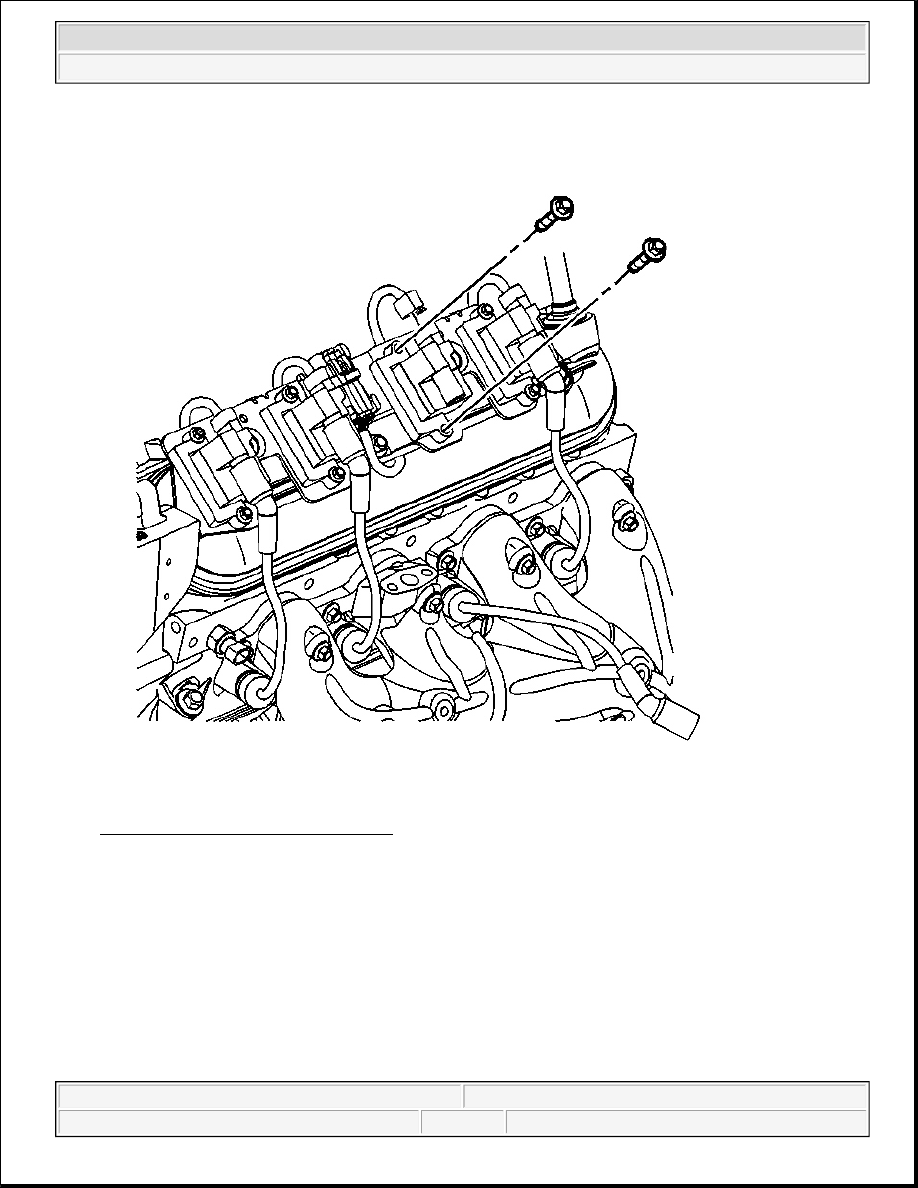

Fig. 154: Ignition Coil Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

3. Remove the ignition coil mounting bolts.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

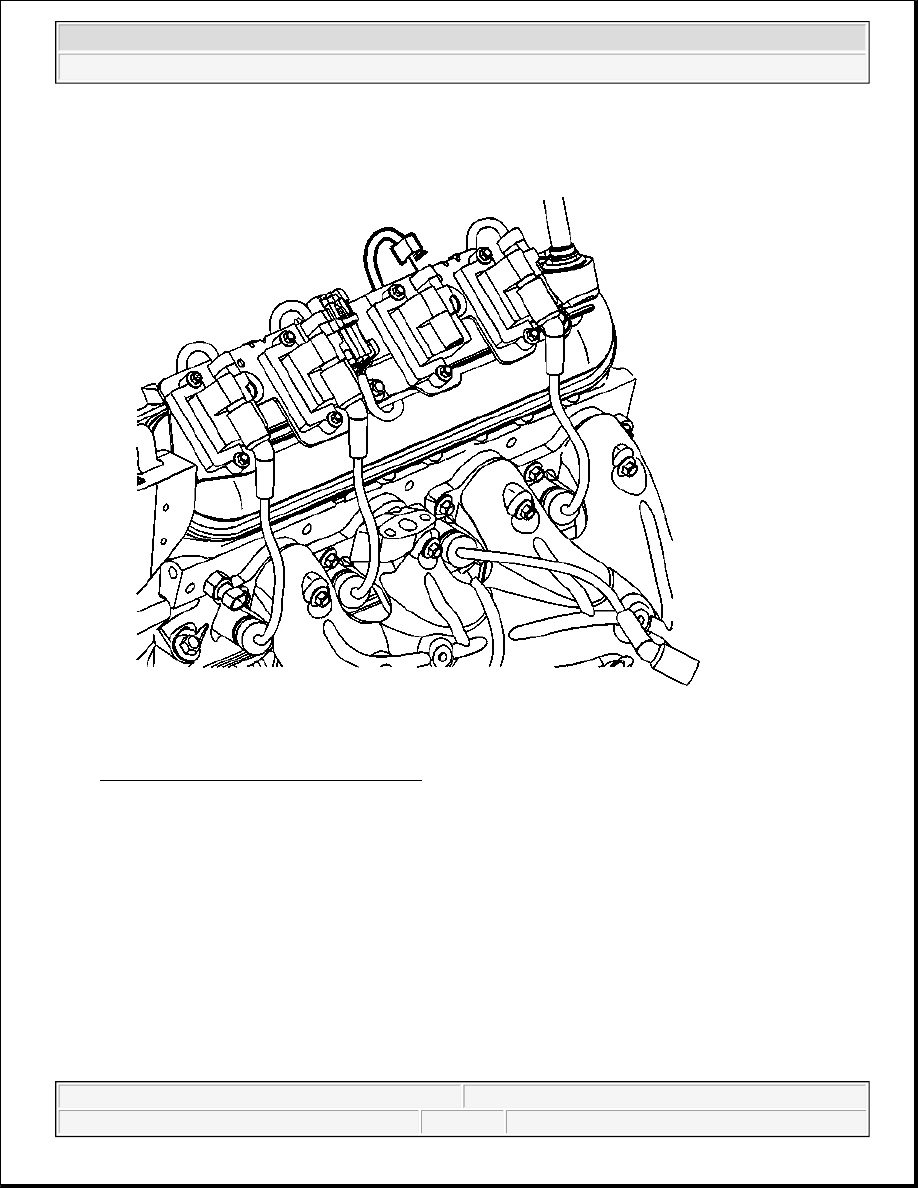

Fig. 155: View Of Ignition Coil
Courtesy of GENERAL MOTORS CORP.

4. Remove the ignition coil.

Installation Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

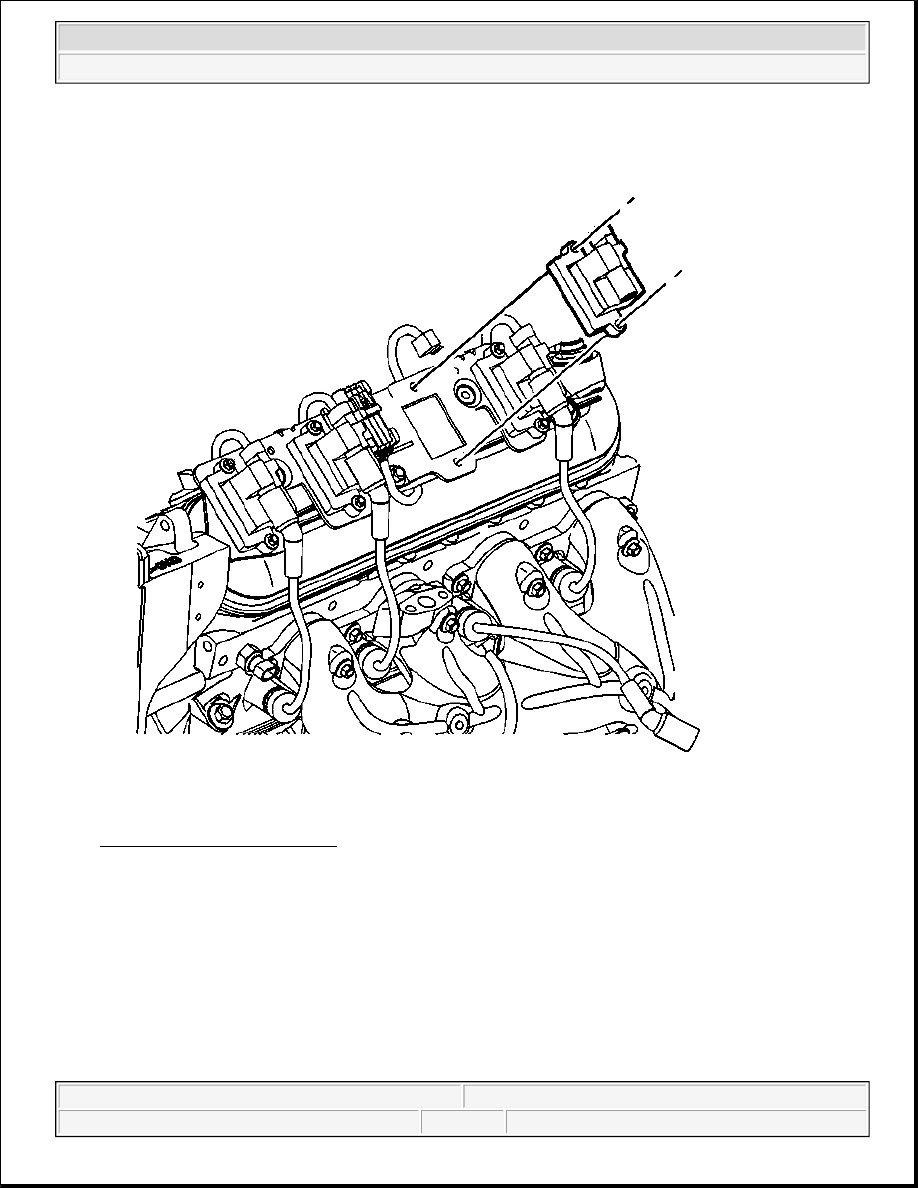

Fig. 156: View Of Ignition Coil
Courtesy of GENERAL MOTORS CORP.

1. Install the ignition coil to the bracket.
