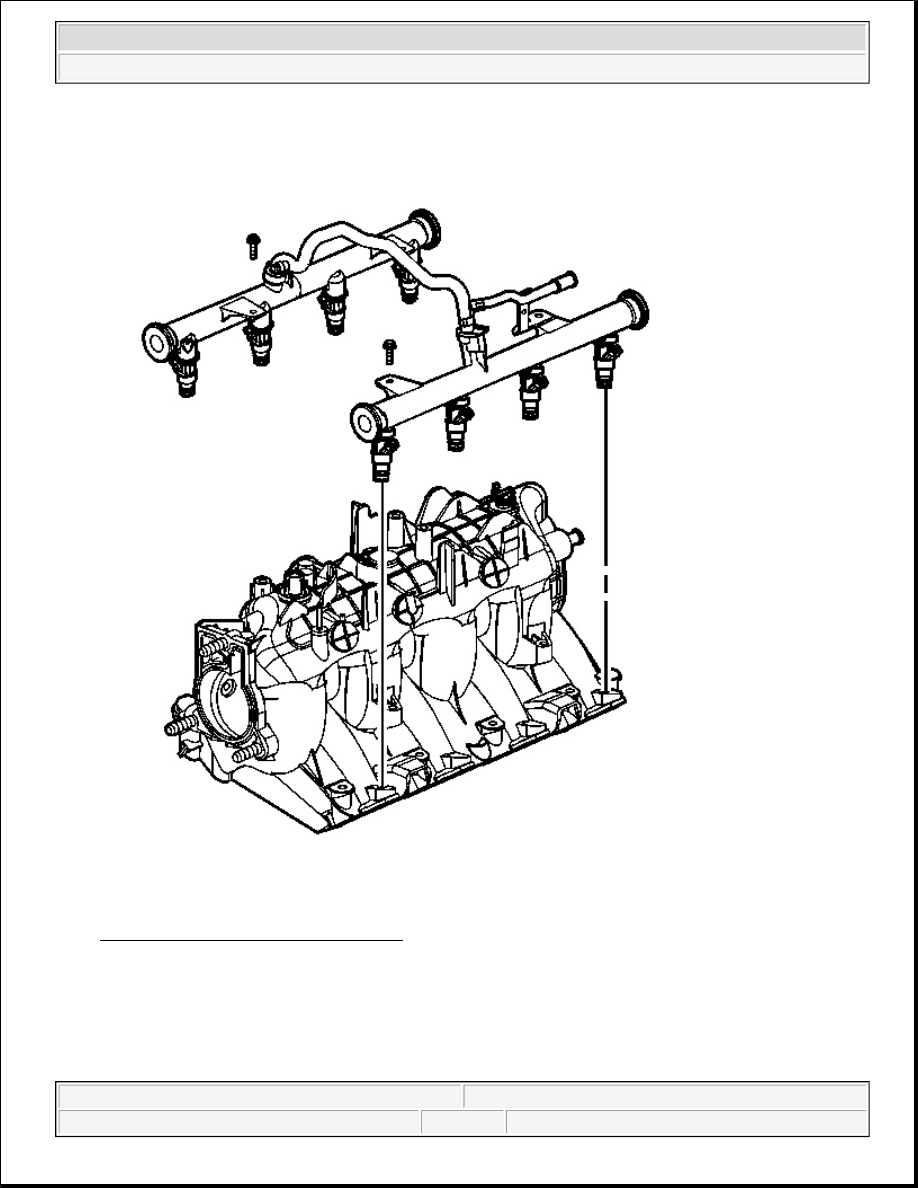

Fig. 115: View Of Fuel Rail & Injectors
Courtesy of GENERAL MOTORS CORP.

3. Install the fuel rail.

4. Apply a 5 mm (0.2 in) band of threadlock GM P/N 12345382 (Canadian P/N 10953489), or equivalent to

the threads of the fuel rail bolts.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



5. Install the fuel rail bolts.

Tighten: Tighten the bolts to 10 N.m (89 lb in).

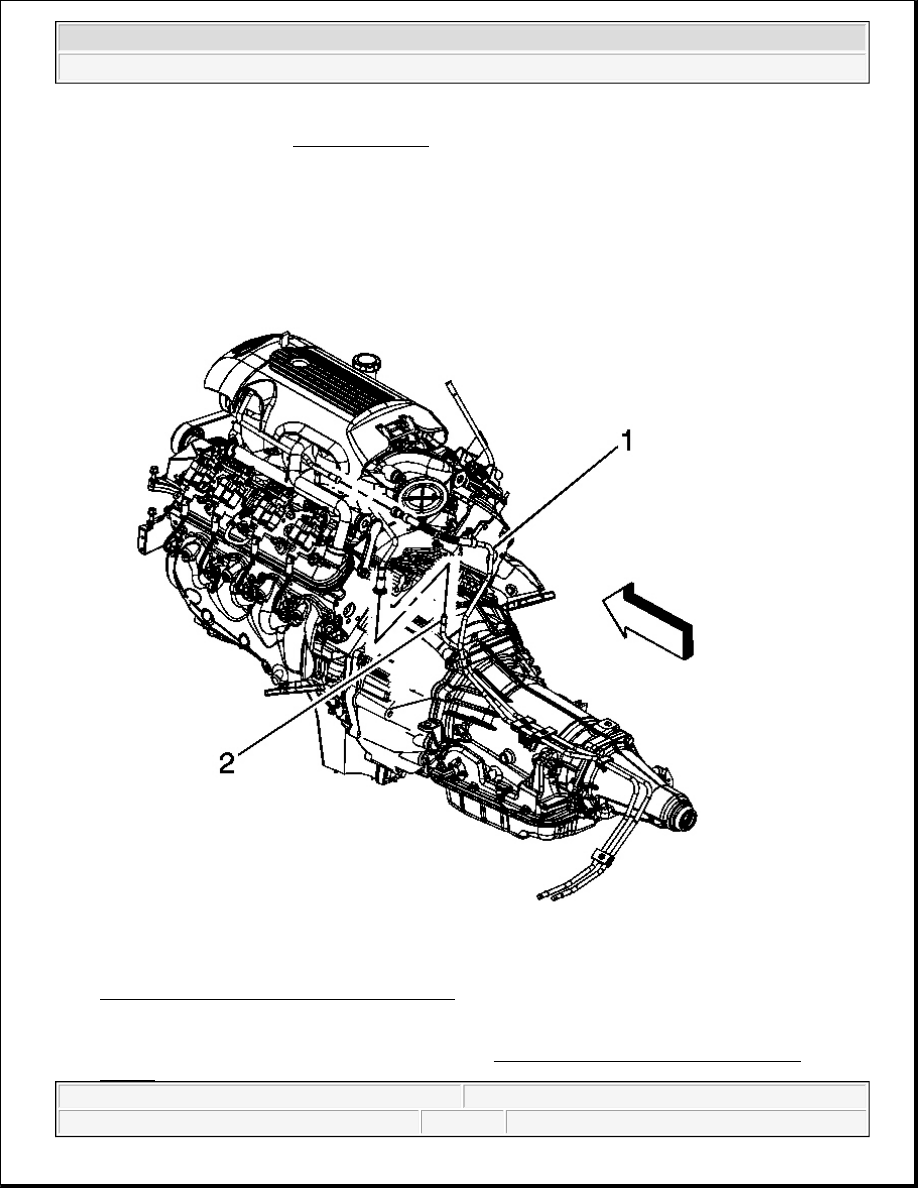

Fig. 116: Identifying Fuel Feed & EVAP Pipes
Courtesy of GENERAL MOTORS CORP.

6. Connect the fuel feed pipe (1) to the fuel rail. Refer to Quick Connect Fitting(s) Service (Metal

Collar) .

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



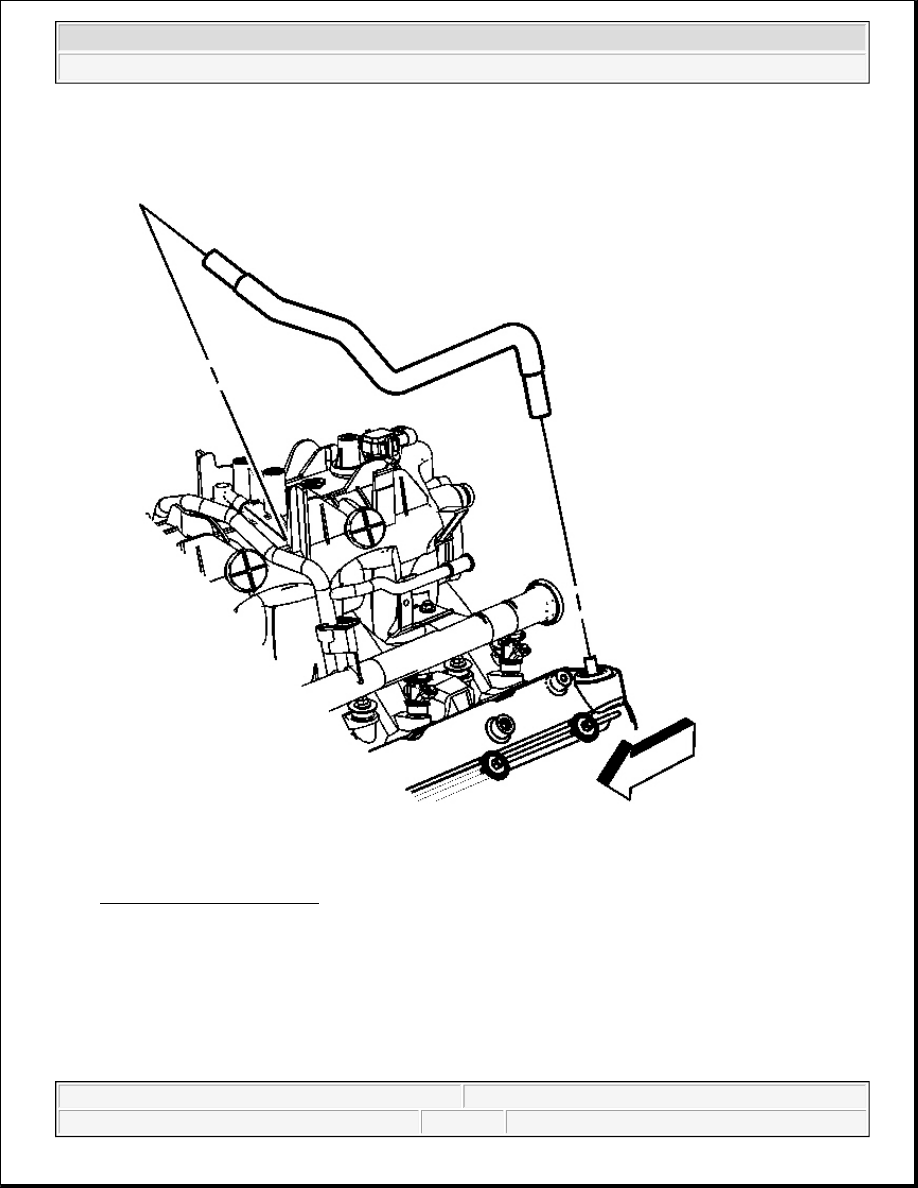

Fig. 117: View Of PCV Hose
Courtesy of GENERAL MOTORS CORP.

7. Install the PCV hose.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



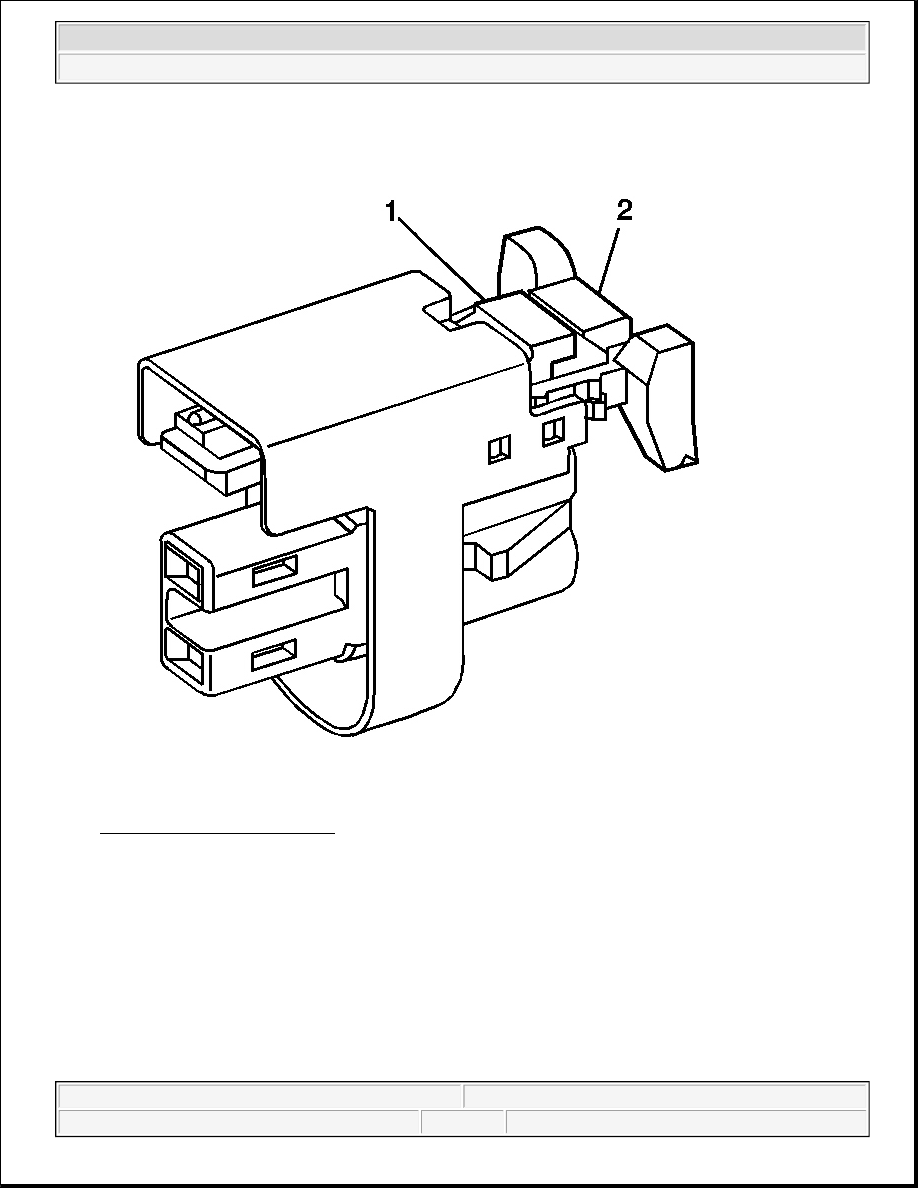

Fig. 118: CPA Retainer & Tab
Courtesy of GENERAL MOTORS CORP.

8. Perform the following steps in order to connect the fuel injector electrical connectors:

1. Install the connectors to their corresponding injectors to ensure correct reassembly.

2. Connect the fuel injector electrical connector.

3. Push the CPA retainer (2) on the connector in one click.

4. Repeat the steps for each injector electrical connector.
