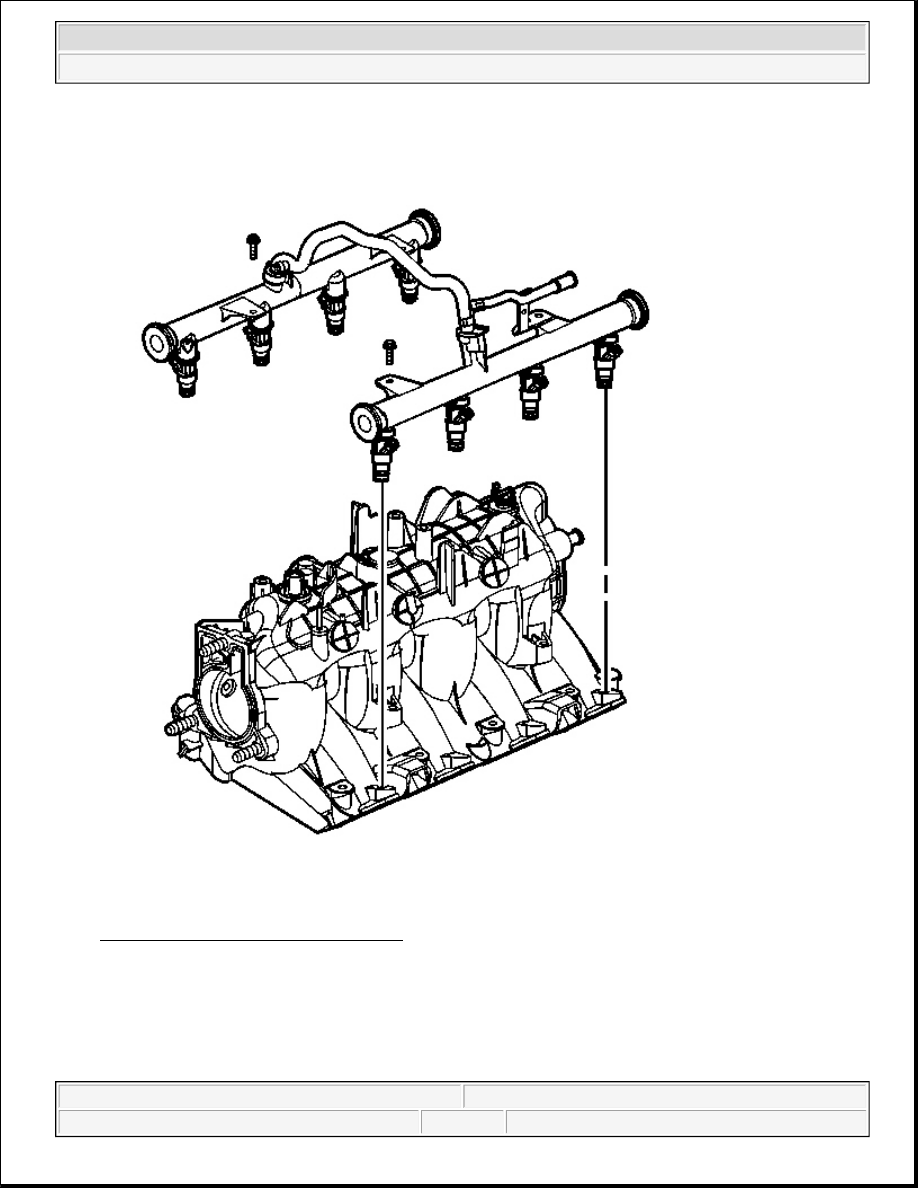

Fig. 112: View Of Fuel Rail & Injectors
Courtesy of GENERAL MOTORS CORP.

18. Remove the fuel rail bolts.

NOTE:

z

Remove the fuel rail assembly carefully in order to prevent damage
to the injector electrical connector terminals and the injector spray



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



19. Remove the fuel rail.

tips. Support the fuel rail after the fuel rail is removed in order to
avoid damaging the fuel rail components.

z

Cap the fittings and plug the holes when servicing the fuel system in
order to prevent dirt and other contaminants from entering open
pipes and passages.

IMPORTANT: Before removal, clean the fuel rail with a spray type engine cleaner, such

as GM X-30A or equivalent, if necessary. Follow the package instructions.
Do not soak the fuel rail in liquid cleaning solvent.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

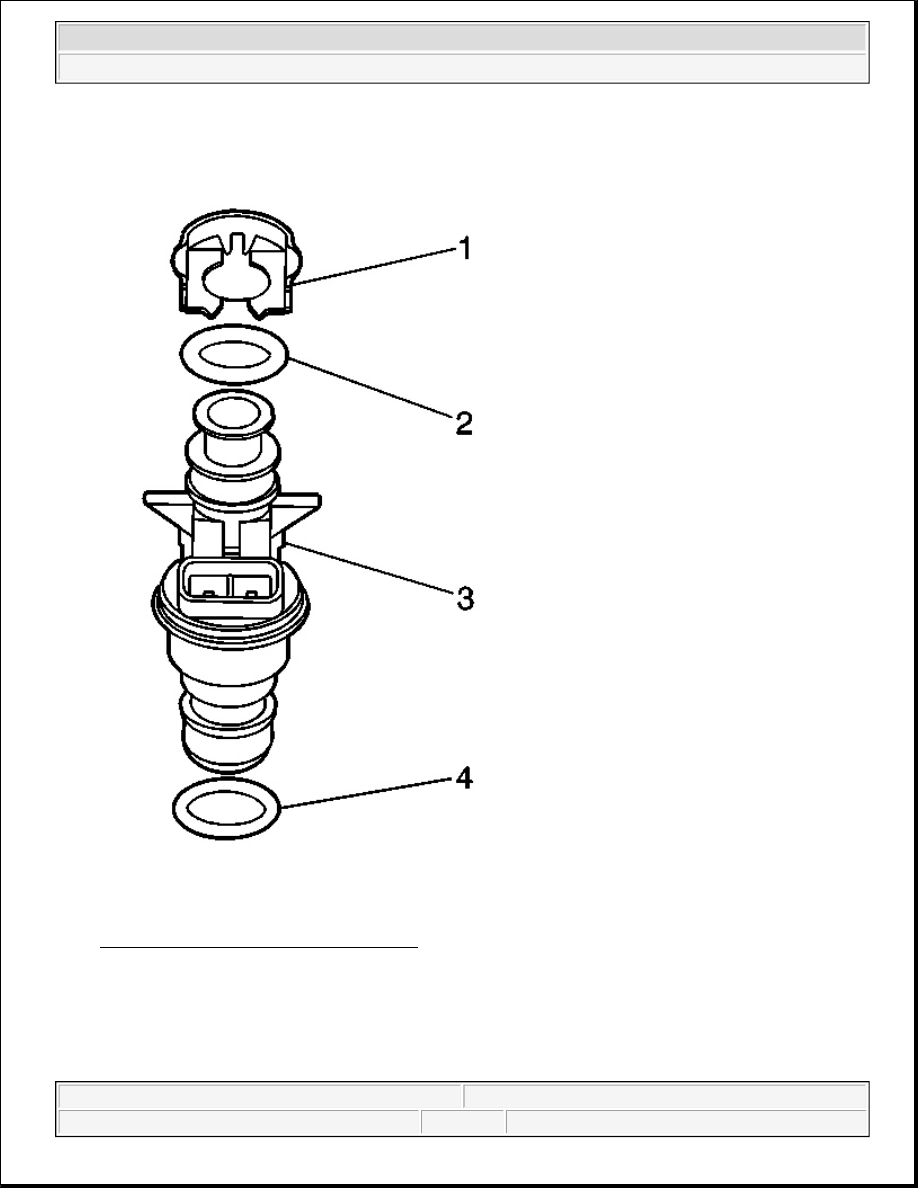

Fig. 113: Exploded View Of Fuel Injector
Courtesy of GENERAL MOTORS CORP.

20. Remove the fuel injector lower O-ring seal (4) from each injector, if necessary.

21. Discard the O-ring seal.

Installation Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



Fig. 114: Exploded View Of Fuel Injector
Courtesy of GENERAL MOTORS CORP.

1. Lubricate NEW fuel injector lower O-ring seals (4) with clean engine oil.

2. Install the NEW O-ring seals (4) onto each injector, if necessary.
