1. Remove the fuel tank. Refer to Fuel Tank Replacement .

2. Remove fuel lines from sender assembly. Refer to Fuel Hose/Pipes Assembly Replacement .



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2





2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2

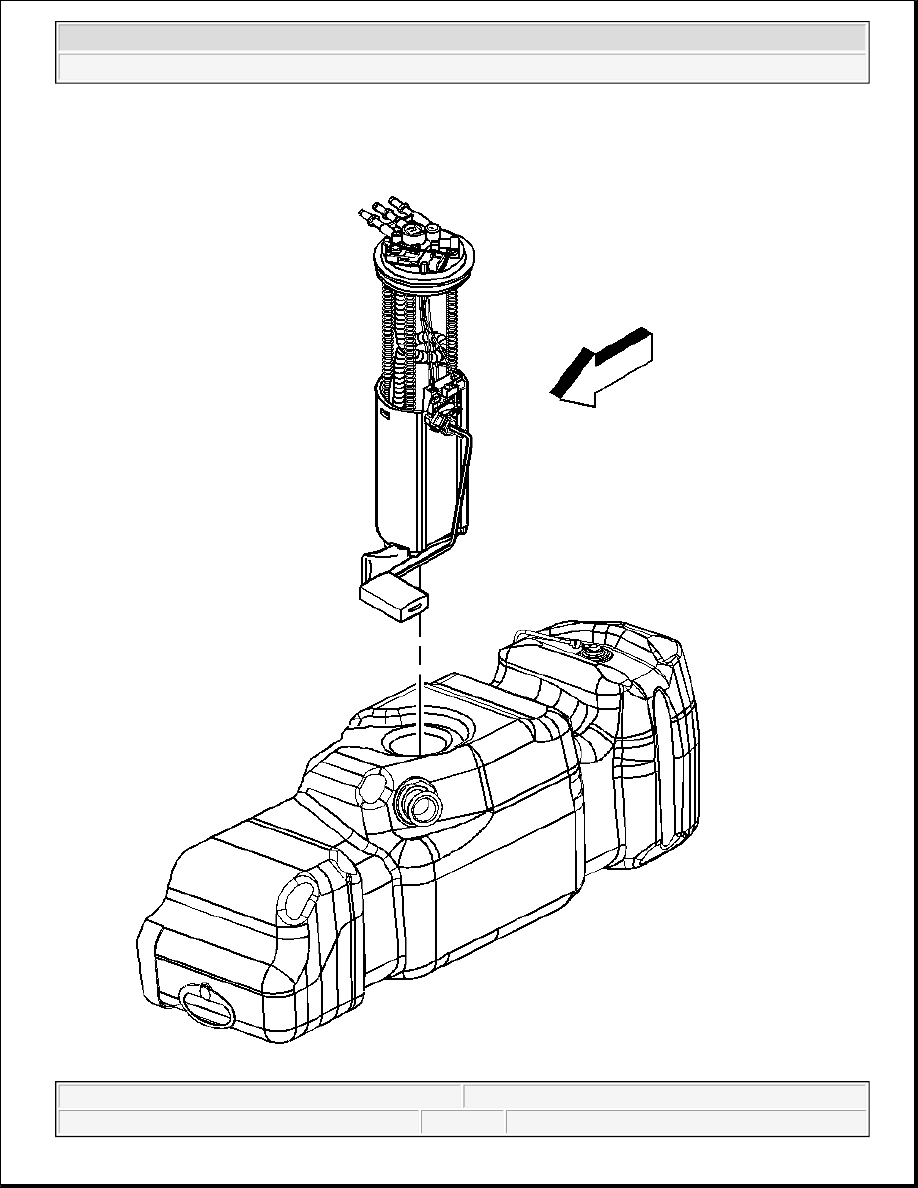

Fig. 95: Fuel Sender Assembly
Courtesy of GENERAL MOTORS CORP.

3. Remove the fuel sender assembly retaining ring using the J 44402 .

4. Remove the fuel sender assembly and the seal. Discard the seal.

5. Clean the fuel sender sealing surfaces.

Installation Procedure

CAUTION: Drain the fuel from the fuel sender assembly into an approved

container in order to reduce the risk of fire and personal injury. Never
store the fuel in an open container.
