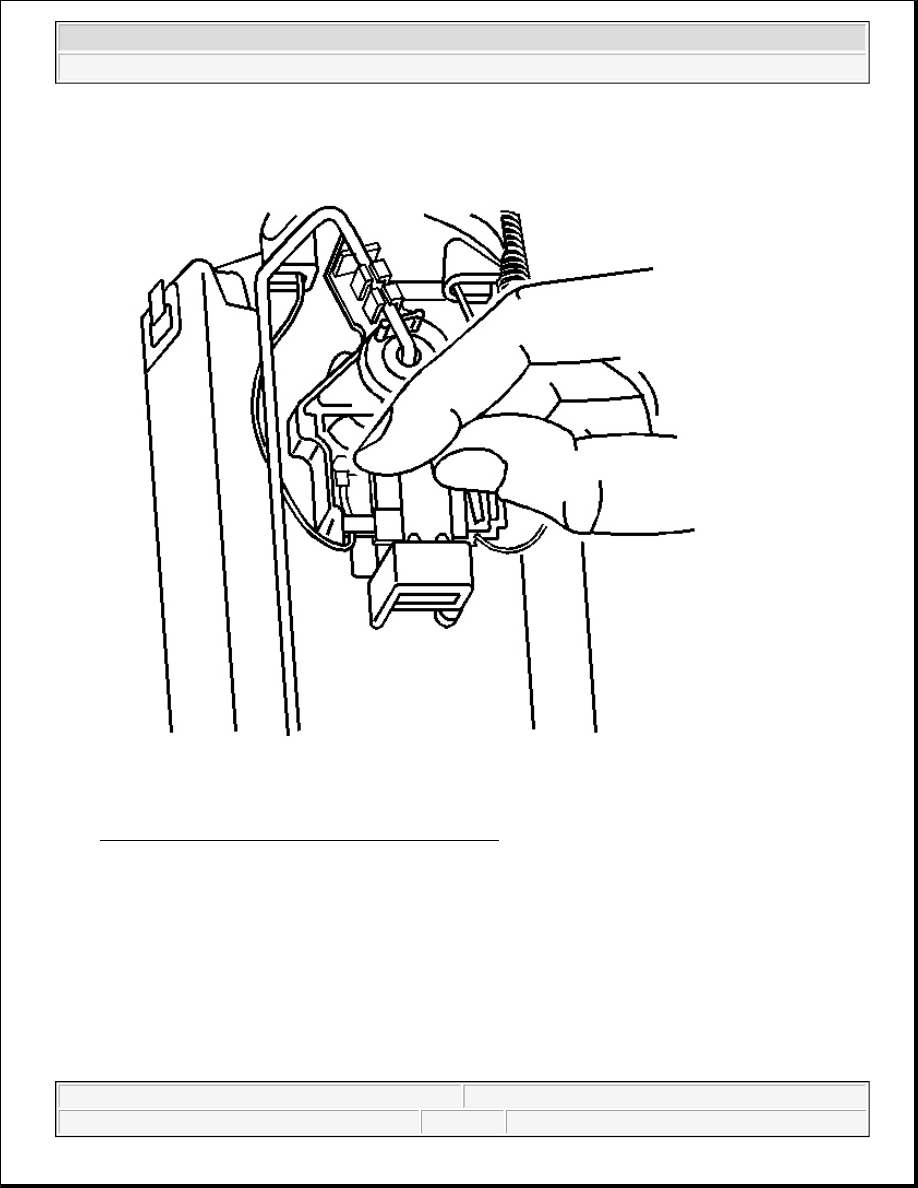

Fig. 88: Removing Fuel Level Sensor Retaining Clip
Courtesy of GENERAL MOTORS CORP.

4. Remove the fuel level sensor retaining clip.

5. Squeeze the retaining tabs together in order to slide the fuel lever sensor off of the reservoir.

Installation Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



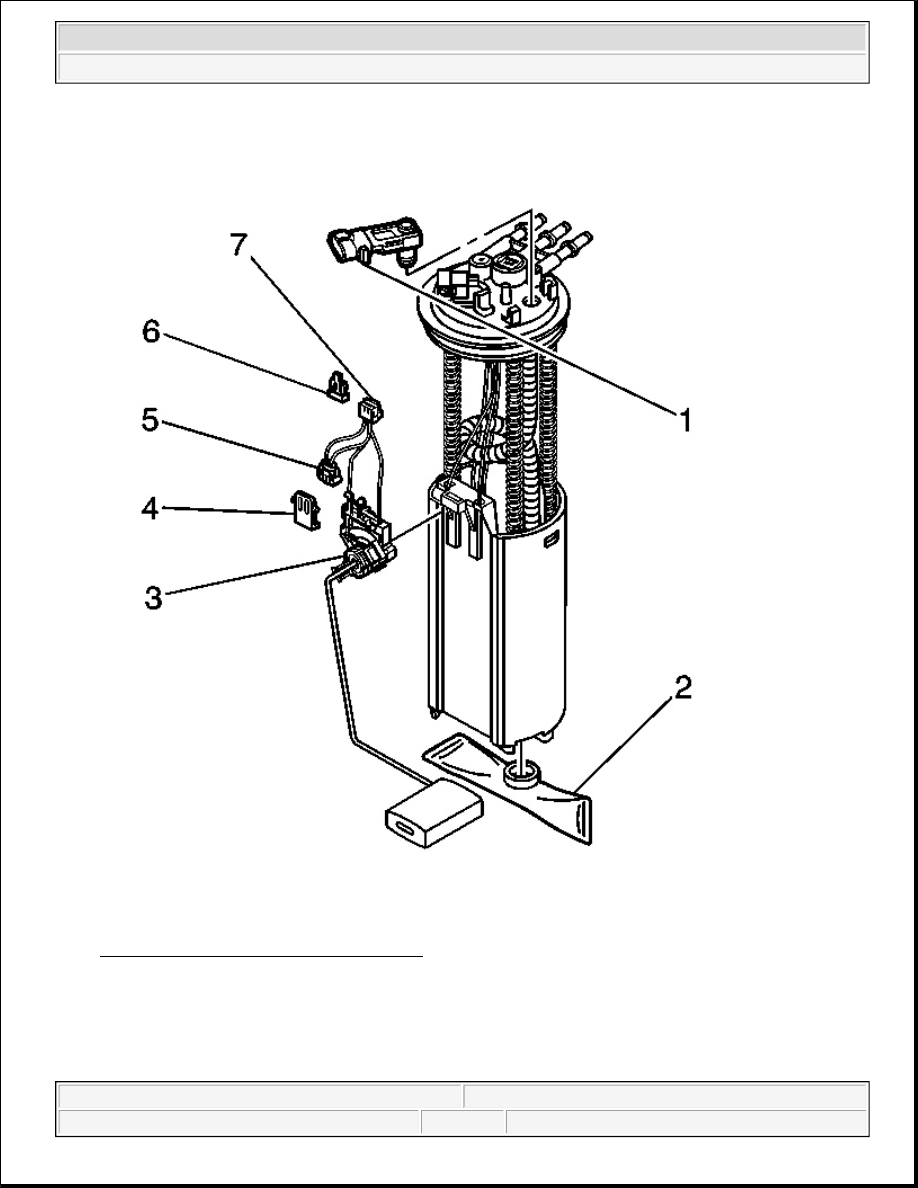

Fig. 89: Identifying Fuel Sender Assembly
Courtesy of GENERAL MOTORS CORP.

1. Slide the fuel lever sensor (3) onto the reservoir until the retaining tabs snap into place.



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



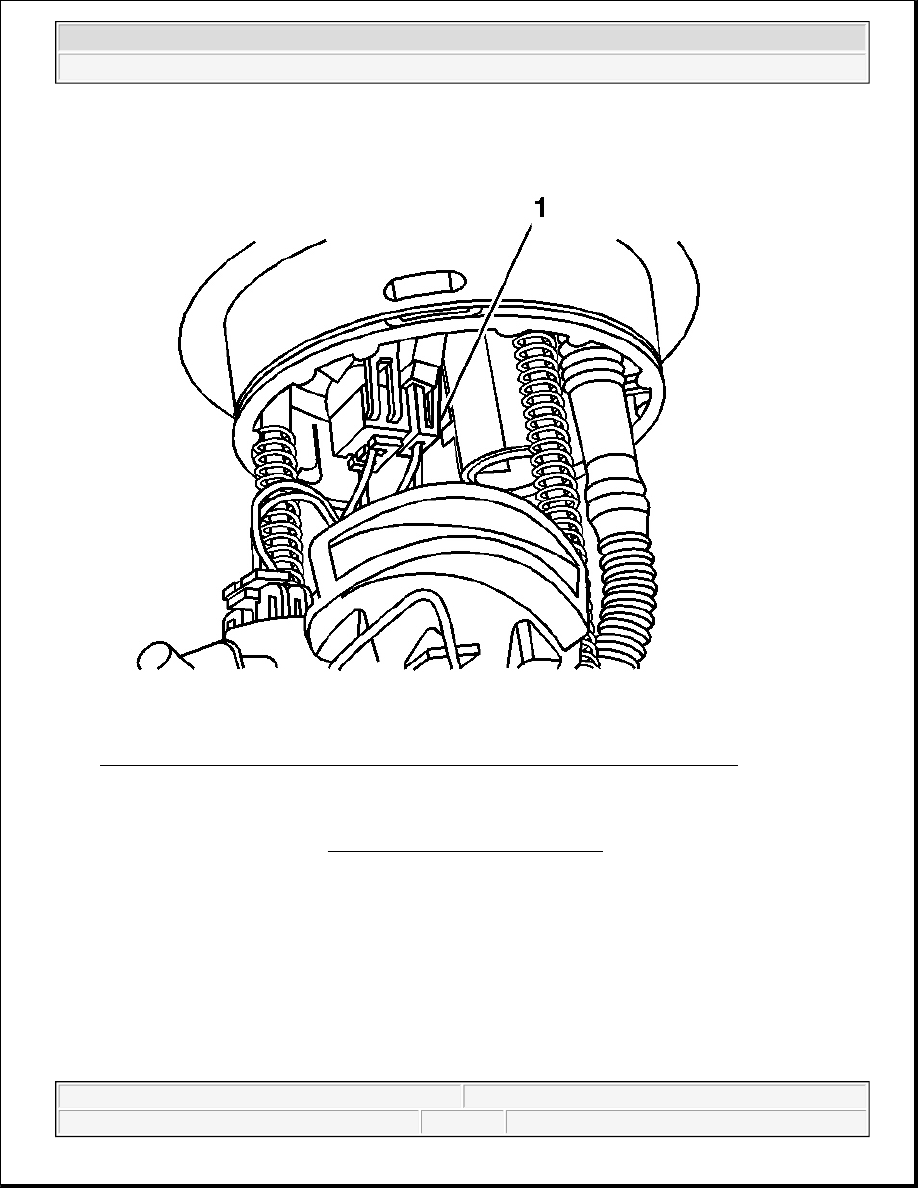

Fig. 90: Connecting Fuel Level Sensor Electrical Connectors To Module Connector
Courtesy of GENERAL MOTORS CORP.

2. Connect the fuel level sensor electrical connectors (1) to the module connector.

3. Install the fuel sender. Refer to Fuel Sender Assembly Replacement .

FILLER TUBE REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



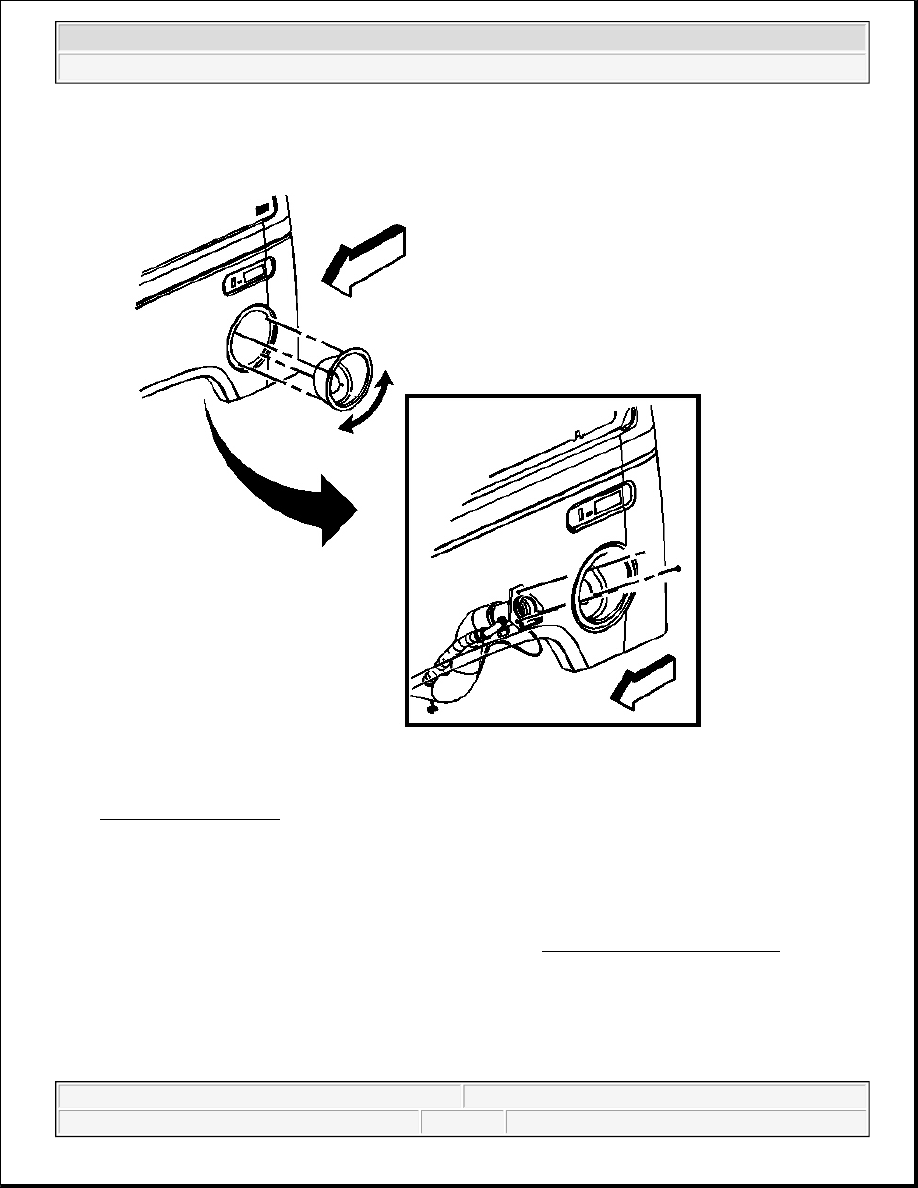

Fig. 91: Fuel Filler Cap
Courtesy of GENERAL MOTORS CORP.

1. Clean all the fuel pipe and hose connections and the surrounding areas before disconnection in order to

avoid possible contamination of the fuel system.

2. Remove the fuel filler cap.

3. Drain the fuel below the level of the fuel filler hose. Refer to Fuel Tank Draining Procedure .
