SCHEMATIC AND ROUTING DIAGRAMS

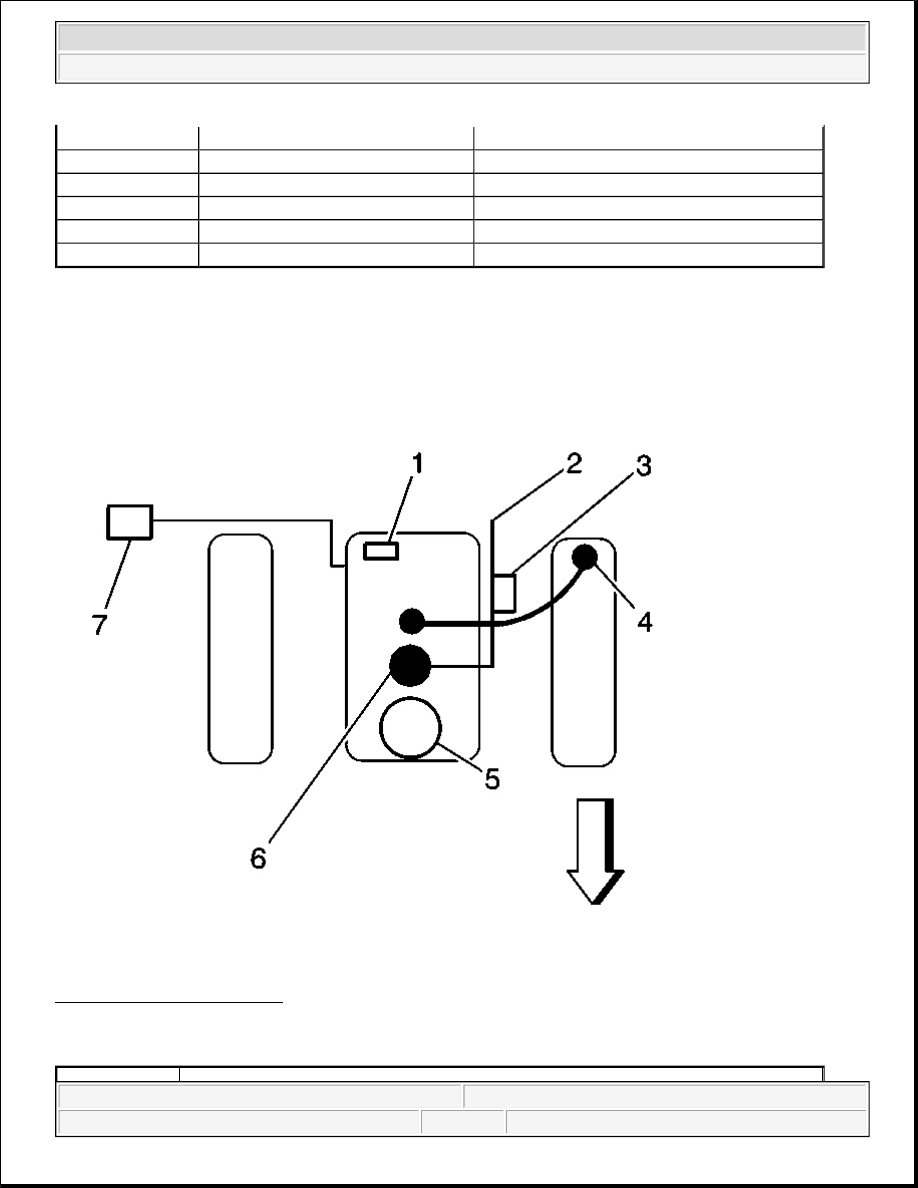

EMISSION HOSE ROUTING DIAGRAM

Fig. 1: Vacuum Hose Routing
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 1

P2125

C

C

P2135

A

A

P2610

B

B

P2761

B

B

P2771

B

B

U0107

A

A



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



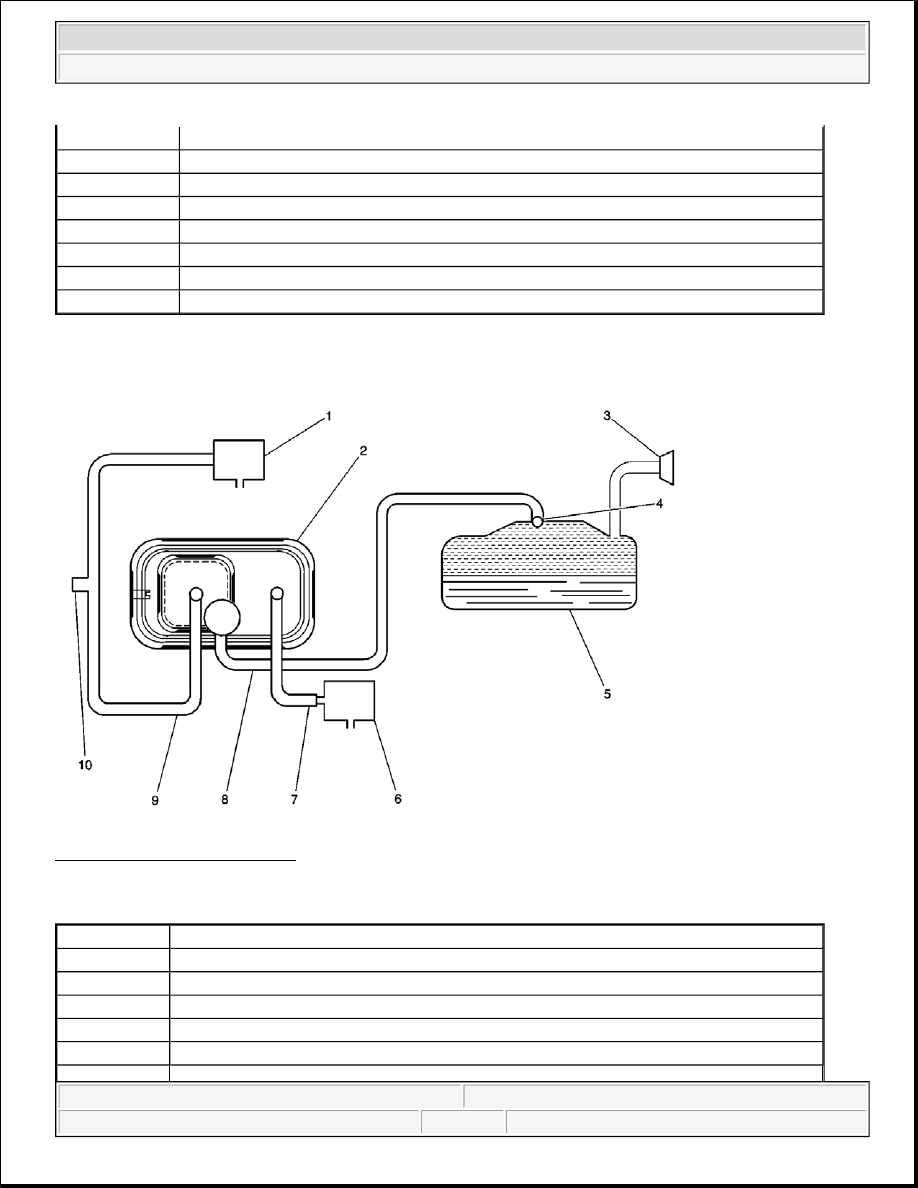

EVAPORATIVE EMISSIONS (EVAP) HOSE ROUTING DIAGRAM

Fig. 2: EVAP System Overview
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

Callout

Component Name

1

Manifold Absolute Pressure (MAP) Sensor

2

EVAP Canister Purge Hose

3

EVAP Service Port

4

Positive Crankcase Ventilation (PCV) Valve

5

Throttle Body

6

EVAP Canister Purge Valve

7

AIR Module, if equipped

Callout

Component Name

1

EVAP Canister Purge Solenoid Valve

2

EVAP Canister

3

Fuel Fill Neck/Fill Cap

4

Rollover Valve/Fuel Tank Pressure (FTP) Sensor

5

Fuel Tank



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



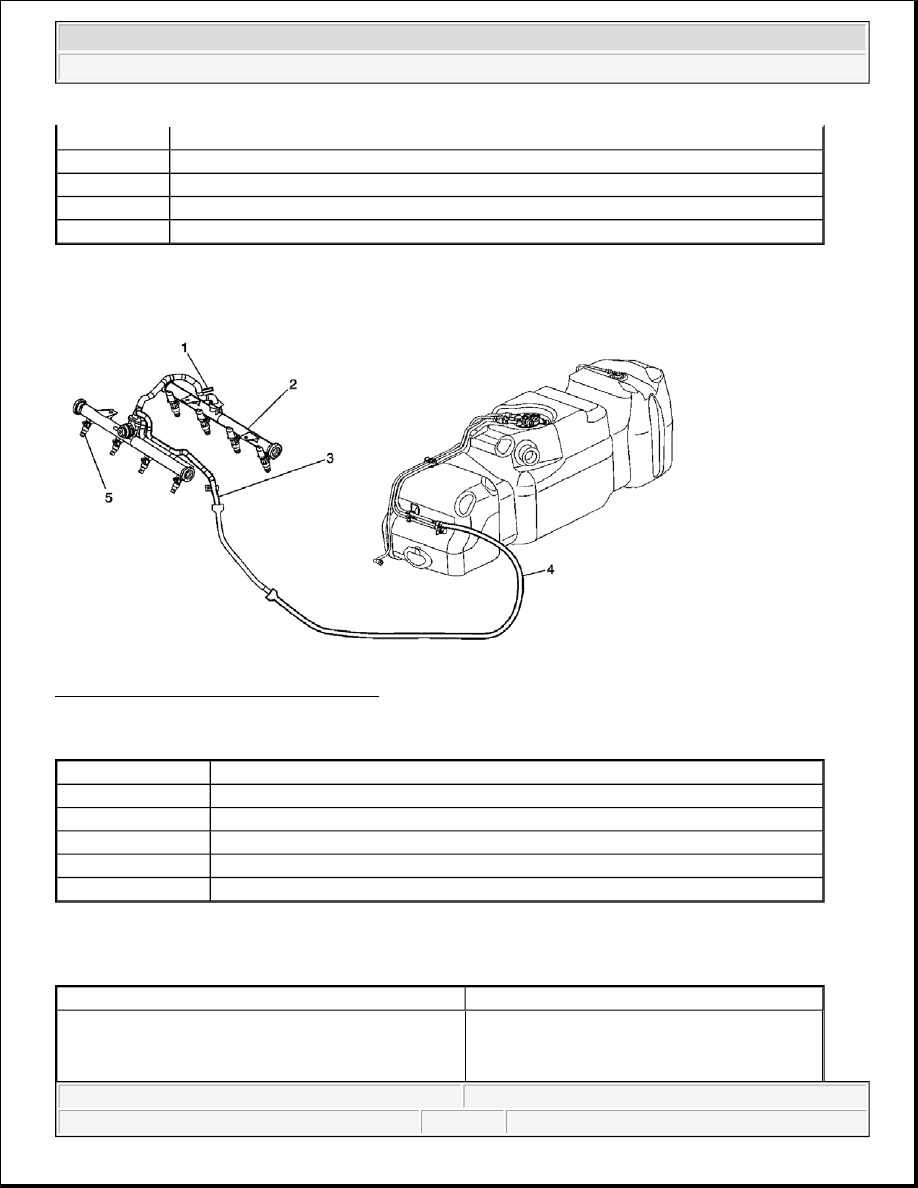

FUEL HOSE/PIPES ROUTING DIAGRAM (SINGLE FUEL TANK)

Fig. 3: Fuel Hose/Pipes (Single Fuel Tank)
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

ENGINE CONTROLS SCHEMATIC ICONS

Engine Controls Schematic Icons

6

EVAP Canister Vent Solenoid Valve

7

Vent Hose/Pipe

8

EVAP Vapor Pipe

9

EVAP Purge Pipe

10

EVAP Service Port

Callout

Component Name

1

Fuel Pressure Service Connection

2

Fuel Injector Rail

3

Fuel Rail Feed Pipe

4

Fuel Feed Hose

5

Fuel Injector

Icon

Icon Definition

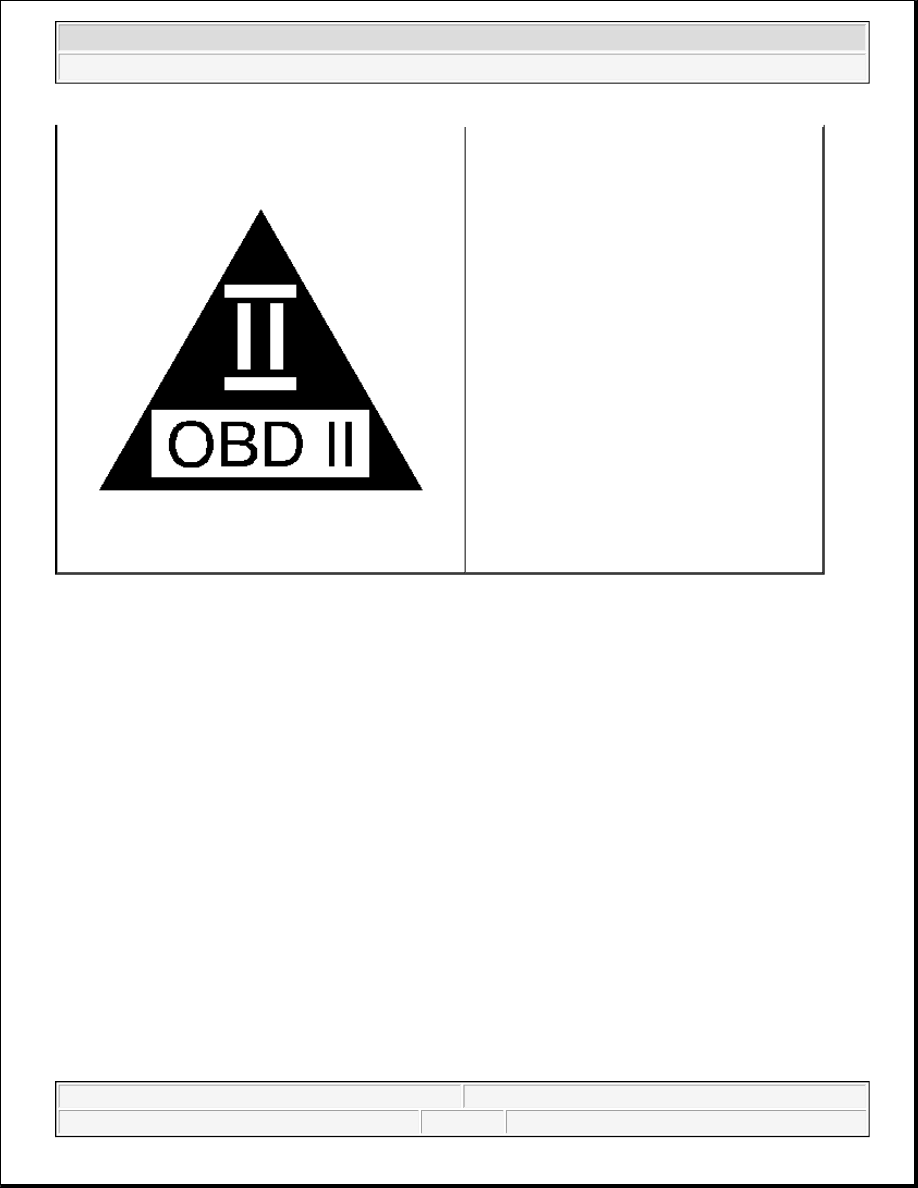

NOTE:

The OBD II symbol is used on the circuit
diagrams in order to alert the technician that



2004 Hummer H2

2004 ENGINE PERFORMANCE Engine Controls (Introduction) - 4.8L, 5.3L, and 6.0L - Hummer H2



ENGINE CONTROLS SCHEMATICS

the circuit is essential for proper OBD II
emission control circuit operation. Any circuit
which fails and causes the malfunction
indicator lamp (MIL) to turn ON, or causes
emissions-related component damage, is
identified as an OBD II circuit.
