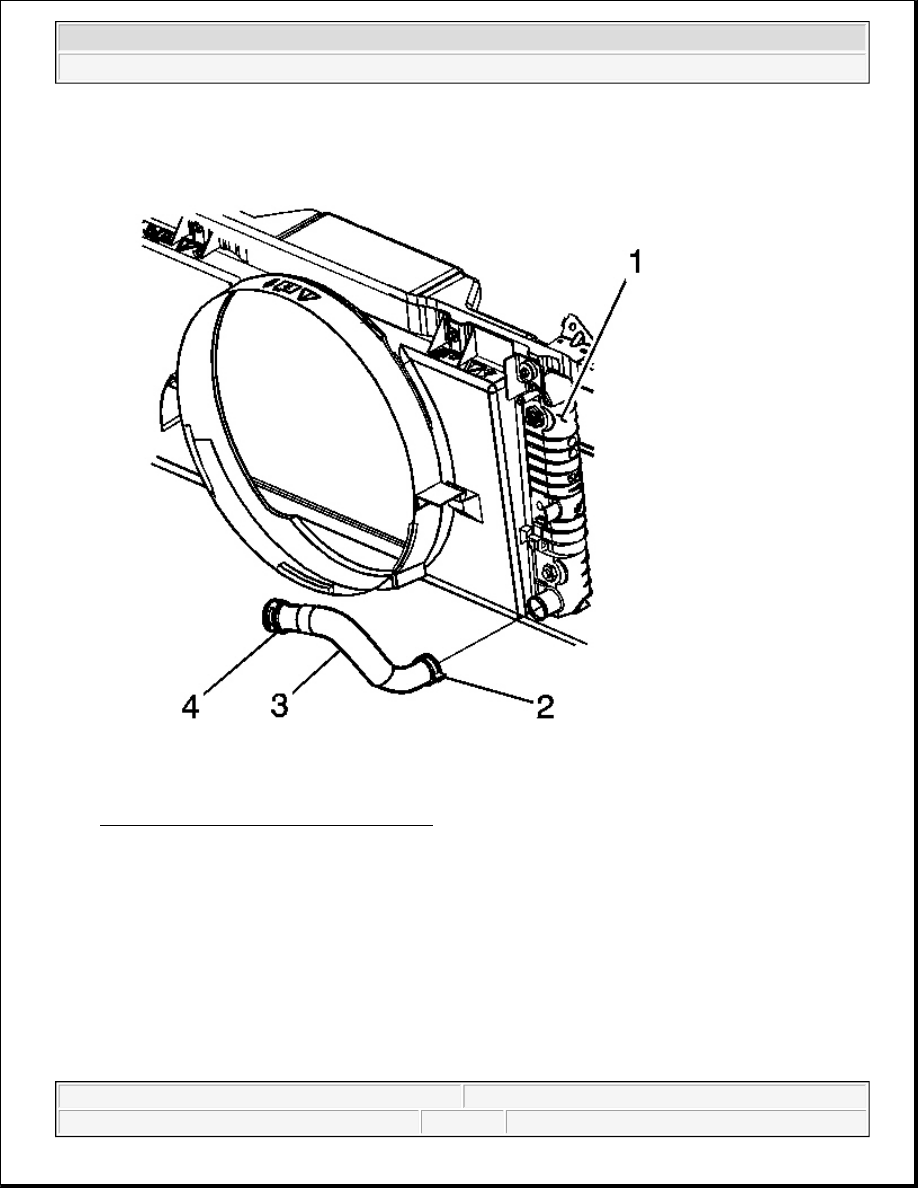

Fig. 29: Radiator Hose & Radiator (Outlet)
Courtesy of GENERAL MOTORS CORP.

1. Install the radiator outlet hose (3) to the radiator (1).

2. Position the radiator outlet hose clamp (2) to the radiator (1).



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

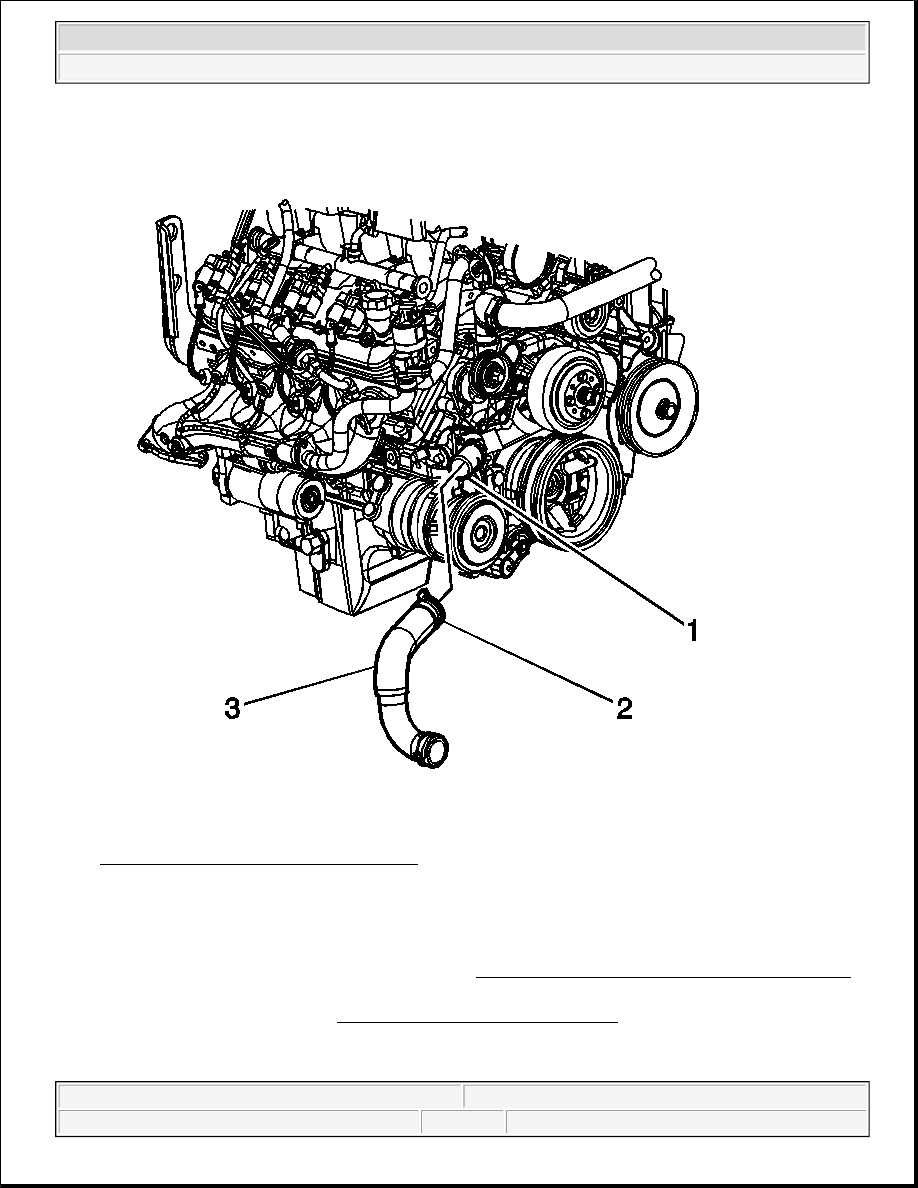

Fig. 30: Radiator Hose & Engine (Outlet)
Courtesy of GENERAL MOTORS CORP.

3. Install the radiator outlet hose (3) to the engine (1).

4. Position the radiator outlet hose clamp (2) to the engine (1).

5. Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement

in Engine Controls - 4.8L, 5.3L and 6.0L.

6. Fill the cooling system. Refer to Draining and Filling Cooling System .

RADIATOR VENT INLET HOSE REPLACEMENT



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



Removal Procedure

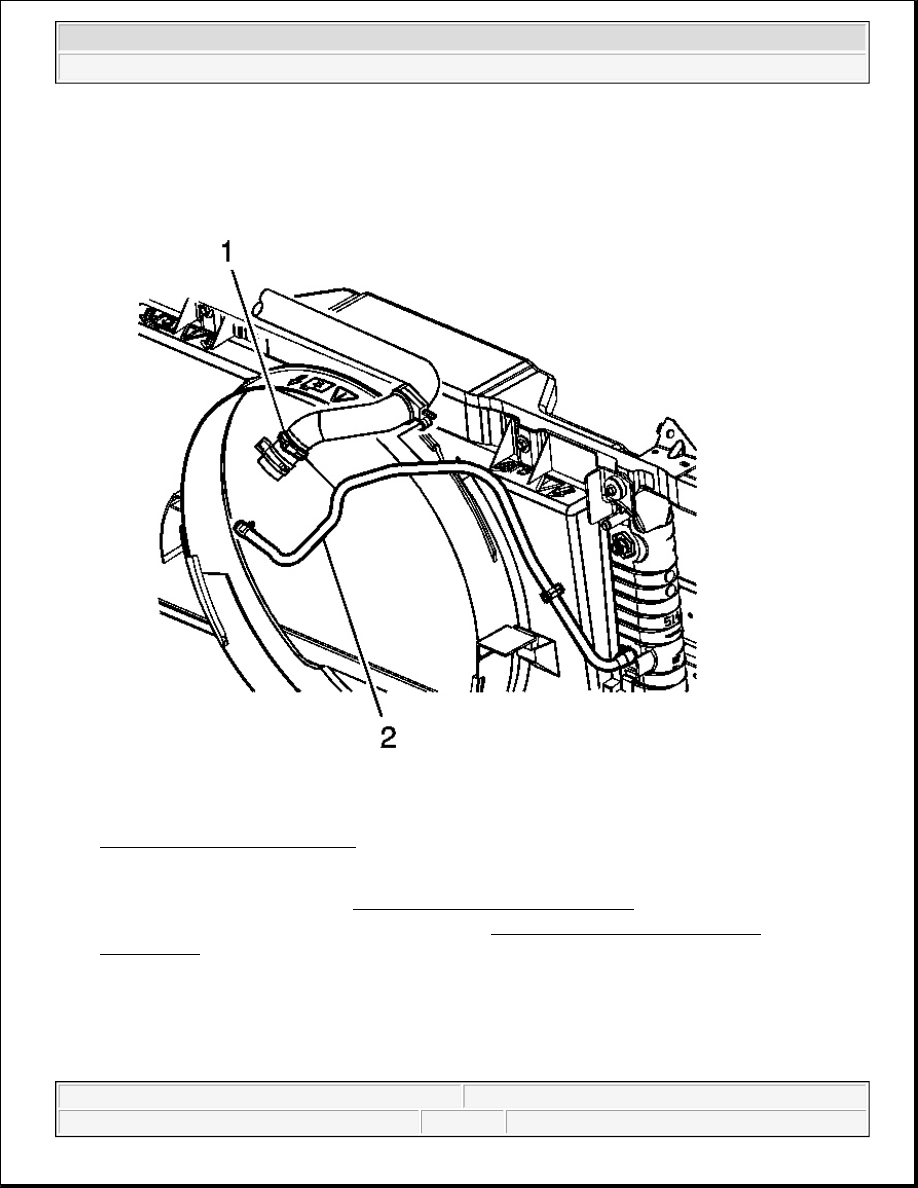

Fig. 31: Radiator Vent Inlet Hose
Courtesy of GENERAL MOTORS CORP.

1. Drain the cooling system. Refer to Draining and Filling Cooling System .

2. Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct

Replacement in Engine Controls - 4.8L, 5.3L and 6.0L.

3. Reposition the radiator vent inlet hose clamp from the radiator.

4. Remove the radiator vent inlet hose (2) from the radiator.

5. Remove the radiator vent inlet hose (2) from the fan shroud retainer.

6. Reposition the radiator vent inlet hose clamp from the throttle body.

7. Remove the radiator vent inlet hose (2) from the throttle body.



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2



8. Remove the vent inlet hose from the vehicle.

Installation Procedure

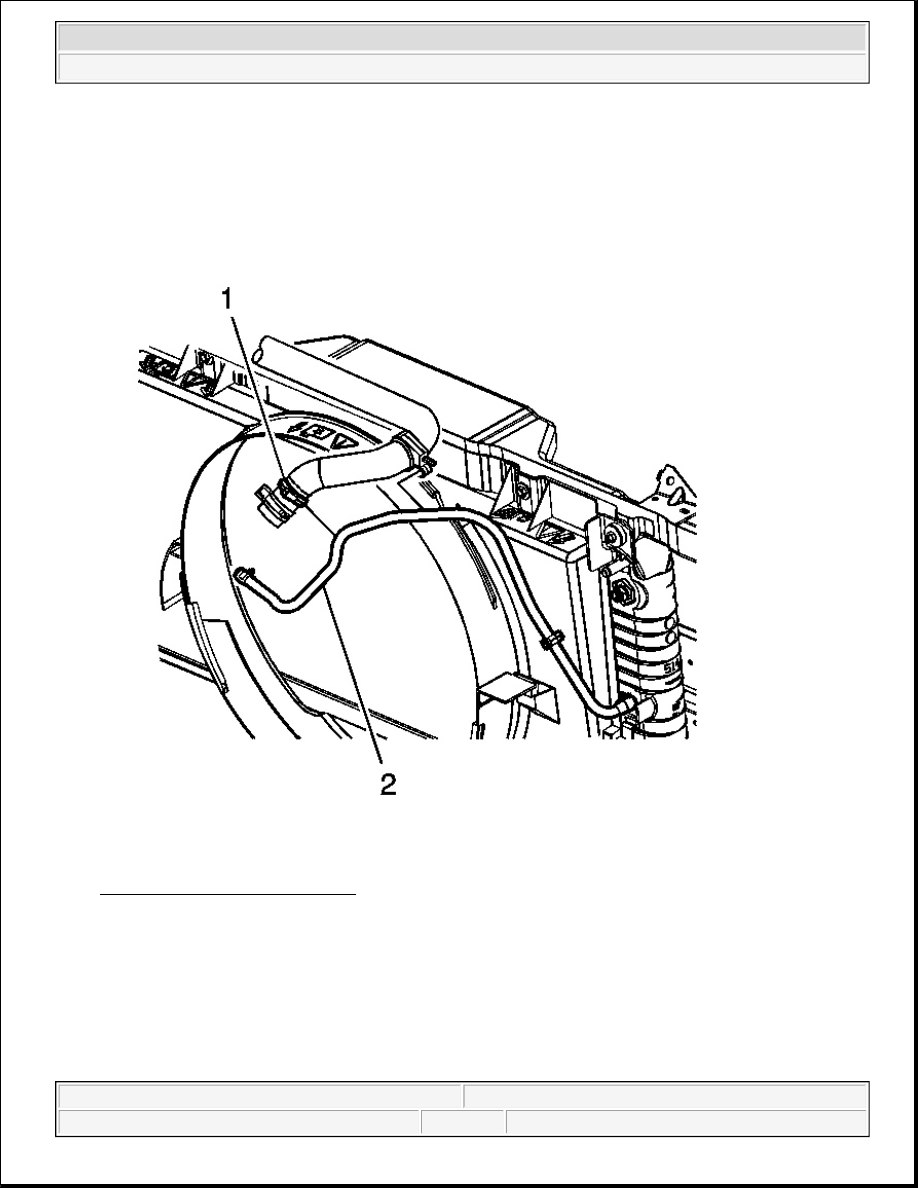

Fig. 32: Radiator Vent Inlet Hose
Courtesy of GENERAL MOTORS CORP.

1. Install the radiator vent inlet hose (2) to the throttle body.

2. Install the radiator vent inlet hose clamp to the throttle body.

3. Install the radiator vent inlet hose (2) to the fan shroud retainer.

4. Install the radiator vent inlet hose (2) to the radiator.

5. Install the radiator vent inlet hose clamp to the radiator.

6. Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement
