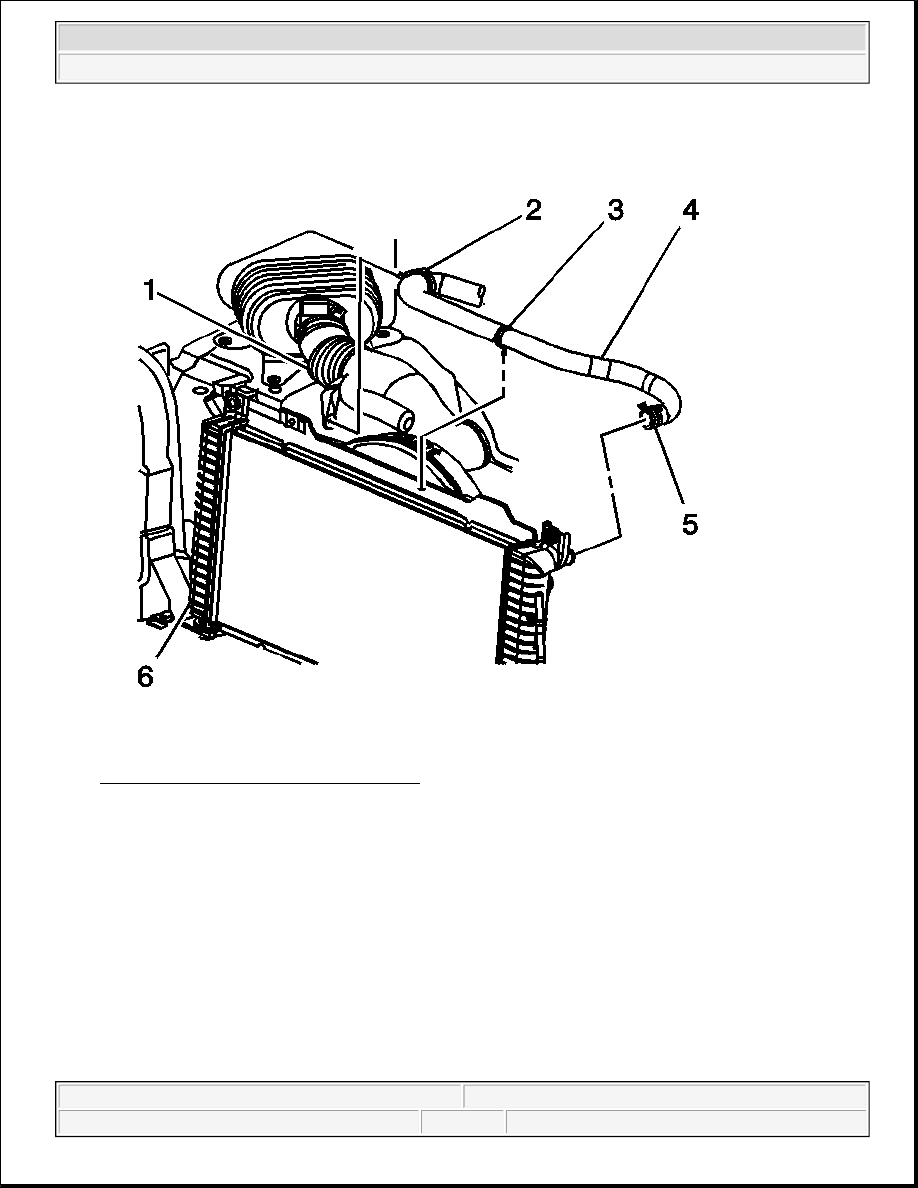

Fig. 25: Radiator Hose & Radiator (Inlet)
Courtesy of GENERAL MOTORS CORP.

1. Install the radiator inlet hose (4) to the radiator (6).

2. Position the radiator inlet hose clamp (5) to the radiator (6).

3. Install the radiator inlet hose (4) to the mounting clip (3).

4. Install the radiator inlet hose (2) to the engine (1).



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

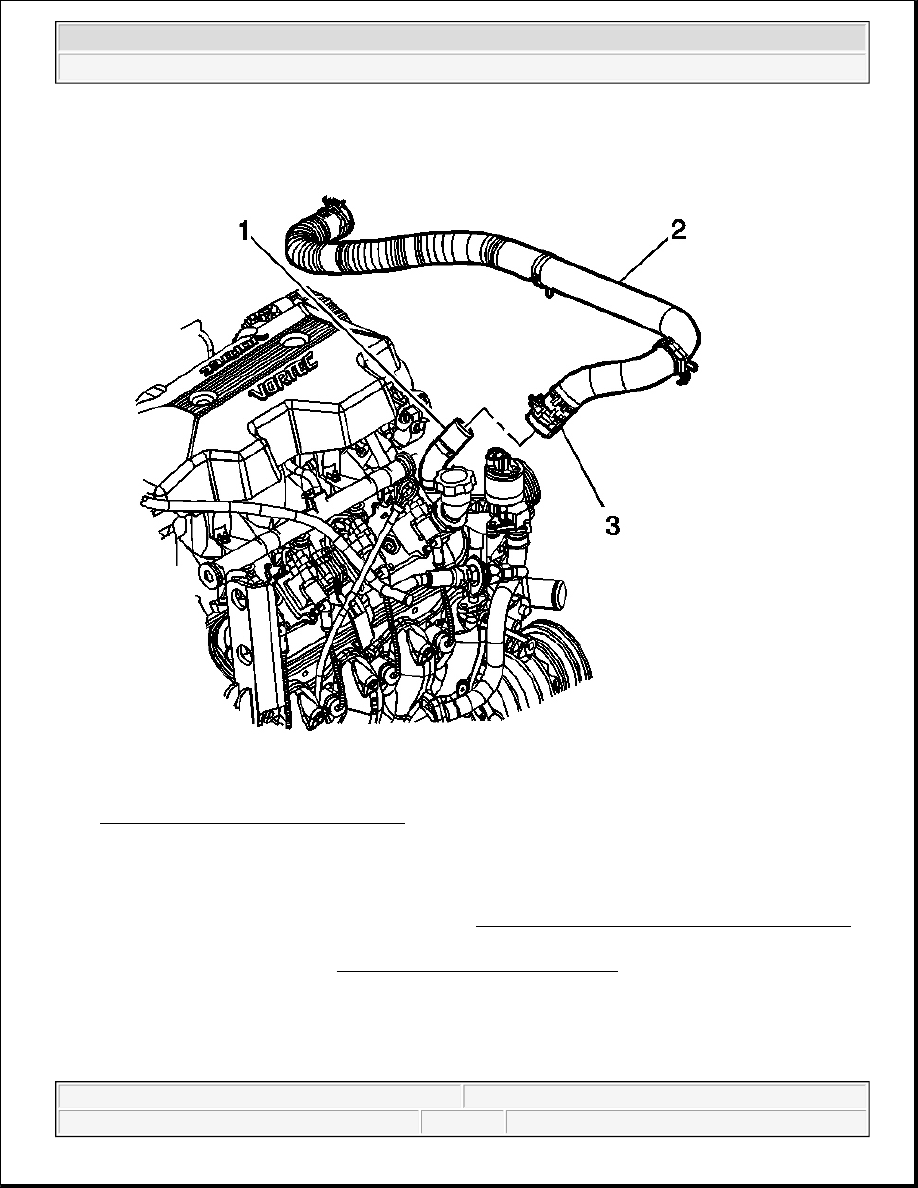

Fig. 26: Radiator Hose & Engine (Inlet)
Courtesy of GENERAL MOTORS CORP.

Position the radiator inlet hose clamp (3) to the engine (1).

5. Install the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement

in Engine Controls - 4.8L, 5.3L and 6.0L.

6. Fill the cooling system. Refer to Draining and Filling Cooling System .

RADIATOR HOSE REPLACEMENT - OUTLET

Removal Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

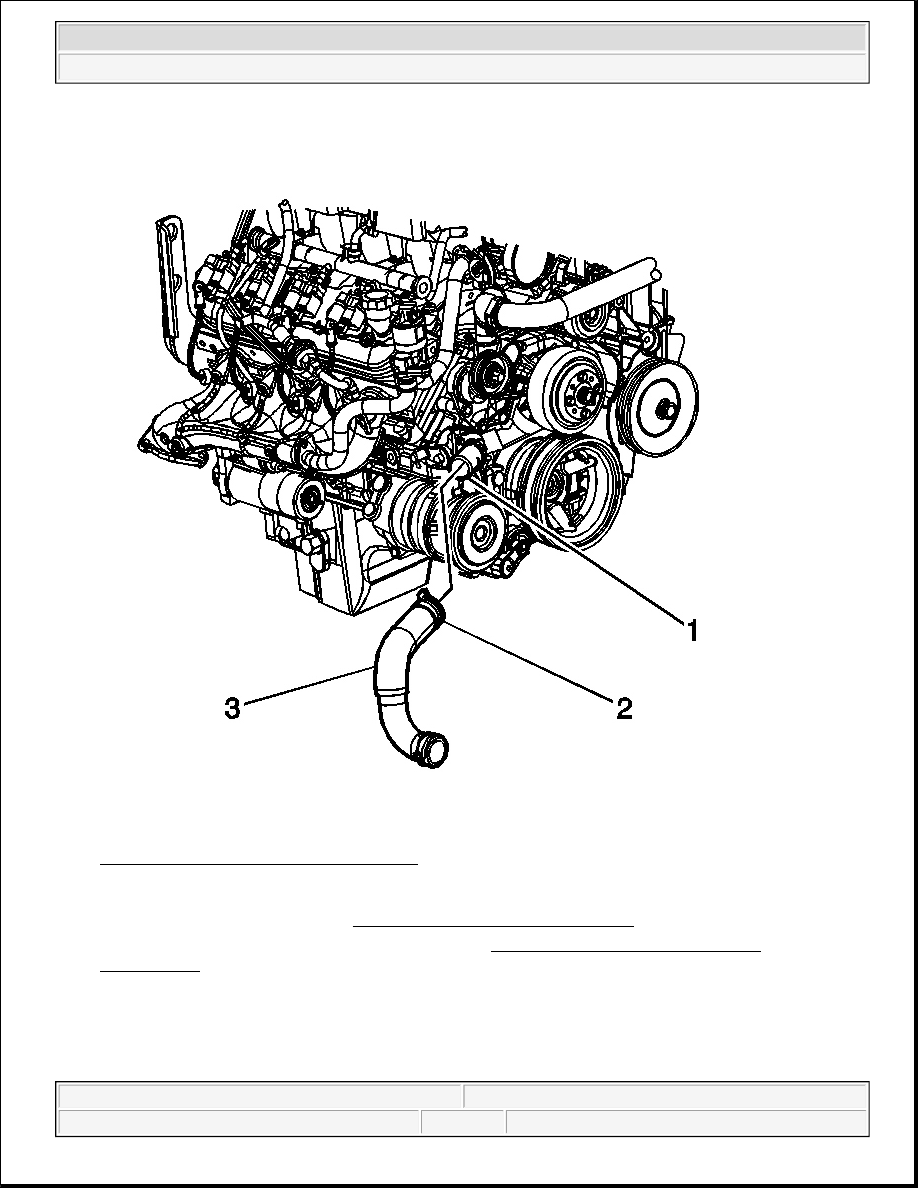

Fig. 27: Radiator Hose & Engine (Outlet)
Courtesy of GENERAL MOTORS CORP.

1. Drain the cooling system. Refer to Draining and Filling Cooling System .

2. Remove the air cleaner resonator outlet duct. Refer to Air Cleaner Resonator Outlet Duct

Replacement in Engine Controls - 4.8L, 5.3L and 6.0L.

3. Reposition the radiator outlet hose clamp (2) from the engine (1).

4. Remove the radiator outlet hose (3) from the engine (1).



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2

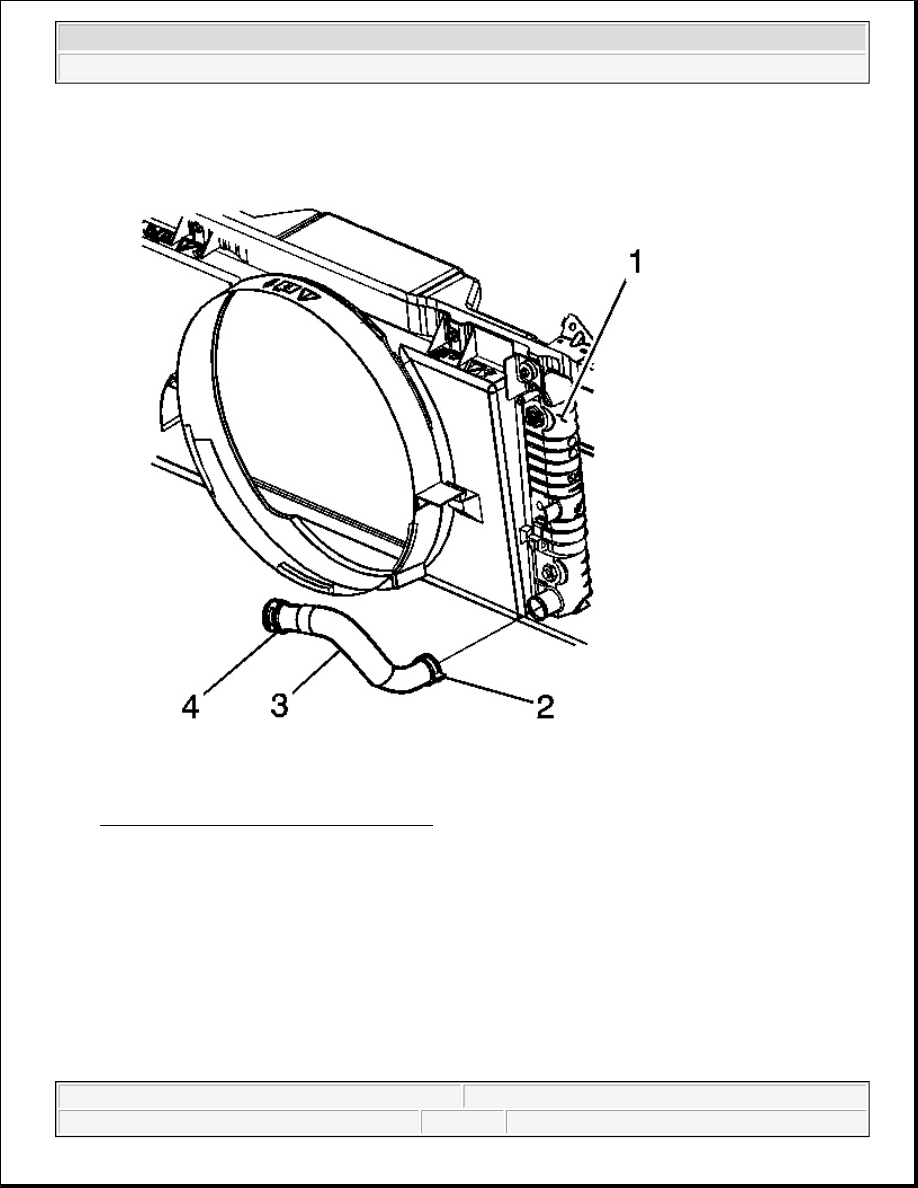

Fig. 28: Radiator Hose & Radiator (Outlet)
Courtesy of GENERAL MOTORS CORP.

5. Reposition the radiator outlet hose clamp (2) from the radiator (1).

6. Remove the radiator outlet hose (3) from the radiator (1).

7. Remove the outlet hose from the vehicle.

Installation Procedure



2004 Hummer H2

2004 ENGINE Engine Cooling - Hummer H2
