Hummer H2. Manual - part 1337
Fig. 1: Utility/Van Zoning
Courtesy of GENERAL MOTORS CORP.
Utility/Van Zoning

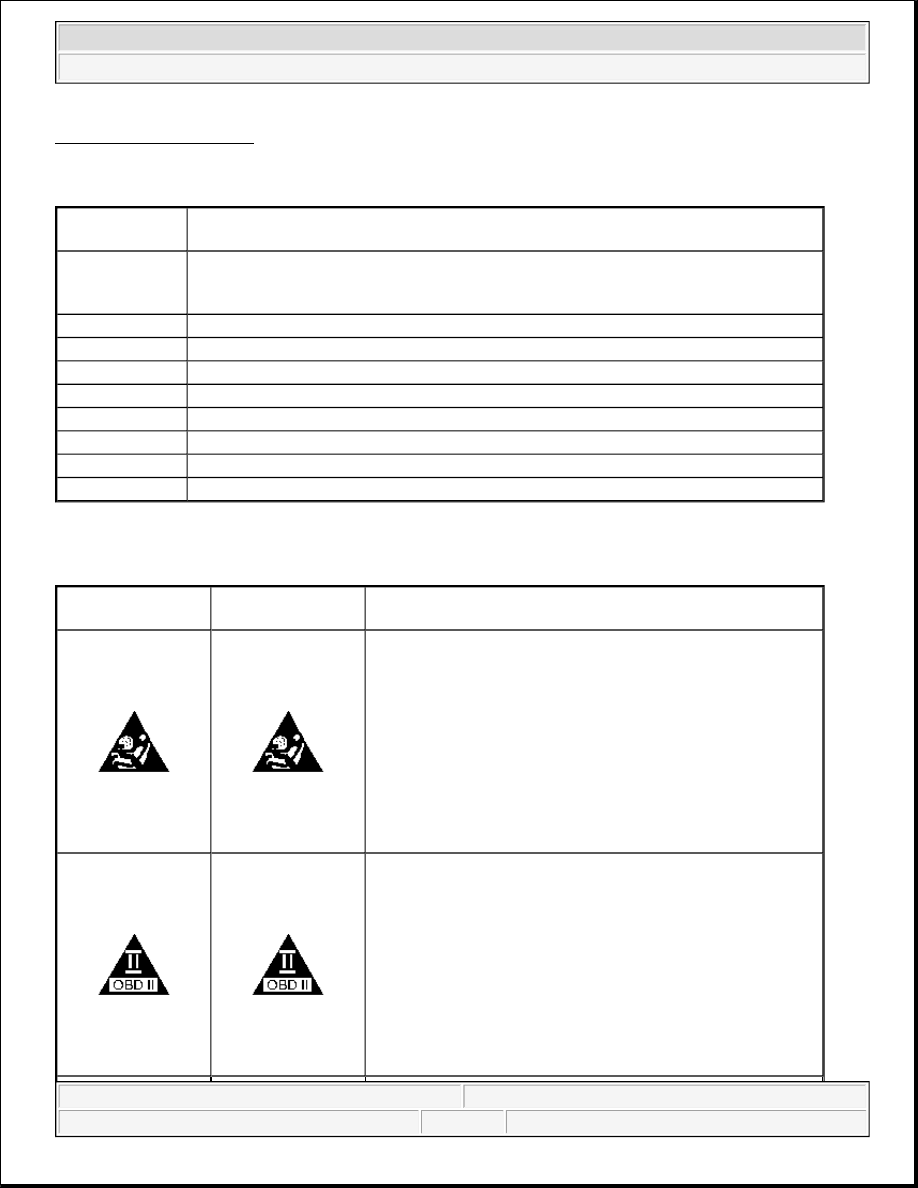

ELECTRICAL SYMBOLS
Electrical Symbols
Callout
Numbers
Zone Description
100-199
Engine compartment (All forward of the dash panel)
001-099 are additional for the engine compartment (Only to be used if all 100-199
items are used)
200-299
Within the instrument panel area
300-399
Passenger compartment (From instrument panel to the rear wheelhouse)
400-499
Luggage compartment (From the rear wheelhouse to the rear of the vehicle
500-599
Within the left front door
600-699
Within the right front door
700-799
Within the left rear door
800-899
Within the right rear door
900-999
Within the liftgate or endgate door

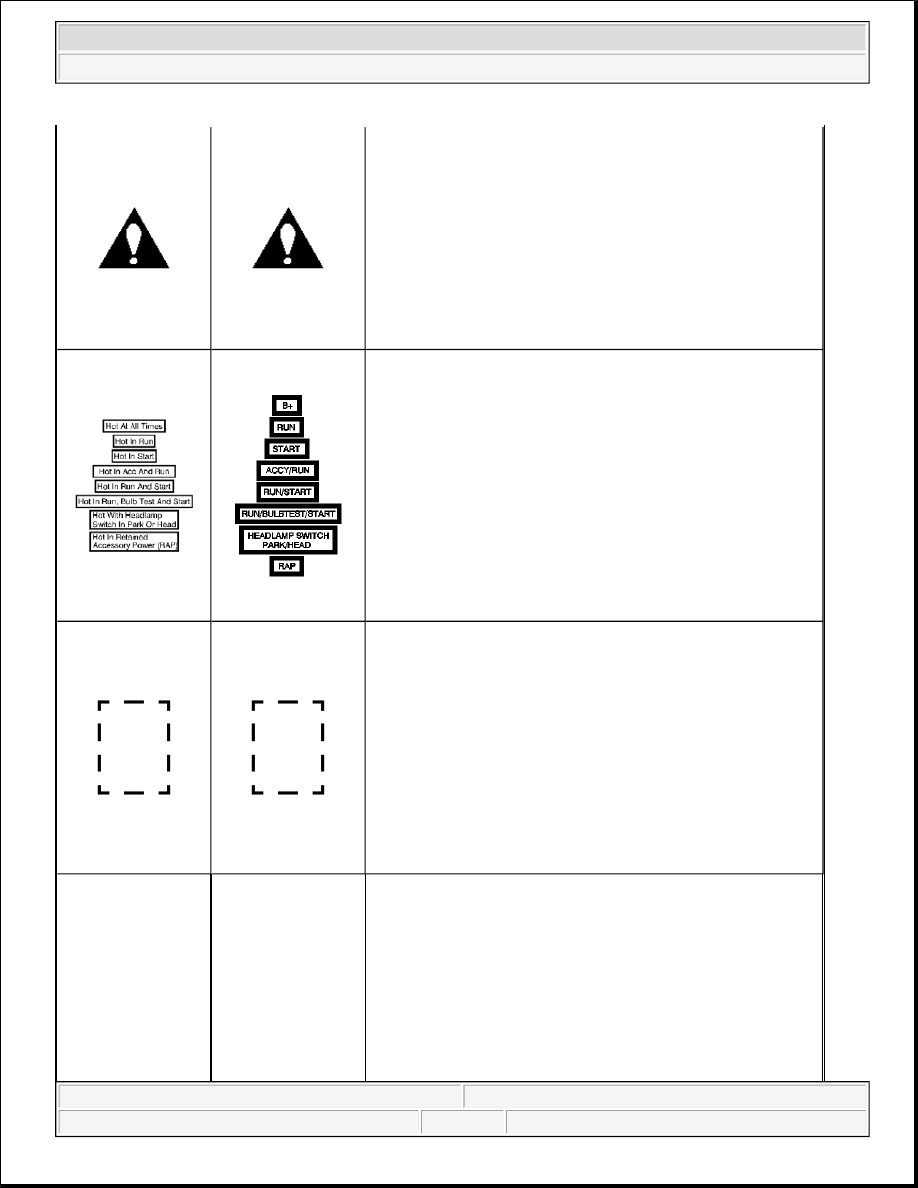

OLD Symbol
NEW Symbol
or
Description
Supplemental Inflatable Restraint (SIR) or Supplemental
Restraint System (SRS) Icon
This icon is used to alert the technician that the system
contains SIR/SRS components that require certain precautions
before servicing.
On-Board Diagnostic (OBD II) Icon
This icon is used to alert the technician that the circuit is
essential for proper OBD II emission controls circuit
operation. Any circuit which, if it fails, causes the malfunction
indicator lamp (MIL) to turn on, is identified as an OBD II
circuit.
2004 Hummer H2
2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2
