Fig. 66: Front Wiper/Washer Circuit



2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2





2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2

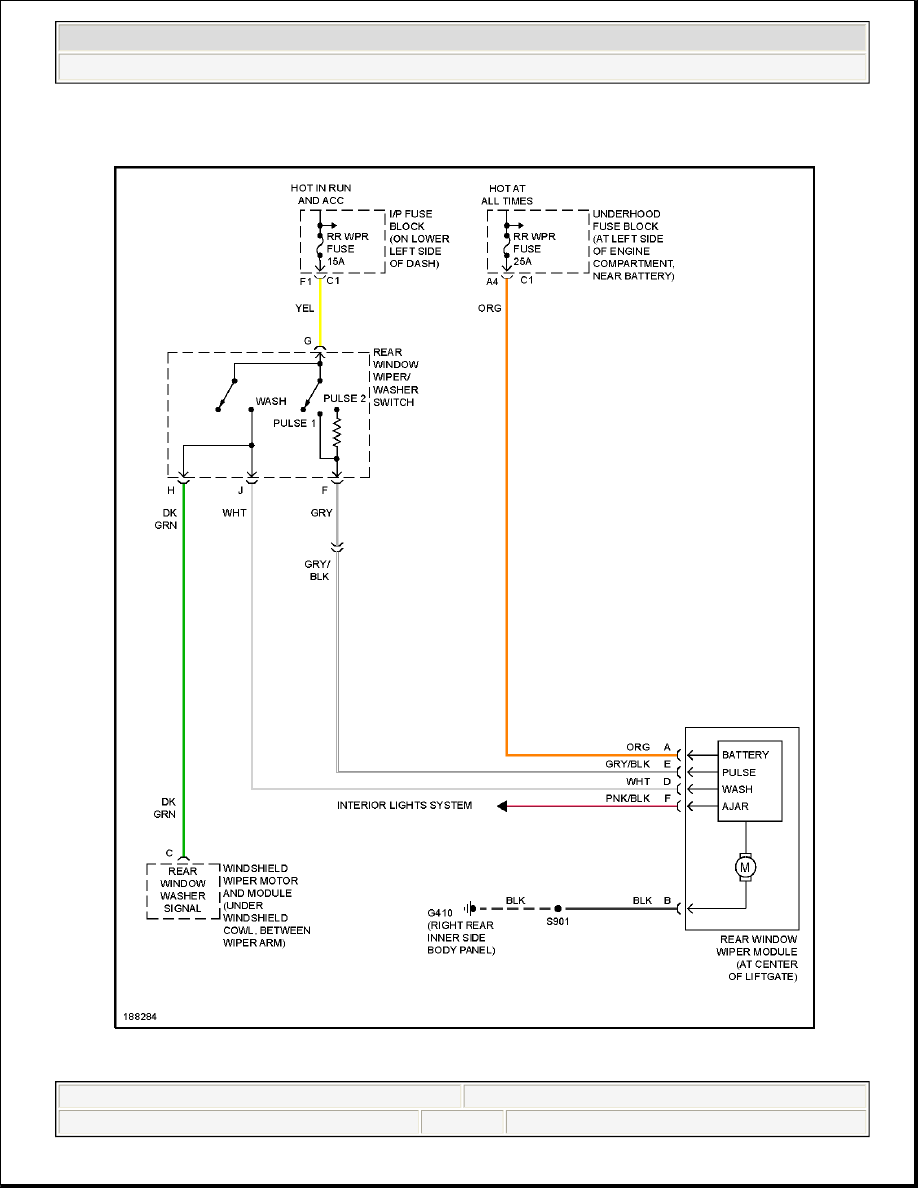

Fig. 67: Rear Wiper/Washer Circuit



2004 Hummer H2

SYSTEM WIRING DIAGRAMS Hummer - H2



2004 ACCESSORIES & EQUIPMENT

Wiring Systems - Hummer H2

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Fastener Tightening Specifications

DIAGNOSTIC INFORMATION AND PROCEDURES

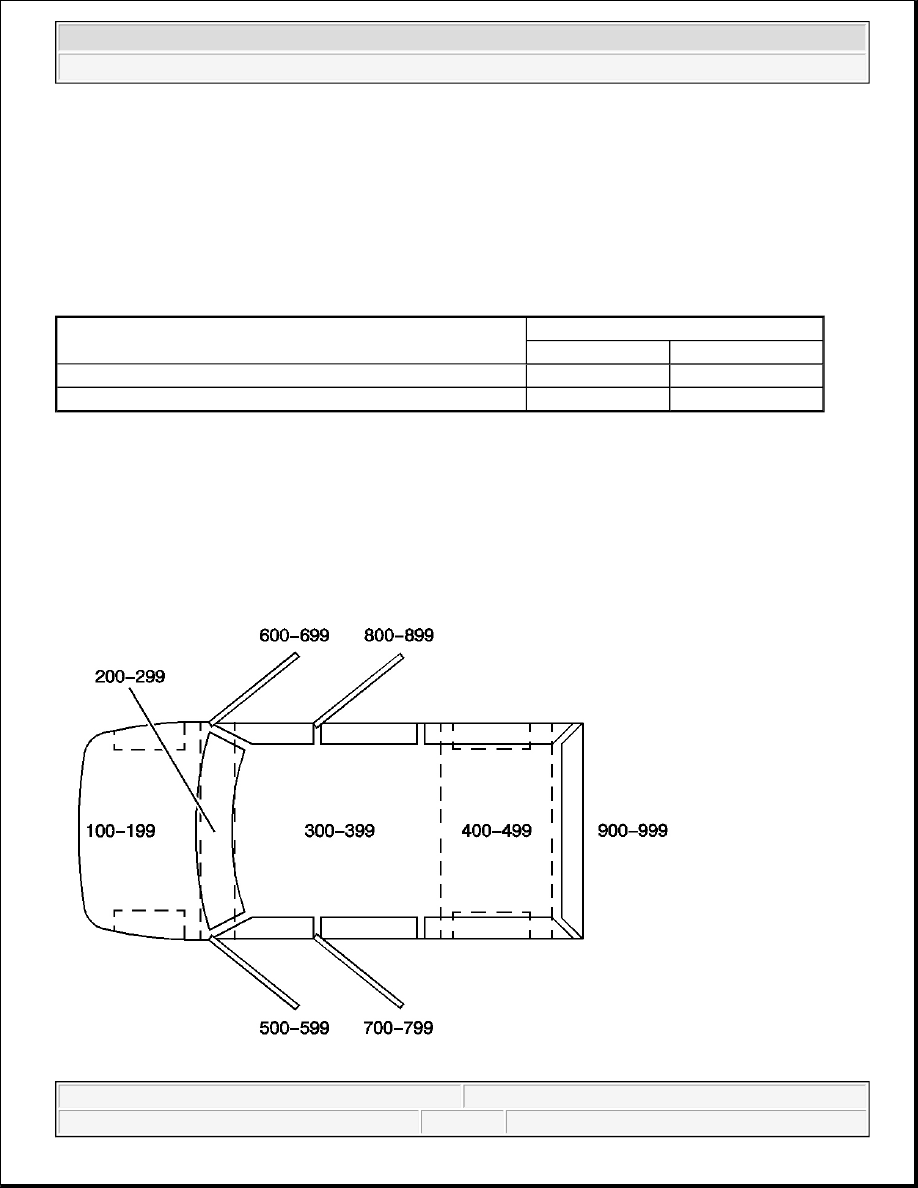

UTILITY/VAN ZONING

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond
to where they are located in the vehicle. The following table explains the numbering system.

Application

Specification

Metric

English

BEC Retaining Bolts

9 N.m

80 lb in

Fender Upper Brace Bolts

25 N.m

18 lb ft
