Hummer H2. Manual - part 1182

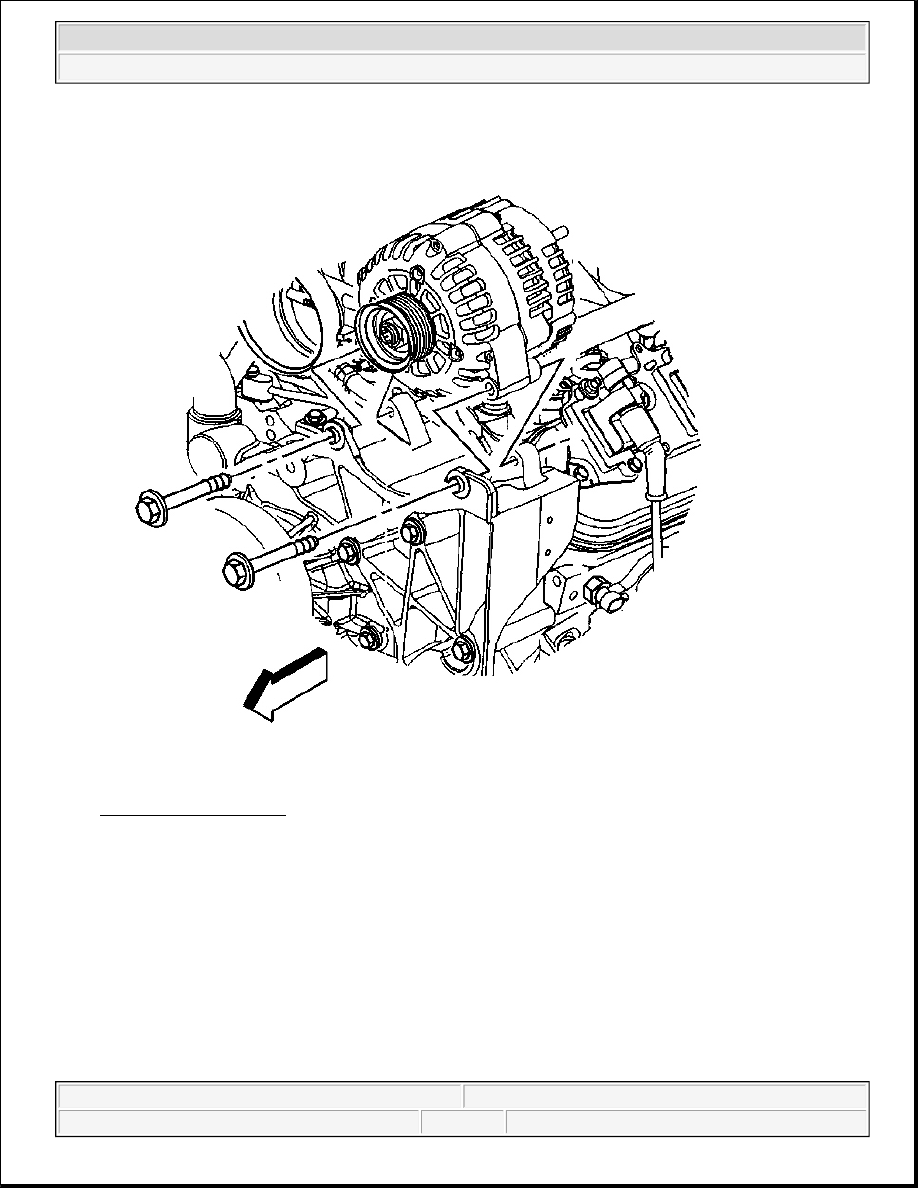

Fig. 61: Generator Bolts
Courtesy of GENERAL MOTORS CORP.

6. Remove the generator bolts.

7. Remove the generator.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



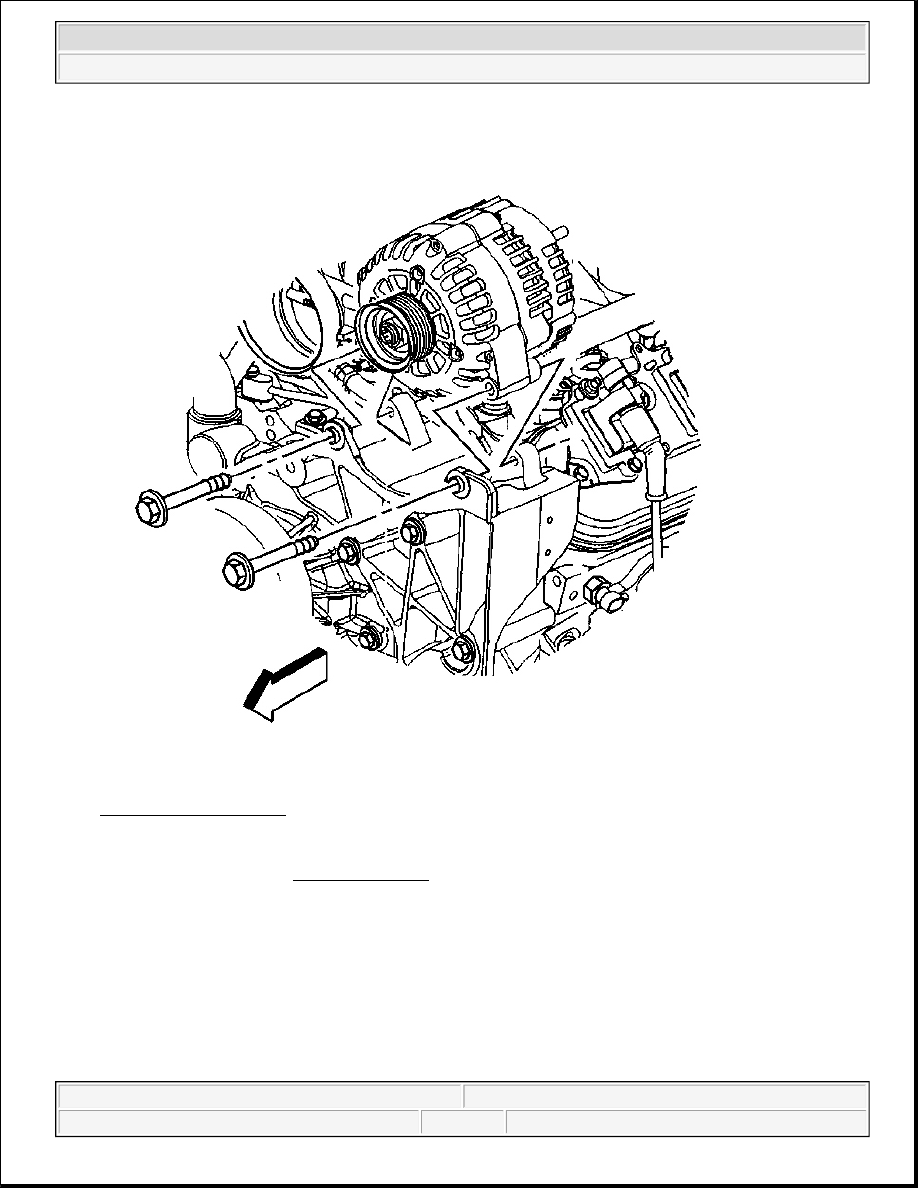

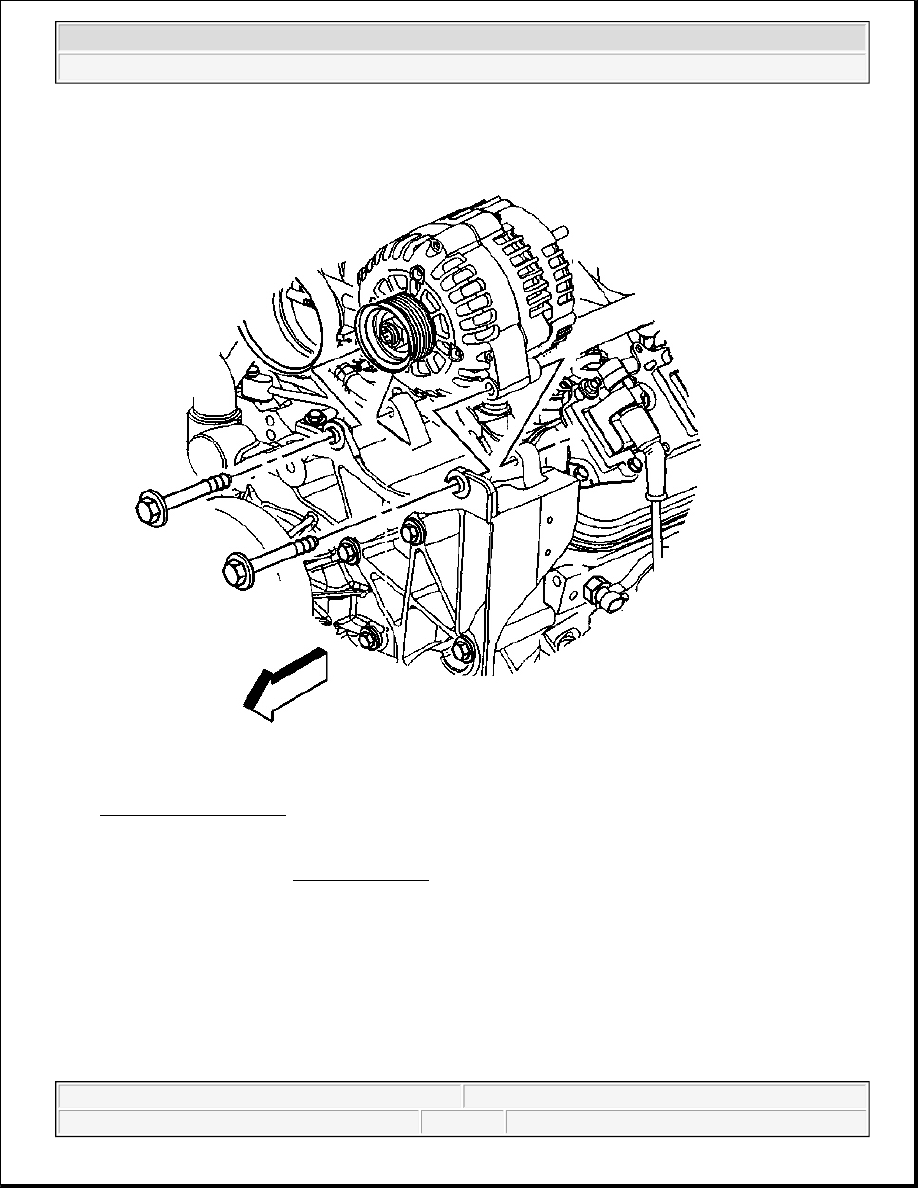

Fig. 62: Generator Bolts
Courtesy of GENERAL MOTORS CORP.

1. Install the generator.

2. Install the generator bolts.

Tighten: Tighten the generator bolts to 50 N.m (37 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



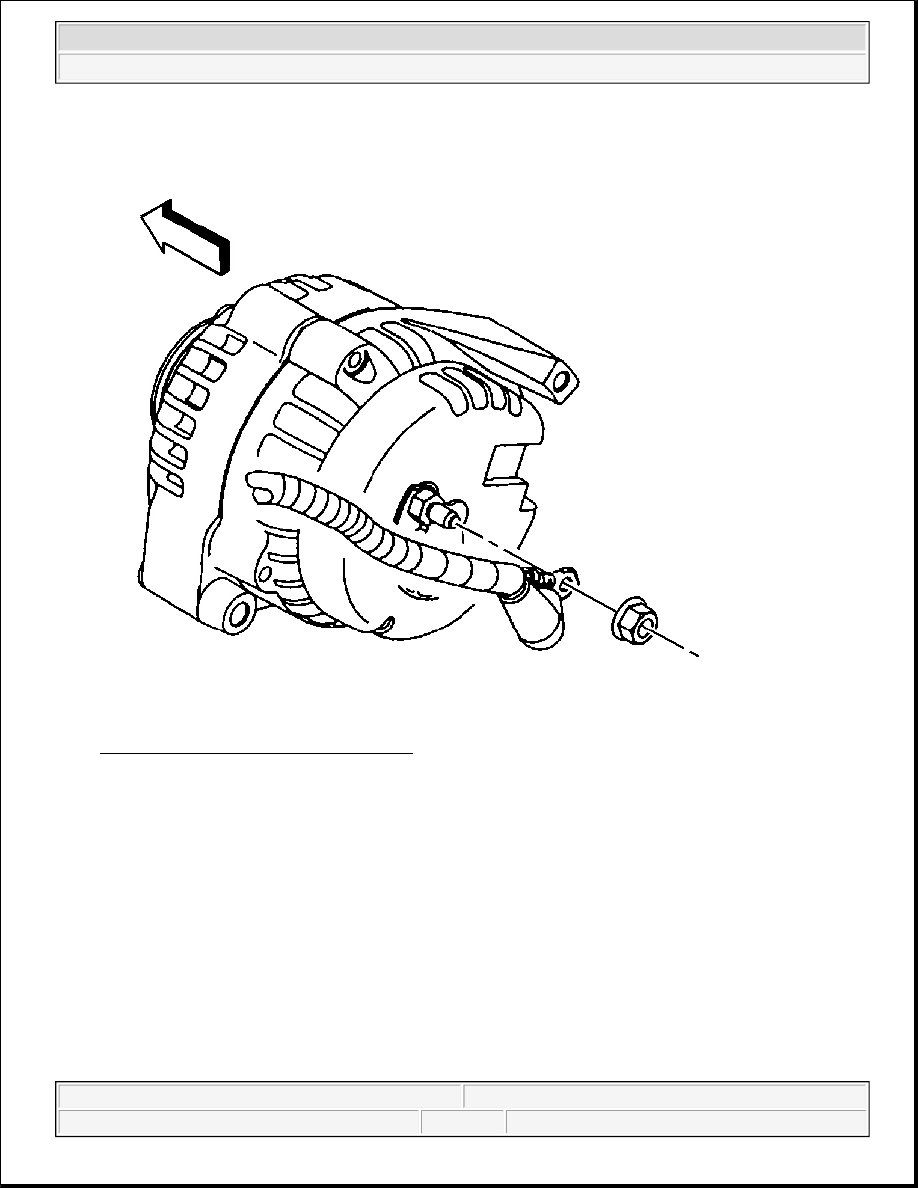

Fig. 63: View Of Generator Cable & Nut
Courtesy of GENERAL MOTORS CORP.

3. Install the generator cable to the generator, perform the following:

1. Install the generator cable.

2. Install the generator cable nut to the terminal stud.

Tighten: Tighten the generator cable nut to 9 N.m (80 lb in).

3. Slide the boot over the terminal stud.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



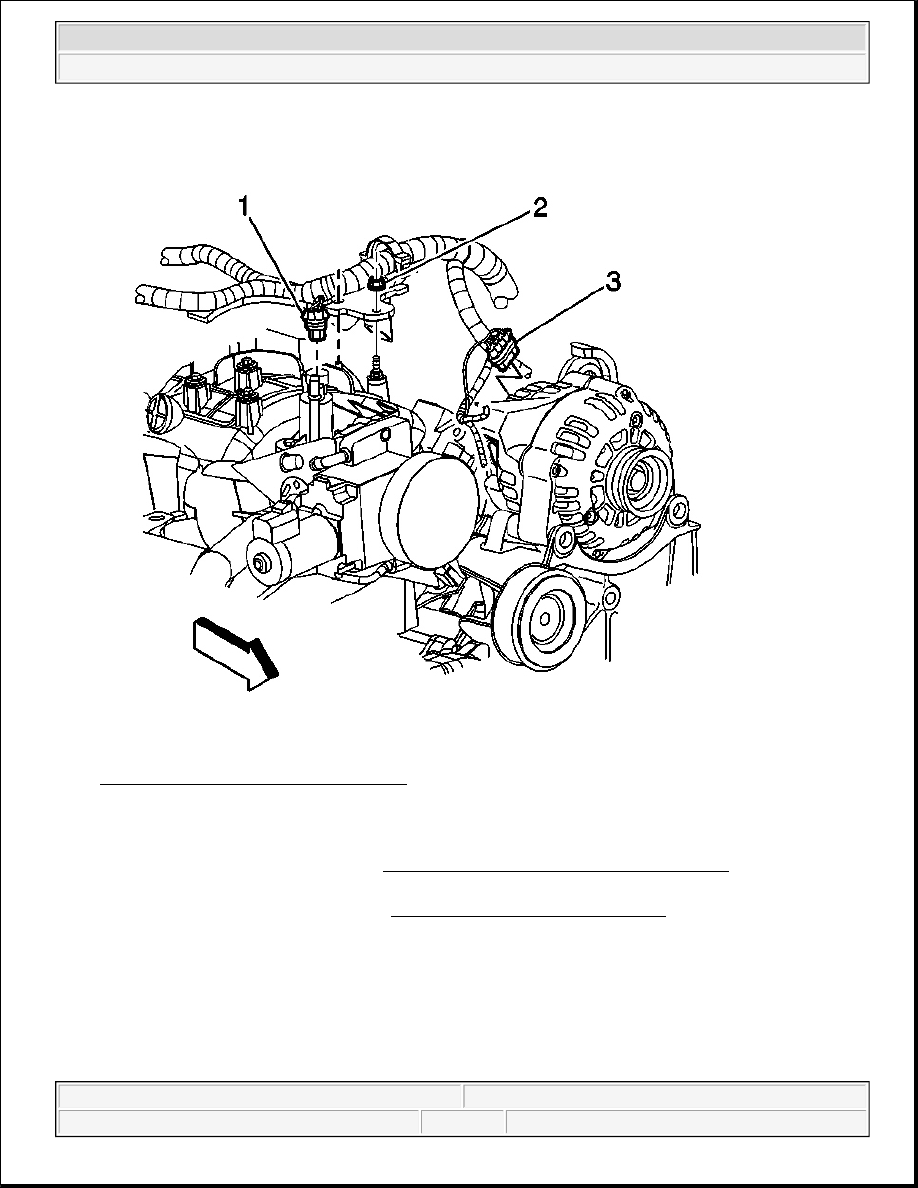

Fig. 64: Generator Electrical Connector
Courtesy of GENERAL MOTORS CORP.

4. Connect the generator electrical connector (3).

5. Install the engine sight shield. Refer to Engine Sight Shield Replacement 6.0L (LQ4) in Engine

Mechanical - 6.0L (LQ4).

6. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory in Engine Mechanical -

6.0L (LQ4).



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2
