Tighten: Tighten the starter bolts to 50 N.m (37 lb ft).

9. Connect the oil level sensor electrical connector.

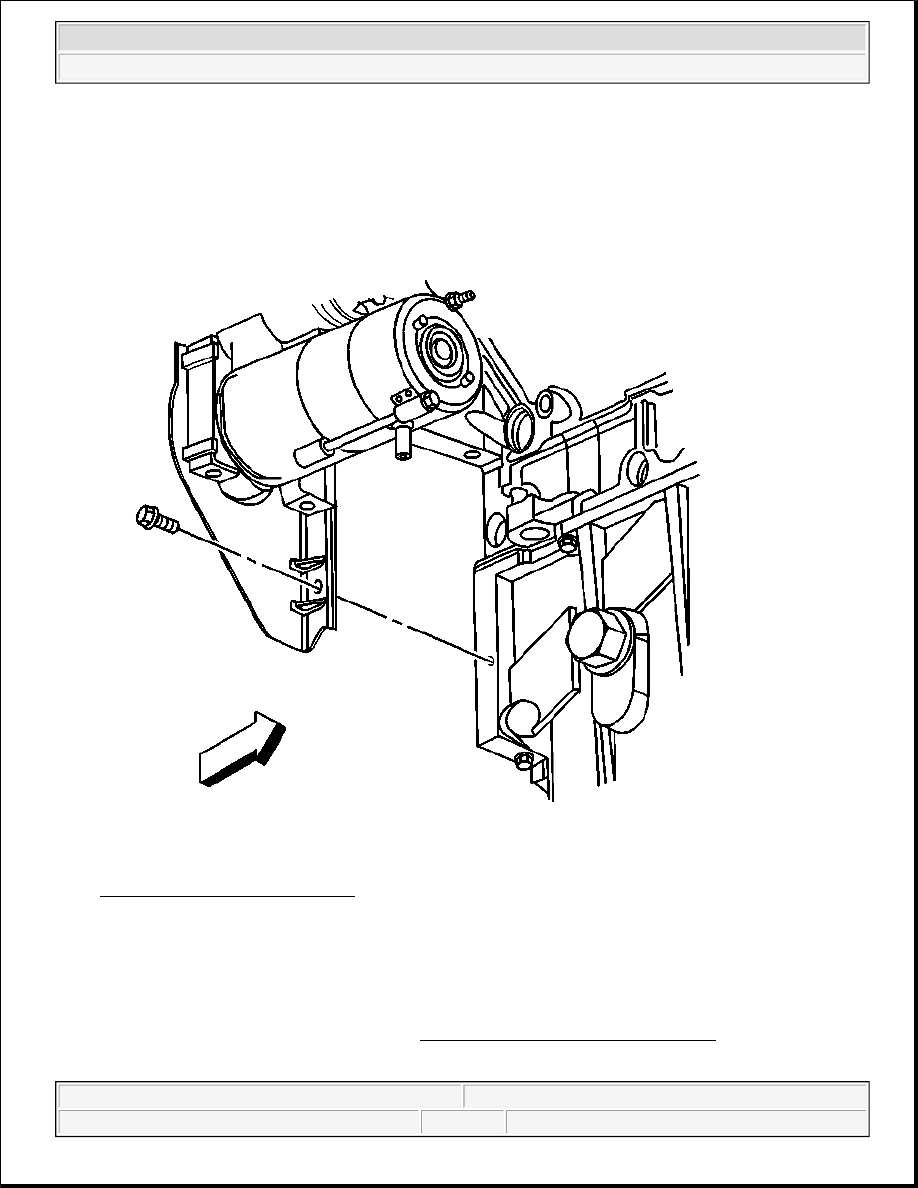

Fig. 53: Transmission Cover Bolt
Courtesy of GENERAL MOTORS CORP.

10. Install the transmission cover bolt.

Tighten: Tighten the transmission cover bolt to 9 N.m (80 lb in).

11. Install the engine protective shield. Refer to Engine Protection Shield Replacement .

12. Lower the vehicle.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



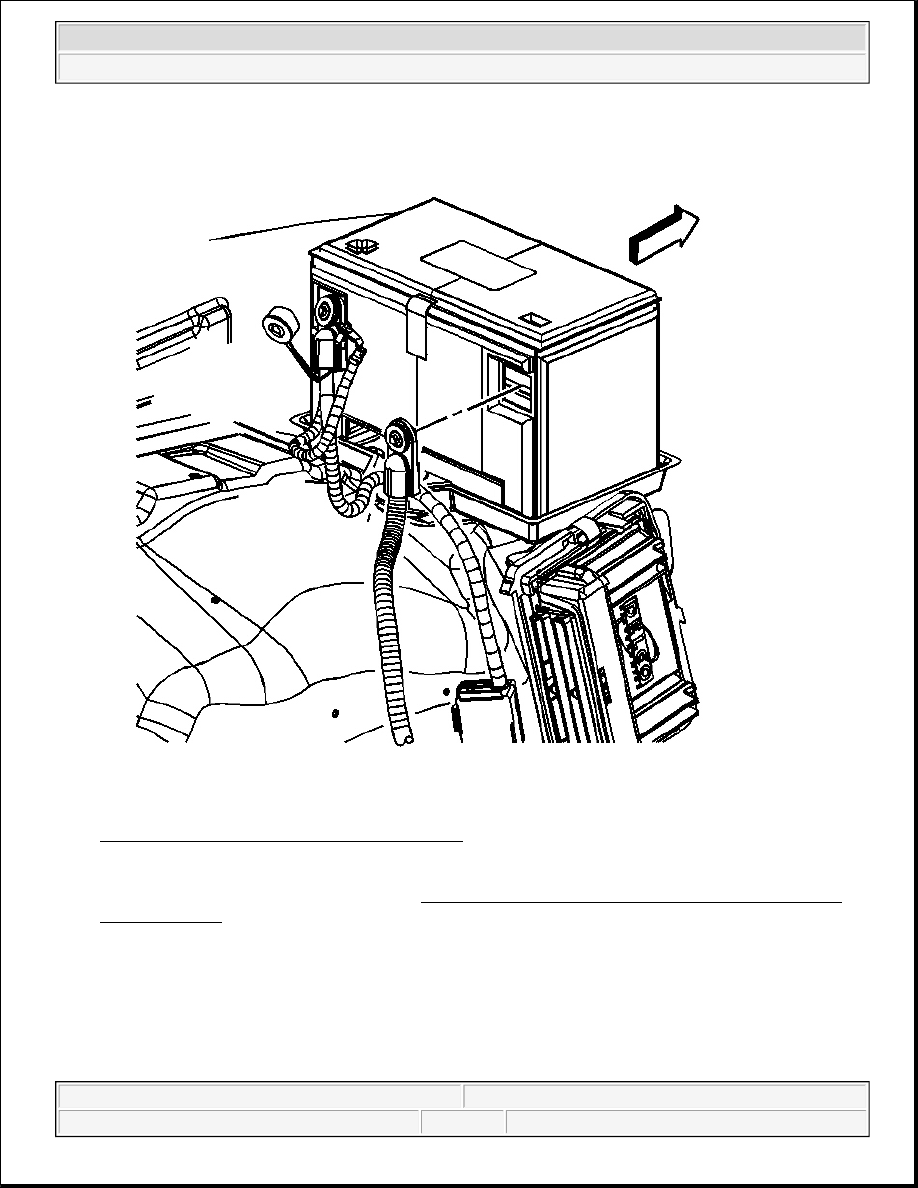

Fig. 54: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

GENERATOR BRACKET REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



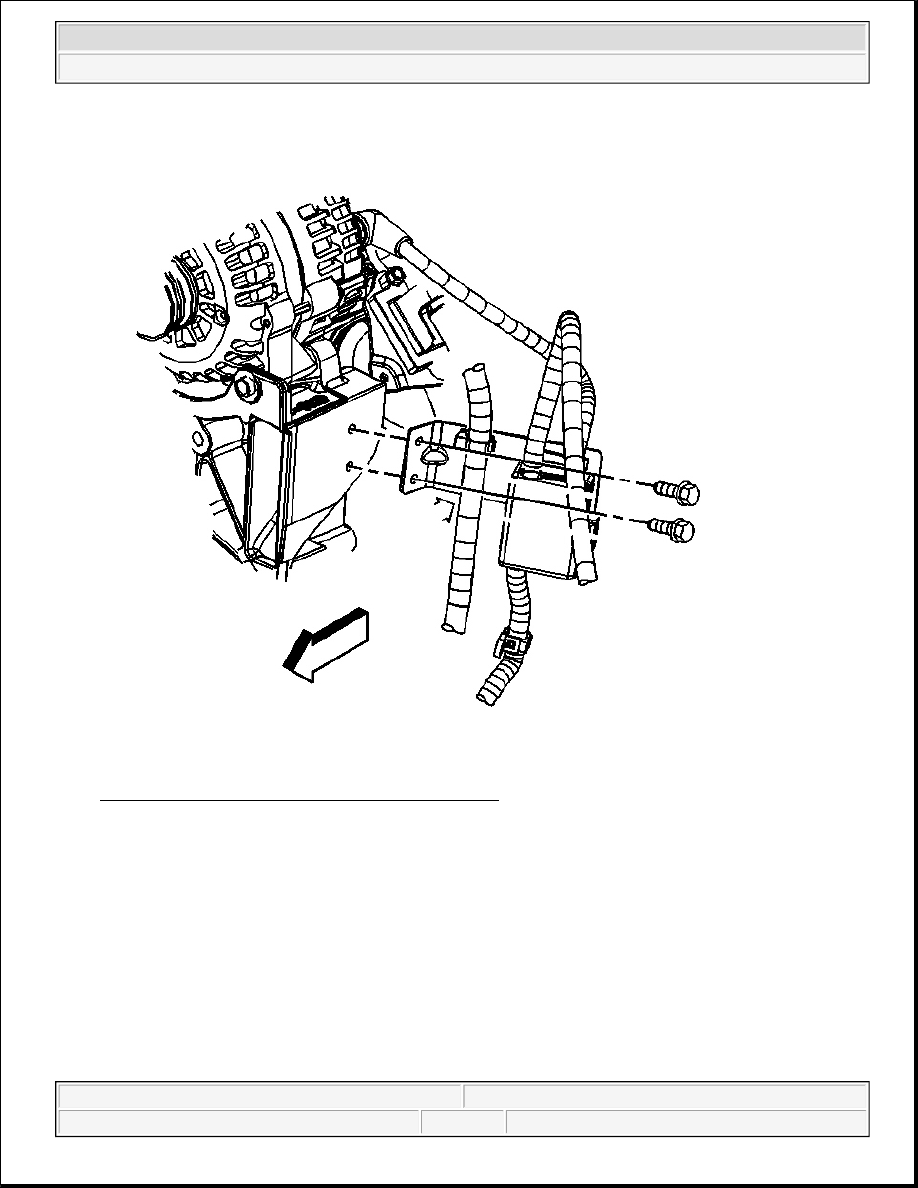

Fig. 55: Battery Cable Junction Block Bracket Bolts
Courtesy of GENERAL MOTORS CORP.

1. Remove the battery cable junction block bracket bolts.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



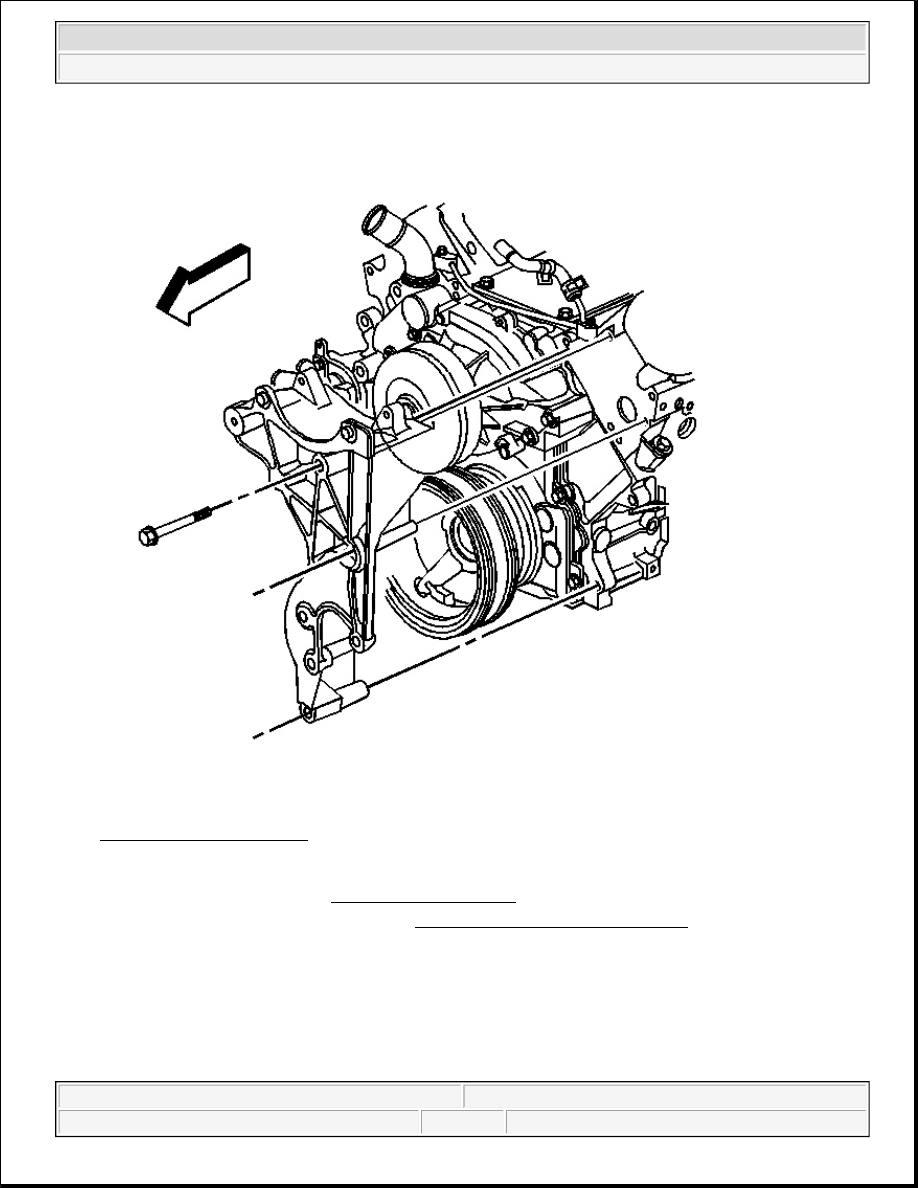

Fig. 56: Generator Bracket
Courtesy of GENERAL MOTORS CORP.

2. Remove the generator. Refer to Generator Replacement .

3. Remove the power steering pump. Refer to Power Steering Pump Replacement in Power Steering

System.

4. Remove the generator bracket bolts.

5. Remove the generator bracket.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2
