1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

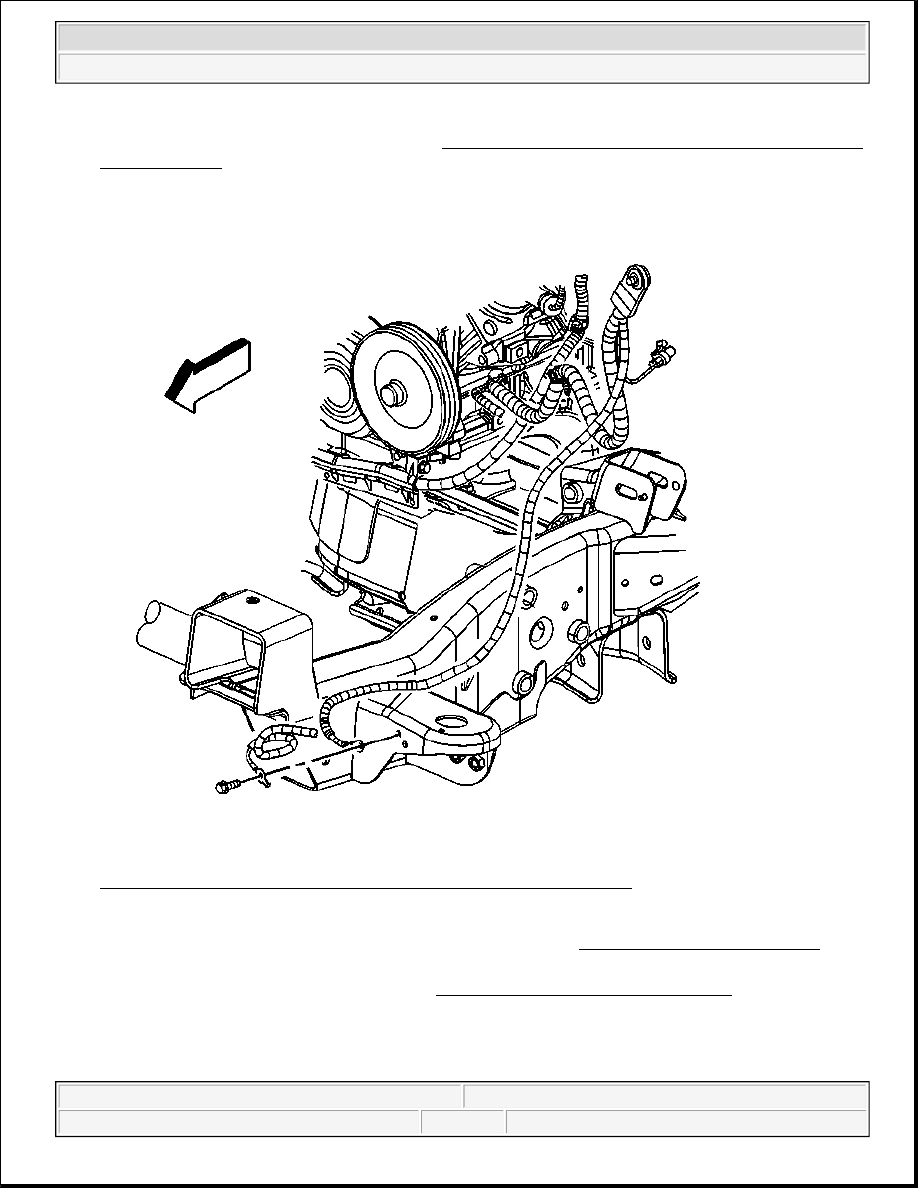

Fig. 10: Forward Lamp Wiring Harness Ground/Negative Cable Bolt
Courtesy of GENERAL MOTORS CORP.

2. Raise and suitably support the vehicle with safety stands. Refer to Lifting and Jacking the Vehicle in

General Information.

3. Remove the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

4. Remove the forward lamp wiring harness ground/negative cable bolt.

5. Remove the engine wiring harness ground/negative cable bolt.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



6. Remove the negative battery cable.

Installation Procedure

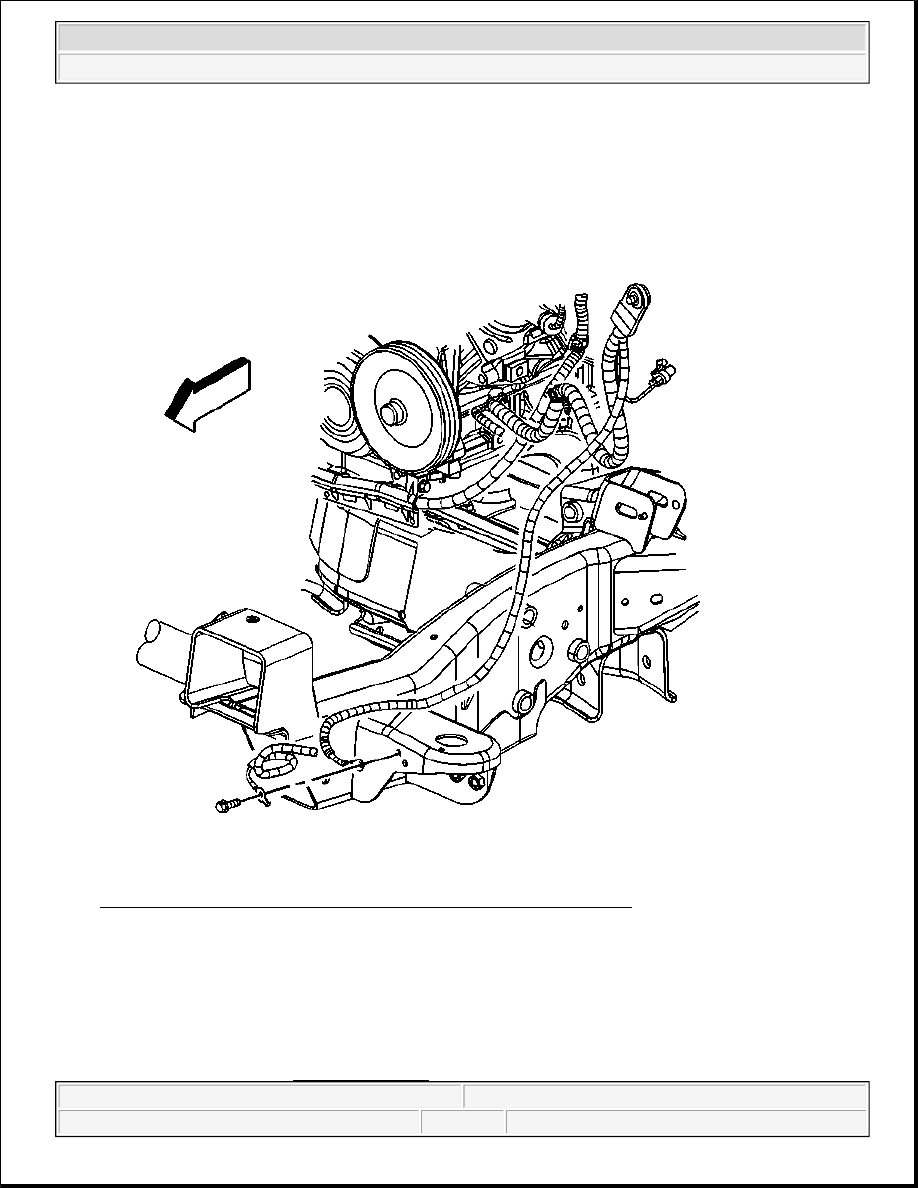

Fig. 11: Forward Lamp Wiring Harness Ground/Negative Cable Bolt
Courtesy of GENERAL MOTORS CORP.

1. Install the negative battery cable.

2. Position the negative cable and forward lamp wiring harness ring terminals to the frame.

Insert the anti-rotation tab on the forward lamp wiring harness into the hole in the frame.

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



3. Install the forward lamp wiring harness ground/negative cable bolt.

Tighten: Tighten the forward lamp wiring harness ground/negative cable bolt to 9 N.m (80 lb in).

4. Position the negative cable and engine wiring harness ring terminals to the engine block. Position the

anti-rotation tab on the negative cable in the correct location.

5. Install the engine wiring harness ground/negative cable bolt.

Tighten: Tighten the engine wiring harness ground/negative cable bolt to 25 N.m (18 lb ft).

6. Install the engine protection shield. Refer to Engine Protection Shield Replacement in Frame and

Underbody.

7. Lower the vehicle.

8. Install the negative cable clip to the positive cable clip.

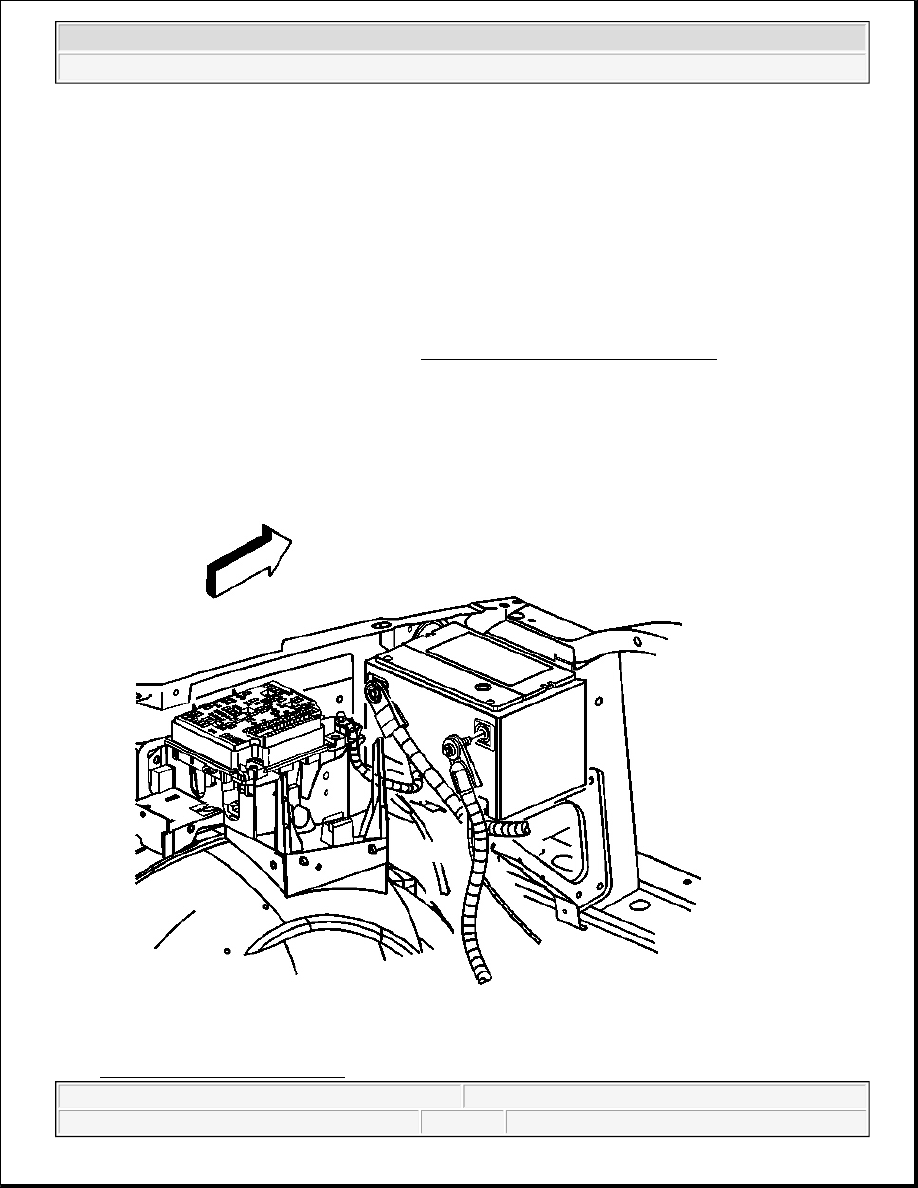

Fig. 12: View Of Battery Cables



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Courtesy of GENERAL MOTORS CORP.

9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

BATTERY POSITIVE CABLE REPLACEMENT

Removal Procedure

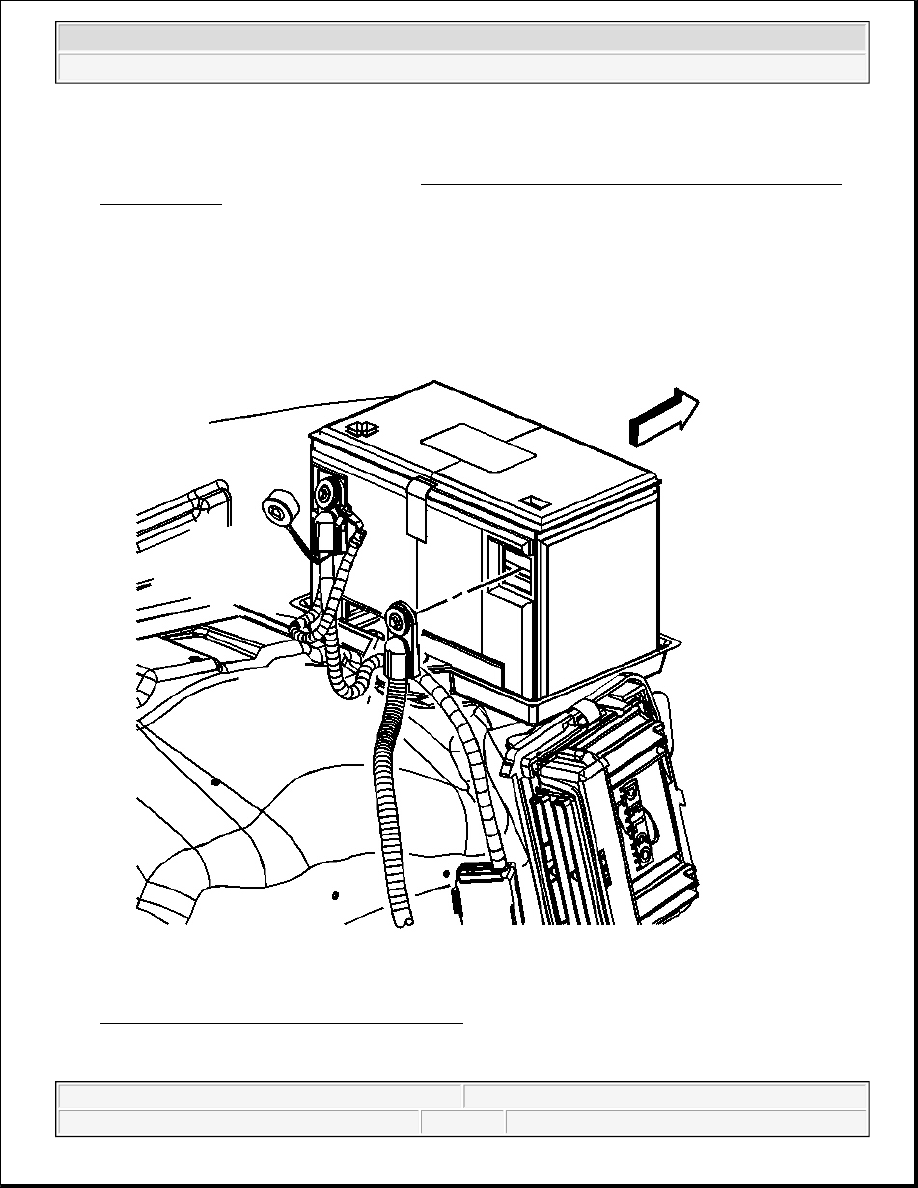

Fig. 13: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2
