REPAIR INSTRUCTIONS

BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (SINGLE BATTERY)

Removal Procedure

1. Turn off all the lamps and accessories.

2. Turn the ignition OFF.

6

z

Missing gear teeth

z

Milled teeth


Is the flywheel bent, or does it have damaged
teeth?

Go to Step 9

Go to Step 10

7

1. Remove the starter motor. Refer to Starter

Motor Replacement .

2. Inspect the starter motor bushings and clutch

gear.

Does the clutch gear have chipped or milled teeth
or worn bushings?

Go to Step 10

Go to Step 9

8

Shim the starter motor away from the flywheel by
adding shims between the starter motor and the
engine block one at a time.
Flywheel runout may make this noise appear to be
intermittent.
Did you complete the repair?

Go to Step 11

-

9

Replace the flywheel. Refer to Engine Flywheel
Replacement in Engine Mechanical.
Did you complete the replacement?

Go to Step 11

-

10

Replace the starter motor. Refer to Starter Motor
Replacement .
Did you complete the replacement?

Go to Step 11

-

11

Operate the system in order to verify the repair.
Did you correct the condition?

System OK

Go to Step 3

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



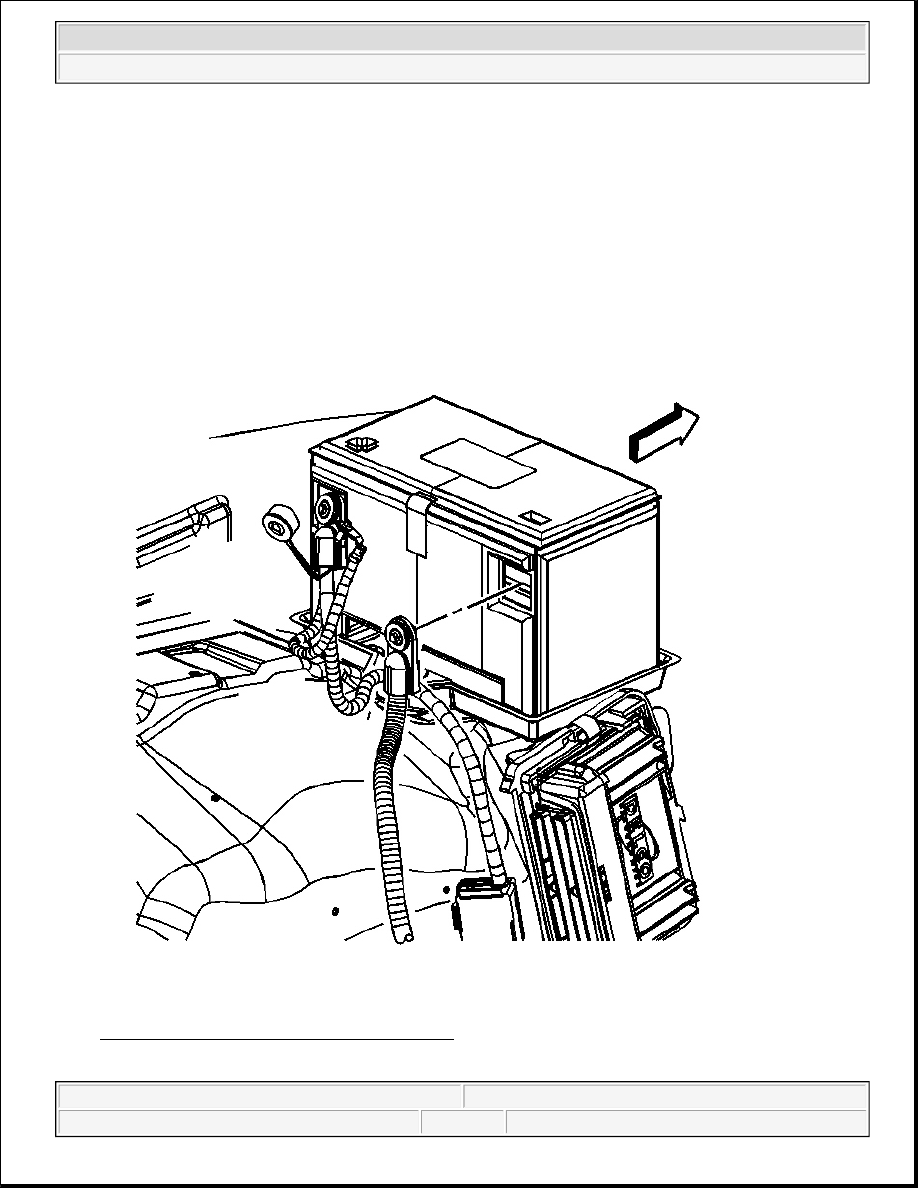

Fig. 7: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

3. Remove the battery ground negative cable and bolt from the battery.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



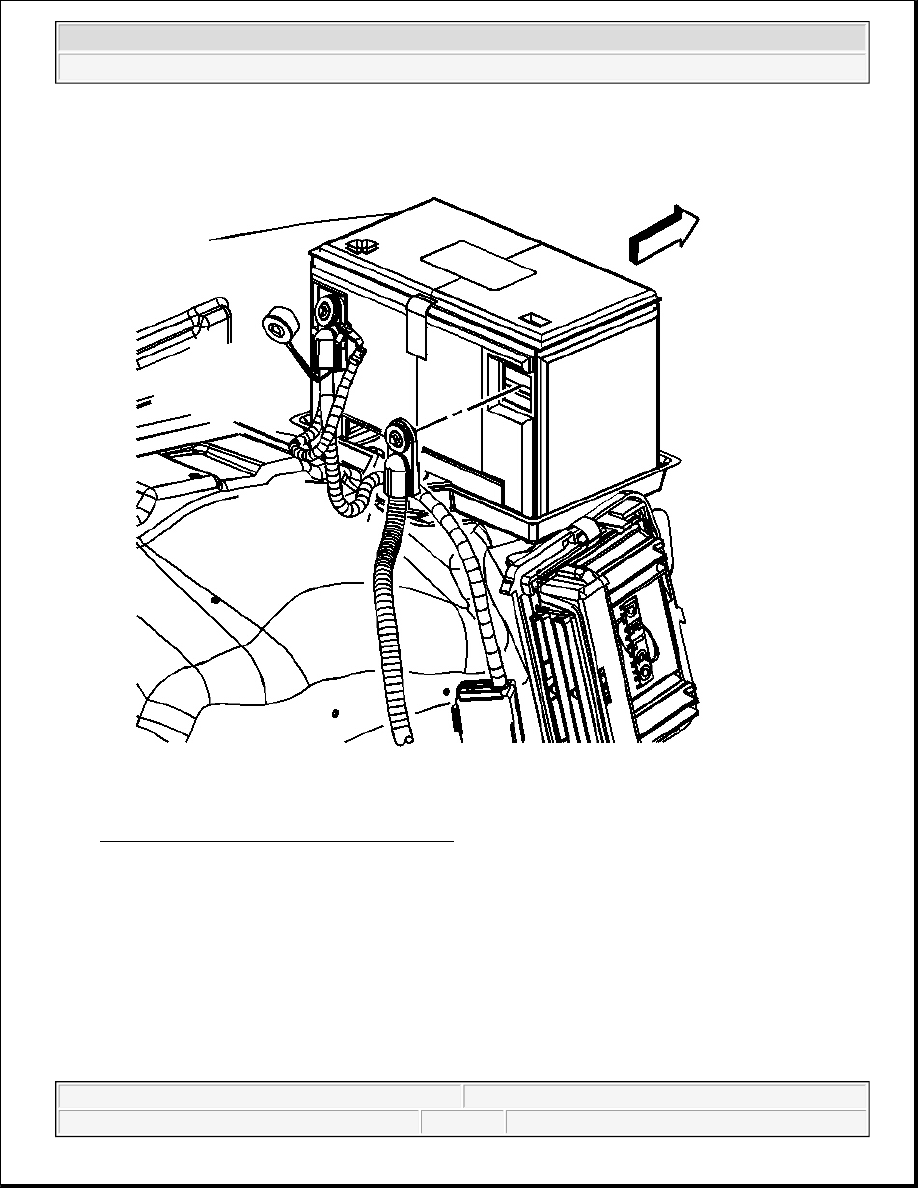

Fig. 8: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

Install the battery ground negative cable and bolt to the battery.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

IMPORTANT: Clean any existing corrosion from the battery terminal bolt flange and the

battery cable end.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Tighten: Tighten the battery terminal bolt to 17 N.m (13 lb ft).

BATTERY NEGATIVE CABLE REPLACEMENT

Removal Procedure

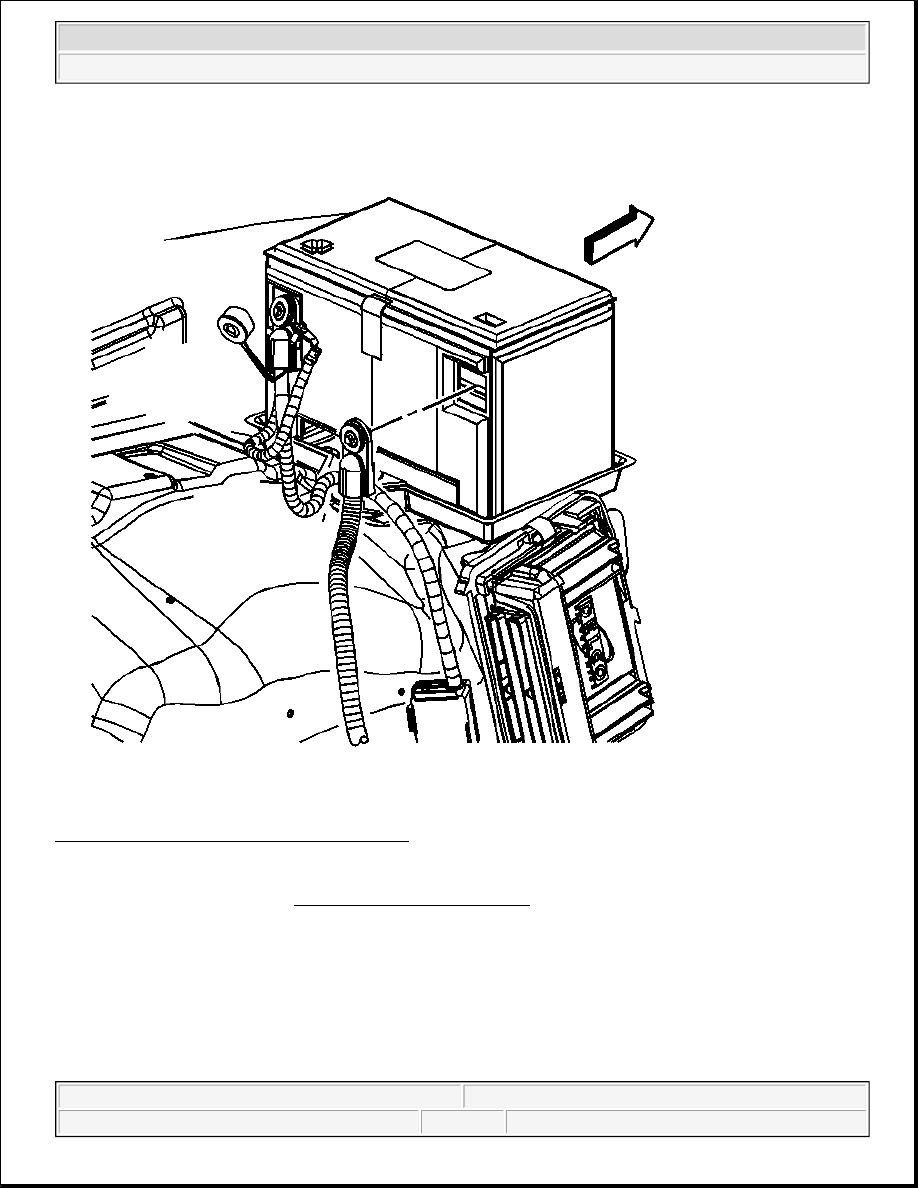

Fig. 9: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2
