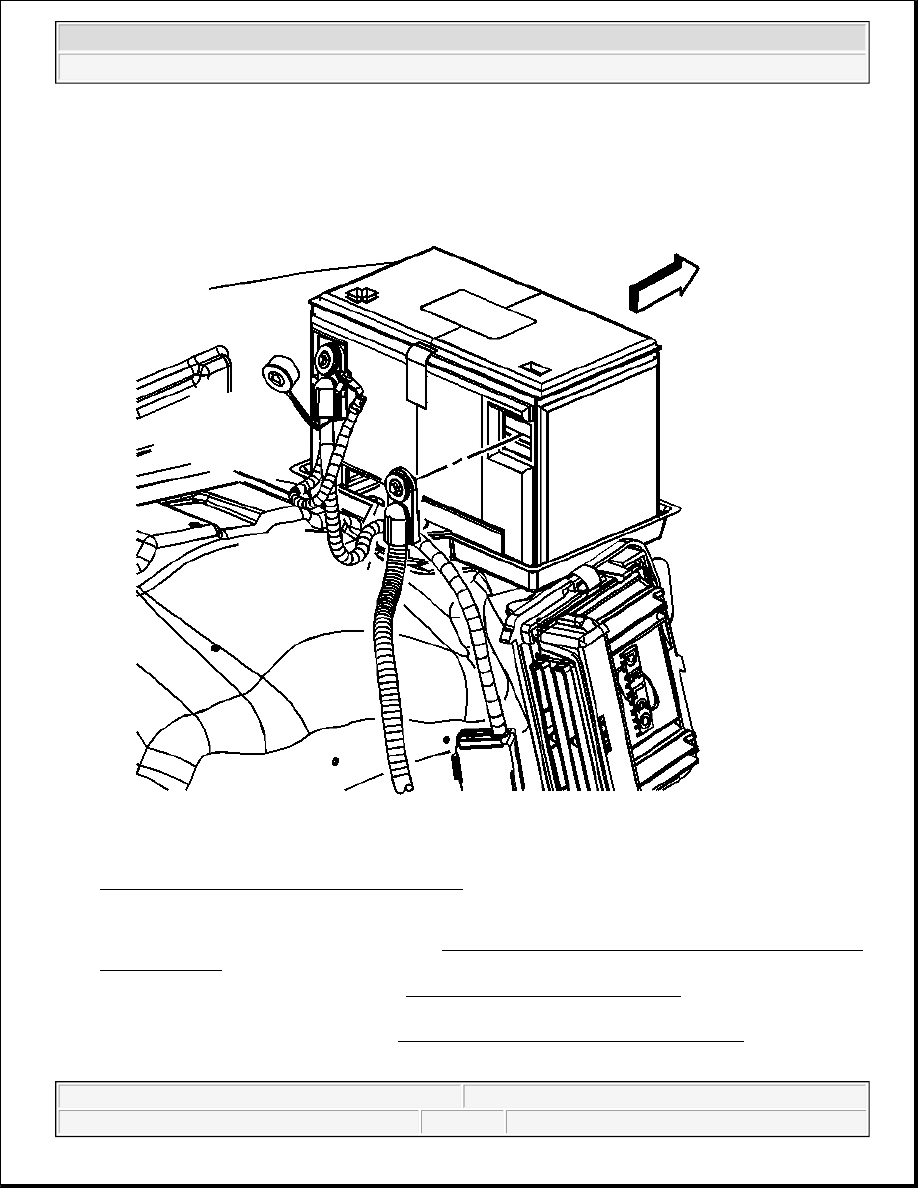

Fig. 59: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

2. Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory in Engine Mechanical -

6.0L (LQ4).

3. Remove the engine sight shield. Refer to Engine Sight Shield Replacement 6.0L (LQ4) in Engine

Mechanical - 6.0L (LQ4).



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



4. Disconnect the generator electrical connector.

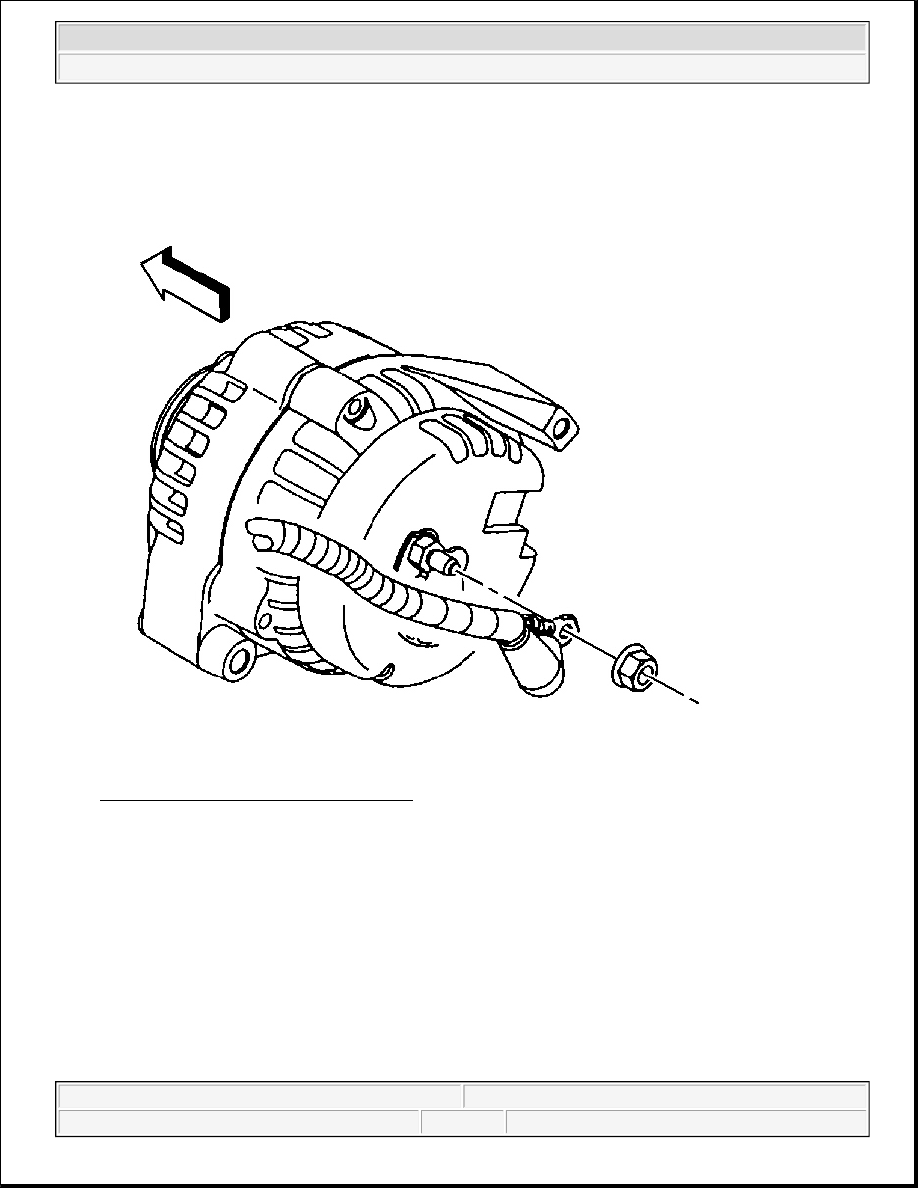

Fig. 60: View Of Generator Cable & Nut
Courtesy of GENERAL MOTORS CORP.

5. Remove the generator cable from the generator, perform the following:

1. Slide the boot down revealing the terminal stud.

2. Remove the generator cable nut from the terminal stud.

3. Remove the generator cable.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



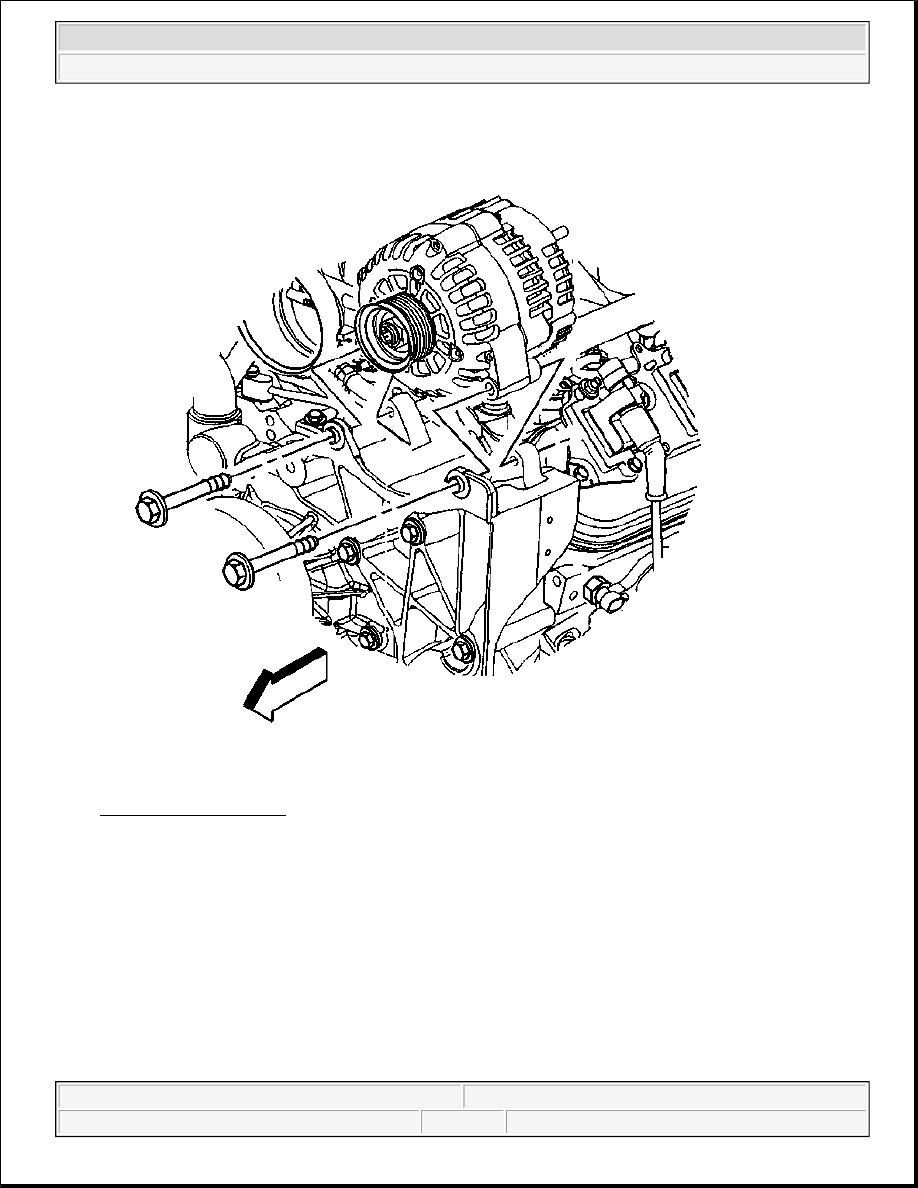

Fig. 61: Generator Bolts
Courtesy of GENERAL MOTORS CORP.

6. Remove the generator bolts.

7. Remove the generator.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



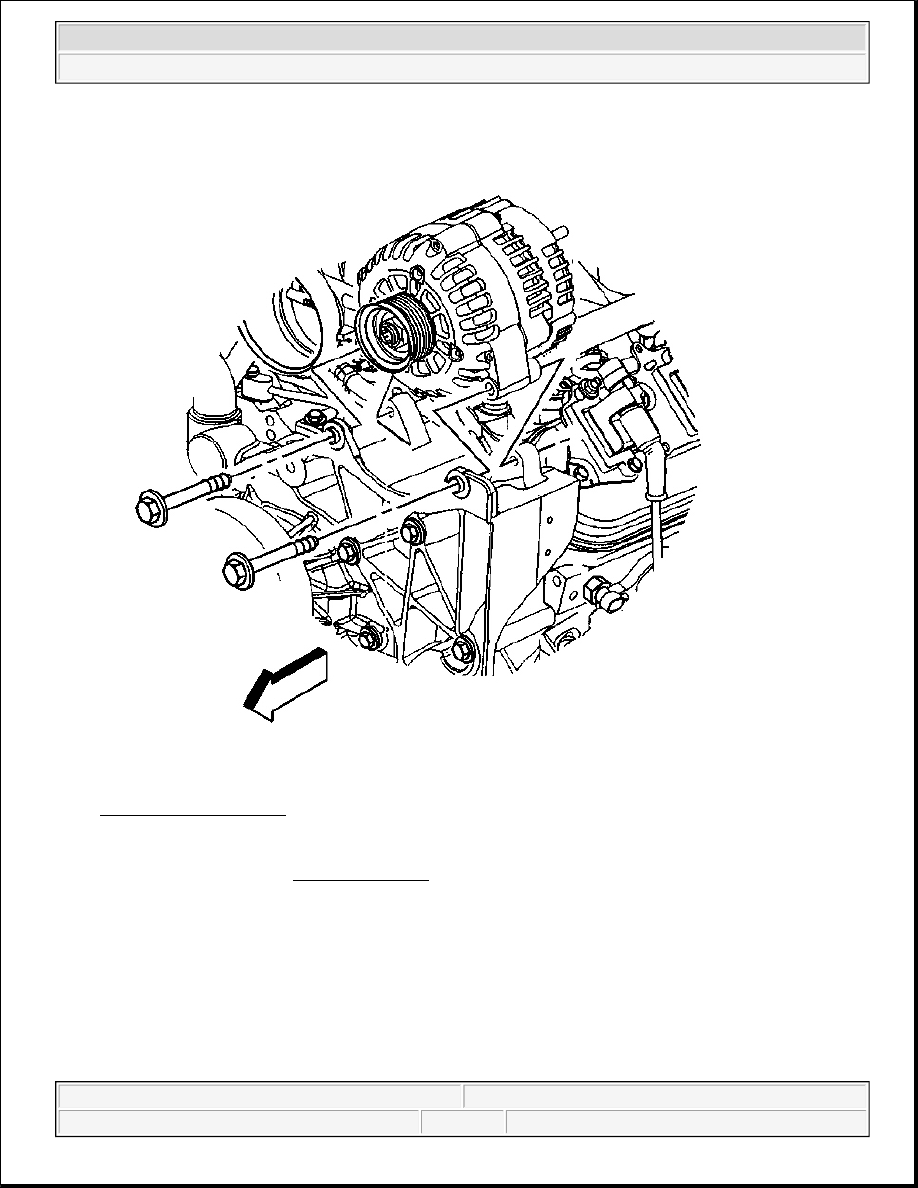

Fig. 62: Generator Bolts
Courtesy of GENERAL MOTORS CORP.

1. Install the generator.

2. Install the generator bolts.

Tighten: Tighten the generator bolts to 50 N.m (37 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.
