Hummer H2. Manual - part 1115

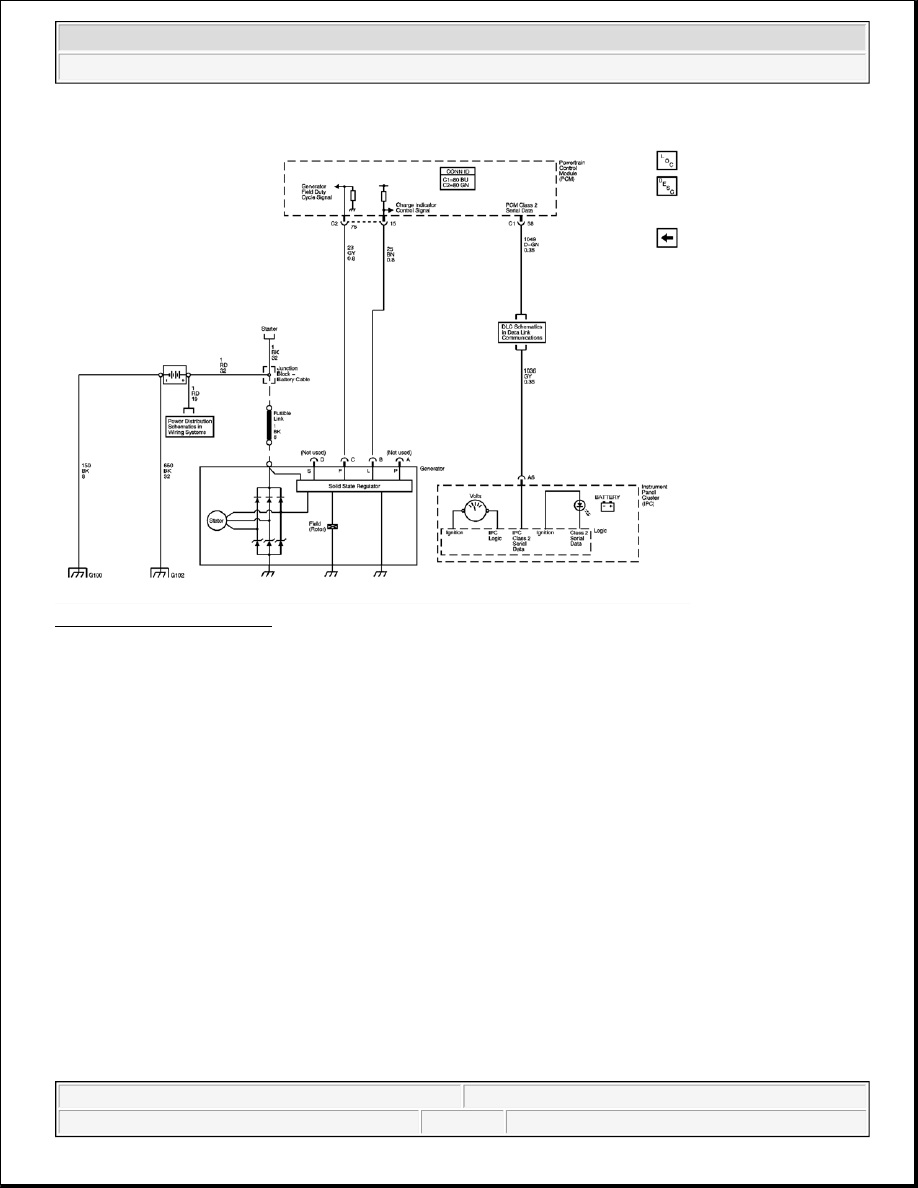

Fig. 2: Charging Schematics
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

ENGINE ELECTRICAL COMPONENT VIEWS



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



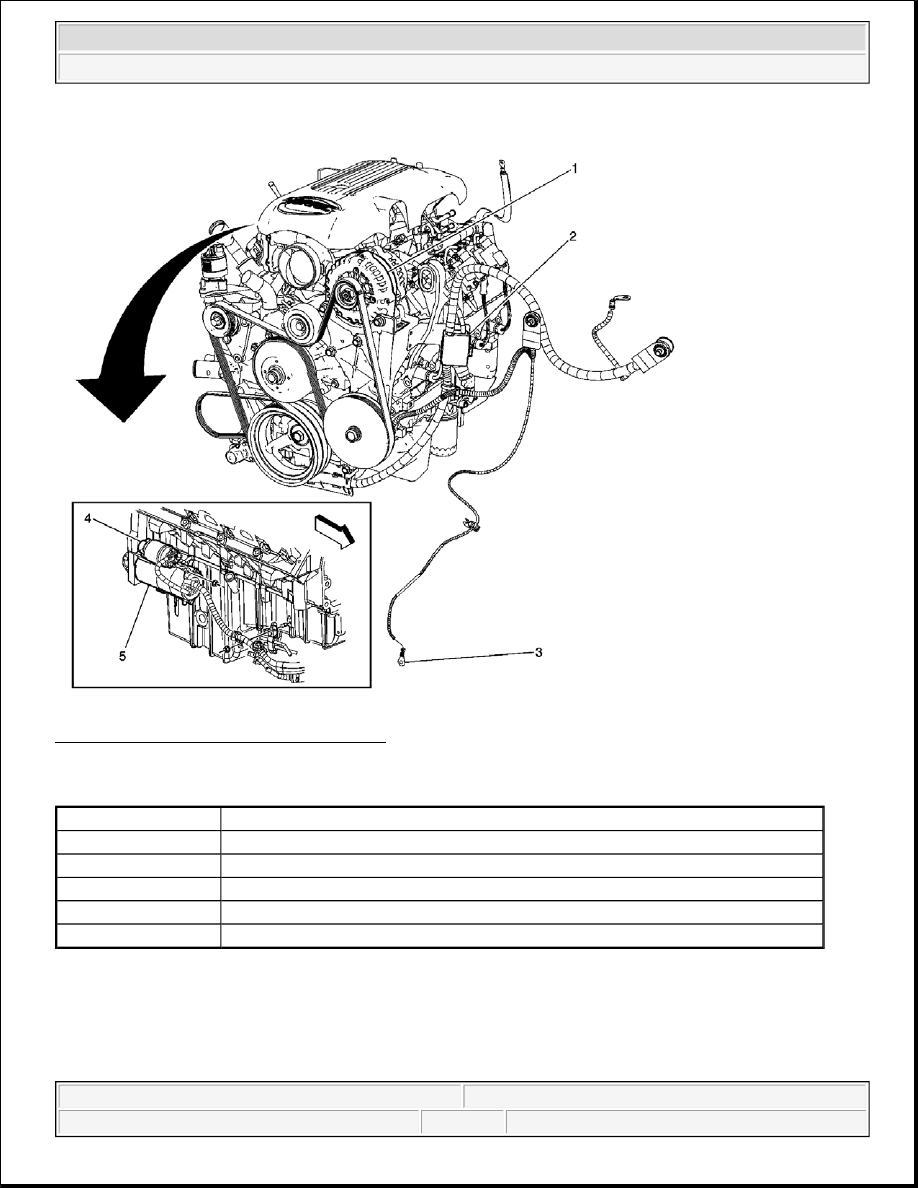

Fig. 3: Engine Electrical Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

Generator

2

Junction Block - Battery Cable

3

G100

4

Starter Solenoid

5

Starter



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



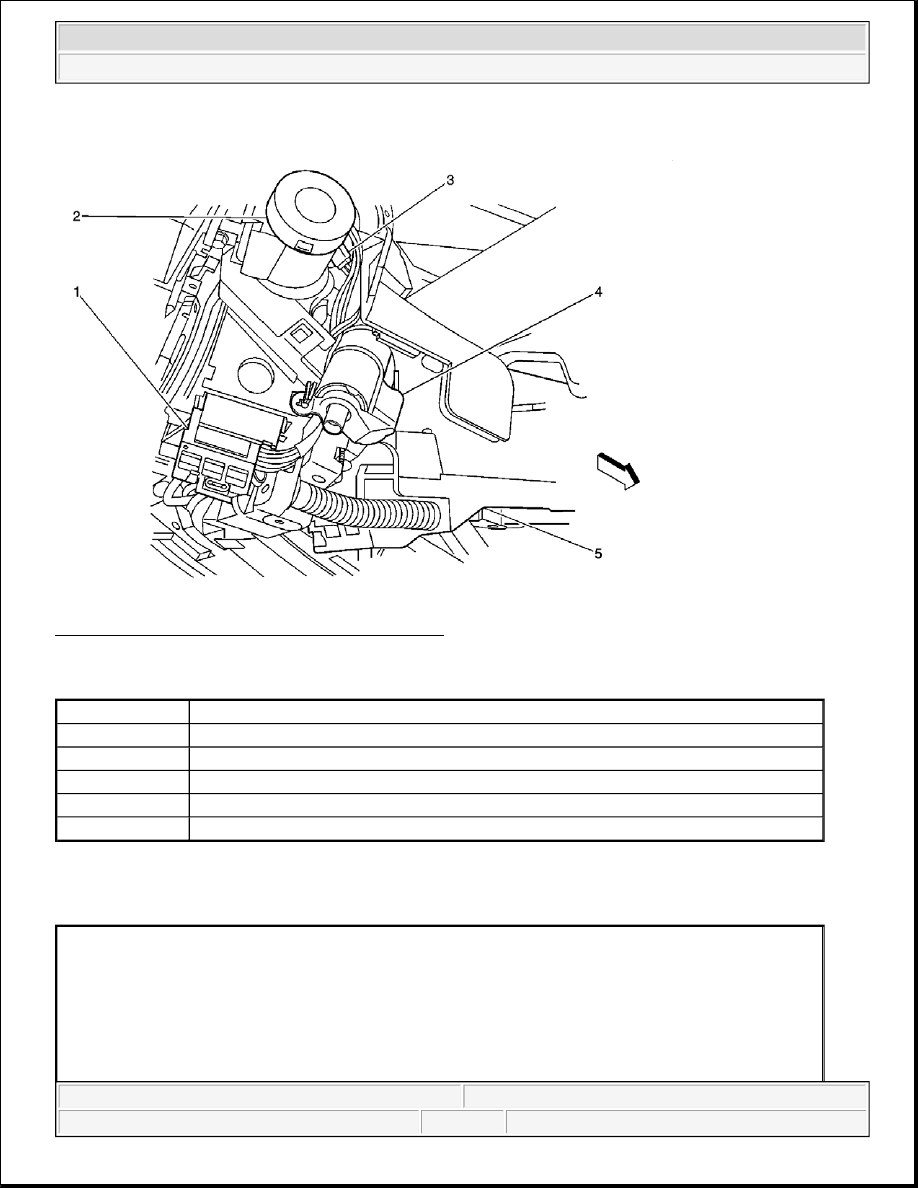

Fig. 4: Top Of Steering Column Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 4

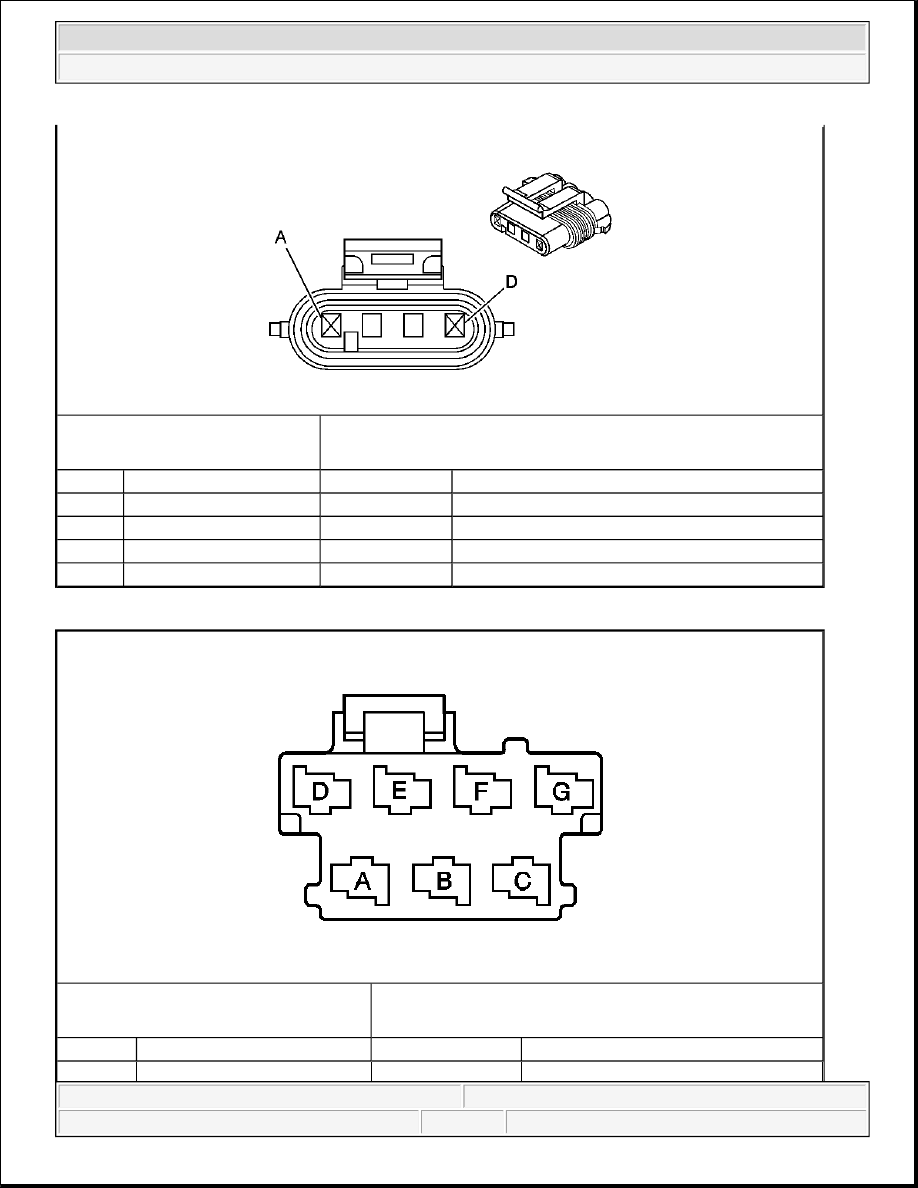

ENGINE ELECTRICAL CONNECTOR END VIEWS

Generator Terminal Identification

Callout

Component Name

1

Ignition Switch

2

Passlock Sensor

3

Ignition Key Alarm Switch

4

Ignition Lock Cylinder Control Actuator

5

Steering Column



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Ignition Terminal Identification Switch

Connector Part Information

z

15355066

z

2-Way F Metri-Pack 150 Series Sealed (TN)

Pin

Wire Color

Circuit No.

Function

A

-

-

Plugged

B

BN

25

Charge Indicator Control Signal

C

GY

23

Generator Field Duty Cycle Signal

D

-

-

Plugged

Connector Part Information

z

10400853490

z

7-Way F Kostal N Series (BK)

Pin

Wire Color

Circuit No.

Function
