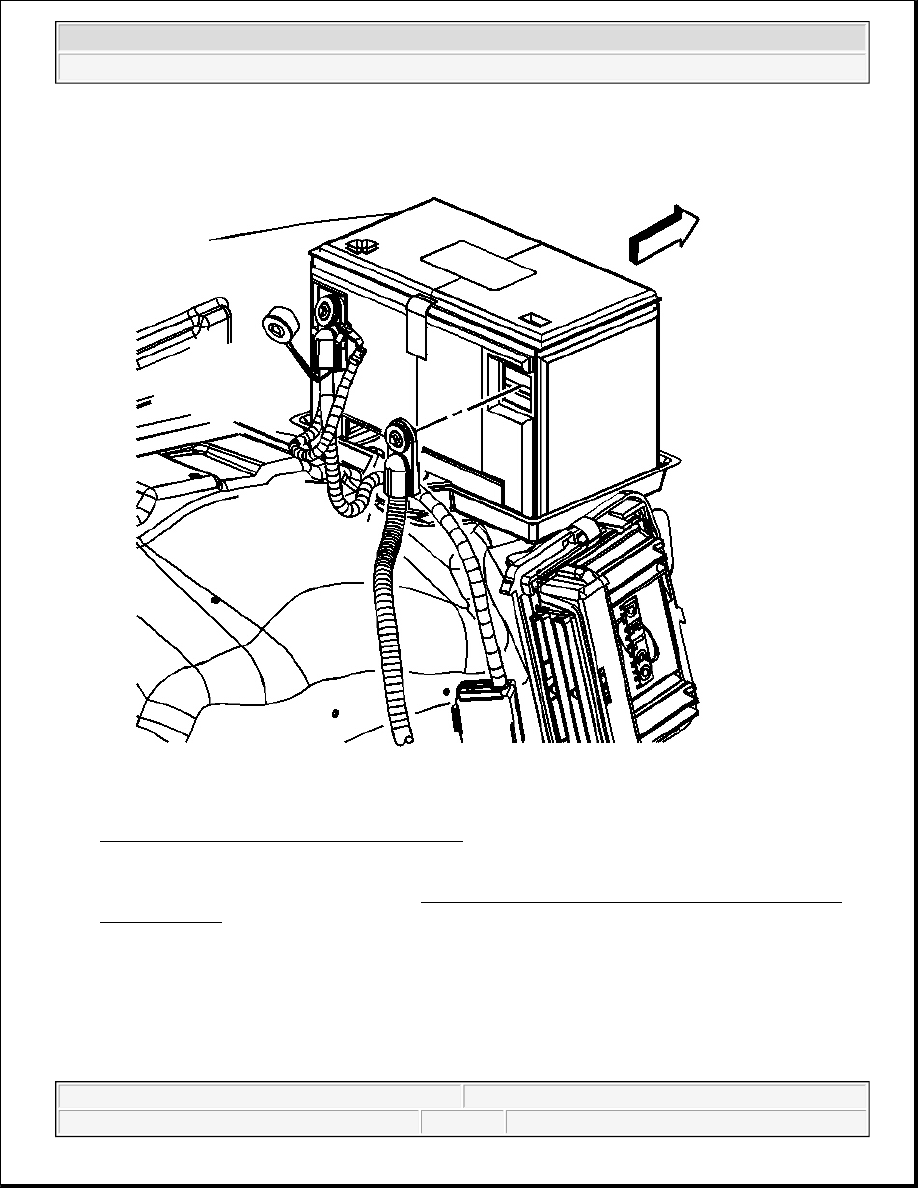

Fig. 54: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

13. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

GENERATOR BRACKET REPLACEMENT

Removal Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



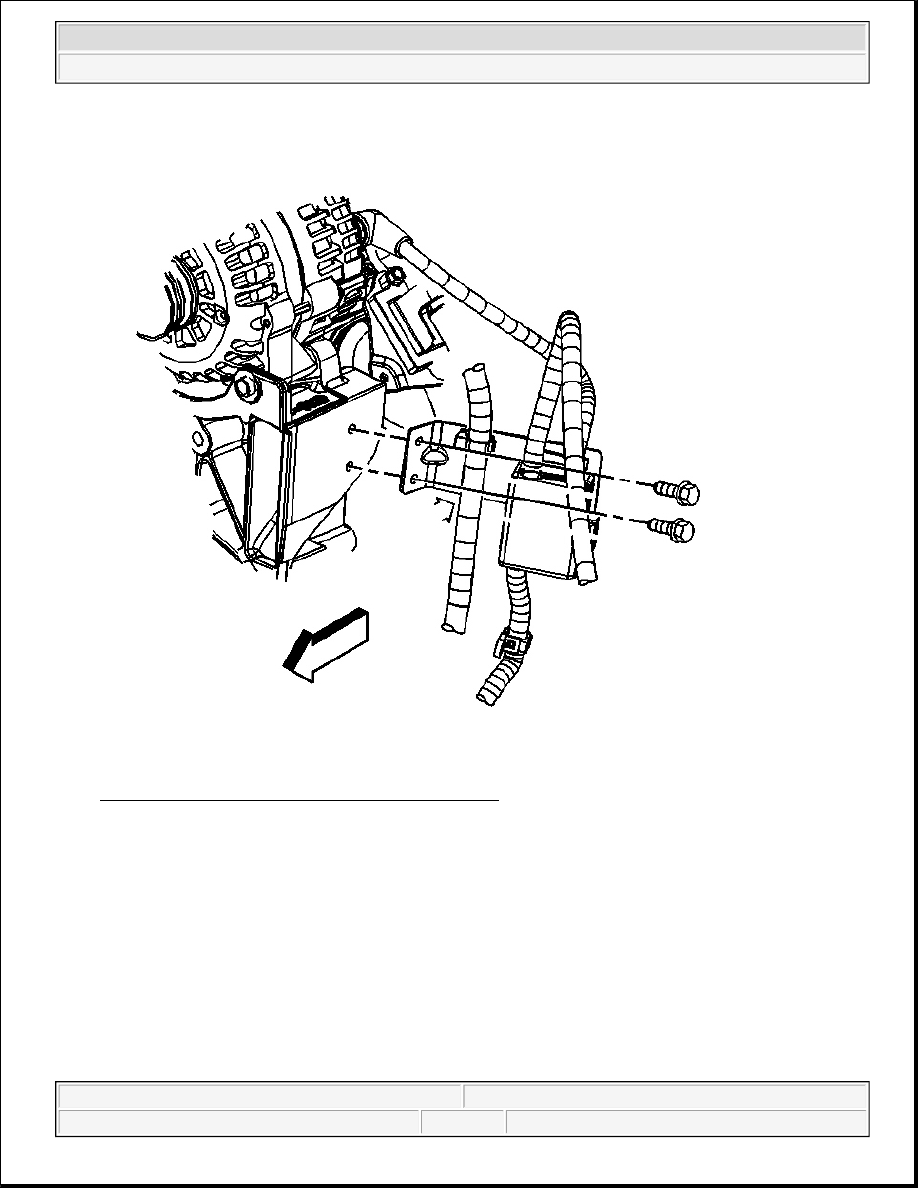

Fig. 55: Battery Cable Junction Block Bracket Bolts
Courtesy of GENERAL MOTORS CORP.

1. Remove the battery cable junction block bracket bolts.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



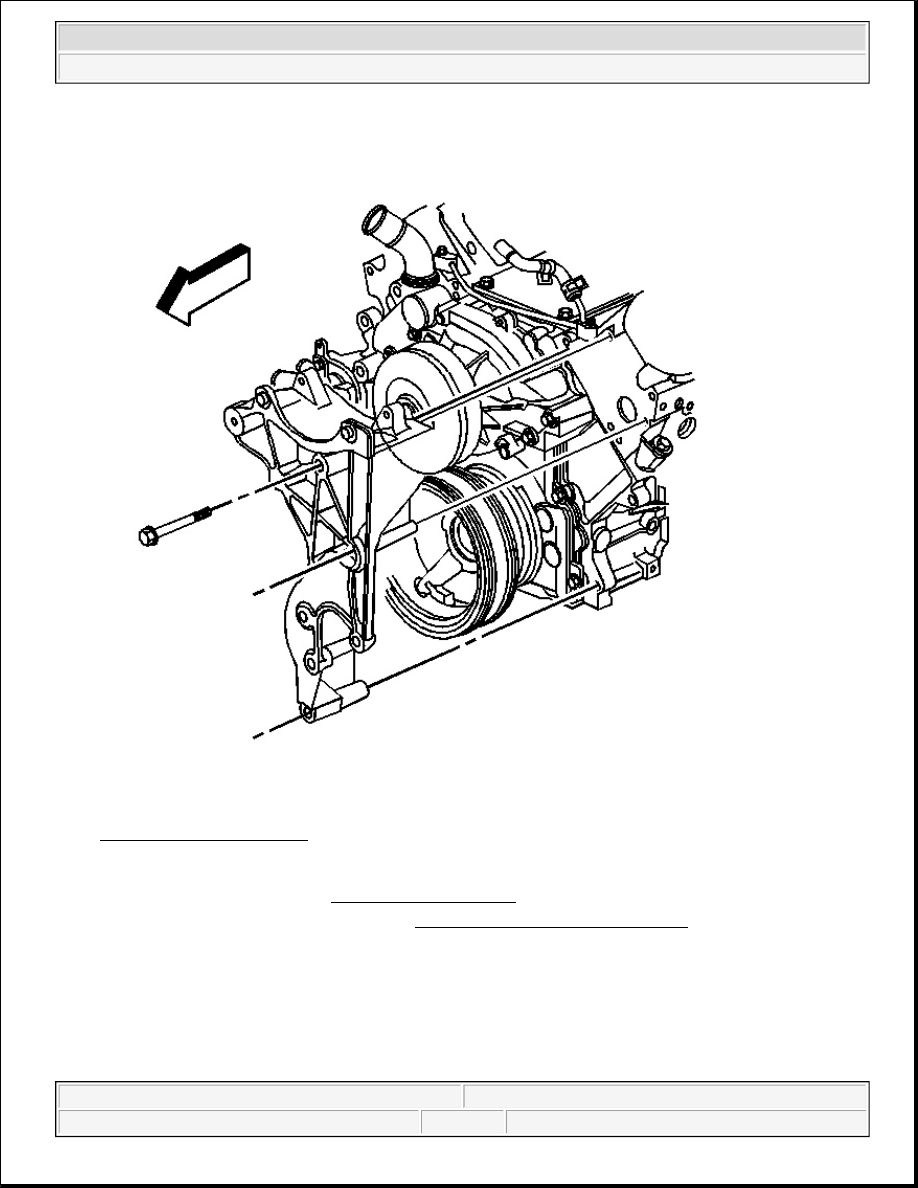

Fig. 56: Generator Bracket
Courtesy of GENERAL MOTORS CORP.

2. Remove the generator. Refer to Generator Replacement .

3. Remove the power steering pump. Refer to Power Steering Pump Replacement in Power Steering

System.

4. Remove the generator bracket bolts.

5. Remove the generator bracket.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Fig. 57: Generator Bracket
Courtesy of GENERAL MOTORS CORP.

1. Install the generator bracket.

2. Install the generator bracket bolts.

Tighten: Tighten the bolts to 50 N.m (37 lb ft).

3. Install the power steering pump. Refer to Power Steering Pump Replacement in Power Steering

System.

NOTE:

Refer to Fastener Notice in Cautions and Notices.
