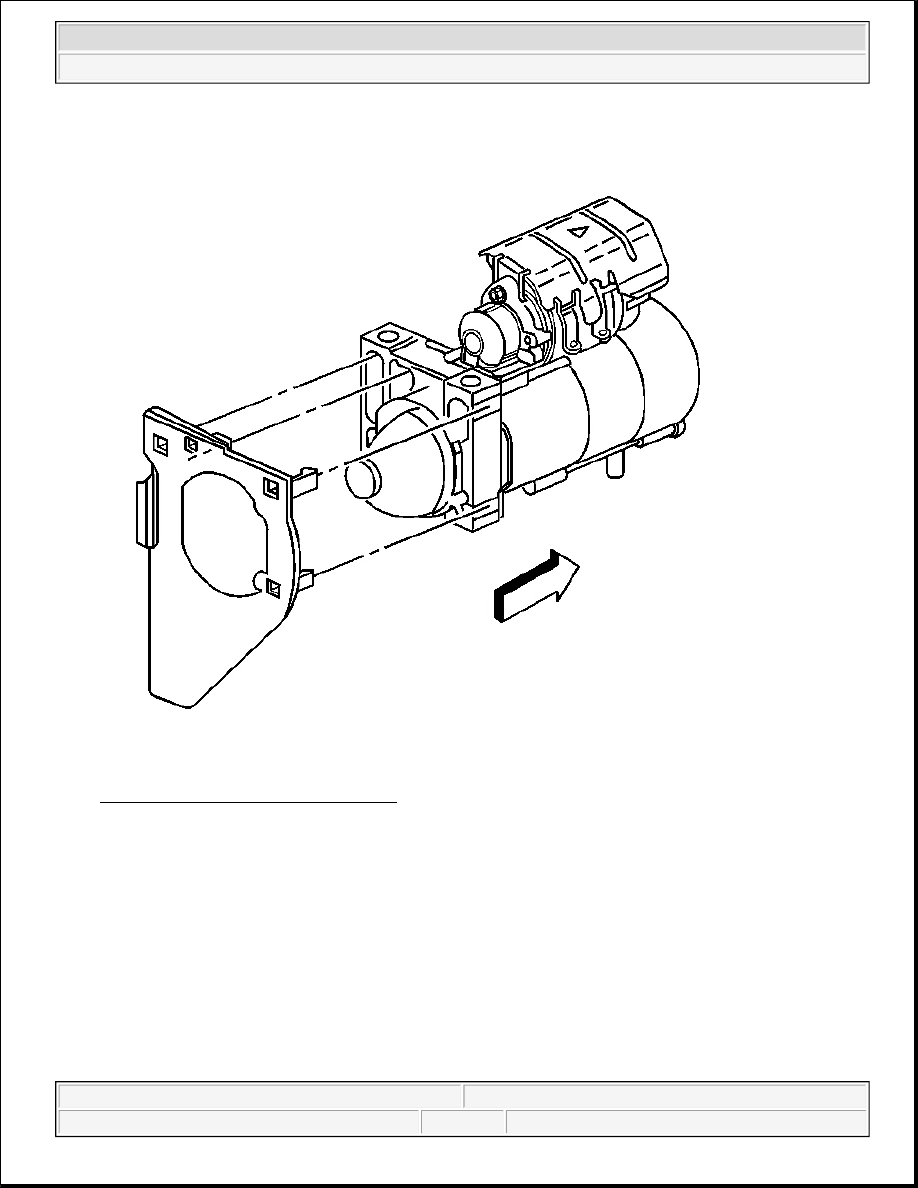

Fig. 46: Transmission Cover & Starter
Courtesy of GENERAL MOTORS CORP.

12. Place the starter on a workbench.

13. Unsnap the transmission cover from the starter.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2

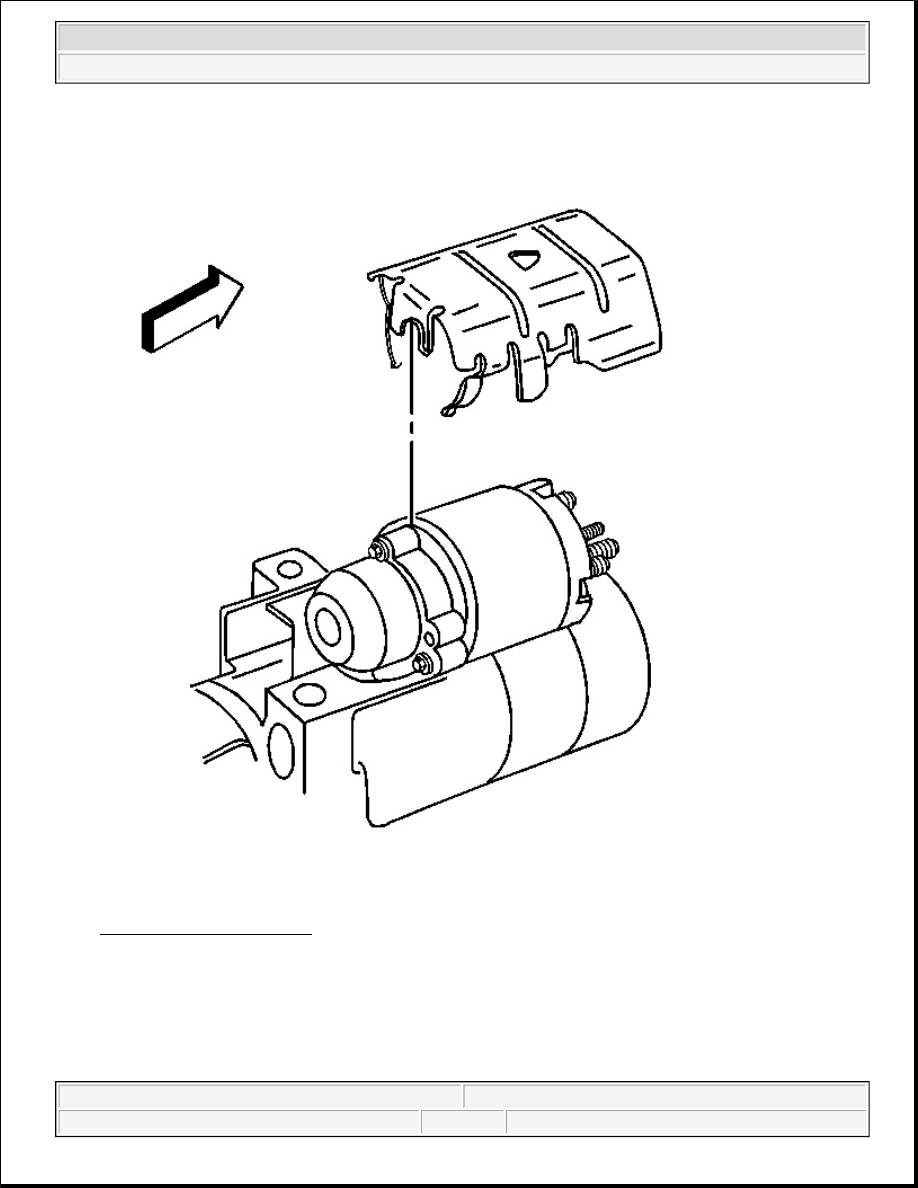

Fig. 47: Starter Heat Shield
Courtesy of GENERAL MOTORS CORP.

14. Remove the starter heat shield.

Installation Procedure



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Fig. 48: Starter Heat Shield
Courtesy of GENERAL MOTORS CORP.

1. Install the starter heat shield.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Fig. 49: Transmission Cover & Starter
Courtesy of GENERAL MOTORS CORP.

2. Snap the transmission cover to the starter.
