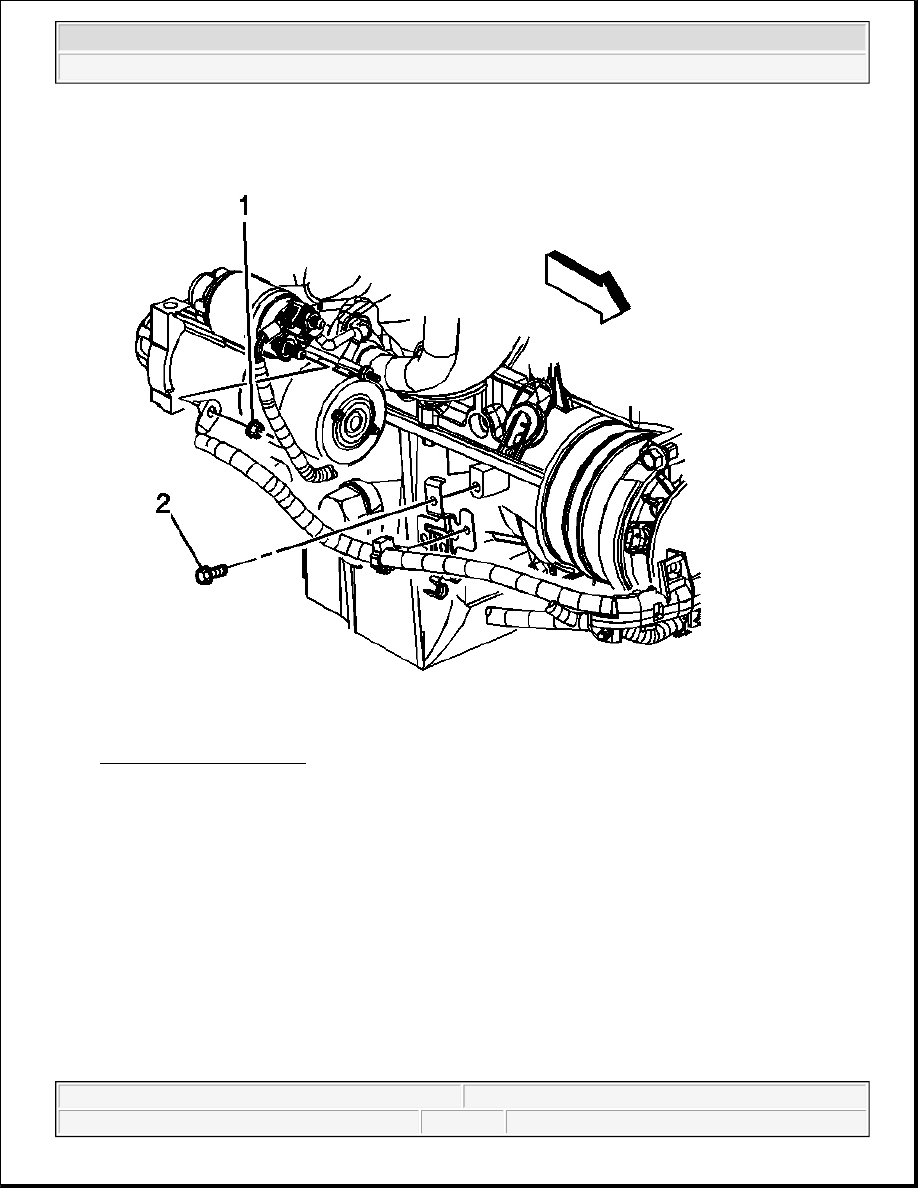

Fig. 41: Battery Ground Negative Cable & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure

(Single Battery) .

2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

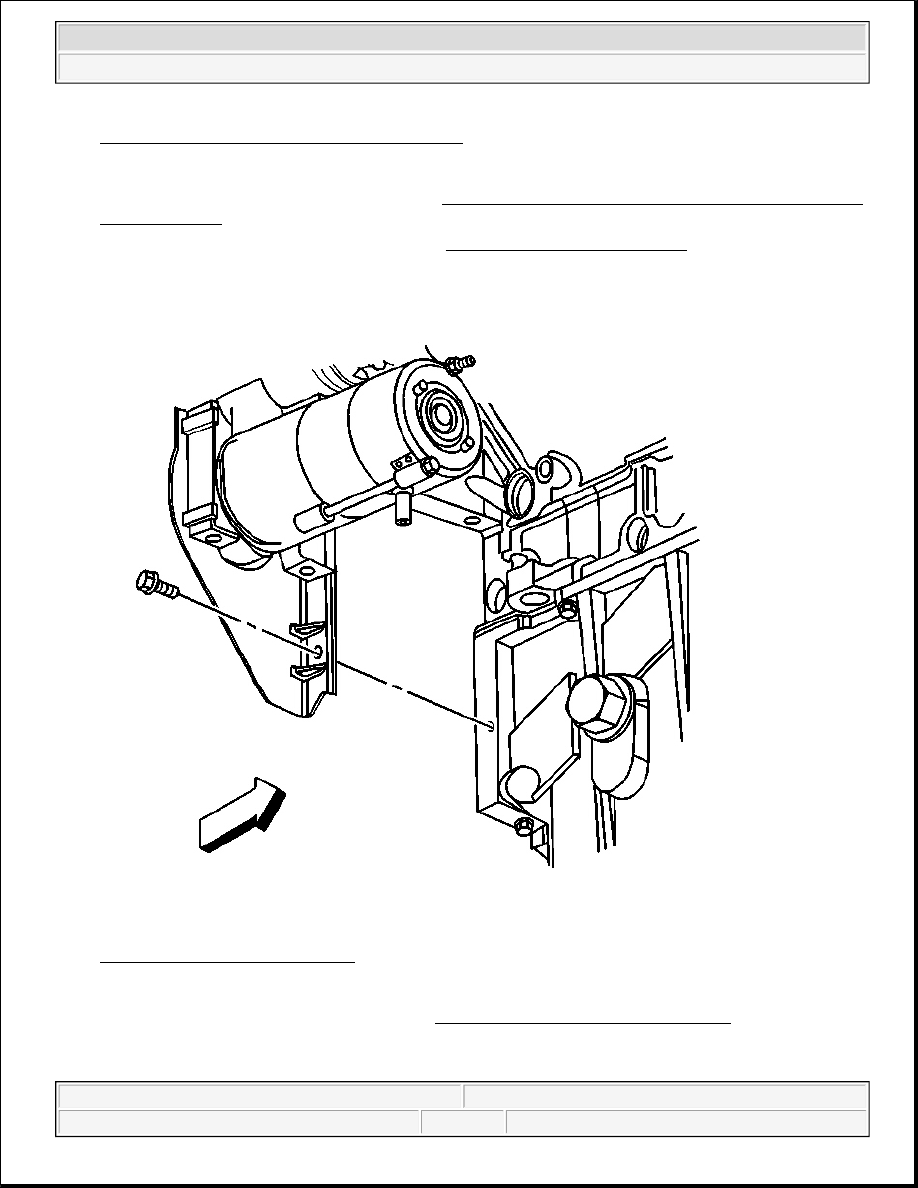

Fig. 42: Transmission Cover Bolt
Courtesy of GENERAL MOTORS CORP.

3. Remove the engine protective shield. Refer to Engine Protection Shield Replacement .

4. Remove the transmission cover bolt.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2

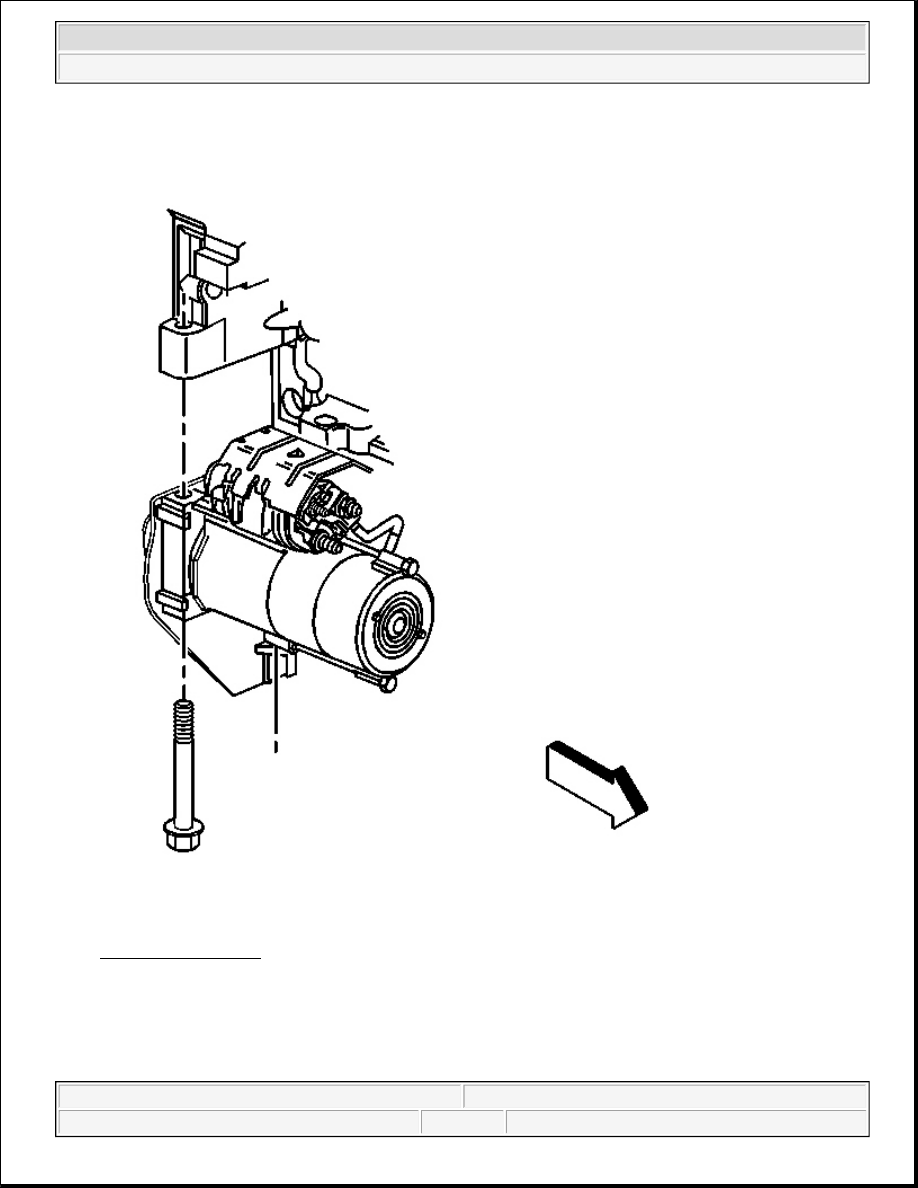

Fig. 43: Starter Bolts
Courtesy of GENERAL MOTORS CORP.

5. Remove the starter bolts.

6. Disconnect the oil level sensor electrical connector.

7. Slide the starter forward until the starter clears the transmission.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2



Fig. 44: Starter Lead Nut
Courtesy of GENERAL MOTORS CORP.

8. Remove the starter lead nut (3).

9. Remove the starter lead (2) from the starter.



2004 Hummer H2

2004 ELECTRICAL Engine Electrical - Hummer H2

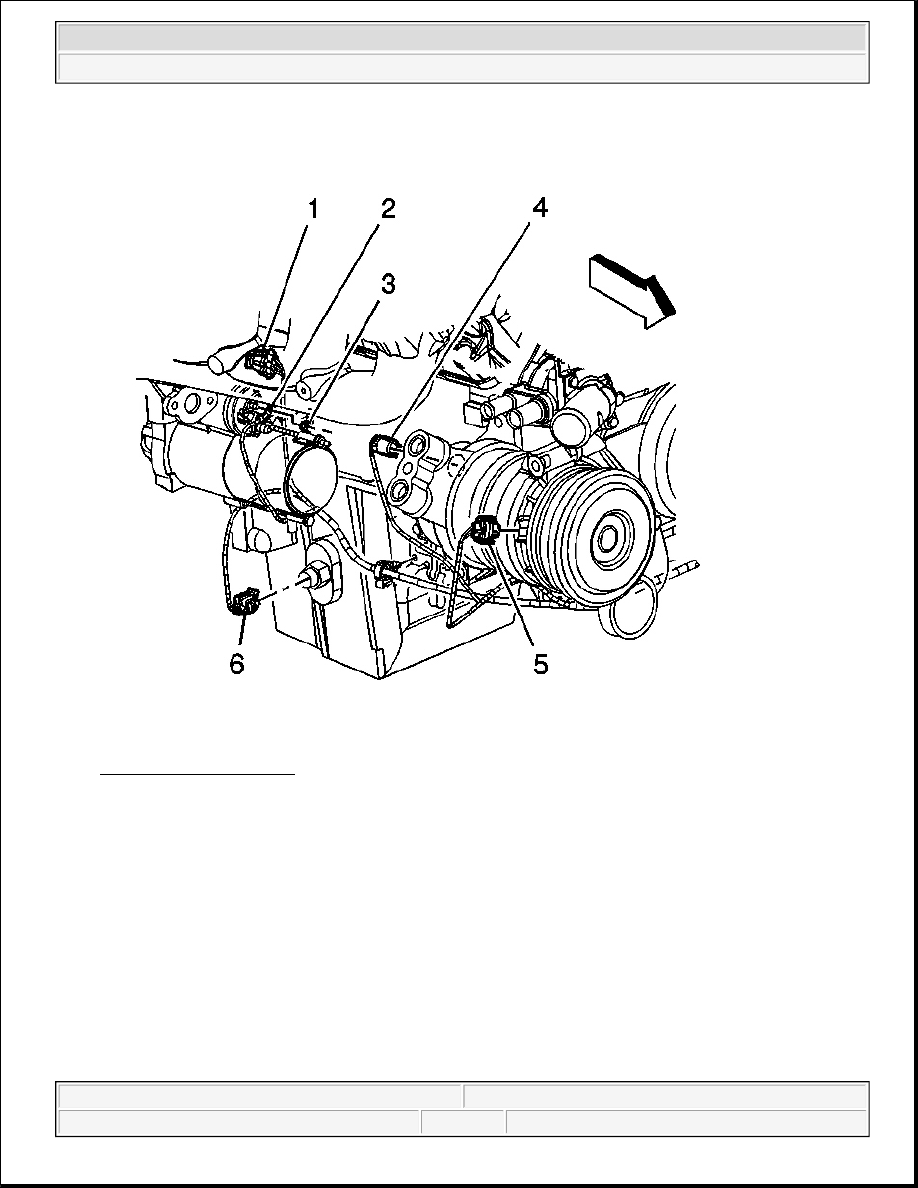

Fig. 45: Positive Cable Nut
Courtesy of GENERAL MOTORS CORP.

10. Remove the positive cable nut (2).

11. Remove the positive cable from the starter.
