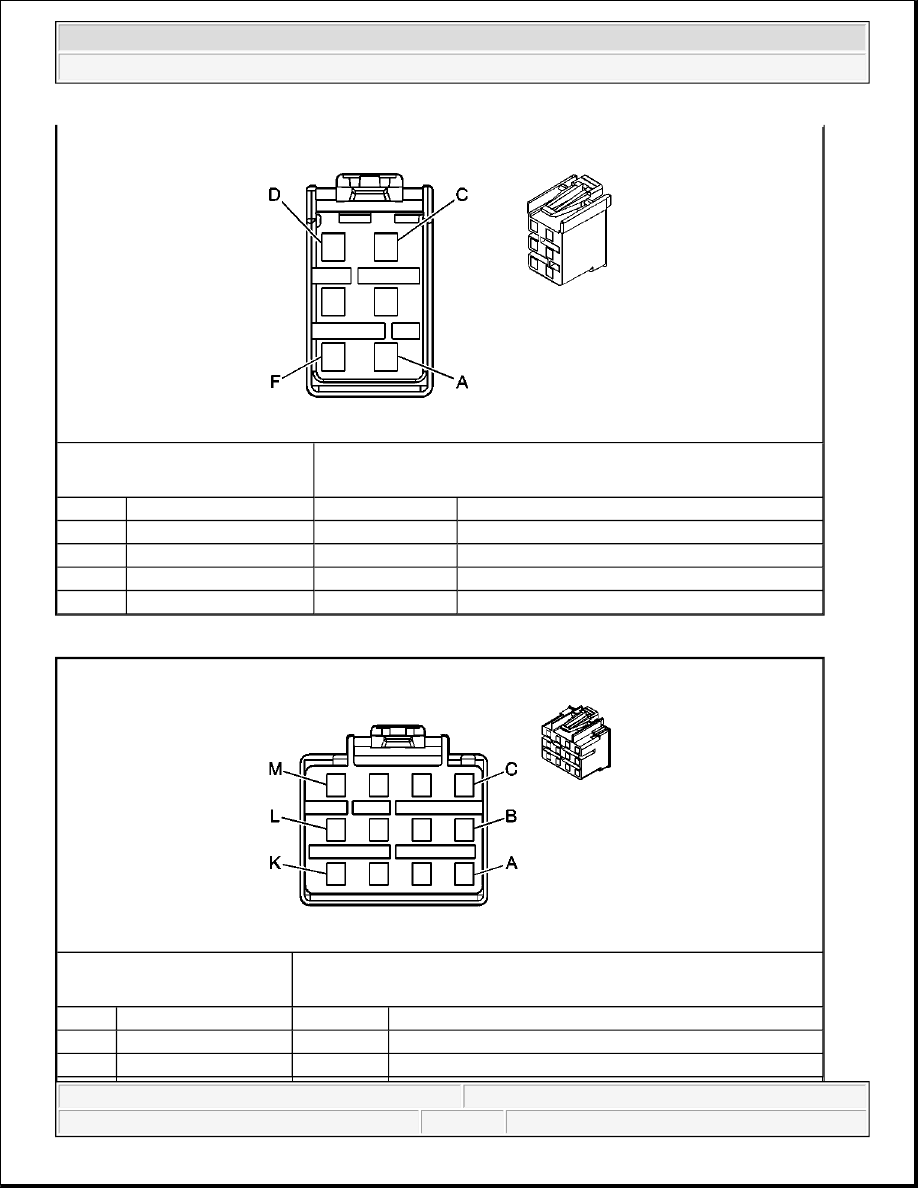

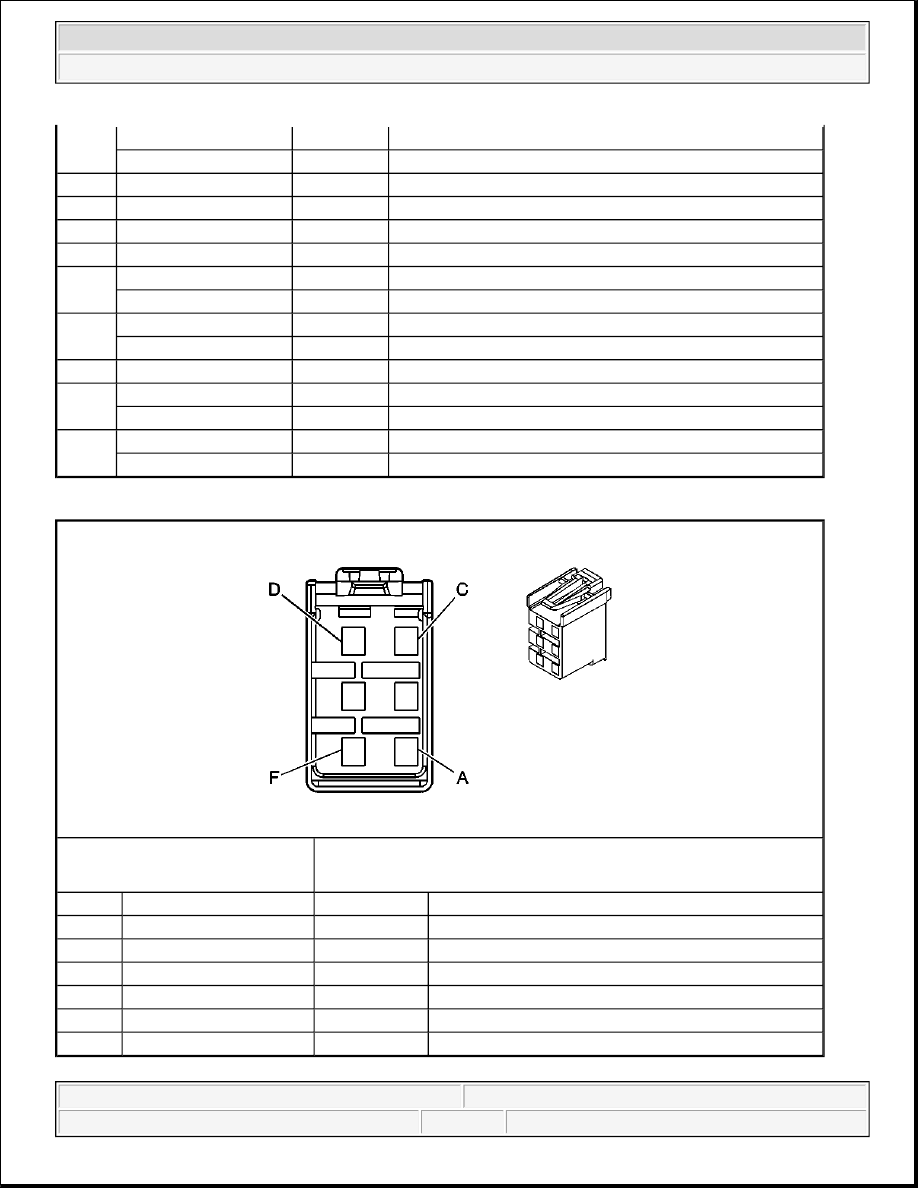

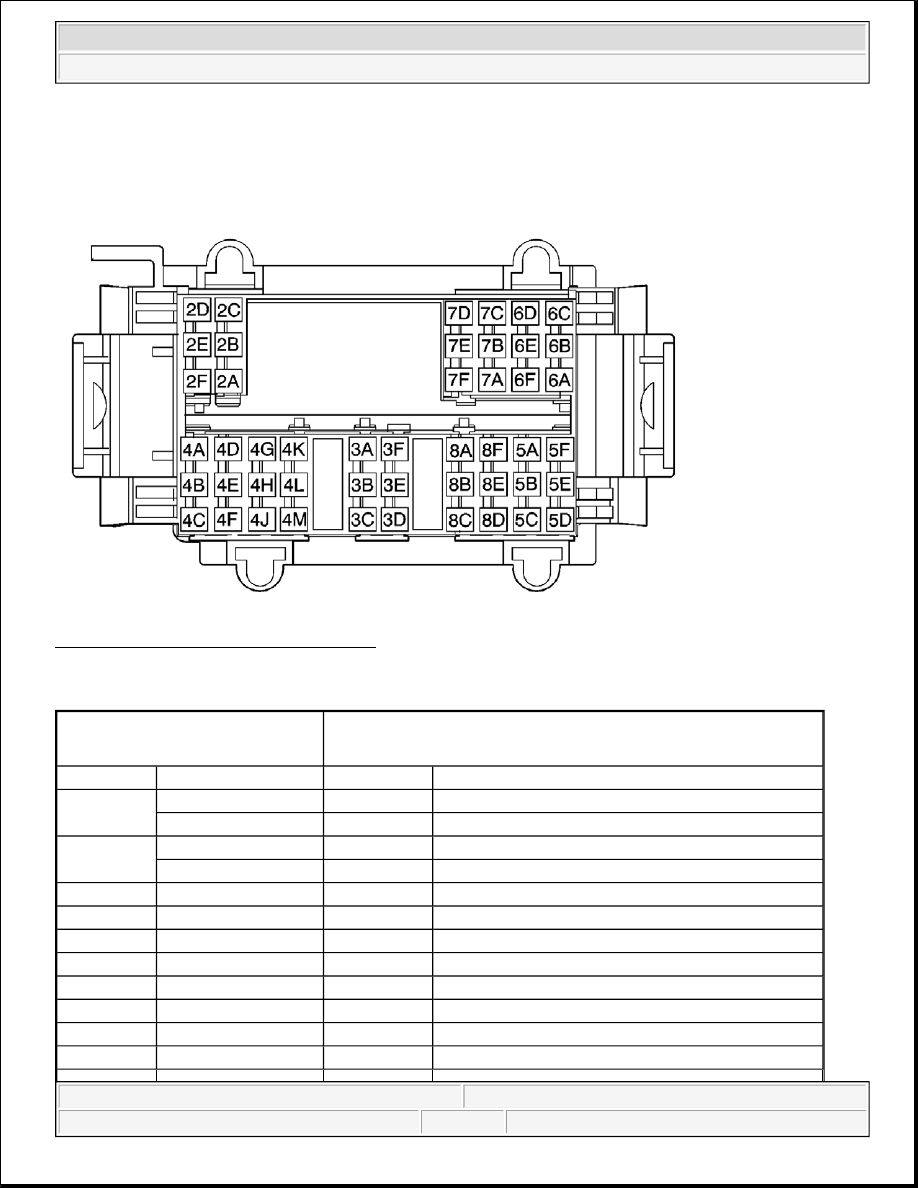

Courtesy of GENERAL MOTORS CORP. Junction Block - I/P Bottom View Fig. 39: Junction Block - I/P Bottom View Junction Block - I/P C1 Wire Entry Connector Part Information z 15401495 z 48-Way M Metri-Pack 280 Series (BK) Pin Wire Color Circuit No. Function 2A D-GN 117 Right Front Speaker Output (-) D-GN 117 Right Front Speaker Output (-) 2B L-GN 200 Right Front Speaker Output (+) L-GN 200 Right Front Speaker Output (+) 2C-2E - - Not Used 2F BK 1050 Ground 3A-3F - - Not Used 4A BK 1050 Ground 4B GY/BK 2337 Lower Right Air Temperature Sensor Signal 4C BN 718 Low Reference 4D RD 542 Battery Positive Voltage 4E PU 1838 Recirculation Door Position Signal
2004 Hummer H2 2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2
|
