Relay Block Terminal Identification - I/P C4

C

BK

1050

Ground

D

-

-

Not Used

E

BN

341

Ignition 3 Voltage

F

-

-

Not Used

G

BK/WH

1704

Low Reference

H-J

-

-

Not Used

K

D-GN/WH

636

Ambient Air Temperature Sensor Signal

L

GY/BK

690

Courtesy Lamp Supply Voltage

M

OG

1732

Inadvertent Load Control Courtesy/Vanity/Reading Lamps
Supply Voltage

Connector Part

Information

z

12193922

z

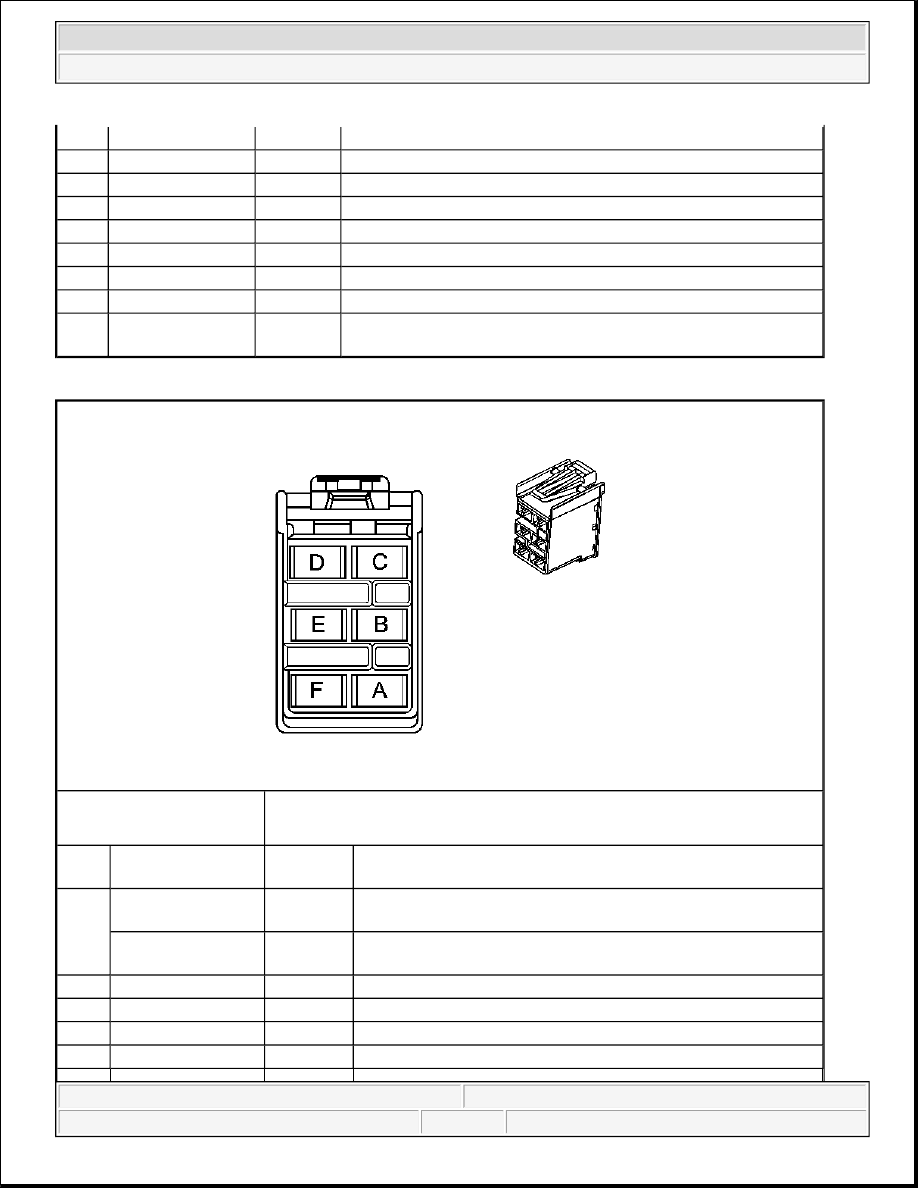

6-Way F Metri-Pack 280 Series Flexlock (CRM)

Pin

Wire Color

Circuit

No.

Function

A

BN/WH

230

Instrument Panel Lamps Dimming Control - Sunroof Switch
(w/CF5)

BN/WH

230

Instrument Panel Lamps Dimming Control - Garage Door
Opener

B

PK

1691

Automatic Day/Night Mirror Low Reference

C

GY

1690

Automatic Day/Night Mirror Signal

D

D-GN

734

Inside Air Temperature Sensor Signal

E

BN

718

Low Reference



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



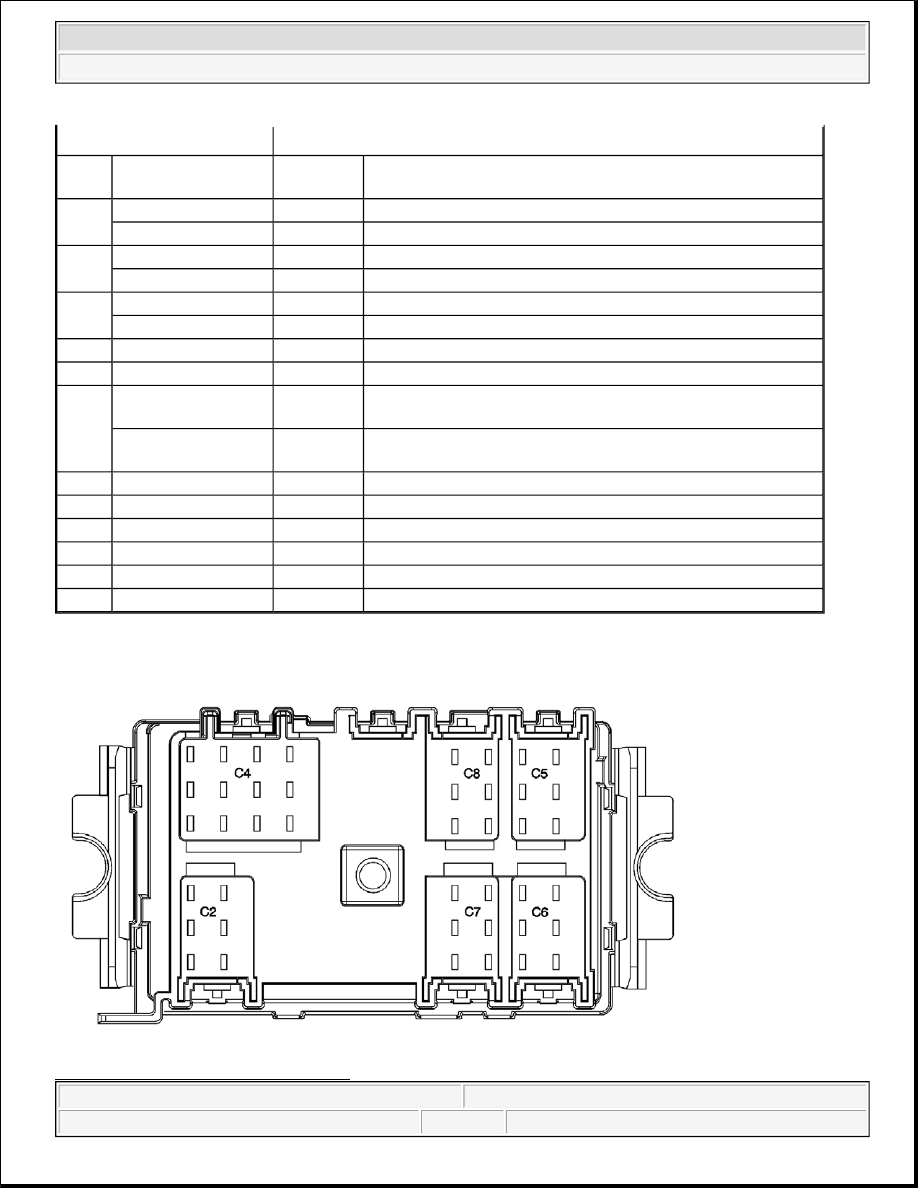

Relay Block Terminal Identification - I/P C7 (H.D. Trailer Wiring)

Relay Block Terminal Identification - I/P C7 (Off Road Lighting)

F

WH/BK

5515

Inside Air Temperature Sensor Assembly Control

Connector Part Information

z

12193924

z

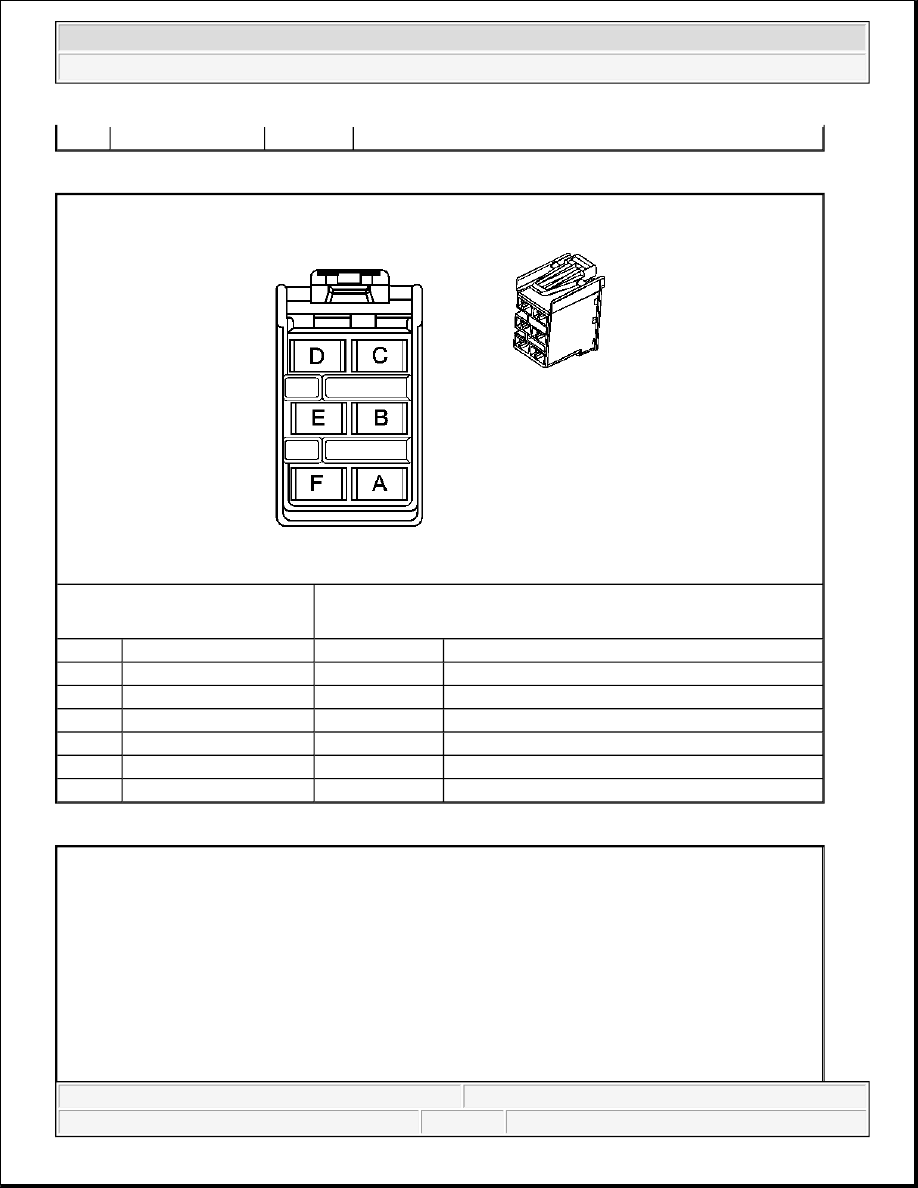

6-Way F Metri-Pack 280 Series Flexlock (BN)

Pin

Wire Color

Circuit No.

Function

A

BN

2409

Interior Park Lamps Supply Voltage

B

RD

242

Battery Positive Voltage

C

D-BU

47

Trailer Auxiliary Supply Voltage

D

L-BU

1620

Trailer CHMSL Supply Voltage

E

-

-

Not Used

F

BK

1050

Ground



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



Relay Block Terminal Identification - I/P C10

Connector Part Information

z

12193924

z

6-Way F Metri-Pack 280 Series Flexlock (BN)

Pin

Wire Color

Circuit No.

Function

A

-

-

Not Used

B

D-BU

242

Battery Positive Voltage

C-E

-

-

Not Used

F

BK

1050

Ground

Connector Part

z

15357030



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



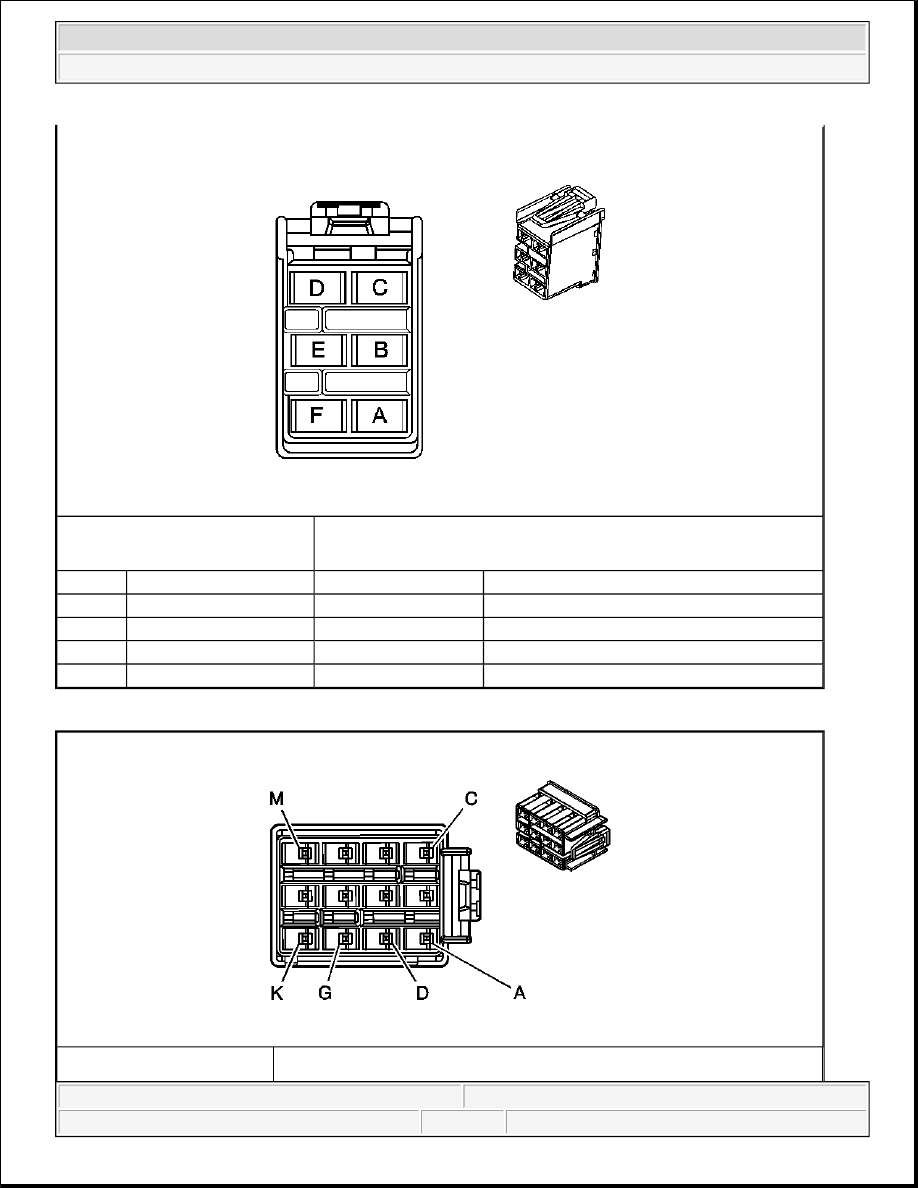

Junction Block - I/P Top View

Fig. 38: Junction Block - I/P Top View

Information

z

12-Way F Metri-Pack 280 Series Flex-Lock (WH)

Pin

Wire Color

Circuit

No.

Function

A

OG

4540

Battery Positive Voltage - LR Heated Seat Module (w/KA7)

OG

4540

Battery Positive Voltage - RR Heated Seat Module (w/KA7)

B

GY/BK

690

Courtesy Lamp Supply Voltage - Left B-Pillar

GY/BK

690

Courtesy Lamp Supply Voltage - Right B-Pillar

C

GY/BK

690

Courtesy Lamp Supply Voltage - LR Door

GY/BK

690

Courtesy Lamp Supply Voltage - RR Door

D

-

-

Not Used

E

OG

1440

Battery Positive Voltage

F

BN/WH

230

Instrument Panel Lamps Dimming Control - LR Window
Switch

BN/WH

230

Instrument Panel Lamps Dimming Control - RR Window
Switch

G

-

-

Not Used

H

OG

1440

Battery Positive Voltage

J

-

-

Not Used

K

OG

1340

Battery Positive Voltage

L

PU

293

Rear Defog Element Supply Voltage

M

-

-

Not Used
