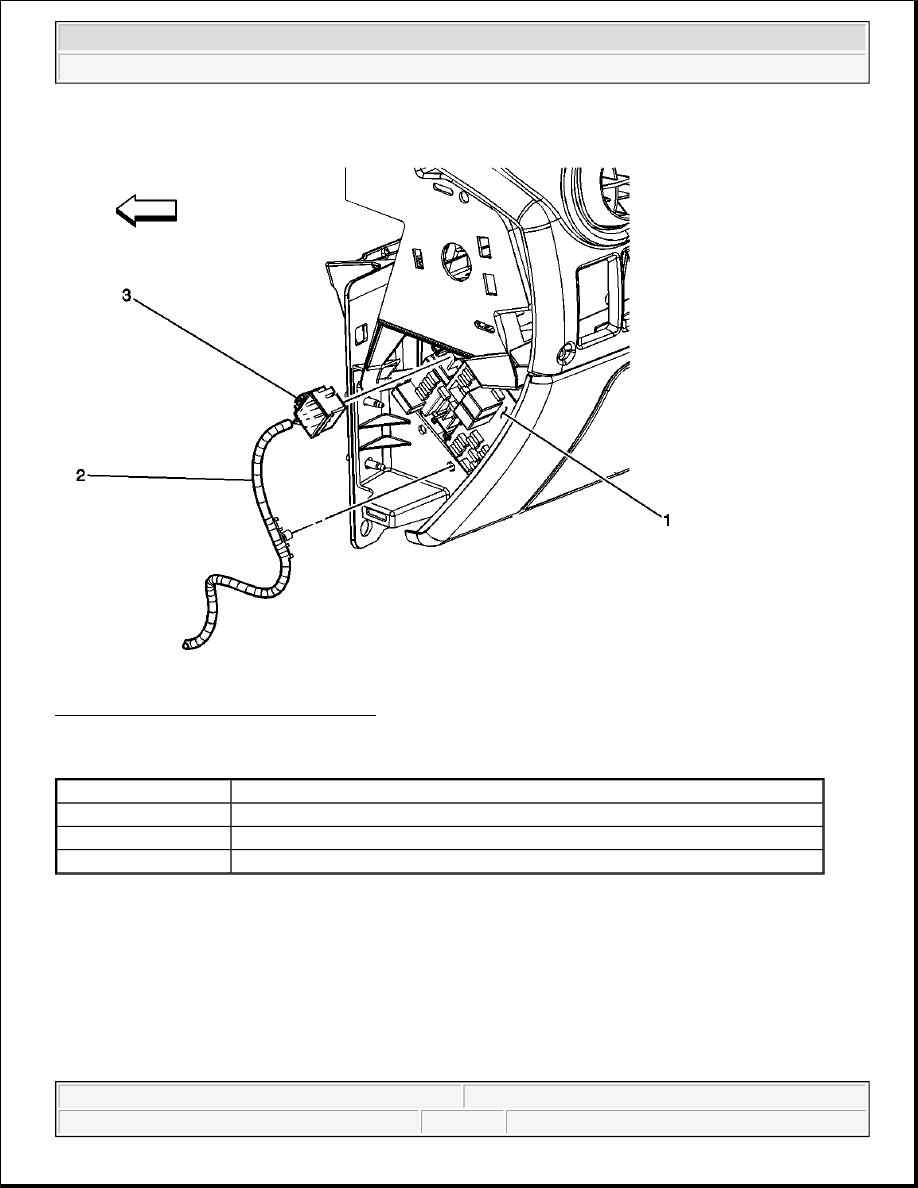

Fig. 2: Fuse Block - I/P Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 2

Callout

Component Name

1

Fuse Block - I/P

2

Driver Door Harness

3

Fuse Block - I/P - C3 (BLK)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



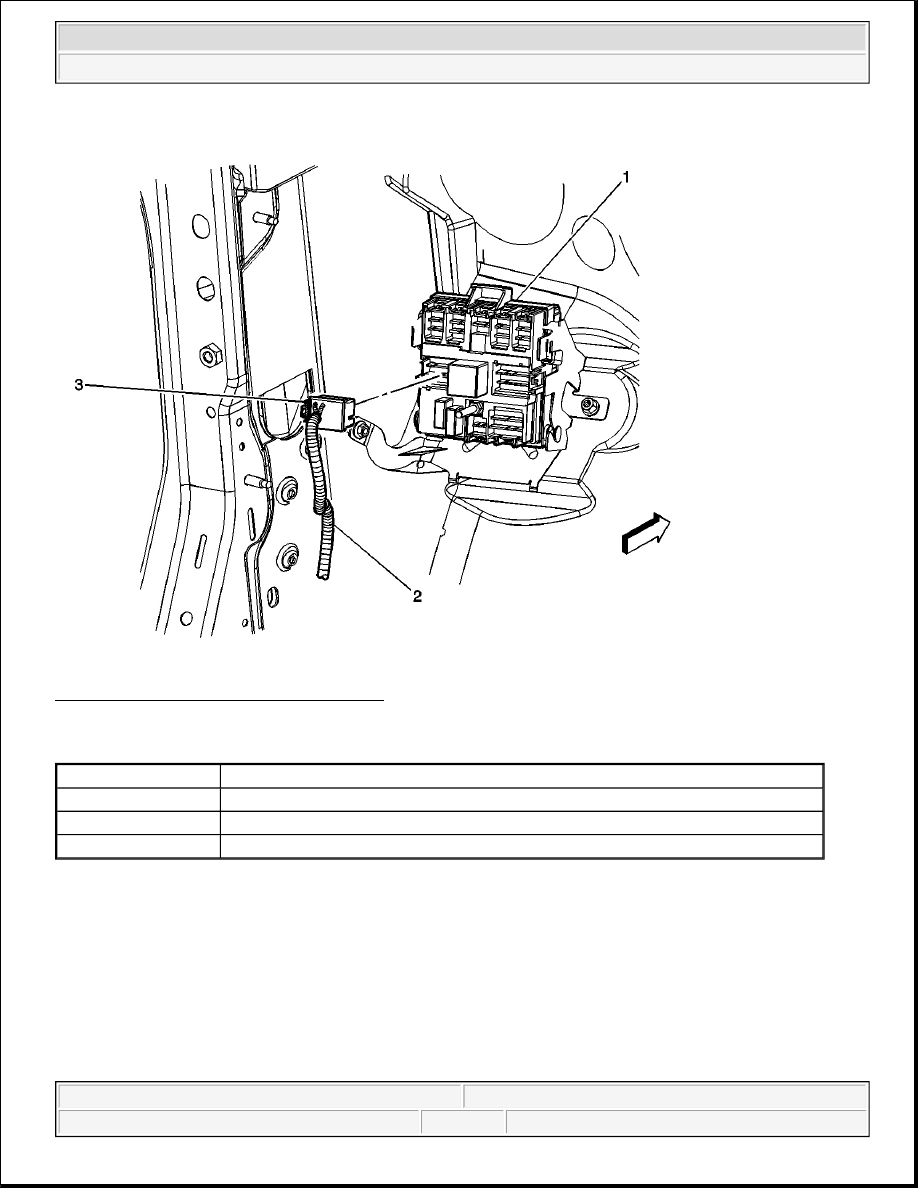

Fig. 3: Relay Block - I/P Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

Relay Block - I/P

2

Body Harness

3

Relay Block - I/P - C10 (NAT)



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



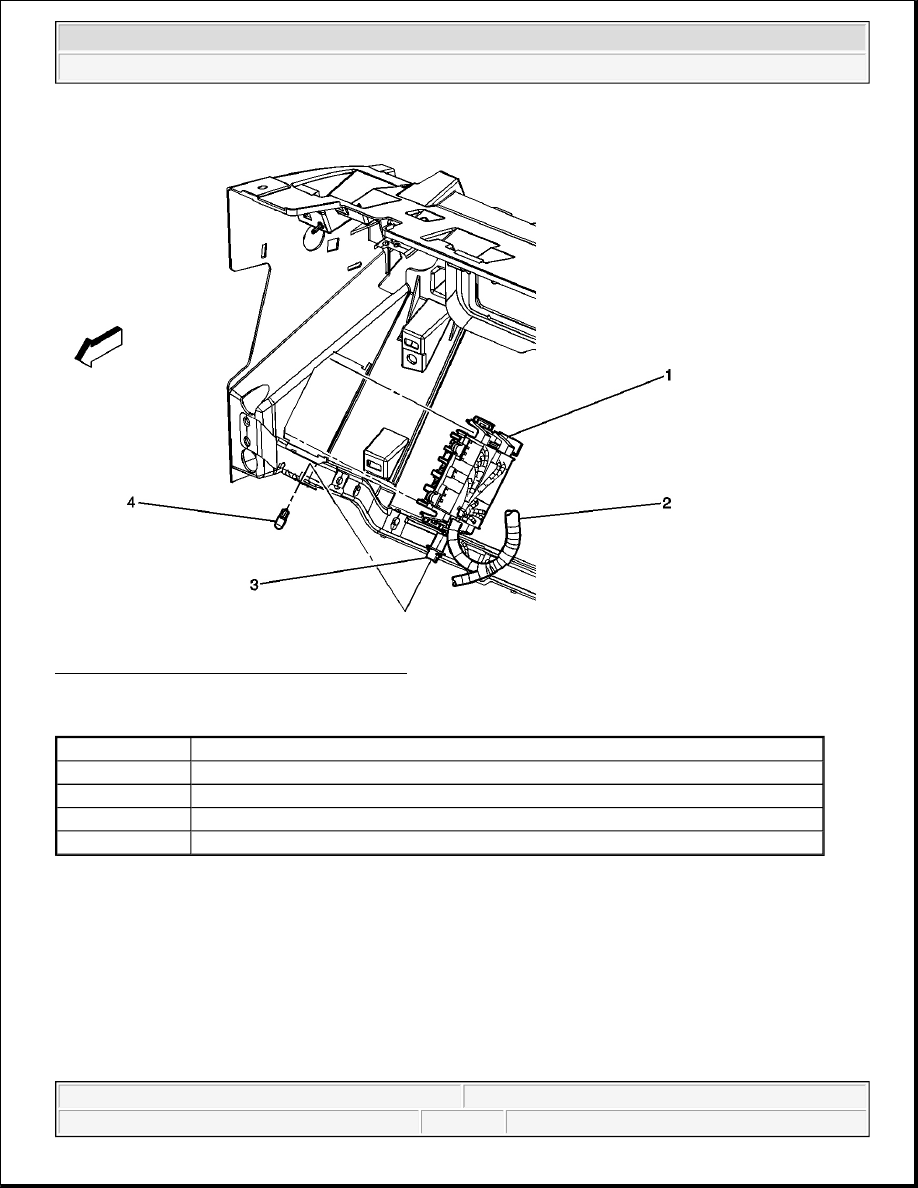

Fig. 4: Junction Block - I/P Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 4

Callout

Component Name

1

Junction Block - I/P

2

I/P Harness

3

Footwell Courtesy Lamp Socket - Right

4

Footwell Courtesy Lamp Bulb - Right



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



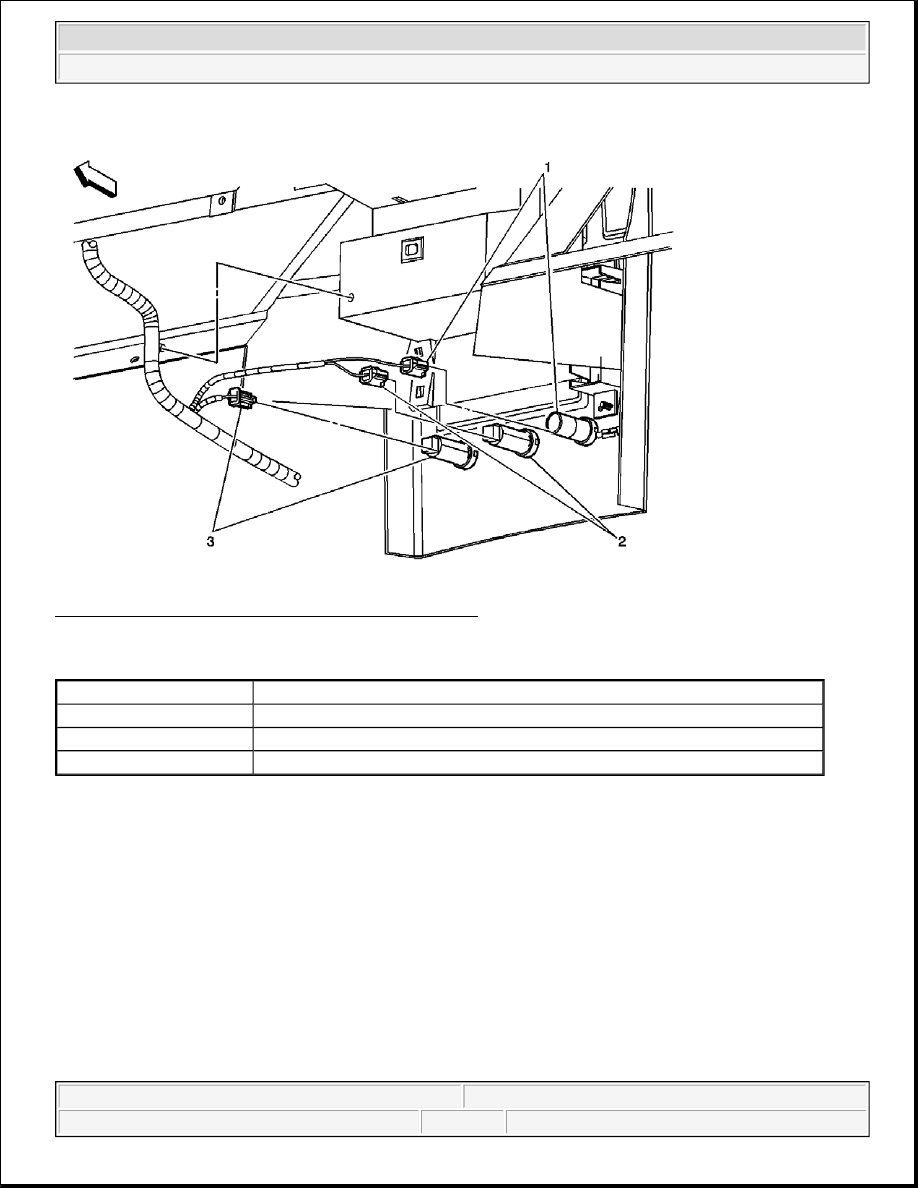

Fig. 5: Accessory Power Outlets - IP Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 5

Callout

Component Name

1

Cigar Lighter

2

Accessory Power Outlet

3

Accessory Power Outlet



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2
