S375

in) down from the rear
differential lock actuator on
the chassis harness

Harness Routing

Views

-

S376

In the chassis harness,
approximately 63.5 cm (25
in) down from the rear
differential lock actuator on
the chassis harness

Harness Routing

Views

-

S380

In the passenger seat
harness, approximately 21
cm (8.4 in) from the seat
adjuster switch between the
lumbar bolster switch and
seat adjuster switch on the
right side of the seat

-

-

S381

In the passenger seat
harness, approximately 16
cm (5.4 in) from the lumbar
bolster switch between the
seat adjuster switch and the
lumbar switch on the right
side of the seat

-

-

S390

In the body harness, at the
left side near the B-pillar,
approximately 18.5 cm (7
in) from the junction of the
SIR module and driver seat
harness to the body harness

Harness Routing

Views

-

S391

In the chassis harness, at the
right rear frame rail,
approximately 15 cm (6 in)
from the junction of the
right rear air suspension
sensor to the chassis
harness

Harness Routing

Views

-

S392

In the chassis harness, at the
right rear frame rail,
approximately 30 cm (12
in) from the junction of the
right rear air suspension
harness to the chassis
harness

Harness Routing

Views

-

S393 (KA7)

In the right rear seat
harness, approximately 34
cm (13 in) from the heated
seat module towards inline

-

-



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



connector C380

S411

In the body harness,
towards the left rear D-
pillar speaker connector,
approximately 15.2 cm (6
in) from the junction of the
left rear marker lamp to the
body harness

Harness Routing

Views

-

S412

In the body harness, along
the top left rear of vehicle,
approximately 27.5 cm (10
in) from the junction of the
left rear side marker lamp
to the body harness

Harness Routing

Views

-

S413

In the air suspension
harness at the rear
underside of the vehicle

-

-

S414

In the air suspension
harness at the rear
underside of the vehicle

-

-

S480

In the body harness, along
the top right rear of vehicle,
approximately 28 cm (11
in) from the junction of
inline C420

Harness Routing

Views

-

S720

In the right rear door
harness, approximately 12
cm (4 in) from the junction
of the speaker connector
harness to the door harness

-

-

S820

Approximately 11.5 cm (4
in) from the junction of the
door courtesy lamp
connector harness to the
door harness

-

-

S900

At the left side of the
liftgate near the junction of
the right rear defogger
connector to the liftgate
harness

Harness Routing

Views

-

S901

At the lower right side of
the liftgate, approximately
10 cm (4 in) from the
junction of the rear wiper
motor connector to the
liftgate harness

Harness Routing

Views

-



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



POWER AND GROUNDING COMPONENT VIEWS

S902

At the lower right side of
the liftgate, approximately
6.5 cm (2.5 in) from the
right liftgate ajar switch
junction to the liftgate
harness

Harness Routing

Views

-

SP205

On the left side of the I/P
near the footwell courtesy
lamp on the I/P harness

Data Link

Communications

Component Views in

Data Link

Communications

Splice Pack Connector

End Views

SP206

On the left side of the I/P
on the I/P harness near the
steering column inline
connector

Data Link

Communications

Component Views in

Data Link

Communications

Splice Pack Connector

End Views

SP207

On the left side of the I/P
near the left kick panel on
the body harness

Data Link

Communications

Component Views in

Data Link

Communications

Splice Pack Connector

End Views

SP410

Inside the right rear cargo
area at the middle of the
right rear D-pillar

Power and Grounding

Component Views

Splice Pack Connector

End Views



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems (Component List) - Hummer H2



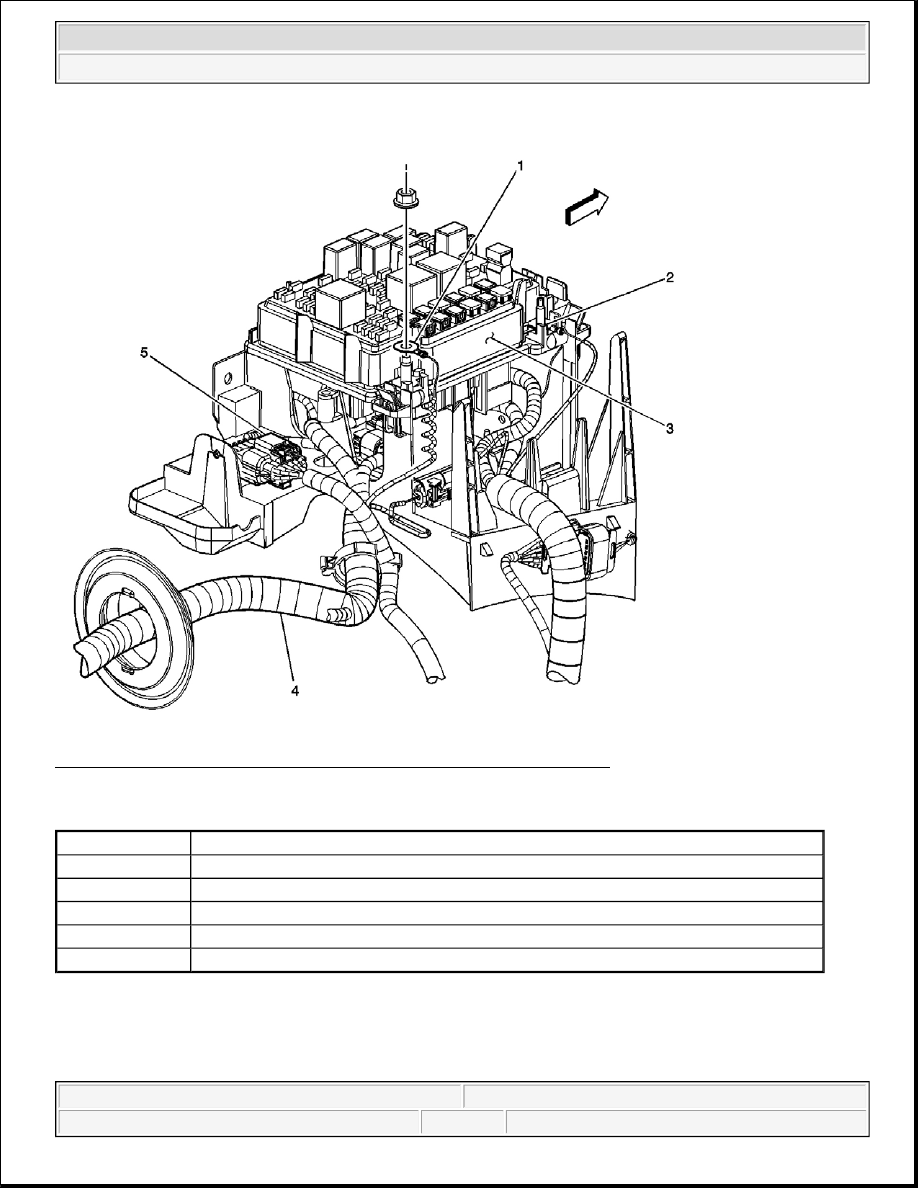

Fig. 1: Fuse Block - Underhood - Stud #1 and Stud #2 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 1

Callout

Component Name

1

Stud #2 - Trailer Connector Power Feed

2

Stud #1

3

Fuse Block - Underhood

4

IP Harness

5

C102
