Hummer H1 (2002+). Manual - part 279

_____________________________________________________

PCM/Tech 1 Scan Tool 49

®

05745159

DTC P0219 - Engine Overspeed Condition

Step

Action

Value(s

)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check” performed?

—

Go to Step 2.

Go to

OBD System

Check.

2

Replace injection pump. Notice: If injection pump is faulty, the new injec-
tion pump must be timed. Go to Checking and Adjusting Injection Timing
in section 4. Is action complete?

—

Go to Step 4.

Go to Step 2.

3

1. Using the Scan Tool, select “DTC”, “Clear Info”.
2. Start engine and idle at normal operating temperature.

3. Select “DTC”, “Specific”, then enter the DTC number which was set.

4. Operate vehicle within the conditions for setting this DTC as specified

in the supporting text.

Does the Scan Tool indicate that this diagnostic Ran and Passed?

—

Go to Step 4.

Go to Step 2.

4

Using the Scan Tool, select “Capture Info”, “Review Info”.
Are any DTCs displayed that have not been diagnosed?

—

Go to

Applicable

DTC table

Go to

Step 2.

50

PCM/Tech 1 Scan Tool

_____________________________________________________

®

DTC P0220 Accelerator Pedal Position (APP)
Sensor 2 Circuit

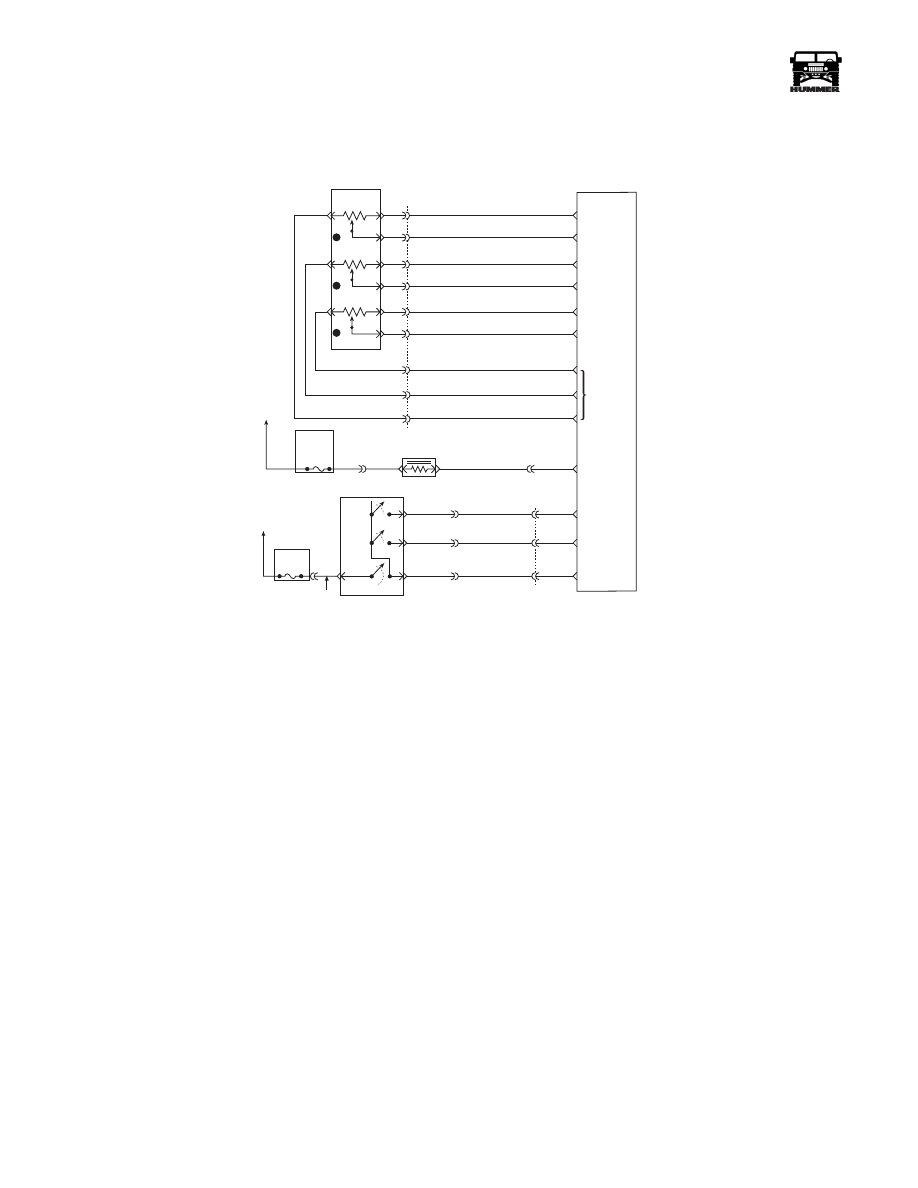

Circuit Description

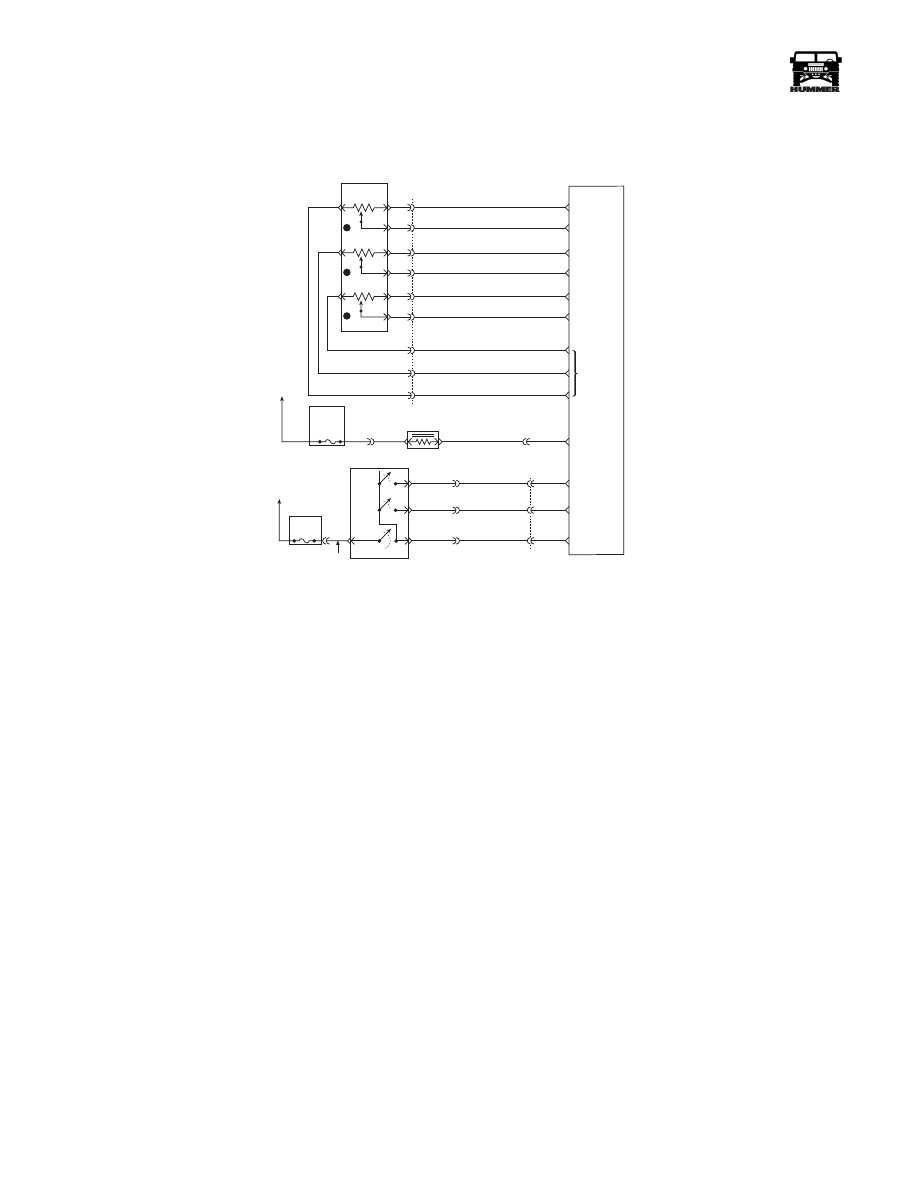

The Accelerator Pedal Position (APP) module provides a volt-
age signal that changes relative to accelerator position. There
are three sensors located within the APP module that are scaled
differently. This is a type C DTC.

Conditions for Setting the DTC

• Reference voltage on APP 2 less than 4.8 volts.

• Condition met for 2 seconds.

Action Taken When the DTC Sets

If DTC P0220 is stored, the PCM will turn “ON” the “Service
Throttle Soon” lamp and limit power.

Conditions for Clearing the MIL/DTC

• A History DTC will clear when forty consecutive

warm-up cycles that the diagnostic does not fail (coolant
temperature has risen 5°C (40°F) from start up coolant
temperature and engine coolant temperature exceeds
71°C (160°F) that same ignition cycle).

• Use of a Scan Tool

Diagnostic Aids

The most likely cause of this DTC is loose connectors or termi-
nals. All 5 volt reference circuits must be checked for proper
reference voltage. Volt meter accuracy is important.

Test Description

Number(s) below refer to the number(s) on the diagnostic ta-
ble.

2. This step will determine if there is a good voltage reference.

FUSE 5C
10AMP
INTERIOR

FUSE 3A
10 AMP
EXTERIOR

ON/
OFF

SET
COAST

RESUME
ACCEL

HOT IN RUN
AND START

HOT IN RUN
AND START

A

29

42

37

C1

C29-A11

C29-B11

C27-D10

C28-D14

C28-C2

C27-D12

C27-D3

C27-D4

C27-D6

C29-B2

C29-B1

C27-C5

C29-A12

C5-D3

C5-A4

A

B

154 TN

151 GY

152 DB

153 LG

ON / OFF
SIGNAL

SET
COAST
SIGNAL

RESUME
ACCEL
SIGNAL

WASTEGATE
SOLENOID
CONTROL

5 VOLT
REFERENCE

APP 3
SIGNAL

GROUND

APP 1
SIGNAL

GROUND

GROUND

D

B

C

A

G

E

F

J

K

3

1

2

C1

22

20

14

15

60

32

53

17

44

720 TN

717 WH

723 YL

724 DG

725 GY

718 DB

719 BR

721 LB

722 PP

ACCELERATIOR
PEDAL POSITION
SENSOR

POWERTRAIN
CONTROL
MODULE
(PCM)

APP 2
SIGNAL

9-S12-055

B

C

D

295 BR

YL

GRN

RD

_____________________________________________________

PCM/Tech 1 Scan Tool 51

®

05745159

DTC P0220 - Accelerator Pedal Position (APP) Sensor 2 Circuit

Step

Action

Value(s)

Yes

No

1

Important:

 Before clearing DTC(s) use the scan tool “Capture Info” to

record Freeze Frame and Failure Record for reference, as data will be lost
when “Clear Info” function is used.

Was the “On-Board Diagnostic (OBD) System Check” performed?

—

Go to Step 2. Go to OBD Sys-

tem Check.

2

1. Disconnect the APP sensor electrical connector.
2. Ignition “ON”, engine “OFF”.

3. With J–39200 connected to ground, check all APP 5 volt reference cir-

cuits at APP harness.

Is voltage less than specified value?

4.8v

Go to Step 4. Go to Step 3.

3

DTC is intermittent. If no additional DTCs are stored, refer to “Diagnostic
Aids”. If additional DTCs were stored, refer to those chart(s).

—

Go to the

applicable

DTC table.

Go to

Diagnostic

Aids.

4

1. Ignition “OFF”.
2. Disconnect the PCM and check the 5 volt reference circuit for a short to

ground.

3. If the 5 volt reference circuit is shorted to ground, repair as necessary

Was the 5 volt reference circuit shorted to ground?

.25v

Go to Step 5. Go to Step 6.

5

Replace the faulty PCM. Notice: If the PCM is faulty, the new PCM must
be programmed. Go to PCM replacement and programming procedures.
Is the action complete?

—

Go to Step 6.

—

6

1. Using the Scan Tool, select “DTC”, “Clear Info”.
2. Start engine and idle at normal operating temperature.

3. Select “DTC”, “Specific”, then enter the DTC number which was set.

4. Operate vehicle within the conditions for setting this DTC as specified in

the supporting text.

Does the Scan Tool indicate that this diagnostic Ran and Passed?

—

Go to Step 7.

Go to Step 2.

7

Using the Scan Tool, select “Capture Info”, “Review Info”.
Are any DTCs displayed that have not been diagnosed?

—

Go to the

applicable

DTC table

System OK

52

PCM/Tech 1 Scan Tool

_____________________________________________________

®

DTC P0221 Accelerator Pedal Position (APP)
Sensor 2 Circuit Performance

Circuit Description

The Accelerator Pedal Position (APP) module provides a volt-
age signal that changes relative to accelerator position. There
are three sensors located within the APP module that are scaled
differently. This is a type C DTC.

Conditions for Setting the DTC

• Ignition voltage is greater than 6.4 volts.

• Engine speed greater than 300 rpm.

• The difference between APP 2 and APP 1 is greater than

.23 volts (PCM compares pre-scaled voltage (internal to
PCM)).

• The difference between APP 2 and APP 3 is greater than

.50 volts (PCM compares pre-scaled voltage (internal to
PCM)).

• No in range faults for APP 1 or APP 3 (PCM checks for

high and low voltage faults).

• Conditions met for 2 seconds.

Action Taken When the DTC Sets

• The input from APP 2 sensor is ignored.

• A current and history DTC will set but it will not turn on

the “Service Throttle Soon” lamp.

• The throttle will operate normally as long as there is

only one malfunction present. If there are two APP mal-
functions present, the PCM will then turn “ON” the
“Service Throttle Soon” lamp and limit power. If a third

APP malfunction is present, the “Service Throttle Soon”
lamp will be “ON” and will only allow the engine to op-
erate at idle.

Conditions for Clearing the MIL/DTC

• A History DTC will clear when forty consecutive

warm-up cycles that the diagnostic does not fail (coolant
temperature has risen 5°C (40°F) from start up coolant
temperature and engine coolant temperature exceeds
71°C (160°F) that same ignition cycle).

• Use of a Scan Tool

Diagnostic Aids

A scan tool reads APP 2 position in volts and should read about
4.5 volts with throttle closed and ignition “ON” or at idle. Volt-
age should decrease at a steady rate as throttle is moved toward
Wide Open Throttle (WOT). Also, 90% pedal travel is accept-
able for correct APP operation. Refer to Section 2 for “Inter-
mittents”. Scan APP 2 sensor while depressing accelerator
pedal with engine stopped and ignition “ON”. Display should
vary from about 4.5 volts when throttle was closed to about 1.5
volts when throttle is held at Wide Open Throttle (WOT) posi-
tion.

Test Description

Number(s) below refer to the number(s) on the diagnostic ta-
ble.

4. This step determines if there is a good 5 volt reference.

5. This step will check for an open in the ground circuit.

FUSE 5C
10AMP
INTERIOR

FUSE 3A
10 AMP
EXTERIOR

ON/
OFF

SET
COAST

RESUME
ACCEL

HOT IN RUN
AND START

HOT IN RUN
AND START

A

29

42

37

C1

C29-A11

C29-B11

C27-D10

C28-D14

C28-C2

C27-D12

C27-D3

C27-D4

C27-D6

C29-B2

C29-B1

C27-C5

C29-A12

C5-D3

C5-A4

A

B

154 TN

151 GY

152 DB

153 LG

ON / OFF
SIGNAL

SET
COAST
SIGNAL

RESUME
ACCEL
SIGNAL

WASTEGATE
SOLENOID
CONTROL

5 VOLT
REFERENCE

APP 3
SIGNAL

GROUND

APP 1
SIGNAL

GROUND

GROUND

D

B

C

A

G

E

F

J

K

3

1

2

C1

22

20

14

15

60

32

53

17

44

720 TN

717 WH

723 YL

724 DG

725 GY

718 DB

719 BR

721 LB

722 PP

ACCELERATIOR
PEDAL POSITION
SENSOR

POWERTRAIN
CONTROL
MODULE
(PCM)

APP 2
SIGNAL

9-S12-055

B

C

D

295 BR

YL

GRN

RD
