Hummer H1 (2002+). Manual - part 257

____________________________________________________________

Accessories 13-21

05745159

RUNNING BOARD REPLACEMENT

Removal

Remove two clips and pins securing the right and left
curved tubes to the receiver (Figures 13-46 and 13-47).

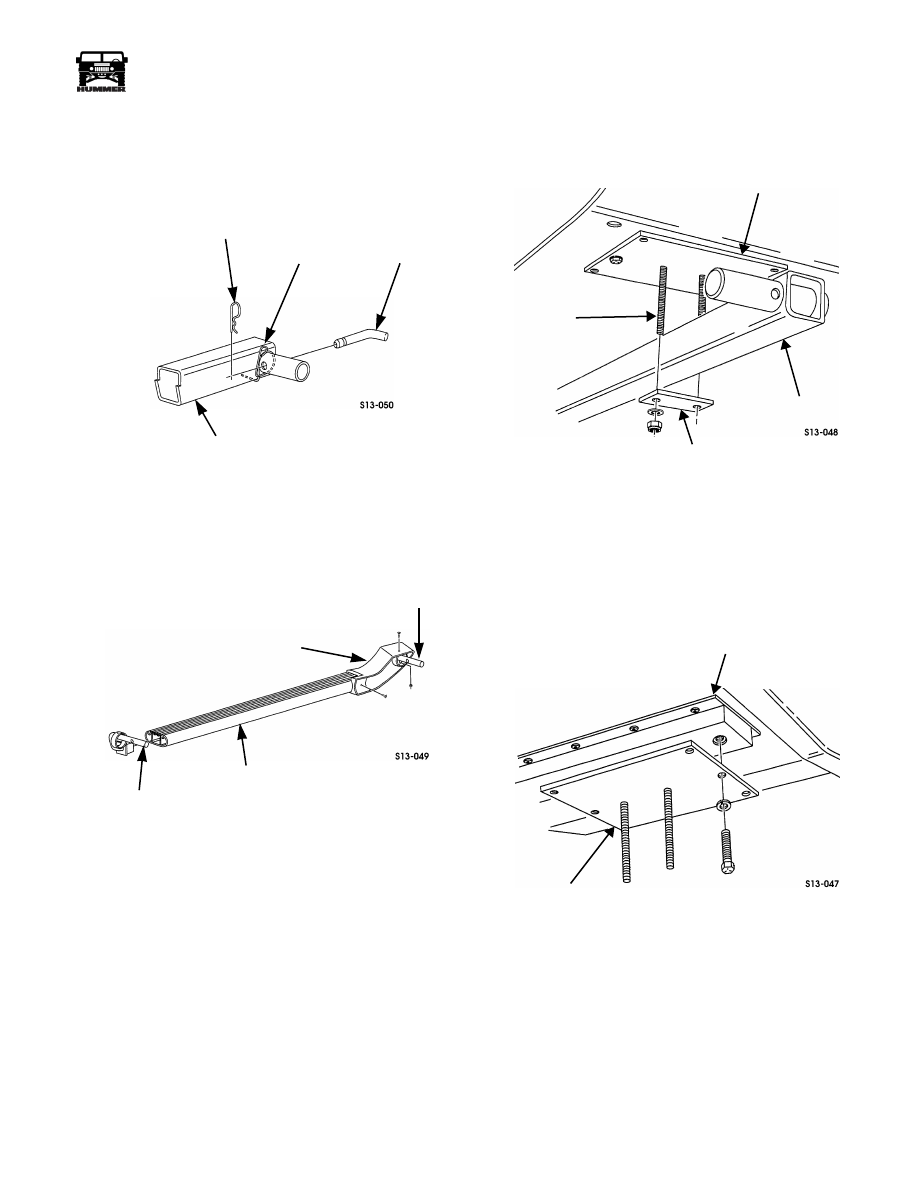

Figure 13-46: Receiver

Remove screw, nut, and screw securing the left end cap to
the left curved tube (Figure 13-47).

Figure 13-47: Left End Cap Secured

to Left Curved Tube

Remove screw, nut, and screw securing the right end cap
to the right curved tube.

Remove left curved tube from running board.

Remove right curved tube from running board.

NOTE: If vehicle has rocker panel protection, remove the ex-
tra clamp plate used on the forward mounting area
between the mounting bracket and receiver.

Remove four nuts, washers, and two clamp plates securing
two receivers to studs on mounting brackets
(Figure 13-48).

Figure 13-48: Receiver and Clamp Plate

NOTE: If vehicle does not have rocker panel protection, per-
form steps 7 and 8. If vehicle is equipped with rocker panel
protection, perform steps 9 and 10.

Remove two bolts, lockwashers, and rear mounting
bracket from body (Figure 13-49).

Figure 13-49: Rear Mounting Bracket

CLIP

SPRING CLIP

PIN

RECEIVER

LEFT END CAP

LEFT CURVED

TUBE

RUNNING BOARD

ASSEMBLY

RIGHT CURVED

TUBE

REAR MOUNTING AREA SHOWN,

FRONT IS SIMILAR

MOUNTING BRACKET

STUD

RECEIVER

CLAMP

PLATE

RIGHT SIDE SHOWN,
LEFT SIDE OPPOSITE

BODY

MOUNTING

REAR

BRACKET

13-22

Accessories

_____________________________________________________________

Remove four bolts, lockwashers, J-nuts, and front
mounting bracket from body (Figure 13-50).

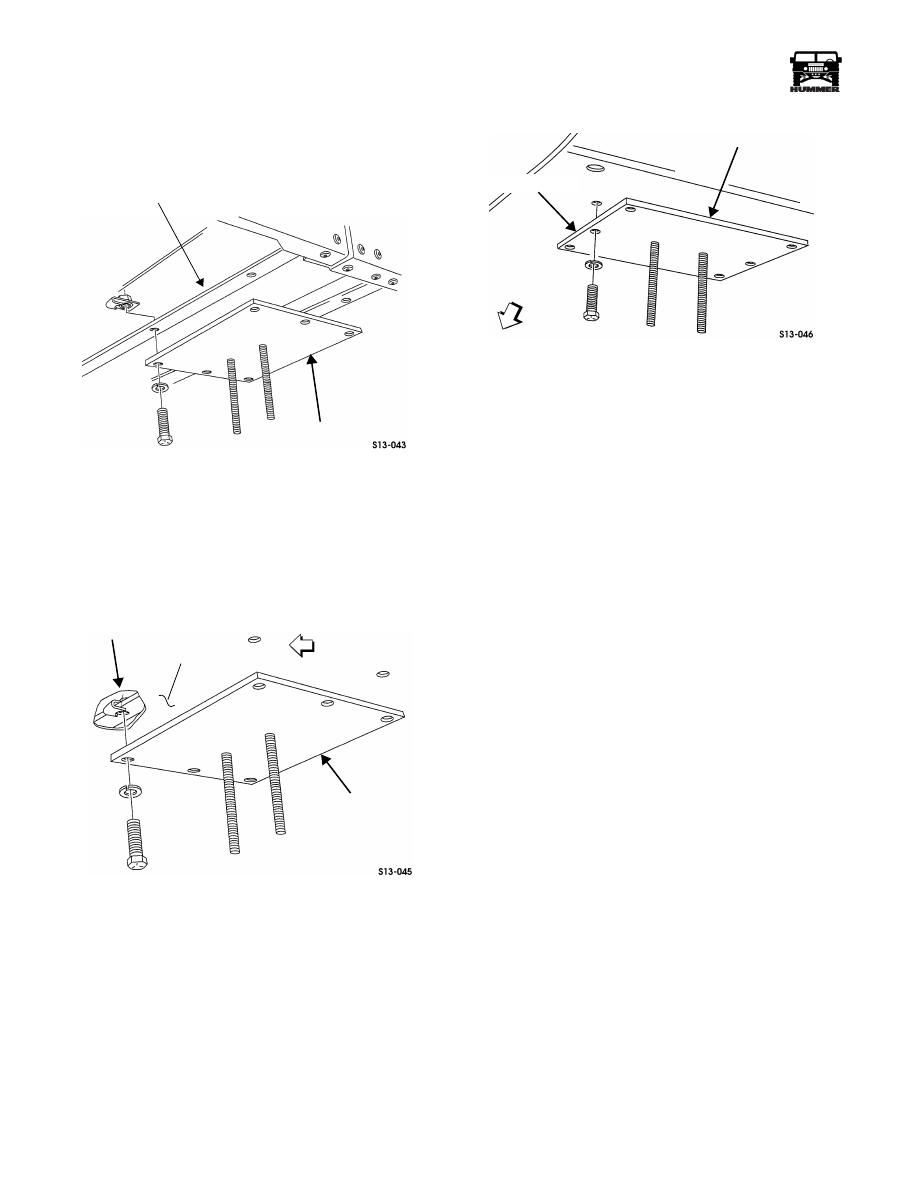

Figure 13-50: Front Mounting Bracket and J-Nut

Remove four bolts, lockwashers, and front mounting
bracket from rocker panel protection and body
(Figure 13-51).

Figure 13-51: Front Mounting Bracket

10. Remove two bolts, lockwashers, and rear mounting

bracket from rocker panel protection and body
(Figure 13-52).

Installation

NOTE: If vehicle does not have rocker panel protection, per-
form steps 1 and 2. If vehicle is equipped with rocker panel
protection, perform steps 3 and 4.

Figure 13-52: Rear Mounting Bracket

Install front mounting bracket on body with four J-nuts,
lockwashers, and bolts. Tighten bolts to 29-31 lb-ft (39-42
N•m) (Figure 13-50).

Install rear mounting bracket on body with two
lockwashers and bolts. Tighten bolts to 29-31 lb-ft (39-42
N•m) (Figure 13-49).

Install front mounting bracket on rocker panel protection
and body with four lockwashers and bolts. Tighten bolts to
29-31 lb-ft (39-42 N•m) (Figure 13-51).

NOTE: If the vehicle does not have rocker panel protection,
an extra clamp plate must be used on the forward mounting
area between the mounting bracket and receiver.

Install rear mounting bracket on rocker panel protection
and body with two lockwashers and bolts. Tighten bolts to
29-31 lb-ft (39-42 N•m) (Figure 13-52).

Install receiver to studs on two mounting brackets with
two clamp plates, four washers, and nuts (Figure 13-48).

Remove any extra mounting bracket stud lengths by
cutting the stud four thread lengths from the nut.

Position right curved tube (with orange plastic bushing)
into running board. Ensure right curved tube points toward
the side of the running board with the “this side toward
frame” decal (Figure 13-47).

Position left curved tube (with black plastic bushing) into
running board.

Position right end cap on right curved tube with screw,
nut, and screw.

10. Position left end cap on the left curved tube with screw,

nut, and screw.

11. Position two spring clips on receiver. Ensure the spring

clips are positioned 180 degrees from each other
(Figure 13-46).

Secure the right and left curved tubes to the receiver with two
pins and clips.

LEFT SIDE SHOWN,

RIGHT SIDE OPPOSITE

MOUNTING

BRACKET

BODY

FRONT

FRONT OF

VEHICLE

MOUNTING

BODY

UNDERBODY
SKID PANEL

FRONT

BRACKET

FRONT OF

VEHICLE

MOUNTING BRACKET

CENTER HOLE

____________________________________________________________

Accessories 13-23

05745159

SIDE STEP BARS (TUBULAR)

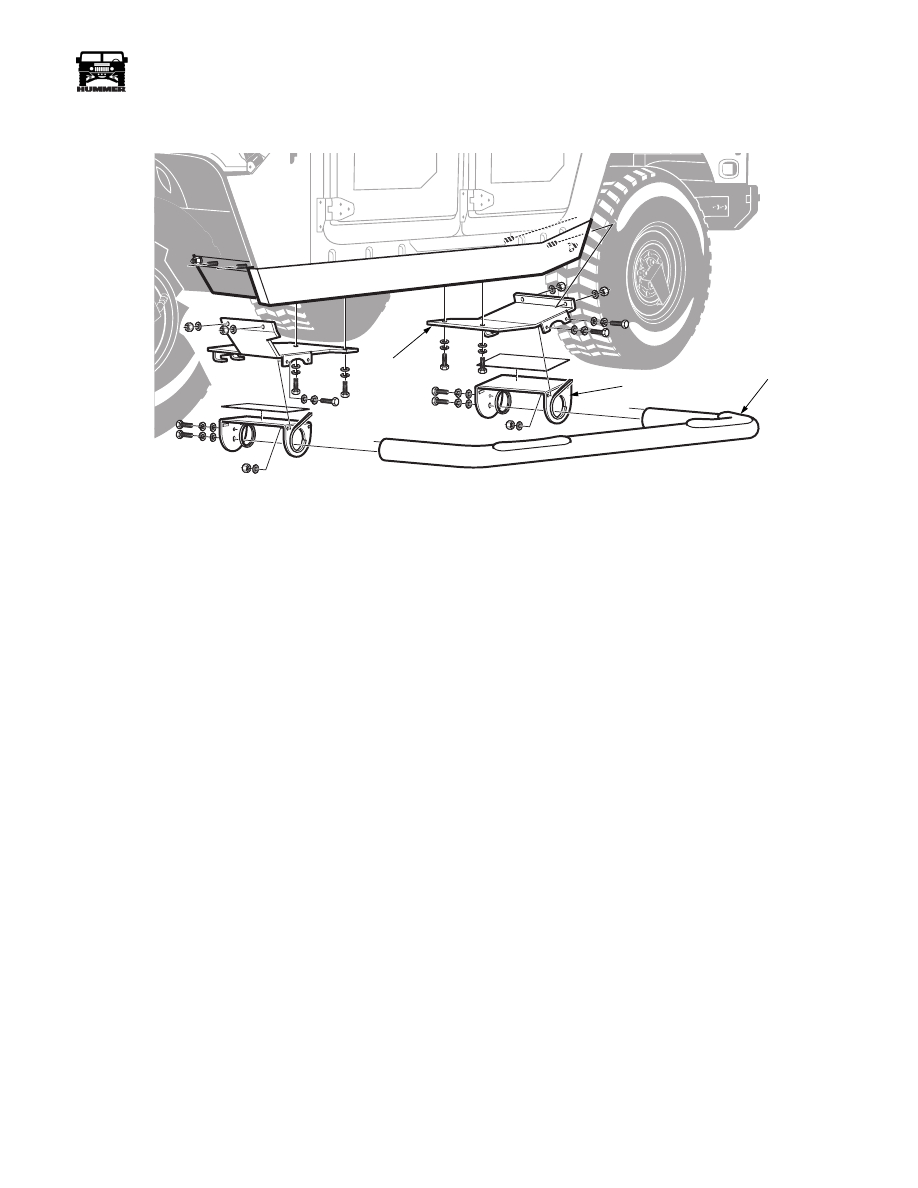

Figure 13-53: Side Step Bar Installation

NOTE: This procedure covers the left side of the vehicle. The
procedure for the right side is the same.

Removal

Remove the four bolts securing the tube brackets to the
support brackets (See Figure 13-53).

Swing the step bar and angle bracket assembly down,
disengage the tube brackets from the support brackets and
remove the assembly.

Remove four bolts securing the step bar to the tube bracket
and slide the step bar and end cap out of the tube bracket.

Remove the rear seat (and subwoofer or jack bag if
equipped).

Remove the rear lower trim panel behind the rear seat.

Pull the rear floor mat up to expose the support bracket
mounting bolts in the rear wheel well area.

Remove the two support bracket mounting nuts bolts and
washers in the rear wheel well.

Remove the two bolts and washers going through the rear
support bracket into the rocker panel protection floor area
and remove the support bracket.

Pull the front floor mat up to expose the support bracket
mounting bolts in the front wheel well area.

10. Remove the two support bracket mounting nuts bolts and

washers in the front wheel well.

11. Remove the two bolts and washers going through the front

support bracket into the rocker panel protection floor area
and remove the support bracket.

Installation

Install the front and rear support brackets on the rocker panel
protection with bolts, washers and nuts (See Figure 13-53).

Put the front and rear floor mats in position and install the
rear seat.

Install the subwoofer or jack bag if equipped.

Slide the tube brackets onto the bar in their respective
positions (angled bracket to the rear).

Place the bar end caps on the ends of the bar and install the
bolts, washers and lockwashers through the tube brackets
into the bar. Do not tighten at this time.

Hang the bar assembly on the tabs of the support brackets,
swing the bar up and secure the tube brackets to the
support brackets with bolts, washers, lockwashers and
nuts.

Tighten the remaining hardware now.

9-S13-001

STEP

BAR

TUBE

BRACKET

SUPPORT

BRACKET

13-24

Accessories

_____________________________________________________________

ROOF RACK

Roof Rack Replacement

NOTE: The roof rack is available in three foot, six foot, and
nine foot lengths. The following procedure is for a six foot roof
rack installed on a station wagon. Three foot and nine foot pro-
cedures are similar.

Removal

WARNING: Roof rack is extremely heavy. Several peo-
ple may be required to remove and install rack safely.
Use care in determining ability to lift the rack. Failure
to do so may result in injury.

Loosen eight support screws on clamps (Figure 13-54).

Loosen eight locknuts securing clips to drip rails.

Remove eight clips from under drip rails and remove rack
from vehicle.

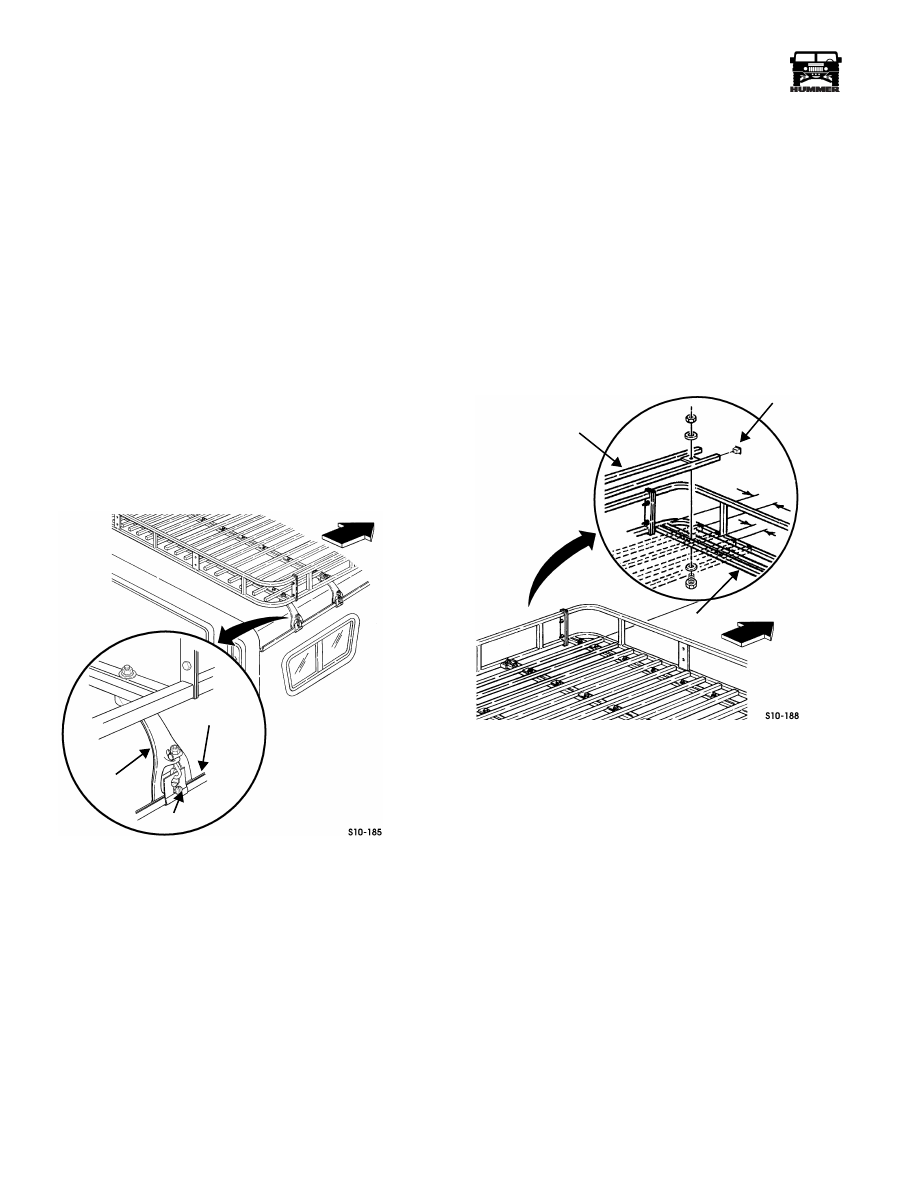

Figure 13-54: Roof Rack Clamp

Installation

CAUTION: Clamps are made of aluminum. Overtightening
may cause the clamps to crack.

Position roof rack on top of vehicle with rack ends toward
front and rear of vehicle (Figure 13-54).

Position eight clips (on clamps) under drip rails and over
support screws. Tighten locknuts to 20-25 lb-in. (2-3
N•m).

Tighten support screws on clamps.

Roof Rack Floor Piece Replacement

Removal

Remove four end caps on floor piece.

Remove four locknuts, washers, bolts, washers, and floor
piece from crossbars and rack ends (Figure 13-55).

Figure 13-55: Roof Rack Floor Piece

Installation

NOTE: Floor pieces should be positioned 5 inches (13 cm)
from the ends and 3 inches (8 cm) apart.

Install floor piece on crossbars and rack ends with four
washers, bolts, washers, and locknuts. Tighten locknuts to
25 lb-ft (34 N•m) (Figure 13-55).

NOTE: Apply a small amount of adhesive to the inside periph-
ery of each end cap before installing it on the floor piece.

Install four end caps on floor piece.

CLIP

CLAMP

DRIP RAIL

FRONT

VEHICLE

END CAP

CROSSBAR

FLOOR PIECE

FRONT

VEHICLE
