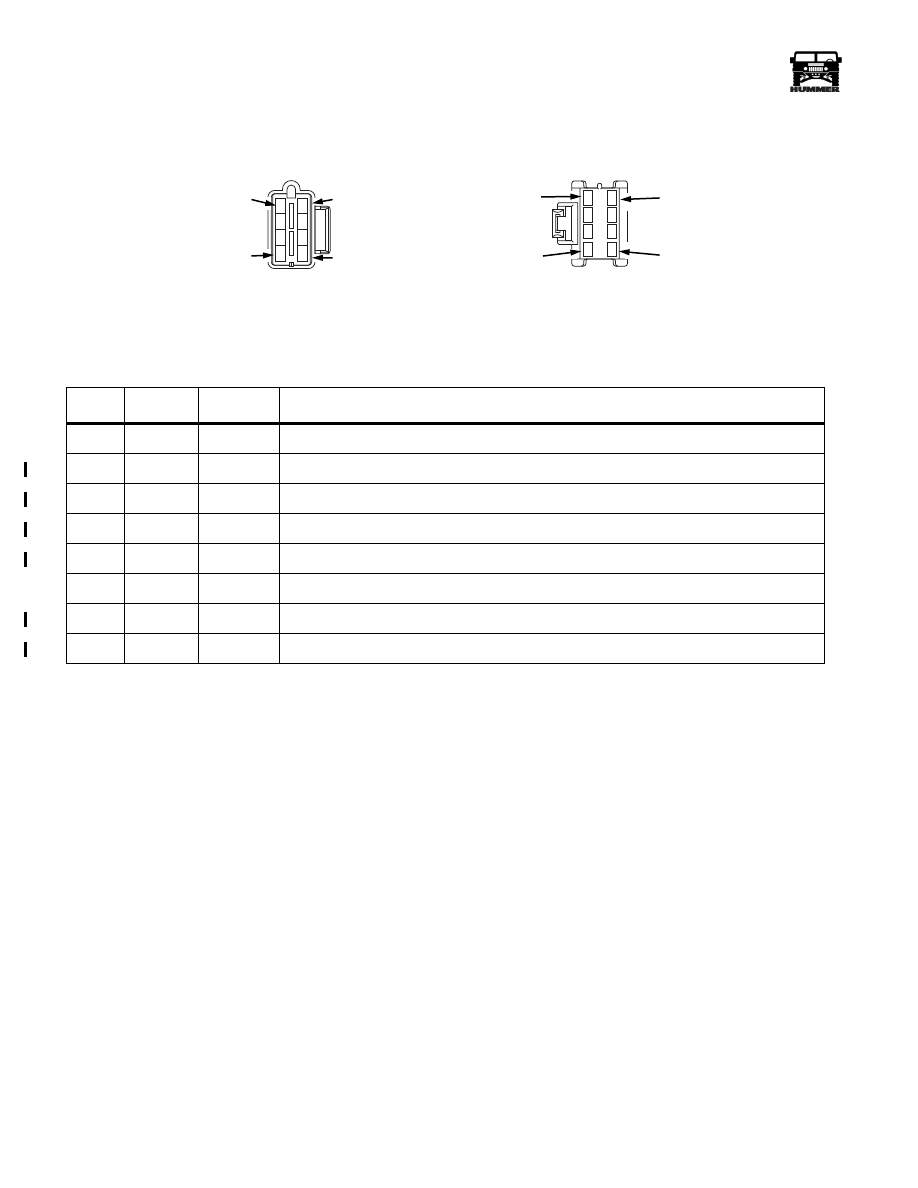

 Electrical System  12-185

®

05745159

8 WAY RR DOOR  RIGHT FRONT OUTSIDE KICK PANEL

PIN

CKT

COLOR

DESCRIPTION

A

54

DG

Map light activation

B

319

TN

Up/down signal to the power window motor

C

320

LG

Down/up signal to the power window motor

D

117

PK

Unlock signal to the power lock actuator

E

118

BR

Lock signal to the power lock actuator

F

53

DB

Dome lamps activation

G

170

PP

Fused ignition input to the power window switch

H

59

BK

Ground G4

9-S12-035

9-S12-036

A

D

H

E

H

E

A

D

C18 MALE

C18 FEMALE

4-1-00

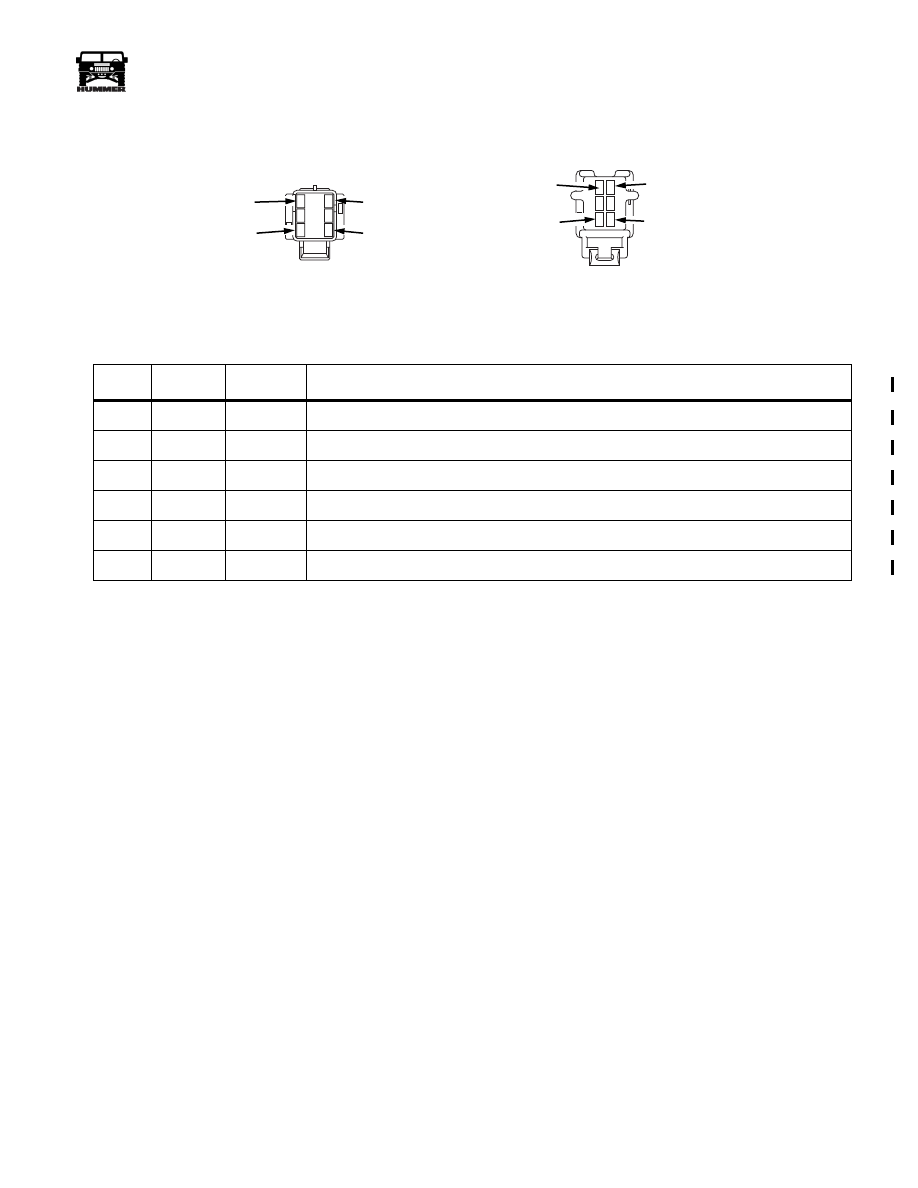

12-186

Electrical System

______________________________________________________

®

8 WAY LR DOOR  LEFT FRONT OUTSIDE KICK PANEL

PIN

CKT

COLOR

DESCRIPTION

A

54

DG

Map lights activation

B

316

TN

Up/down signal to the power window motor

C

317

LG

Down/up signal to the power window motor

D

117

PK

Lock signal to the drivers side rear door lock actuator

E

118

BR

Unlock signal to the drivers side rear door lock actuator

F

53

DB

Dome lamps activation

G

170

PP

Fused ignition input to the power window switch

H

59

BK

Ground G4

9-S12-035

9-S12-036

A

D

H

E

H

E

A

D

C19 MALE

C19 FEMALE

4-01-00

_____________________________________________________

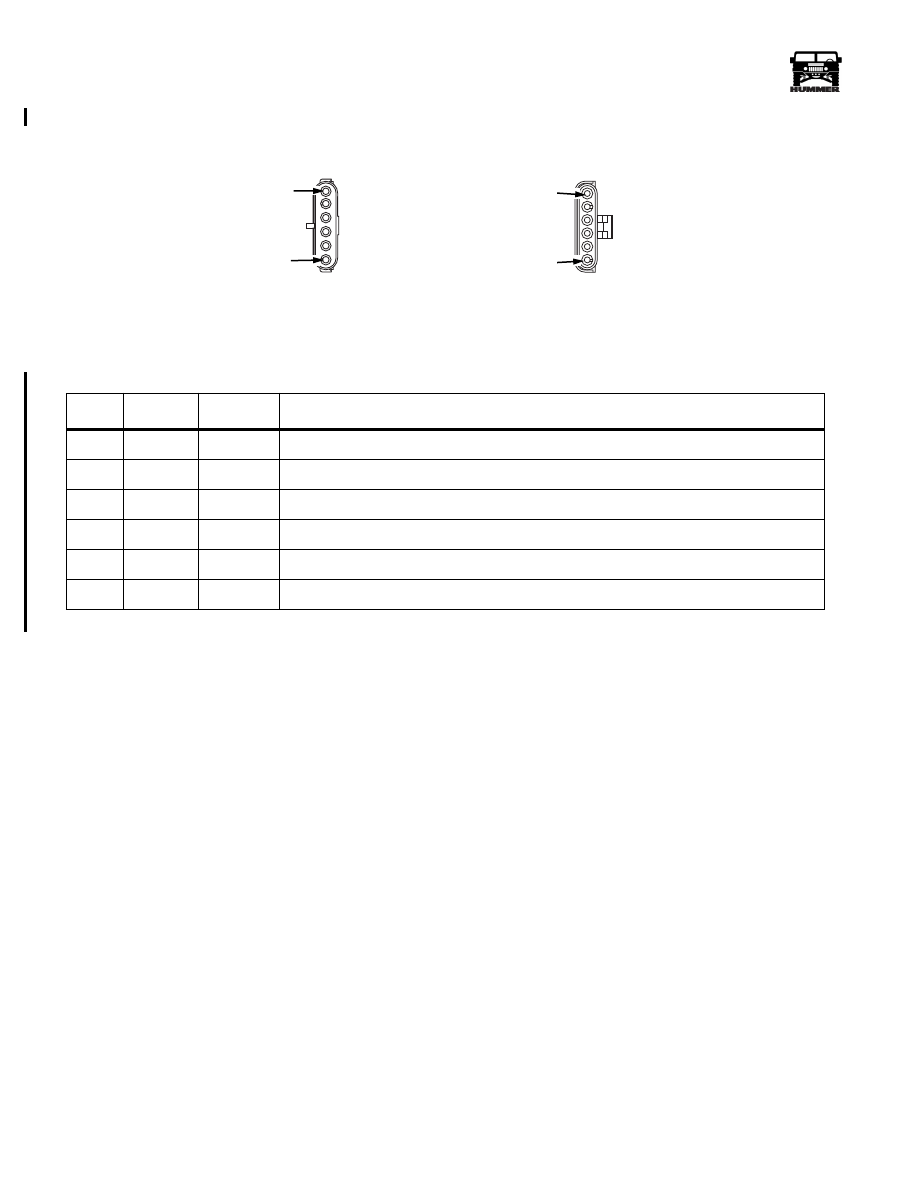

 Electrical System  12-187

®

05745159

6 WAY CARGO DOOR-MODEL 84  RIGHT LOWER B PILLAR

PIN

CKT

COLOR

DESCRIPTION

A

517

OR

Fused battery input to the cargo lock delay module (HMCS only)

B

59

BK

Ground G4

C

66

RD

Fused battery voltage to the rear wiper motor (HMSB only)

D

Empty

E

64

LG

Rear wiper motor intermittent 12 volt supply (HMSB only)

F

62

LB

Rear wiper motor intermittent (HMSB only)

9-S12-037

9-S12-038

A

C

D

F

A

C

D

F

C20 MALE

C20 FEMALE

4-1-00

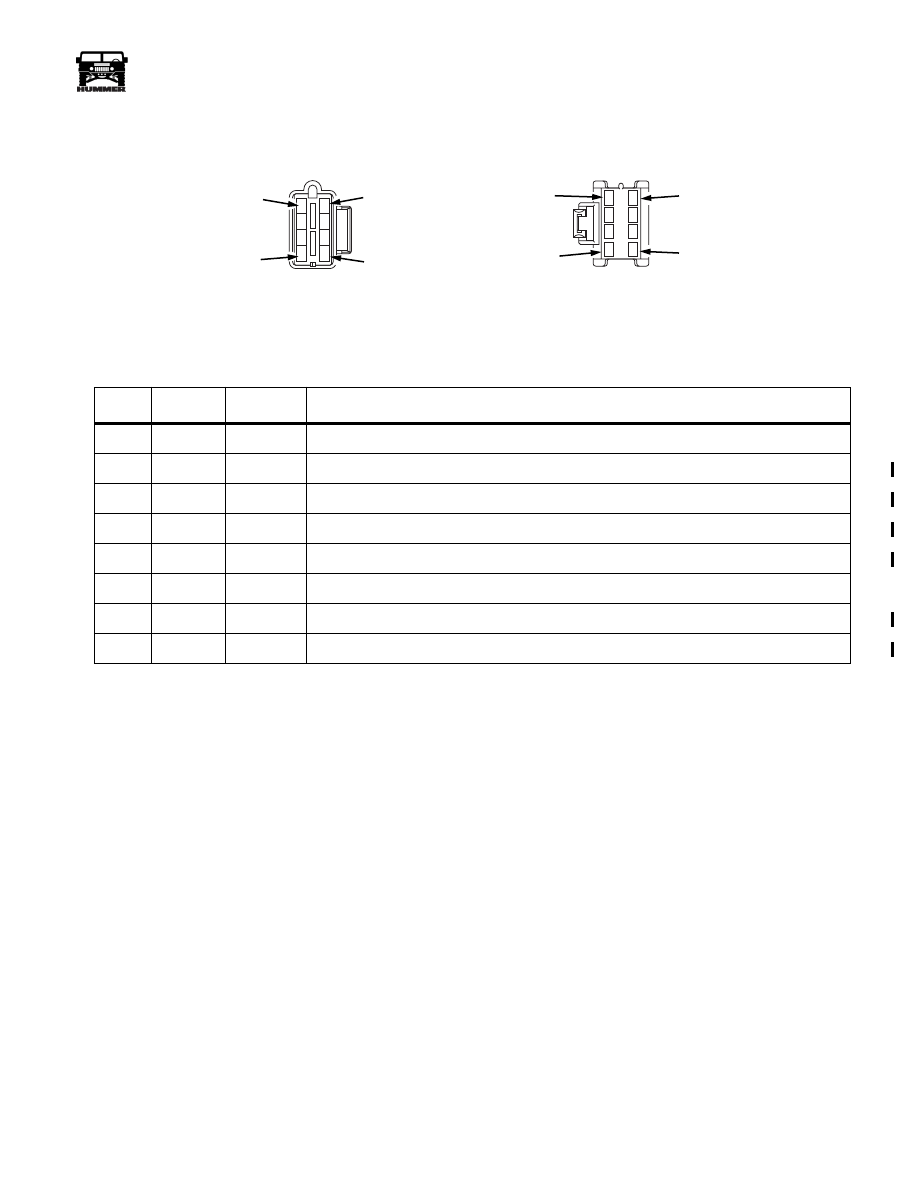

12-188

Electrical System

______________________________________________________

®

6 WAY RR DOOR JUMPER  LOCATION: RIGHT LOWER B PILLAR

9-S12-032

9-S12-031

A

F

A

F

C21 MALE

C21 FEMALE

PIN

CKT

COLOR

DESCRIPTION

A

117

BR

Unlock signal to the passenger side rear door lock actuator

B

118

PK

Lock signal to the passenger side rear door lock actuator

C

319

TN

Up/down signal to the power window motor

D

320

LG

Down/up signal to the power window motor

E

170

PP

Fused ignition input to the power window switch

F

4-1-00
