 Electrical System  12-181





®

05745159

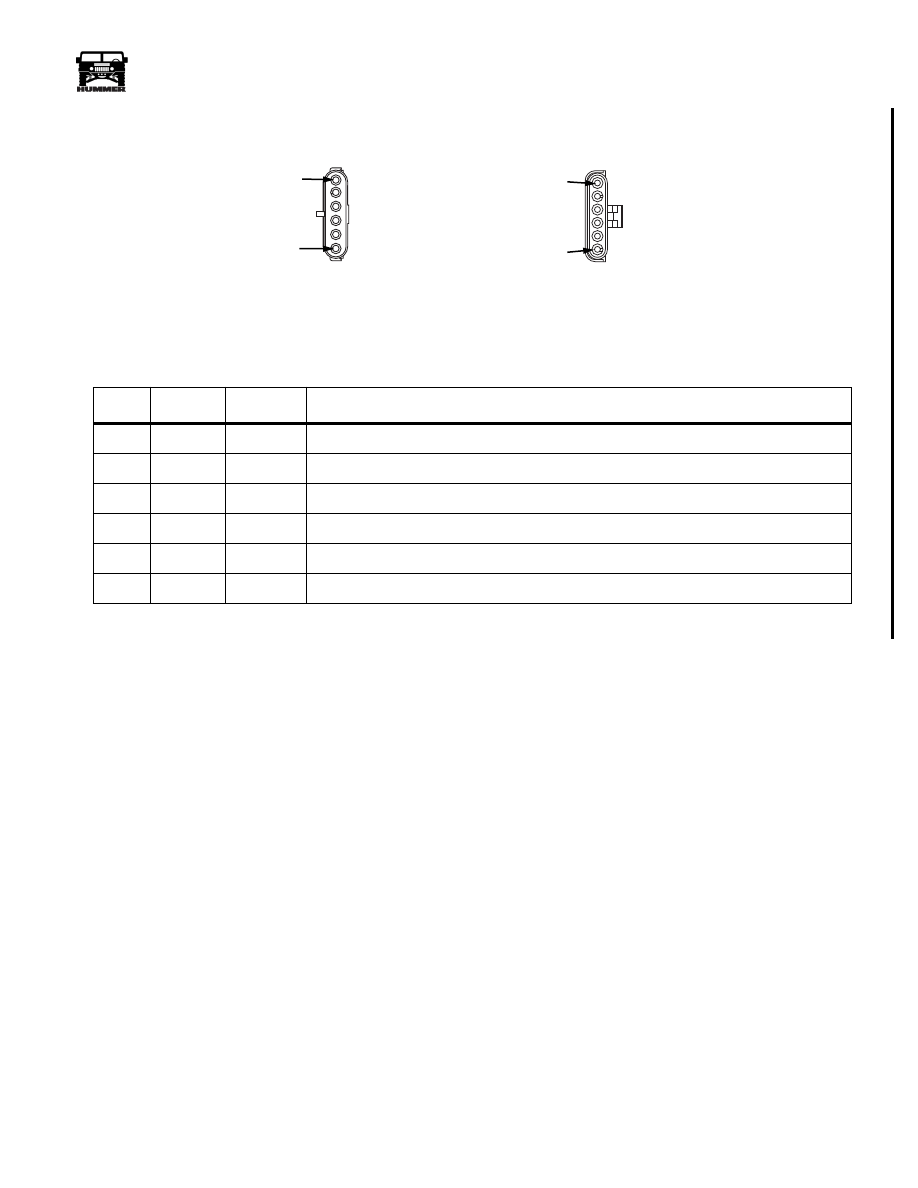

6 WAY LF DOOR  LOCATION: LEFT FRONT OUTSIDE KICK PANEL

PIN

CKT

COLOR

DESCRIPTION

A

56

BK

Ground G4

B

120

LG

Oscillating power/ground circuit

C

117

PK

Unlock signal to the drivers door lock actuators

D

118

BR

Lock signal to the drivers door lock actuators

E

119

TN

Oscillating power/ground circuit

F

56

BK

Ground G4

9-S12-031

9-S12-032

A

F

A

F

C14 MALE

C14 FEMALE

4-1-00

12-182

Electrical System

______________________________________________________

®

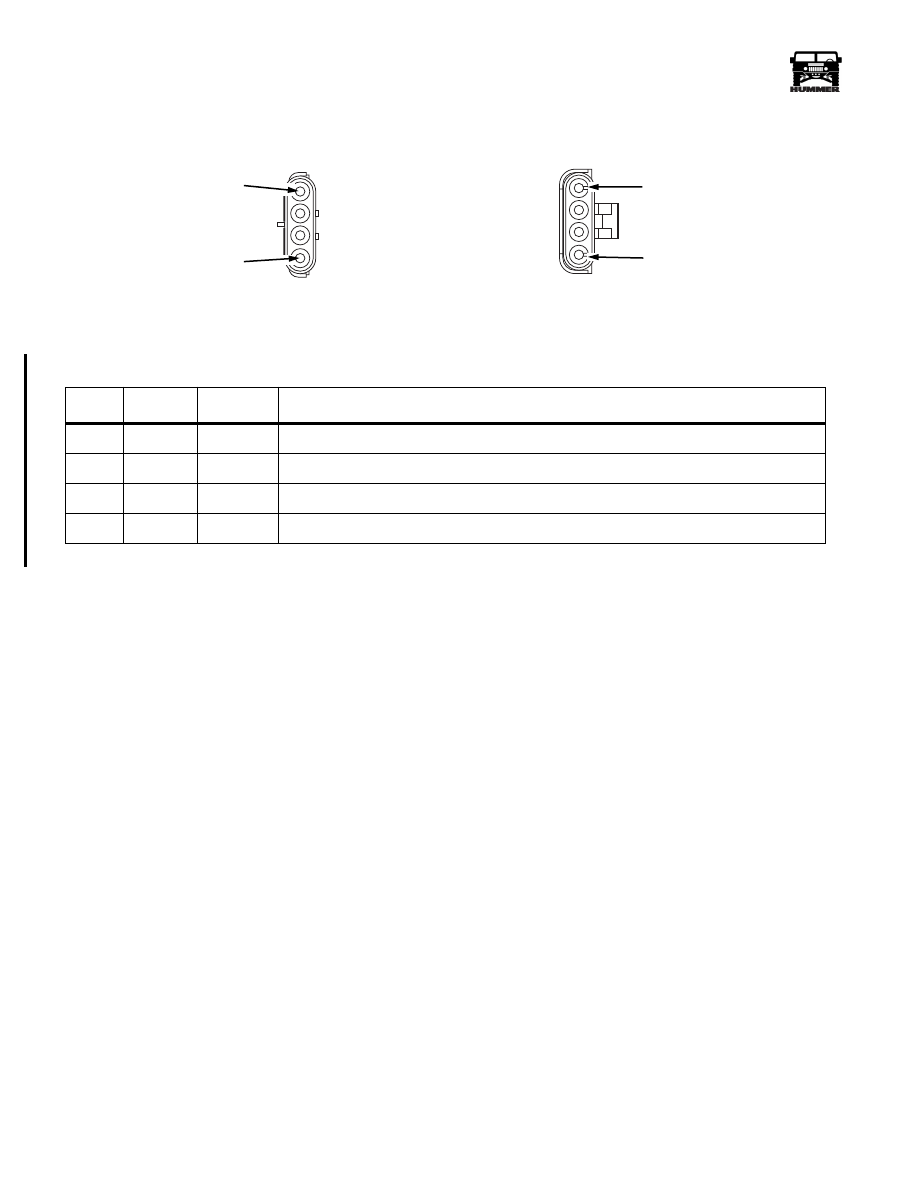

4 WAY LF DOOR LEFT FRONT OUTSIDE KICK PANEL

PIN

CKT

COLOR

DESCRIPTION

A

517

OR

Fused battery input to the drivers door lock switch

B

56

BK

Ground G4

C

56

BK

Ground G4

D

171

RD

Fused ignition feed to the power window circuit

9-S12-033

9-S12-034

C15 MALE

C15 FEMALE

A

D

A

D

4-1-00

_____________________________________________________

 Electrical System  12-183

®

05745159

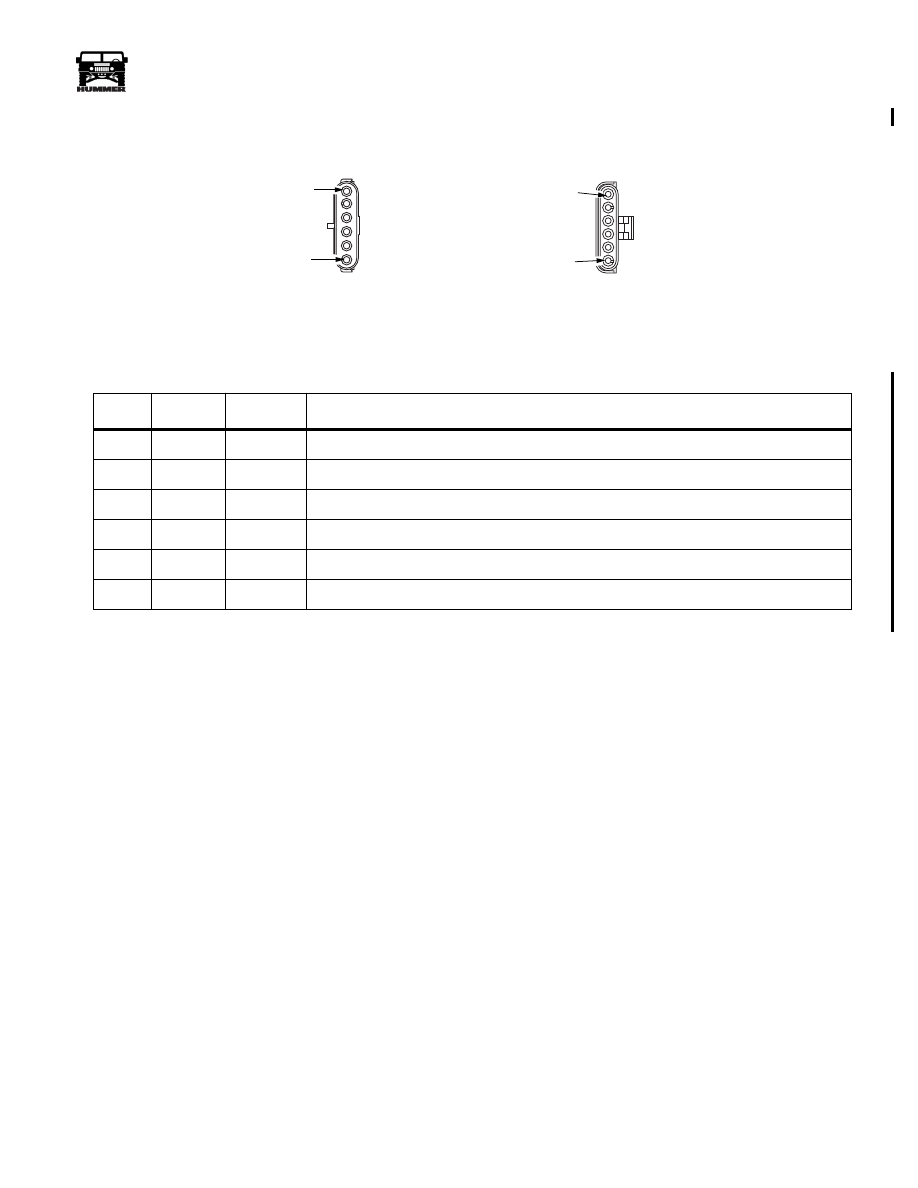

6 WAY RF DOOR  RIGHT FRONT OUTSIDE KICK PANEL

9-S12-031

9-S12-032

A

F

A

F

C16 MALE

C16 FEMALE

PIN

CKT

COLOR

DESCRIPTION

A

119

TN

Oscillating power/ground circuit

B

121

YL

Unlock signal to the module from the switch

C

117

PK

Unlock signal to the passenger front door lock actuator

D

118

BR

Lock signal to the passenger front door lock actuator

E

122

PP

Lock signal to the module from the switch

F

120

LG

Oscillating power/ground circuit

4-1-00

12-184

Electrical System

______________________________________________________

®

4 WAY RF DOOR  RIGHT FRONT OUTSIDE KICK PANEL

PIN

CKT

COLOR

DESCRIPTION

A

517

OR

Fused battery input to the passenger door lock switch

B

313

DB

Up/down signal to the power window motor

C

314

WH

Down/up signal to the power window motor

D

170

PP

Fused ignition input to the power window switch

9-S12-033

9-S12-034

A

D

A

D

C17 MALE

C17 FEMALE

4-1-00
