Hummer H1 (2002+). Manual - part 172





_____________________________________________________________________

 Body  10-59

®

05745159

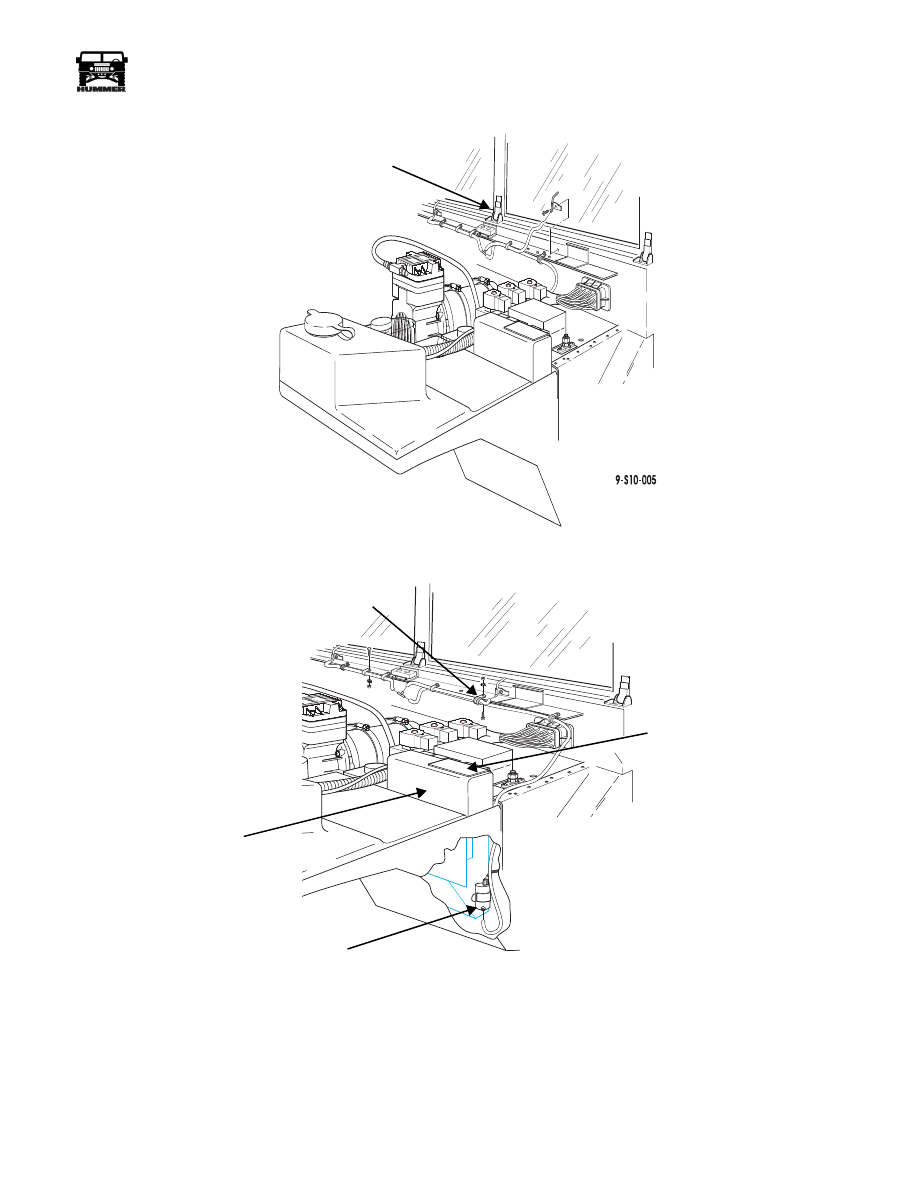

Figure 10-112:   Windshield Washer Nozzle Replacement

Figure 10-113:   Windshield Washer Hose Replacement

NOZZLE

9-S10-004

ECU ENCLOSURE

PUMP ASSEMBLY

ECU RETAINING BRACKET

CLAMPS

10-60

Body

______________________________________________________________________

®

A-PILLAR FORMER ASSEMBLY REPLACEMENT
(SOFT TOP ONLY)

Removal

1.

Remove soft top.

2.

Remove 12 screws and A-pillar former from A-pillar
(Figure 10-114).

3.

Clean mounting surface on A-pillar.

Cleaning and Inspection

NOTE:

Clean all components, examine for wear or damage,

and replace if necessary.

Inspect wellnuts. Replace if defective or damaged.

Installation

1.

Peel backing paper from A-pillar former and secure former
to A-pillar with 12 screws (Figure 10-114).

2.

Install soft top.

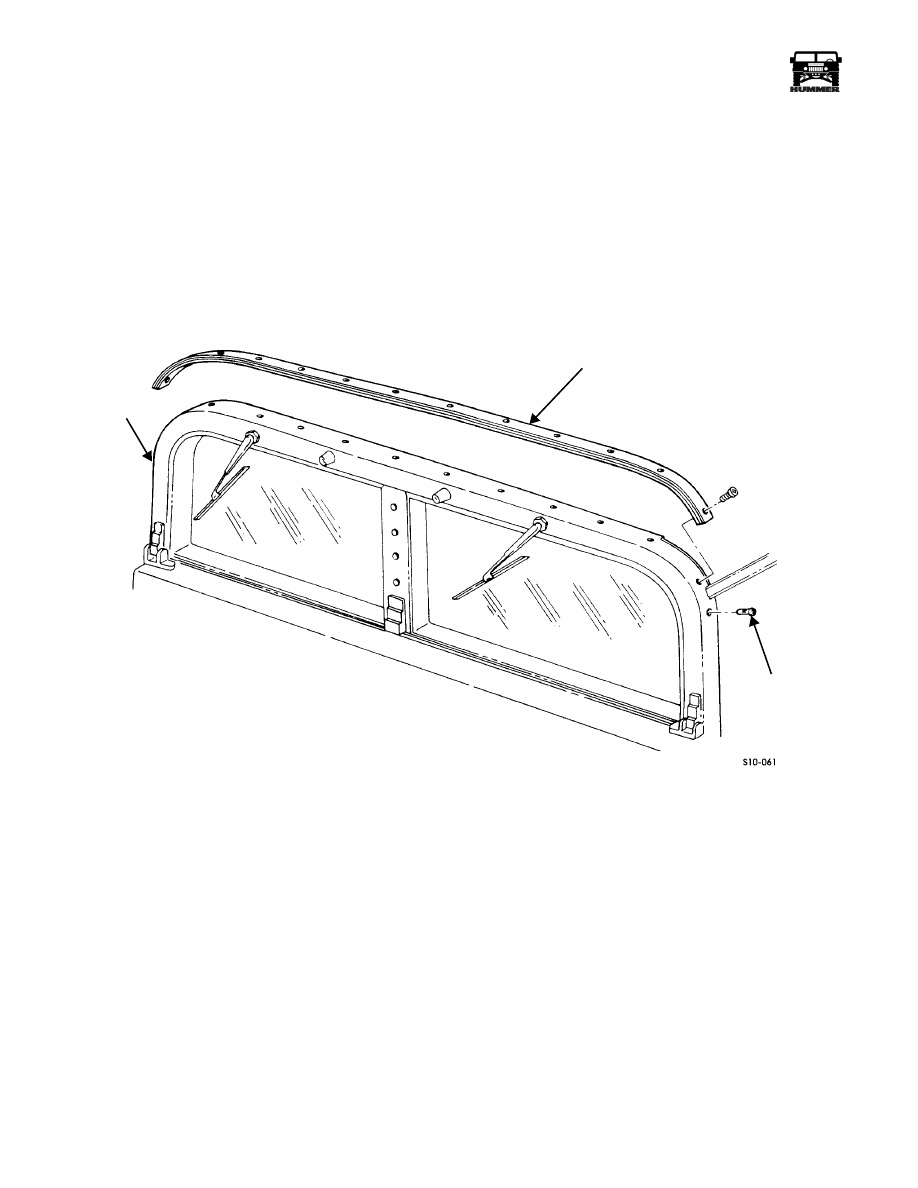

Figure 10-114:   A-Pillar Former Assembly Replacement

A-PILLAR

FORMER

A-PILLAR

WELLNUT

_____________________________________________________________________

 Body  10-61

®

05745159

REAR SUPPORT BOW BRACKET REPLACEMENT

Removal

1.

Remove rear support bow assembly.

2.

Remove two screws and support bow bracket from body
(Figure 10-115).

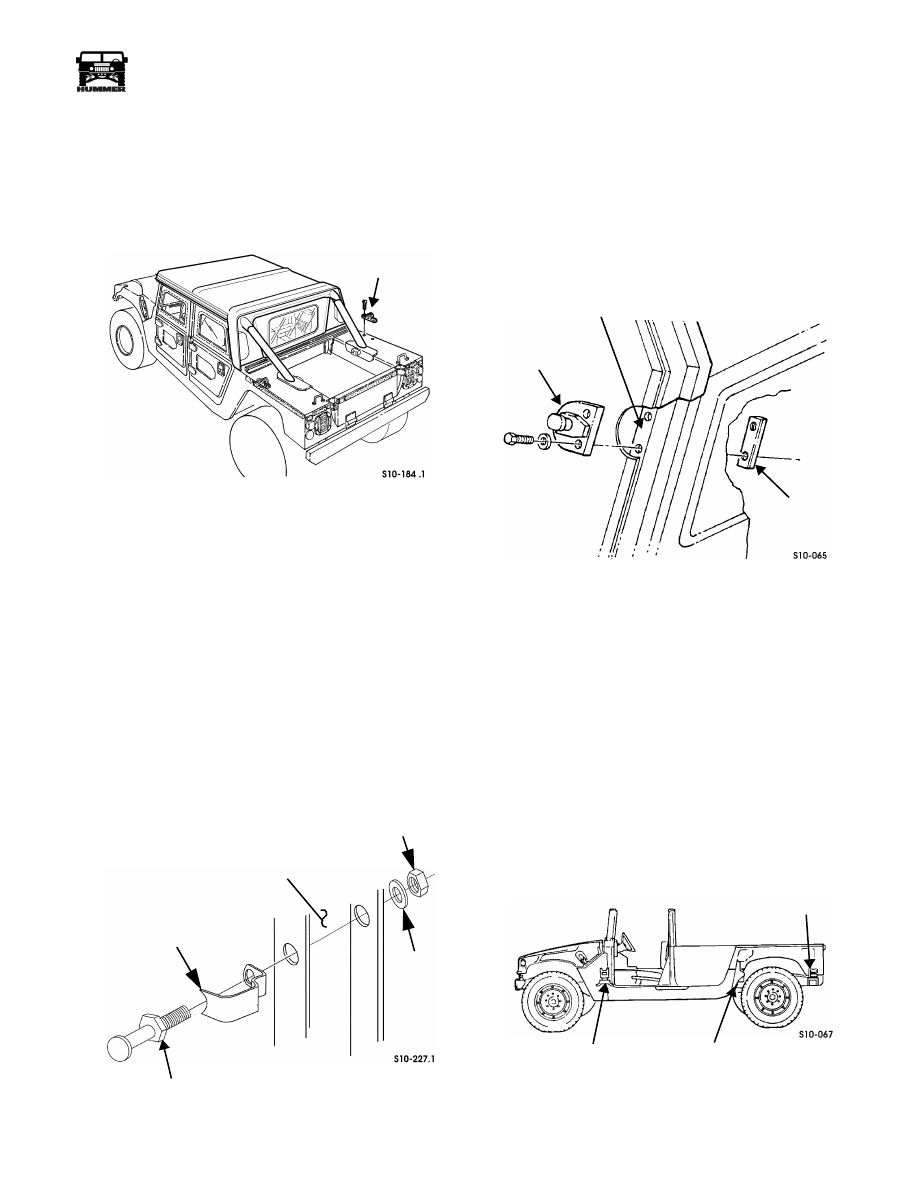

Figure 10-115:   Rear Support Bow Bracket

Replacement

Installation

1.

Secure bracket to body with two screws (Figure 10-115).

2.

Install rear support bow assembly.

FRONT STRIKER REPLACEMENT

Removal

Remove locknut, washer, striker guard, and striker from front
door pillar (Figure 10-116).

Installation

Secure striker and striker guard to front door pillar with washer
and locknut (Figure 10-116). Tighten locknut to 41 lb-ft (56 N•m).

Figure 10-116:   Front Striker Assembly Replacement

REAR STRIKER ASSEMBLY REPLACEMENT

Removal

Remove two screws, washers, backing plate, and rear striker
assembly from rear door pillar (Figure 10-117).

Installation

Secure rear striker assembly to rear door pillar with backing
plate, two washers, and screws (Figure 10-117). Tighten
screws to 12 lb-ft (16 N•m).

Figure 10-117:   Rear Striker Assembly Replacement

BODY MOUNT REPLACEMENT

Removal

NOTE:

Removal and installation procedures for intermediate

and rear body mounts are the same. This procedure covers the
left intermediate body mount.

1.

Remove locknut, washer, bolt, washer, and two spacers
securing sleeve, upper cushion, and lower cushion to body
bracket and frame bracket (Figure 10-119).

2.

Raise the vehicle at the body reinforcement adjacent to
body mount to be removed (Figure 10-118).

3.

Raise the body far enough to separate the upper cushion
from lower cushion and remove spacer, sleeve, upper
cushion, and lower cushion (Figure 10-119).

Figure 10-118:   Left Side Body Mount Locations

REAR



SUPPORT BOW

BRACKET

FRONT

DOOR

PILLAR

STRIKER

STRIKER
GUARD

WASHER

LOCKNUT

REAR DOOR PILLAR

REAR

STRIKER

ASSEMBLY

BACKING

PLATE

FRONT MOUNT

INTERMEDIATE

REAR MOUNT

MOUNT

10-62

Body

______________________________________________________________________

®

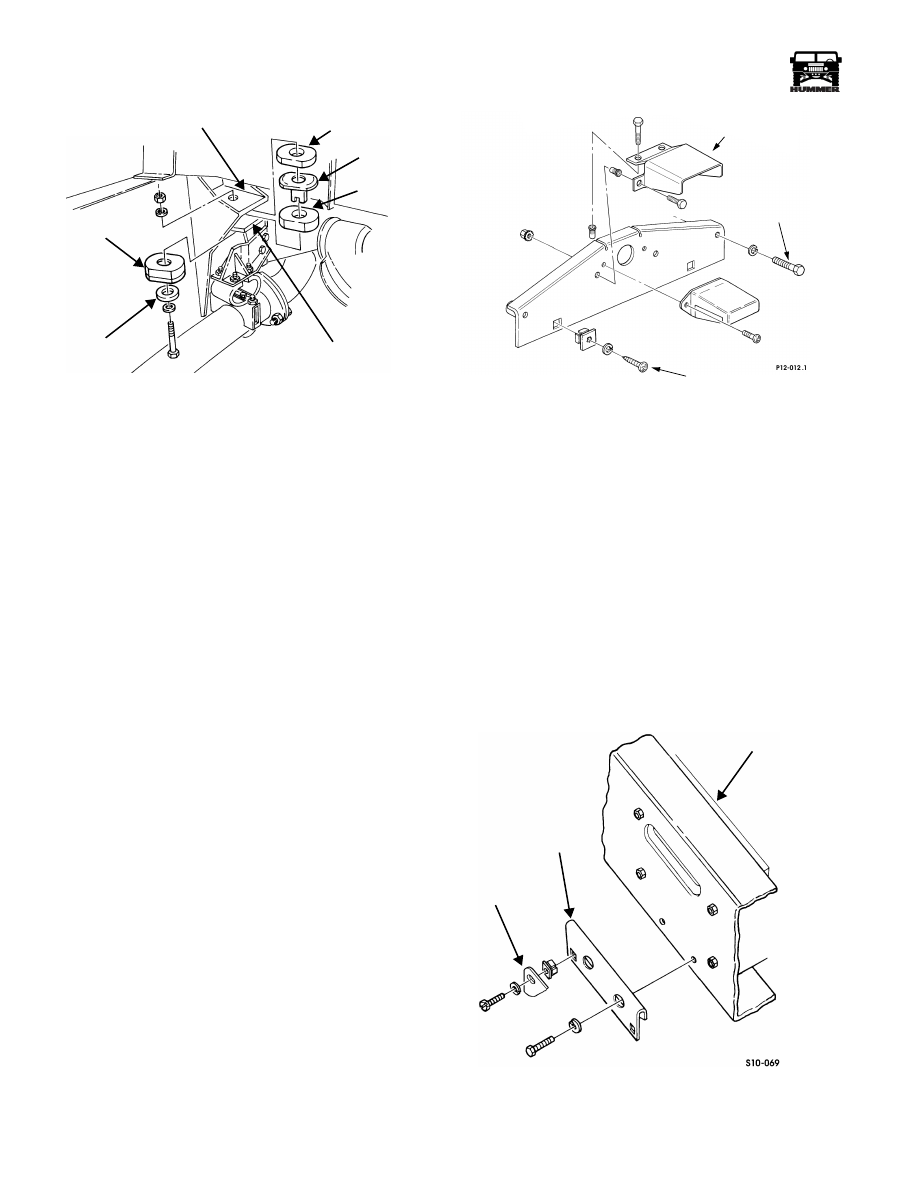

Figure 10-119:   Body Mount Cushions Replacement

Installation

1.

Position lower cushion, upper cushion, sleeve, and spacer
between body bracket and frame bracket (Figure 10-119).

2.

Lower body and ensure lower cushion, sleeve, upper
cushion, spacer and body bracket align. Secure with
spacer, washer, bolt, washer, and locknut. Tighten locknut
to 90 lb-ft (122 N•m).

LICENSE PLATE BRACKETS

Rear License Plate Bracket Replacement

Removal

1.

Remove four bolts and washers securing the protective
light shield to the bumper.

2.

Remove two screws, lockwashers, license plate, and two
grommets from bracket (Figure 10-120).

3.

Remove two bolts and lockwashers securing bracket to
bumper.

4.

Disconnect two leads from light bracket, and remove
bracket.

5.

Remove two nut and lockwasher assemblies, screws,
and light bracket from bracket.

Installation

1.

Secure light bracket to bracket with two screws and nut
and lockwasher assemblies (Figure 10-120).

2.

Connect two leads to light bracket.

3.

Secure bracket to bumper with two lockwashers and bolts.

4.

Secure license plate to bracket with two grommets,
lockwashers, and screws.

5.

Install protective light shield with four bolts and washers.

Figure 10-120:   Rear License Plate Bracket

Front License Plate Bracket Replacement

Removal

1.

Remove two capscrews, lockwashers, license plate, and
two grommets from bracket. Discard lockwashers
(Figure 10-121).

2.

Remove two screws, lockwashers, and bracket from
bumper. Discard lockwashers.

Installation

1.

Install bracket on bumper with two lockwashers and
screws (Figure 10-121).

2.

Install license plate on bracket with two grommets,
lockwashers, and capscrews.

Figure 10-121:   Front License Plate Bracket

BODY BRACKET

SLEEVE

UPPER

FRAME BRACKET

SPACER

LOWER

CUSHION

CUSHION

SPACER

PROTECTIVE SHIELD

LICENSE PLATE SCREWS

ATTACHMENT
BOLTS

BUMPER

BRACKET

LICENSE
 PLATE
