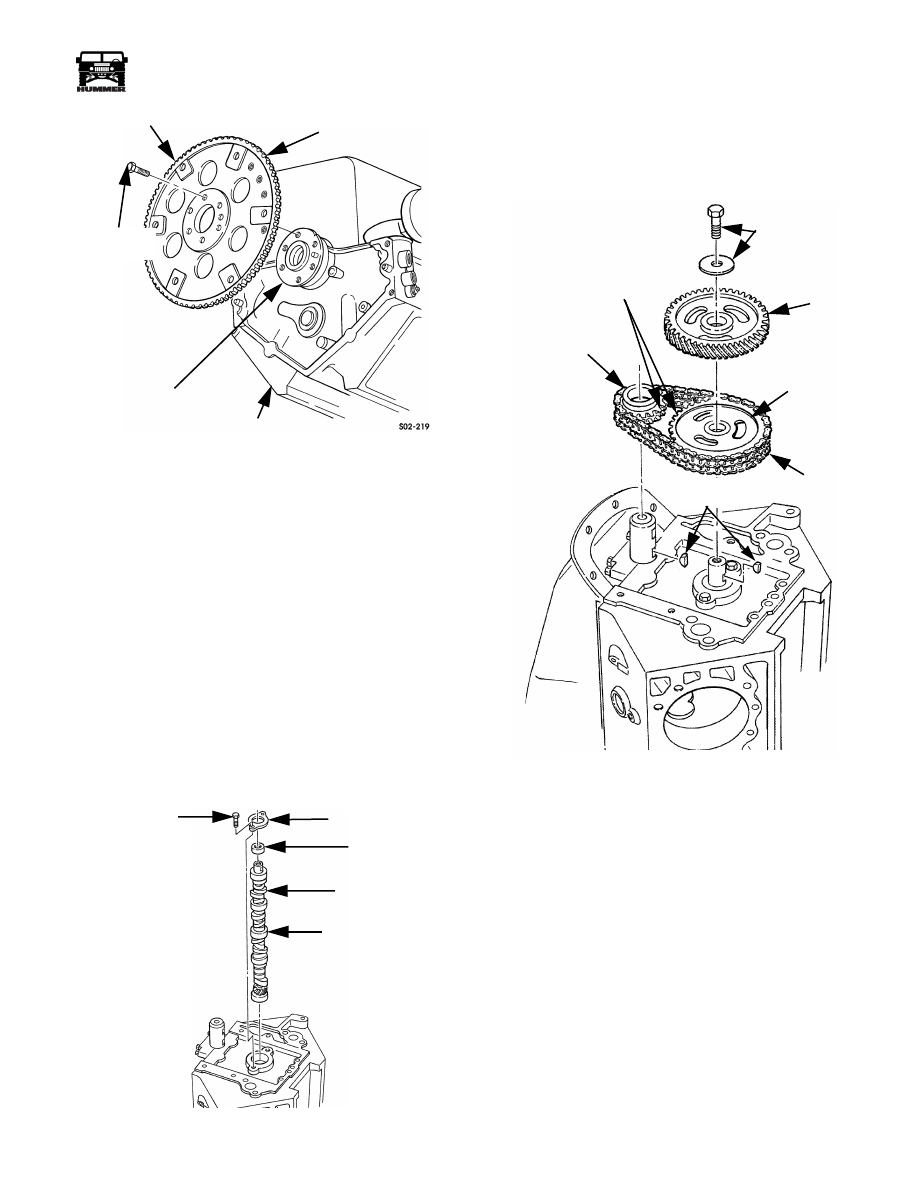

Figure 2-165:   Flywheel Installation

CAMSHAFT INSTALLATION

1.

Place engine in upright position so cam bearing bores are
vertical.

2.

Lubricate camshaft bearing journals with engine oil. Then
lubricate cam bearings with long nozzle oil can.

3.

Lubricate camshaft lobes with assembly lube.

4.

Install 8-10 in. (20 -25 cm) long bolt or threaded rod on
cam sprocket bolt hole. Bolt will serve as handle and make
cam installation easier.

5.

Install camshaft. Lower and guide cam carefully through
and into bearings (Figure 2-166).

6.

Lubricate and install camshaft spacer and thrust plate.
Beveled edge of spacer faces toward cam.

7.

Apply 1-2 drops Loctite 242 to thrust plate bolt threads.
Then install and tighten bolts 17 lb-ft (23 N•m) torque.

8.

Remove bolt or rod from camshaft.

Figure 2-166:   Camshaft Installation

TIMING CHAIN-SPROCKET-GEAR INSTALLATION

1.

Rotate crankshaft so #1 piston is at TDC.

2.

Install sprocket drive keys in camshaft and crankshaft
(Figure 2-167).

Figure 2-167:   Timing Chain - Sprocket -

Gear Installation

3.

Place block in upright position so cam is facing up. Then
rotate camshaft so drive key is toward top of block.

4.

Assemble timing chain and sprockets. Make sure sprocket
timing marks are aligned as shown (Figure 2-167).

5.

Align sprockets with drive keys in crankshaft and
camshaft. Then install chain and sprockets as assembly
(Figure

2-167). Turn camshaft to align sprockets if

necessary. Do not turn sprockets.

6.

Check chain deflection with dial indicator. If deflection is
greater than 0.51 in. (13 mm), chain is stretched and will
have to be replaced.

7.

Install injection pump drive gear, thrust washer, flat
washer (if equipped), and bolt (Figure 2-167). Tighten bolt
to 126 lb-ft (171 N•m) torque. Apply 1-2 drops Loctite
242 to bolt threads before installation. Position gear so
timing marks is at 12 o’clock position.

8.

Lubricate chain, sprockets, and gear with engine oil.

CONVERTER BOLT PADS

FLYWHEEL

CRANKSHAFT

FLANGE

CYLINDER BLOCK

FLYWHEEL

BOLTS (6)

BOLTS (2)

THRUST PLATE

SPACER

CAM LOBES

CAM JOURNALS

6-S02-075

CRANKSHAFT

SPROCKET

TIMING MARK

LOCATIONS

THRUST WASHER

AND BOLT

INJECTION

PUMP

DRIVE

GEAR

CAMSHAFT

SPROCKET

TIMING

CHAIN

SPROCKET

DRIVE KEYS

6-S02-075

2-86

Engine

_____________________________________________________________________

®

FRONT COVER AND BAFFLE INSTALLATION

1.

Install new seal in front cover with installer tool J–22102.

2.

Apply sealer to front cover as follows:

• Use anaerobic sealer such as Loctite 510 on cover sur-

faces that contact block  (Figure 2-168).

• Use RTV-type sealer such as Permatex High Temp, Ul-

tra Blue, or Loctite 599 (gray) to oil pan contact surface
of cover  (Figure 2-168).

3.

Install front cover on engine block (Figure 2-168). Be sure
cover is seated on dowels, block face, and oil pan.

4.

Install and tighten front cover bolts as follows:

• Tighten cover-to-engine block bolts to 33 lb-ft (45 N•m)

• Tighten cover-to-oil pan bolts to 4-10 lb-ft (5-14 N•m)

5.

Install baffle on front cover. Maintain minimum clearance
of 0.040 in. (1.02 mm) between baffle and injection pump
gear. Tighten baffle attaching bolts/nuts to 33 lb-ft (45
N•m) torque.

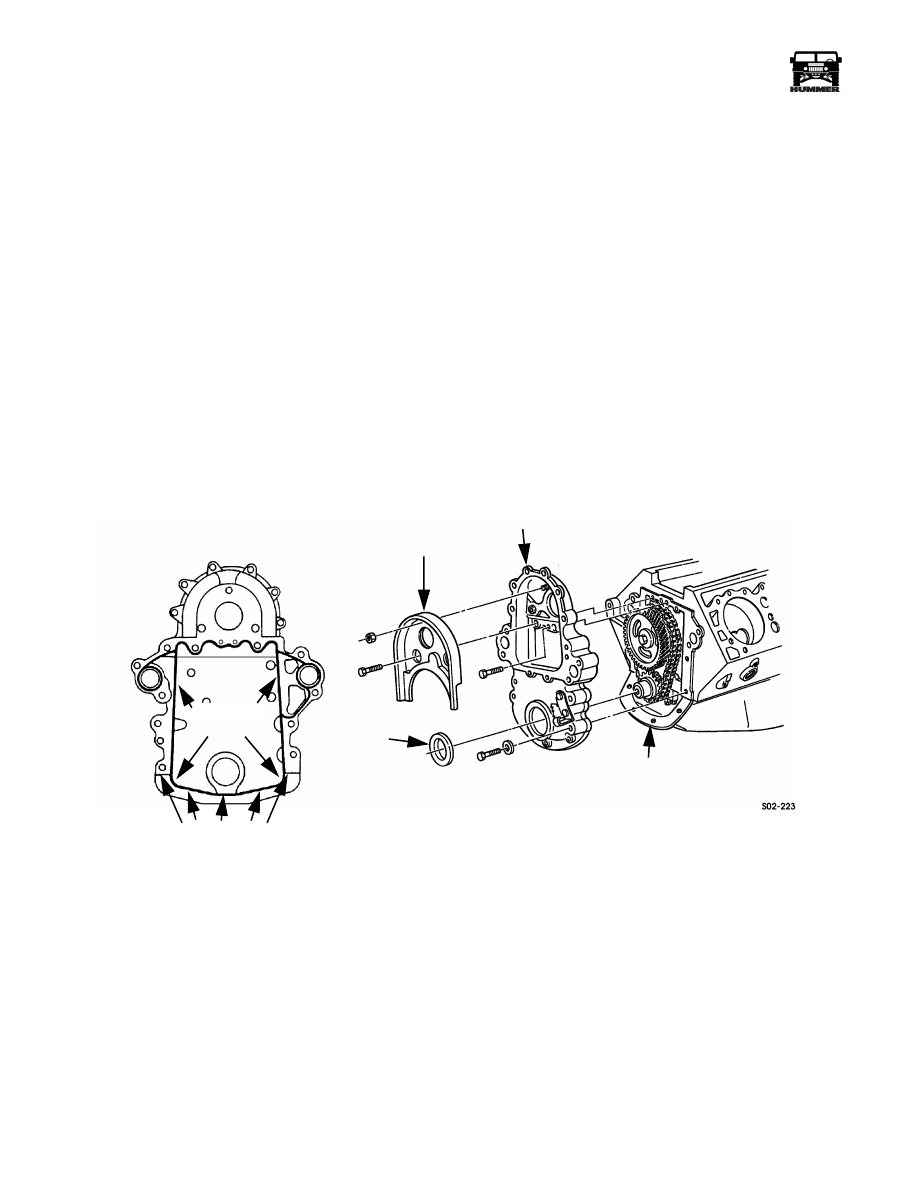

Figure 2-168:   Front Cover Installation

SEALANT

DIAGRAM

BAFFLE

FRONT COVER

SEAL

RTV SEALANT

APPLICATION

ANAEROBIC

SEALER

HERE

HERE

RTV SEALANT

HERE

____________________________________________________________________

 Engine  2-87

®

05745159

FUEL INJECTION PUMP INSTALLATION

1.

Install injection pump gasket on front cover studs.

2.

Mount injection pump on front cover studs (Figure 2-169).
Install retaining nuts finger tighten.

3.

Rotate crankshaft if necessary, to place timing mark on
injection pump drive gear at 12 o’clock position.

4.

Install pump driven gear into fron cover so the timing
mark on the driven gear aligns with the timing mark on the
drive gear.

5.

Turn pump shaft (not gear), until shaft pin aligns with slot
in driven gear. Then slide pump into place and secure it
with gear attaching bolts. Apply 1-2 drops Loctite 242 to
bolt threads beforehand and tighten bolts to 13-20 lb-ft
(18-27 N•m) torque. Tighten pump retaining nuts to 31 lb-
ft (42 N•m) torque.

6.

Perform Timing Setting Procedure to adjust injection
pump timing. Pump may also require TDC offset
adjustment if front cover was replaced, or PCM was
replaced with the fuel injection pump.

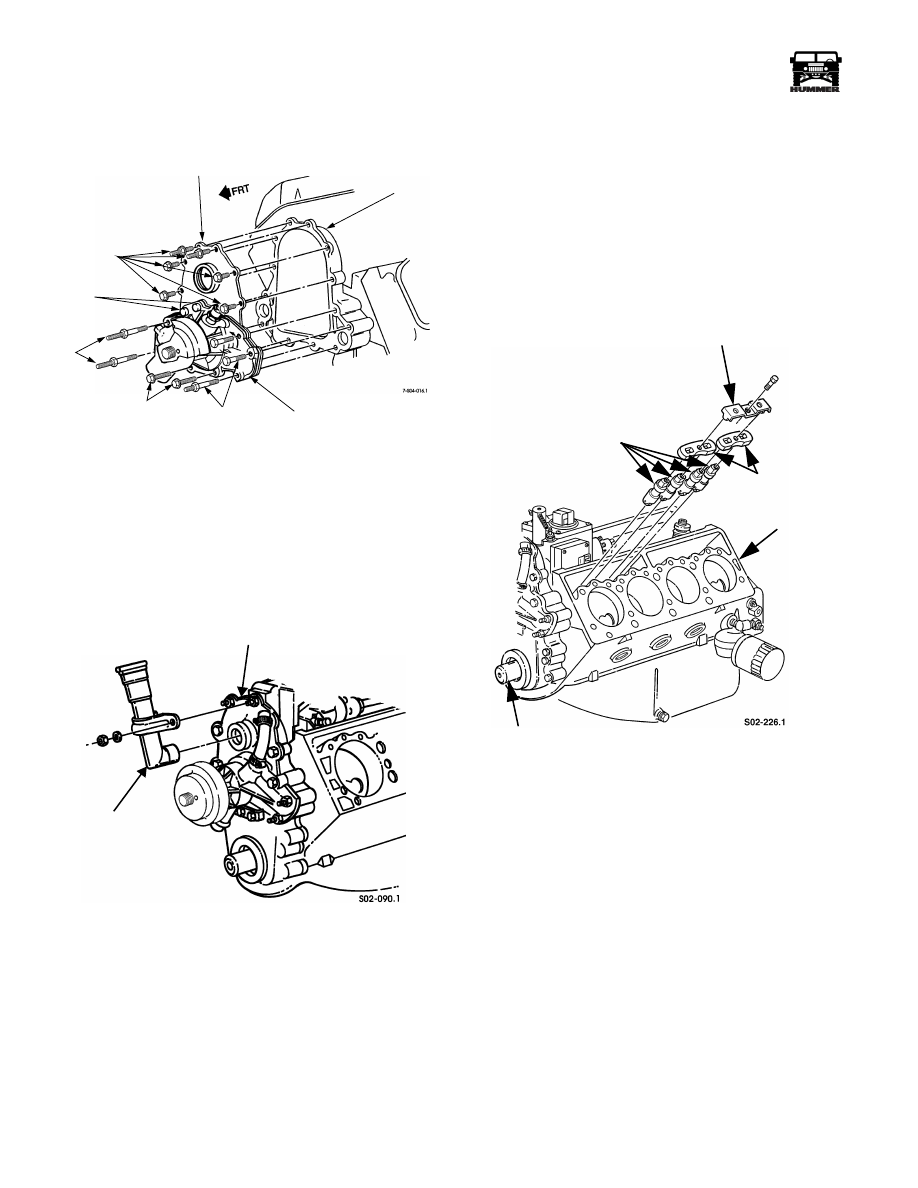

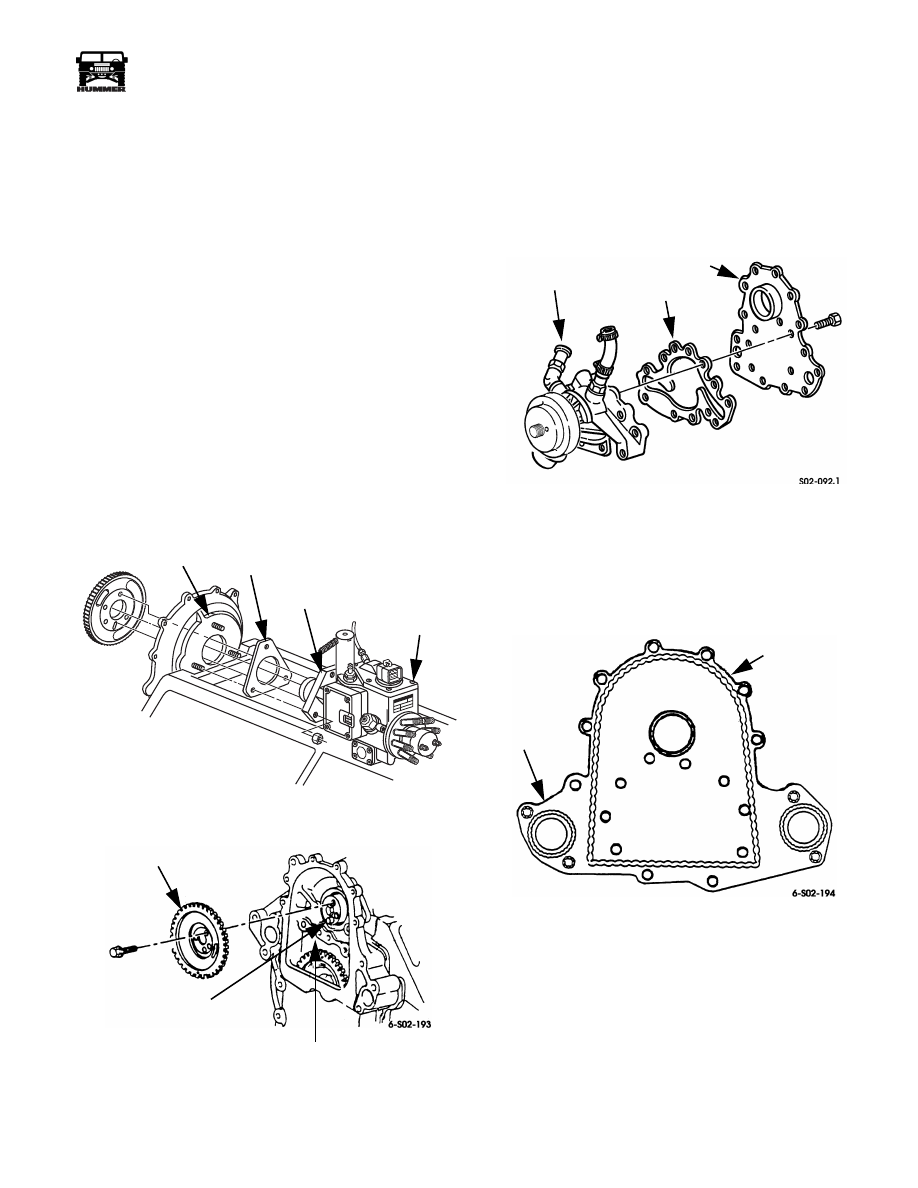

Figure 2-169:   Injection Pump Installation
