№		Номер детали	Наименование запчасти
1		AZ1600870111 [Sun visor assemble]	Sun visor assemble
1		AZ1672870001 [Sun visor assemble]	Sun visor assemble
1		AZ1672870001A [Sun visor assemble]	Sun visor assemble
2		WG1600870101 [Sun visor]	Sun visor
2		WG1600870801 [Sun visor]	Sun visor
2		WG1693870301 [Sun visor assemble]	Sun visor assemble
3		AZ1693870202 [Bracket]	Bracket
3		WG1600870115 [Bracket]	Bracket
3		WG1672870002 [Bracket]	Bracket
4		Q150B0625 [Hexagon head tap bolt]	Hexagon head tap bolt
5		AZ9003800093 [Hexagon head tap bolt]	Hexagon head tap bolt
6		Q40206 [Washer]	Washer
7		Q3720615 [Rivet nut]	Rivet nut
8		Q340B06 [Nut]	Nut
9		AZ1600870503 [Rubber pad]	Rubber pad
9		AZ1600870505 [Rubber pad]	Rubber pad
9		AZ1672870121 [Rubber pad]	Rubber pad
10		AZ1600879696 [Guneiform pad]	Guneiform pad
11		Q40306 [Spring washer]	Spring washer
12		AZ1600870106 [Rubber pad]	Rubber pad
14		190007992576 [Sealant]	Sealant
15		AZ1600870501 [Rubber pad I]	Rubber pad I

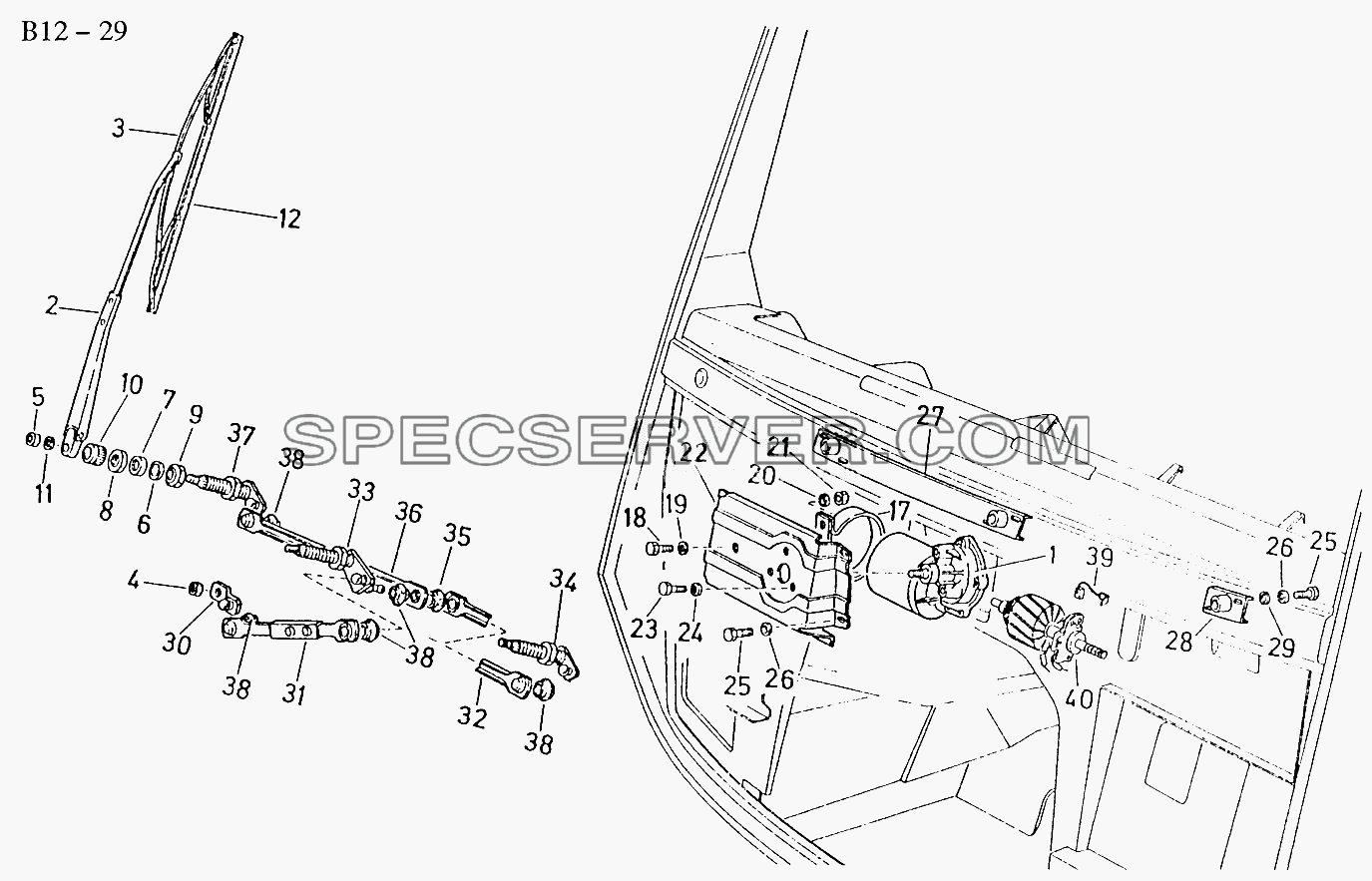

WIND SCREEN WIPER (B12-29) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		116100740037 [Lever assembly left]	Lever assembly left
-		116100740037 [Linkage left]	Linkage left
-		116103740039 [Lever assembly right]	Lever assembly right
-		AZ16307400038 [Lever assembly]	Lever assembly
-		AZ1630740038 [Linkage]	Linkage
-		WG03740002 [Windscreen wiper ASS.]	Windscreen wiper ASS.
-		WG1630740002 [Windscreen wiper ASS.]	Windscreen wiper ASS.
1		116100740003 [Wiper engint]	Wiper engint
2		116100740011 [Wiper arm]	Wiper arm
3		116100740012 [Wiper blade]	Wiper blade
4		116000740226 [Nut]	Nut
5		116100740027 [Nut]	Nut
6		116000740215 [Washer]	Washer
7		116100740016 [Washer]	Washer
8		116100740017 [Nut]	Nut
9		116400740219 [Nut]	Nut
10		116000740218 [Cap]	Сар
11		116000740232 [Spring washer]	Spring washer
12		116100740701 [Wiper rubber]	Wiper rubber
17		16000740033 [Clip]	Clip
18		Q150B0616 [Hexagon head tap bolt]	Hexagon head tap bolt
19		Q41206 [External tooth lock washer]	External tooth lock washer
20		Q40206 [Washer]	Washer
21		Q340B06 [Hexagon head tap nut]	Hexagon head tap nut
22		116100740035 [Bracket assembly]	Bracket assembly
22		AZ1630740026 [Bracket assembly]	Bracket assembly
23		Q150B0612 [Hexagon head tap bolt]	Hexagon head tap bolt
24		Q41706 [Gower washer]	Gower washer
25		190003869951 [Bolt]	Bolt
25		90003869931 [Bolt]	Bolt
26		Q40006 [Washer]	Washer
27		16000740020 [Middle bracket assembly]	Middle bracket assembly
28		116000740023 [Left bracket assembly]	Left bracket assembly
28		116103740046 [Right bracket assembly]	Right bracket assembly
29		Q40506 [Gower washer]	Gower washer
30		AZ1630740004 [Lever]	Lever
31		AZ1630740007 [Rod]	Rod
32		116100740006 [Rod right]	Rod right
33		116100740008 [Shaft (45o)]	Shaft (45o)
34		116100740009 [Shaft (Med.)]	Shaft (Med.)
35		116100740044 [Bellow]	Bellow
36		116100740005 [Rod left]	Rod left
37		116100740010 [Shaft (50o)]	Shaft (50o)
38		116100740045 [Bellow]	Bellow
39		116100740005 [Lever]	Lever
40		116100740010 [Shaft]	Shaft
41		116100740045 [Bellow]	Bellow

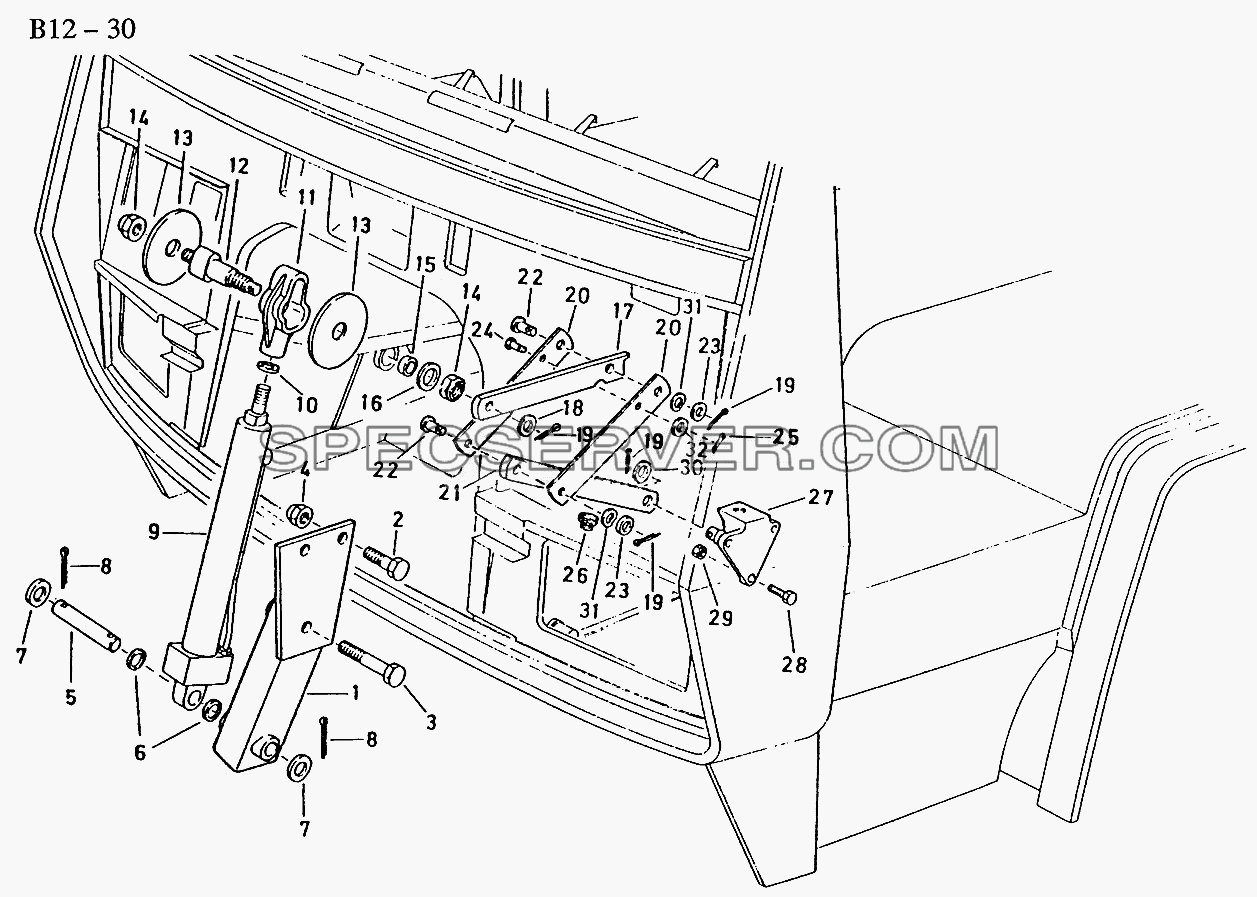

TILTING EQUPMENT (B12-30) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q40020 [Washer]	Washer
-		Q40020 [Washer]	Washer
1		199100820035 [Bracket assy]	Bracket assy
1		199112820055 [Bracket assy]	Bracket assy
1		WG9112820060 [Bracket assy]	Bracket assy
2		Q151B1660 [Hexagon head tap bolt]	Hexagon head tap bolt
3		Q151B16130 [Hexagon head tap bolt]	Hexagon head tap bolt
4		190003888459 [Self-locking nut]	Self-locking nut
5		WG9012820026 [Support shaft]	Support shaft
6		11700 210013 [Soace washer]	Soace washer
7		Q40020 [Washer]	Washer
8		Q5005028 [Split pin]	Split pin
9		WG9100820028 [Oil jar assy]	Oil jar assy
11		WG9200820101 [Support]	Support
12		199012820031 [Flat shaft]	Flat shaft
13		199100820012 [Washer]	Washer
14		190003888467 [Self-locking nut]	Self-locking nut
14		190003888743 [Self-locking thin nut]	Self-locking thin nut
15		WG9012820033 [Clamp]	Clamp
17		199100820013 [Upper support strip]	Upper support strip
18		Q40114 [Washer]	Washer
19		Q5004028 [Split pin]	Split pin
20		199100820014 [Middle support strip]	Middle support strip
21		199100820015 [Down support strip]	Down support strip
22		Q5101428 [Pin (h11)]	Pin (h11)
23		Q40114 [Washer]	Washer
24		190003903452 [Pin]	Pin
25		Q5003216 [Split pin]	Split pin
26		1-99-960-010 [Rubber pad]	Rubber pad
27		199100820051 [Shaft seat]	Shaft seat
27		AZ9119820038 [Shaft seat]	Shaft seat
27		DZ9112820035 [Shaft seat]	Shaft seat
28		Q150B1035 [Hexagon head tap bolt]	Hexagon head tap bolt
29		Q33410 [Latch nut]	Latch nut
30		Q40118 [Washer]	Washer
31		Q41814 [Grower washer]	Grower washer
32		Q41710 [Grower washer]	Grower washer

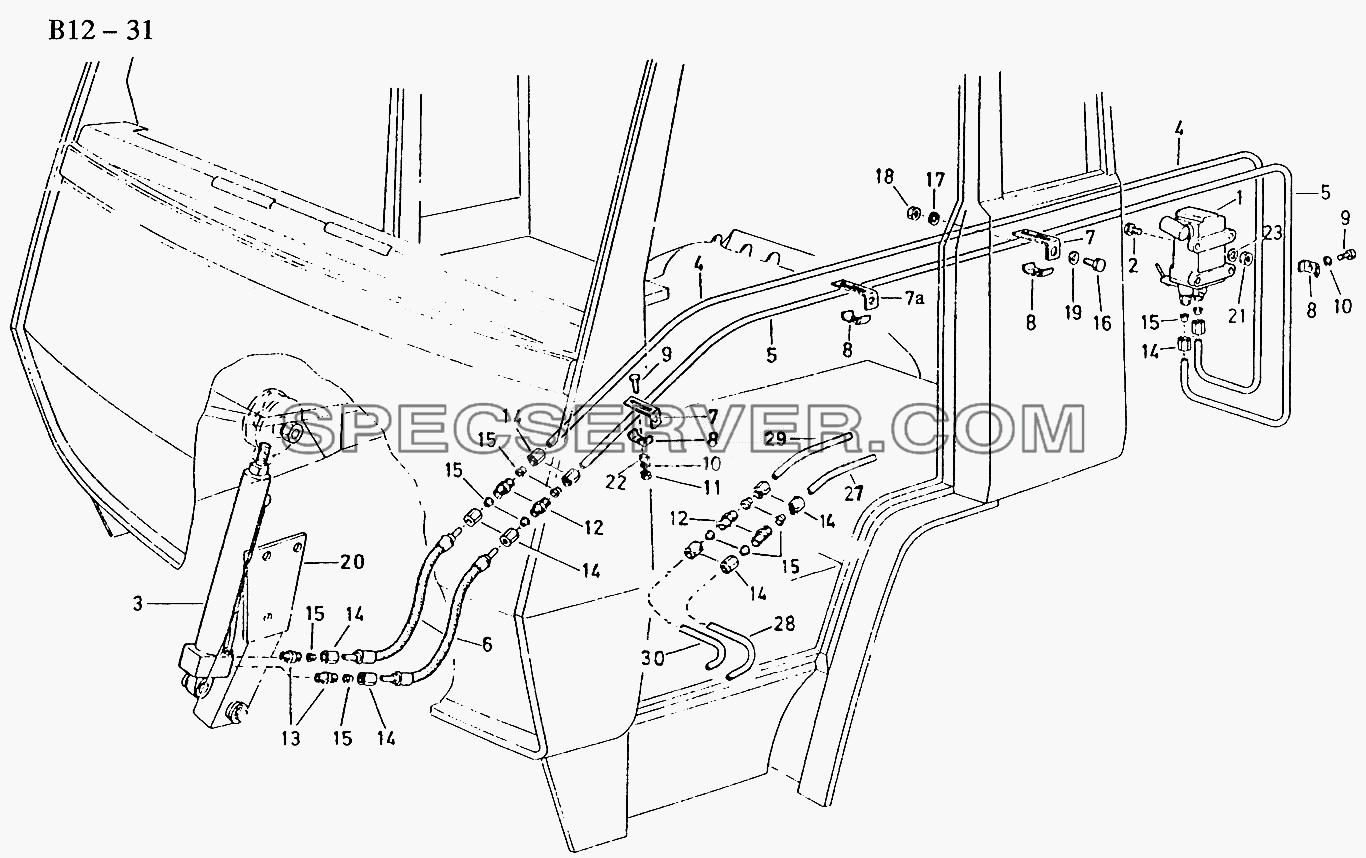

HYDRAULIC SYSTEM FOR TILTING EQUPMENT (B12-31) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199100360165 [Gusset]	Gusset
-		199100360241 [Gusset]	Gusset
-		Q40310 [Grower washer]	Grower washer
1		WG9100820025 [Oil pump]	Oil pump
2		Q150B1025 [Hexagon head tap bolt]	Hexagon head tap bolt
3		WG9100820028 [Oil jar assy]	Oil jar assy
6		WG9112820005 [High pressure tube]	High pressure tube
7		1397 350169 [Gusset]	Gusset
7		199100820050 [Splint]	Splint
8		193 760081 [Support]	Support
9		Q150B0625 [Hexagon head tap bolt]	Hexagon head tap bolt
10		Q40506 [Grower washer]	Grower washer
11		Q340B06 [Hexagon head tap nut]	Hexagon head tap nut
12		90003559462 [Tie-in]	Tie-in
14		90003559516 [Nut for tie-in]	Nut for tie-in
15		90003559561 [Cutting]	Cutting
16		Q150B1030 [Hexagon head tap nut]	Hexagon head tap nut
16		Q150B1040Q [Hexagon head tap nut]	Hexagon head tap nut
17		Q40310 [Grower washer]	Grower washer
19		Q40110 [Washer]	Washer
21		Q33210 [Latch nut]	Latch nut
21		Q340B10 [Hexagon head tap nut]	Hexagon head tap nut
22		Q40206 [Washer]	Washer
27		99100820046 [Rear vitta (lift)]	Rear vitta (lift)
27		WG9100820112 [High pressure tube]	High pressure tube
28		99100820048 [Front vitta (lift)]	Front vitta (lift)
28		WG9100820114 [High pressure tube]	High pressure tube
29		99100820047 [Rear vitta (down)]	Rear vitta (down)
29		WG9100820113 [High pressure tube]	High pressure tube
30		199100820049 [Front vitta (down)]	Front vitta (down)

DRIVER'S CAB SUPPORT REAR (B12-32) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1630230033 [Rear up support assy left]	Rear up support assy left
-		AZ1630230034 [Rear down support assy left]	Rear down support assy left
-		WG1630440012 [Rear support assy right]	Rear support assy right
2		AZ1600440092 [Rear support assy right]	Rear support assy right
2		WG1630440011 [Rear support assy left]	Rear support assy left
4		WG1600441002 [Cross member assembly]	Cross member assembly
4		WG1692441002 [Cross member assembly]	Cross member assembly
6		Q151C1235 [Hexagon head tap serrated bolt]	Hexagon head tap serrated bolt
7		90003888468 [Self-locking nut]	Self-locking nut
8		WG1629440091 [Absorber]	Absorber
9		WG1600440004 [Sleeve]	Sleeve
10		WG1600440005 [Sleeve]	Sleeve
11		WG1600440006 [Sleeve]	Sleeve
12		Q151B1470 [Hexagon head tap bolt]	Hexagon head tap bolt
13		Q151B1490 [Hexagon head tap bolt]	Hexagon head tap bolt
14		Q151B14130 [Hexagon head tap bolt]	Hexagon head tap bolt
15		Q40214 [Washer]	Washer
16		190003888458 [Self-locking nut]	Self-locking nut
17		116029440079 [Tug]	Tug
17		AZ1692440001 [Tug]	Tug
18		116029440078 [Tug clip]	Tug clip
19		Q150B0620 [Hexagon head tap bolt]	Hexagon head tap bolt
20		Q40006 [Washer]	Washer
21		Q340B06 [Hexagon head tap nut]	Hexagon head tap nut
22		Q40506 [Grower washer]	Grower washer
23		Q68206 [Single pipe clip]	Single pipe clip
24		Q150B0816 [Hexagon head tap bolt]	Hexagon head tap bolt
25		Q40308 [Grower washer]	Grower washer
26		90003559462 [Clip tie]	Clip tie
27		90003559561 [Clip]	Clip
28		90003559516 [Tie nut]	Tie nut
29		90003559482 [Clip tie]	Clip tie
30		WG1600441008 [Locking equipment assy]	Locking equipment assy
31		Q40212 [Washer]	Washer
32		Q40312 [Grower washer]	Grower washer
33		Q340B12 [Hexagon head tap nut]	Hexagon head tap nut
34		AZ1600441025 [Bracket assebly]	Bracket assebly
35		Q150B0820 [Hexagon head tap bolt]	Hexagon head tap bolt
36		Q40208 [Washer]	Washer
37		Q40308 [Grower washer]	Grower washer
38		AZ1600441029 [Gusset]	Gusset
39		Q2140616 [Crosshead bolt]	Crosshead bolt
40		Q40206 [Washer]	Washer
41		Q340B06 [Hexagon head tap nut]	Hexagon head tap nut
42		Q40506 [Grower washer]	Grower washer
43		WG1600720020 [Locking signal switch]	Locking signal switch
44		Q2140410 [Crosshead bolt]	Crosshead bolt
45		Q40304 [Grower washer]	Grower washer
46		Q340B04 [Hexagon head tap nut]	Hexagon head tap nut
47		AZ9100820098 [Explain plate]	Explain plate
49		AZ1630440020 [Bracket for water tank]	Bracket for water tank
50		199112820005 [High-pressure tube]	High-pressure tube
50		WG9100820111 [High-pressure tube]	High-pressure tube
53		AZ1600441007 [Vitta]	Vitta

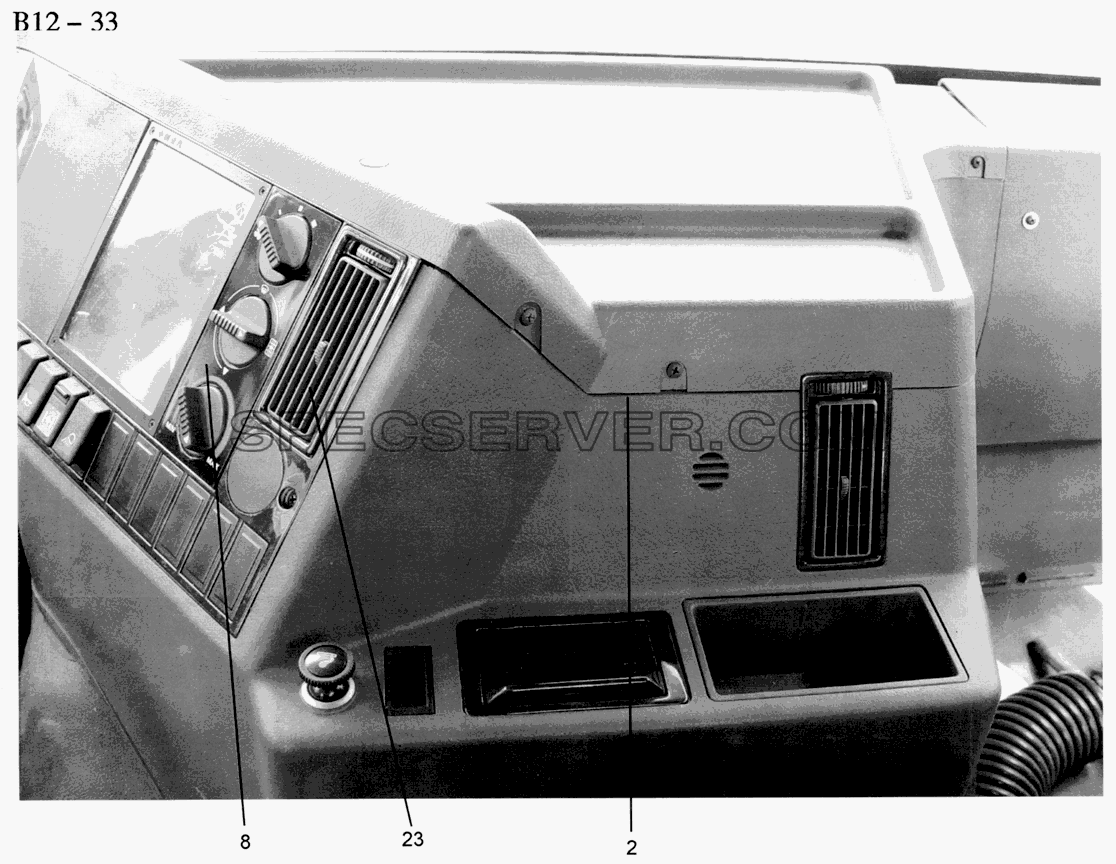

DRIVER'S CAB HEATING (B12-33) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей











№		Номер детали	Наименование запчасти
-		AZ1630140040 [Air intake front]	Air intake front
-		AZ1630840011 [Housing up]	Housing up
-		AZ1630840012 [Housing med.]	Housing med.
-		AZ1630840013 [Honsing down]	Honsing down
-		AZ1630840014 [Air machine]	Air machine
-		AZ1630840014-1 [Motor of air wachime]	Motor of air wachime
-		AZ1630840015 [Air in take asse]	Air in take asse
-		AZ1630840016 [Gasket of inlake]	Gasket of inlake
-		AZ1630840017 [Electro changer]	Electro changer
-		AZ1630840018 [Electrical line]	Electrical line
-		AZ1630840019 [Water tank asse]	Water tank asse
-		AZ1630840021 [Plate]	Plate
-		AZ163084003 [Air intake left]	Air intake left
-		AZ1630840031 [Cable]	Cable
-		AZ1630840032 [Lever]	Lever
-		AZ1630840033 [Shaft]	Shaft
-		AZ1630840034 [Bevel gear]	Bevel gear
-		AZ1630840035 [Shaft]	Shaft
-		AZ1630840036 [Air intake rear]	Air intake rear
-		AZ1630840038 [Air intake right]	Air intake right
-		AZ1630840039 [Pulling rod]	Pulling rod
-		AZ1630840041 [Rod I]	Rod I
-		AZ1630840042 [Cable for water valve]	Cable for water valve
-		AZ1630840043 [Pulling rod II]	Pulling rod II
-		AZ1630840044 [Pulling rod III]	Pulling rod III
-		AZ1630840045 [Rod II]	Rod II
-		AZ1630840046 [Rod III]	Rod III
-		AZ1630840047 [Rod IV]	Rod IV
-		AZ1630840048 [Yoke]	Yoke
-		AZ1630840049 [Rotary plate]	Rotary plate
-		AZ1630840050 [Rotary arm]	Rotary arm
-		AZ1630840051 [Torsion spring]	Torsion spring
-		AZ1630840052 [Washer]	Washer
-		AZ1630840053 [Support]	Support
-		AZ1630840053 [Support]	Support
-		AZ1630840063 [Connecter]	Connecter
-		AZ1630840063 [Strap]	Strap
-		AZ1630840064 [Climp]	Climp
-		AZ1630840065 [Snap ring]	Snap ring
-		AZ1630840066 [O-ring]	O-ring
-		AZ1630840067 [Climp]	Climp
-		AZ1630840071 [Valve]	Valve
-		AZ1630840072 [Output water pipe]	Output water pipe
-		AZ1630840073 [Input water pipe]	Input water pipe
-		AZ1630840074 [Water tank]	Water tank
-		AZ1630840091 [Water pipe]	Water pipe
-		AZ1630840092 [Seal strip]	Seal strip
-		AZ1630840093 [Sealing strip II]	Sealing strip II
-		AZ1630840211 [Housing]	Housing
-		AZ1630840212 [Air plate in]	Air plate in
-		AZ1630840213 [Rod]	Rod
-		AZ1630840214 [Controling plate]	Controling plate
-		AZ1630840215 [Air plate]	Air plate
-		AZ1630840216 [Air intake asse.]	Air intake asse.
-		AZ1630840220 [Rubber washer]	Rubber washer
-		AZ1630840221 [Spring washer]	Spring washer
-		AZ1630840222 [Control gear for air intake]	Control gear for air intake
-		AZ1630840223 [Mark for gear]	Mark for gear
-		AZ1630840231 [Heater control panel]	Heater control panel
-		AZ1630840232 [Seat]	Seat
-		AZ1630840233 [Rotavy saitch]	Rotavy saitch
-		AZ1630840236 [Switch for air machine]	Switch for air machine
-		AZ1630840237 [Ligter]	Ligter
-		AZ1630840238 [Driving shaft]	Driving shaft
-		AZ1630840239 [Driven shaft]	Driven shaft
-		AZ1630840241 [Shaft]	Shaft
-		AZ1630840242 [Shaft]	Shaft
-		AZ1630840243 [Spring strip]	Spring strip
-		AZ1630840401 [Gasket]	Gasket
-		AZ1630843240 [Fetting plate for drien geas]	Fetting plate for drien geas
-		Q2714216 [Screw]	Screw
-		Q2714216 [Screw]	Screw
-		Q4366 [Snap ring]	Snap ring
-		Q43660 [Snap ring]	Snap ring
-		Q43660 [Snap ring]	Snap ring
2		AZ1630840002 [Heater assembly]	Heater assembly
3		Q150B0830 [Hexagon head tap bolt]	Hexagon head tap bolt
4		Q40208 [Washer]	Washer
5		Q40308 [Gwoer washer]	Gwoer washer
6		WG1630840115 [Rubber lining]	Rubber lining
7		WG1630840116 [Rubber lining]	Rubber lining
8		AZ1630840230 [Heater control panel assembly]	Heater control panel assembly
9		AZ1630840094 [Protect net assembly]	Protect net assembly
10		WG1603840030 [Rubber tube]	Rubber tube
11		WG1630840106 [Heater water pipe]	Heater water pipe
12		Q150B0625 [Hexagon head tap bolt]	Hexagon head tap bolt
13		Q40206 [Washer]	Washer
14		Q40306 [Grower washer]	Grower washer
15		90003989340 [Tube hoop]	Tube hoop
16		AZ1630840110 [Heater pipe for left foot]	Heater pipe for left foot
17		AZ1630840111 [Heater pipe for right foot]	Heater pipe for right foot
18		AZ1630840112 [Heater pipe for left face]	Heater pipe for left face
19		AZ1630840113 [Heater pipe for right face]	Heater pipe for right face
20		AZ1630840114 [Rear heater pipe]	Rear heater pipe
21		AZ1630840061 [Round rubber airproof cover]	Round rubber airproof cover
22		AZ1630840062 [Flat rubber airproof cover]	Flat rubber airproof cover
23		AZ1630840210 [Pipe assembly]
