Запчасти: SHELF FOR CAB "B/E" (B12-19) для Sinotruk 8x4 Tipper (336)

SHELF FOR CAB "B/E" (B12-19) для Sinotruk 8x4 Tipper (336) (список запасных частей)

SHELF FOR CAB

Таблица запасных частей







№ Номер детали Наименование запчасти
2 AZ1630770002 [Upper garnish] Upper garnish
3 AZ1630770003 [Cover] Cover
4 AZ1630770004 [Glove box shell assembly] Glove box shell assembly
5 AZ1630770005 [Horn lid (L)] Horn lid (L)
6 AZ1630770006 [Horn lid (R)] Horn lid (R)
7 AZ1630770007 [Hinge] Hinge
8 115200160094 [Lock] Lock
9 115200160098 [Key] Кеу
10 Q2712914 [Crosshead bolt] Crosshead bolt
11 Q2712965 [Crosshead bolt] Crosshead bolt
12 WG1630770015 [Sun visor assembly] Sun visor assembly
13 Q2140520 [Crosshead bolt] Crosshead bolt

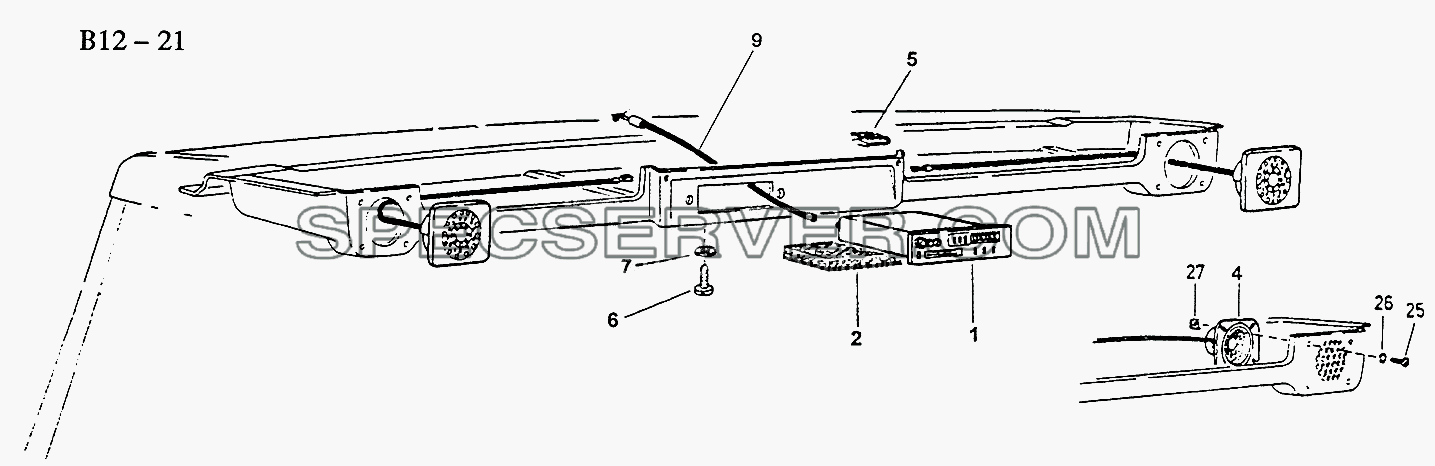

Запчасти: RADIO (B12-21) для Sinotruk 8x4 Tipper (336)

RADIO (B12-21) для Sinotruk 8x4 Tipper (336) (список запасных частей)

RADIO (B12-21) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG9130780026 [Radio] Radio
2 AZ9130780004 [Pad] Pad
4 WG9100780020 [Reproducer] Reproducer
5 90003699563 [Elastic nut] Elastic nut
6 Q2714216 [Crosshead mushroom bolt] Crosshead mushroom bolt
7 Q40004 [Washer] Washer
9 WG9130780001 [Line] Line
25 Q2714216 [Screw] Screw
26 Q40004 [Washer] Washer
27 1900039699563 [Nut] Nut

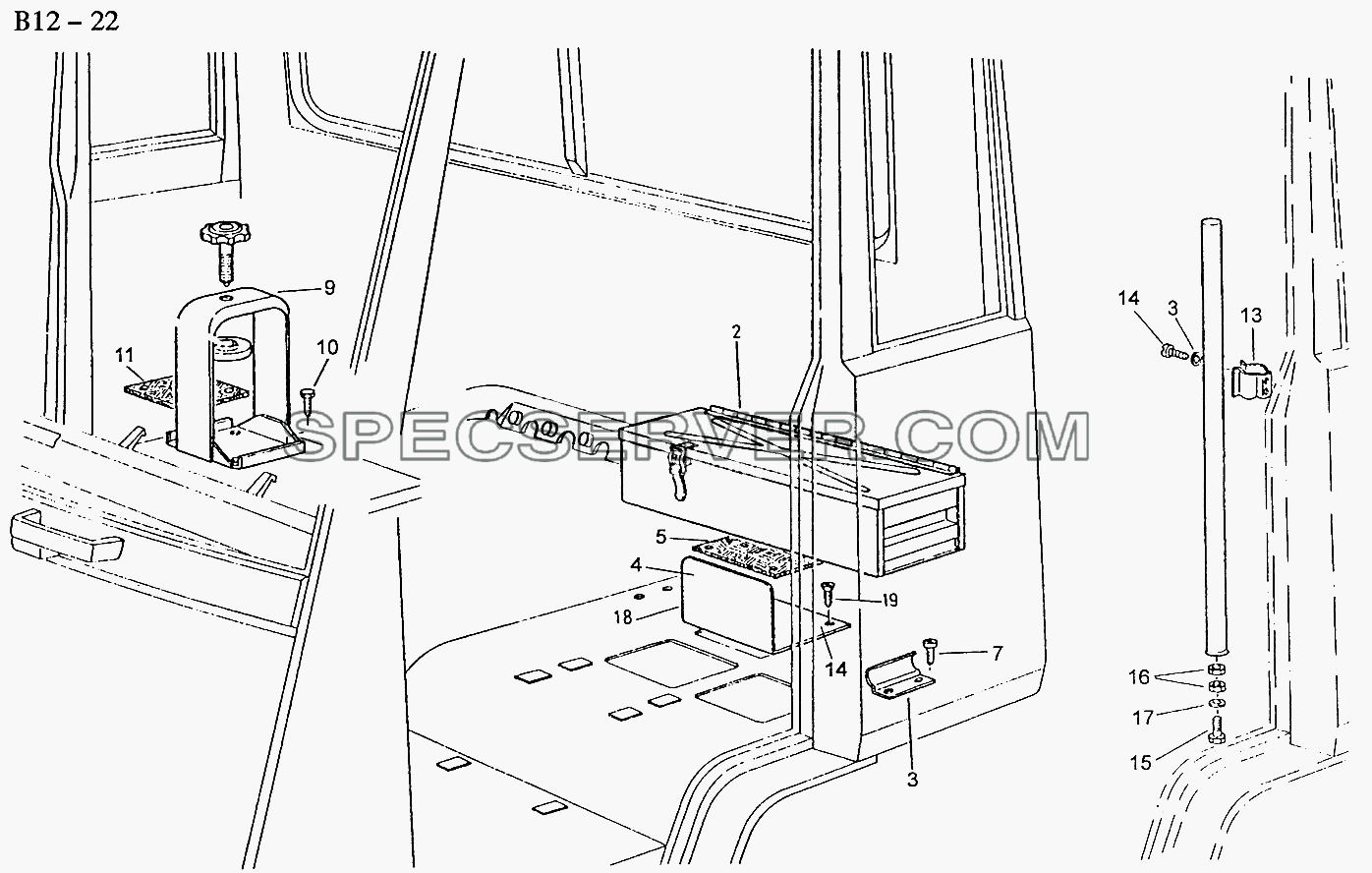

Запчасти: FIXATION FOR JACK, TOOL BOX (B12-22) для Sinotruk 8x4 Tipper (336)

FIXATION FOR JACK, TOOL BOX (B12-22) для Sinotruk 8x4 Tipper (336) (список запасных частей)

FIXATION FOR JACK, TOOL BOX (B12-22) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
2 AZ1600290001 [Toolbox with handle assembly] Toolbox with handle assembly
3 116000290212 [Spring blade] Spring blade
4 116100290013 [Support] Support
5 116100290027 [Pad] Pad
6 116100290014 [Holder] Holder
7 Q2714838 [Crosshead bolt] Crosshead bolt
9 116100290030 [Jack fixed bracket assem] Jack fixed bracket assem
9 AZ1600290060 [Jack fixed bracket assem] Jack fixed bracket assem
10 190003844559 [Hexagon head tap bolt] Hexagon head tap bolt
11 116100290037 [Plate] Plate
13 199100860001 [Fixed clamp] Fixed clamp
14 Q2300512 [Assembled crosshead and washer] Assembled crosshead and washer
15 Q150B0825 [Hexagon head tap bolt] Hexagon head tap bolt
16 Q340B08 [Hexagon head tap bolt] Hexagon head tap bolt
17 Q40208 [Washer] Washer
Запчасти: SEATS, SAFETY BELT FOR DRIVER (B12-25) для Sinotruk 8x4 Tipper (336)

SEATS, SAFETY BELT FOR DRIVER (B12-25) для Sinotruk 8x4 Tipper (336) (список запасных частей)

SEATS, SAFETY BELT FOR DRIVER (B12-25) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 90003179782 [Cannulation] Cannulation
- 90003559472 [Tie-in] Tie-in
- 90003559482 [Tie-in] Tie-in
- 90003559516 [Nut for tie-in] Nut for tie-in
- Q351C12T15 [Hexagon head tap thin nut] Hexagon head tap thin nut
- Q40114 [Washer] Washer
1 AZ1630510001 [Left seat assembly with air suspension] Left seat assembly with air suspension
1 WG1630510004 [Left saet assembly] Left saet assembly
2 Az1603511011 [Right seat assy with absorber] Right seat assy with absorber
3 AZ1603510090 [Right seat frame assembly] Right seat frame assembly
3 WG1600510090 [Left seat frame assembly] Left seat frame assembly
4 Q150B0825 [Hexagon head tap bolt] Hexagon head tap bolt
5 Q40008 [Washer] Washer
6 90003862130 [Bolt] Bolt
7 Q40008 [Washer] Washer
8 116000510080 [Seat cover] Seat cover
14 WG1600512003
15 WG1600560010

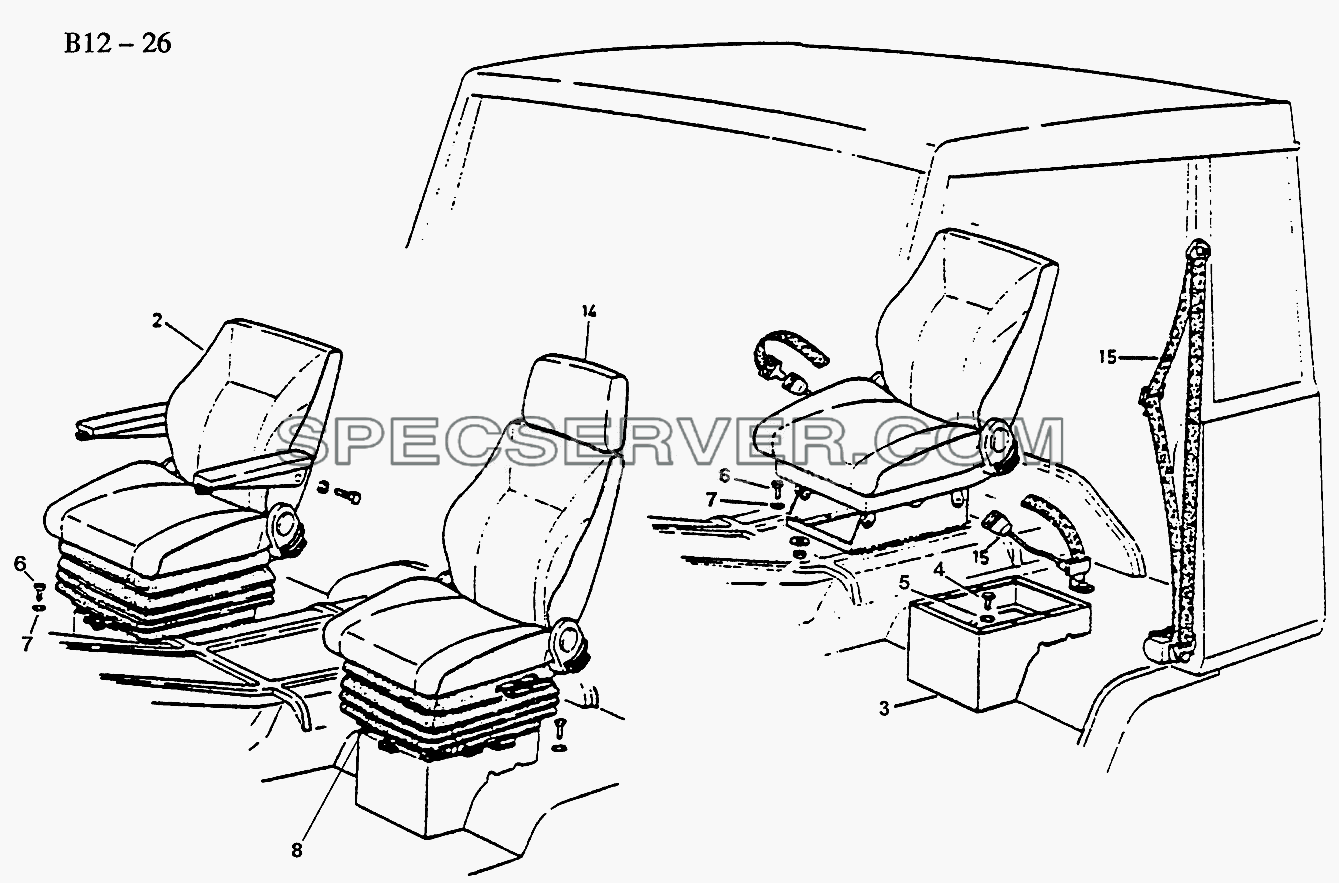

Запчасти: SEATS, SAFETY BELT FOR CO-DRIVER (B12-26) для Sinotruk 8x4 Tipper (336)

SEATS, SAFETY BELT FOR CO-DRIVER (B12-26) для Sinotruk 8x4 Tipper (336) (список запасных частей)

SEATS, SAFETY BELT FOR CO-DRIVER (B12-26) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
2 16205510001 [Glide seat assembly] Glide seat assembly
2 AZ1630510002 [Glide seat assembly] Glide seat assembly
2 WG1630510003 [Seat assembly] Seat assembly
3 WG1600510090 [Seat frame assembly] Seat frame assembly
4 Q150B0825 [Hexagon bolt] Hexagon bolt
5 Q40008 [Washer] Washer
6 90003862130 [Bolt] Bolt
7 Q40008 [Washer] Washer
8 116000510080 [Seat cover] Seat cover
14 WG1600512003
15 WG1600560010

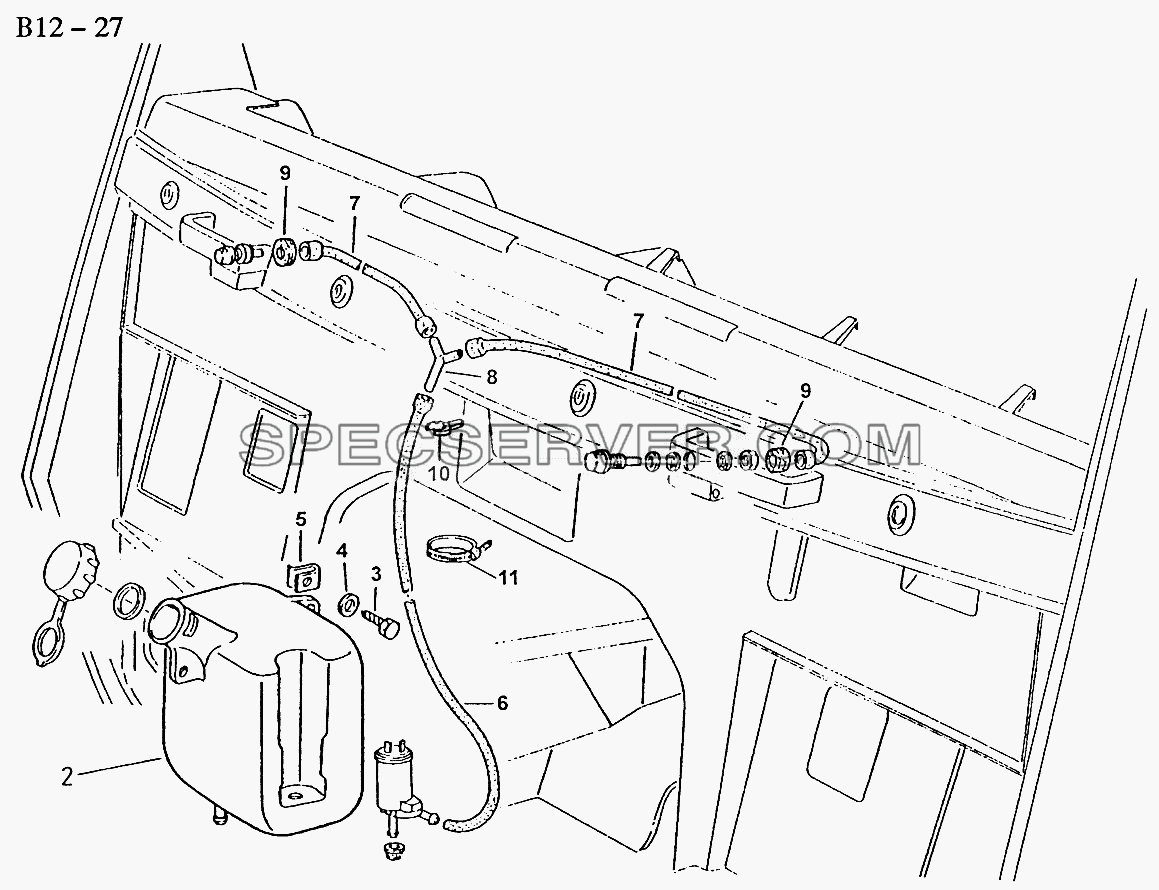

Запчасти: WINDSCREEN WASHING EQUIPMENT (B12-27) для Sinotruk 8x4 Tipper (336)

WINDSCREEN WASHING EQUIPMENT (B12-27) для Sinotruk 8x4 Tipper (336) (список запасных частей)

WINDSCREEN WASHING EQUIPMENT (B12-27) для Sinotruk 8x4 Tipper (336) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 116103860009 [Washer case bracket] Washer case bracket
2 WG1600860202 [Washer] Washer
3 Q150B0620 [Hexagon dead tap bolt] Hexagon dead tap bolt
4 Q40306 [Grower washer] Grower washer
5 Q40206 [Washer] Washer
6 AZ1600860900 [Tube 1] Tube 1
7 AZ1600860901 [Tube 2] Tube 2
8 AZ1600860121 [Tie-in] Tie-in
9 190003129006 [Rubber nozzle] Rubber nozzle
10 WG1600860008 [Wire harness hoop] Wire harness hoop
11 190003171697 [Plastic hoop strap] Plastic hoop strap
