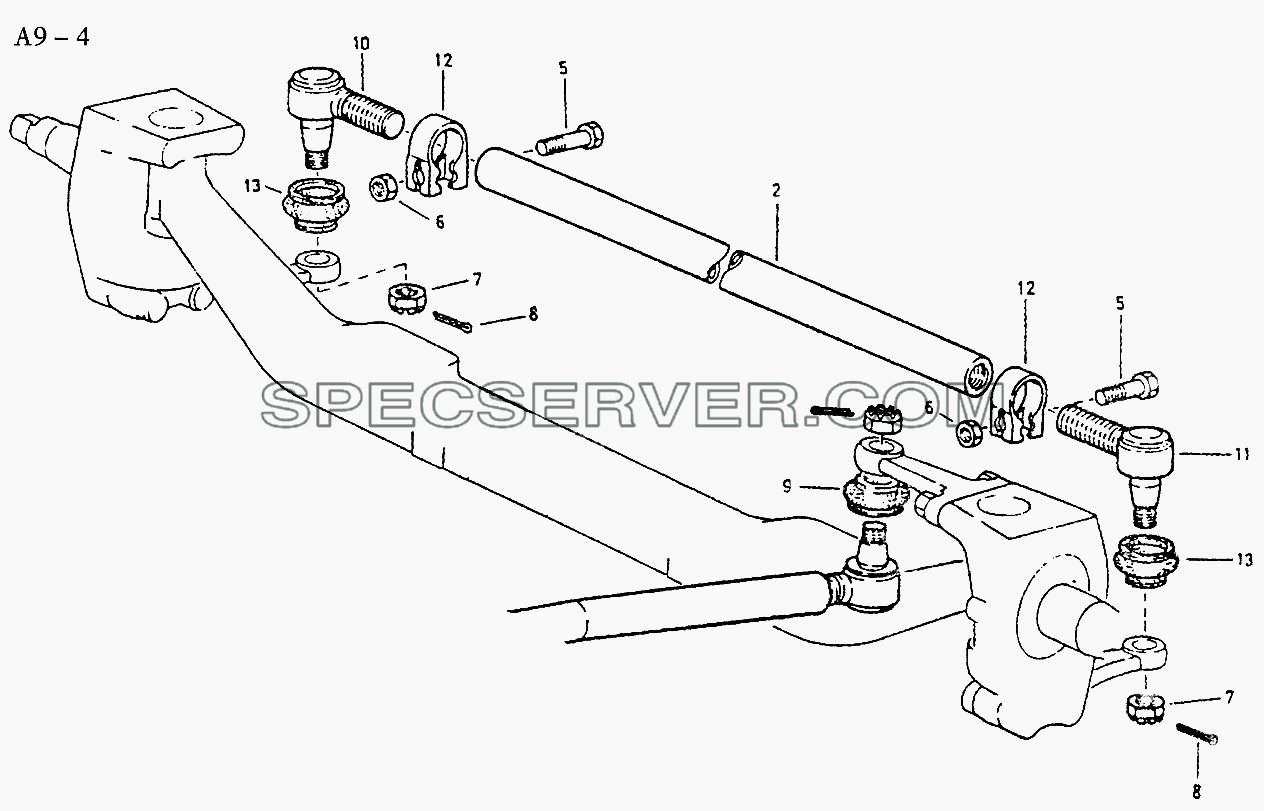

Запчасти: TIE ROD (A9-4) для Sinotruk 6x4 Tractor (371)

TIE ROD (A9-4) для Sinotruk 6x4 Tractor (371) (список запасных частей)

TIE ROD (A9-4) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 11031430006 [Tie rod C] Tie rod C
- 199018430006 [Tie rod C] Tie rod C
- AZ9100430003 [Tie rod C] Tie rod C
- AZ9100430118 [Tie rod C] Tie rod C
- AZ9100430218 [Tie rod] Tie rod
- AZ9731430002 [Tie rod C] Tie rod C
2 11031430006-1 [Tie rod C] Tie rod C
2 199018430006-1 [Tie rod] Tie rod
2 AZ9100430003-1 [Tie rod] Tie rod
2 AZ9100430118-1 [Tie rod] Tie rod
2 AZ9100430218-1 [Tie rod] Tie rod
2 AZ9731430002-1 [Tie rod C] Tie rod C
7 Q387B20T15 [Gastle nut] Gastle nut
8 Q5004036 [Cotter pin] Cotter pin
10 AZ9100430218-4 [Ball joint right] Ball joint right
11 AZ9100430218-11 [Ball joint left] Ball joint left
12 AZ9100430218-12 [Clip] Clip
13 AZ9100430218-13 [Packing bellows] Packing bellows

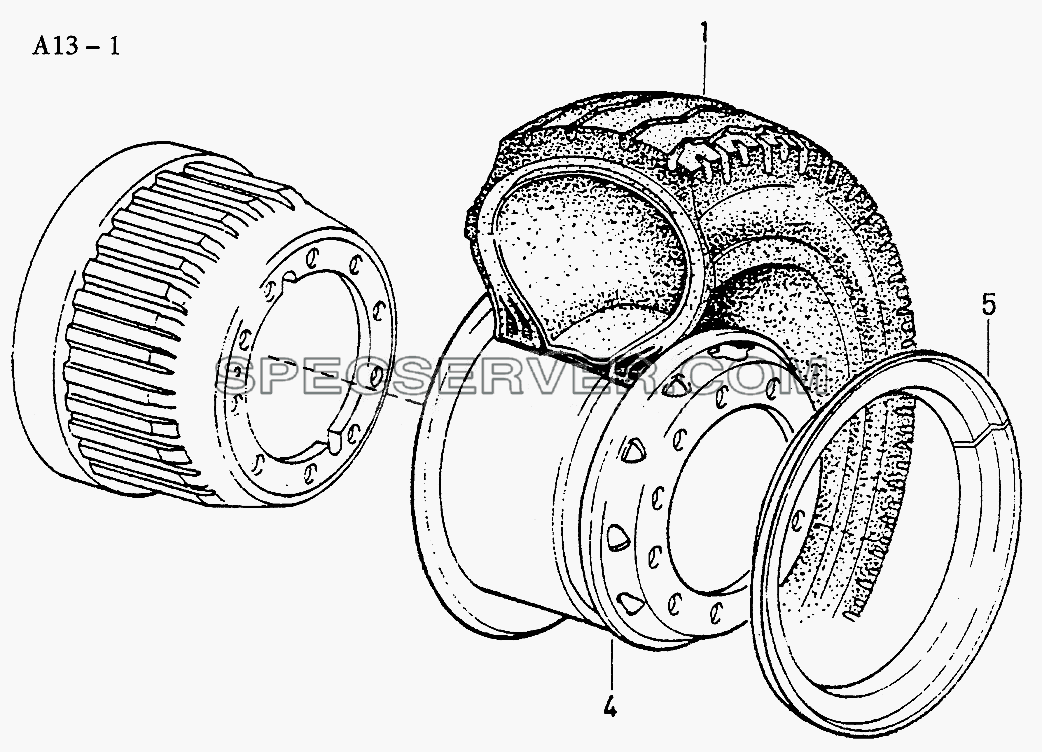

Запчасти: DISC WHEEL AND TIRE (A13-1) для Sinotruk 6x4 Tractor (371)

DISC WHEEL AND TIRE (A13-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

DISC WHEEL AND TIRE (A13-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1-99-964-007 [Protection cap] Protection cap
1 AZ9100618001 [12R22.5 tire] 12R22.5 tire
1 DE9114610025 [14.00R20 tire] 14.00R20 tire
1 WG7600616010 [10.00-20-16PR tire] 10.00-20-16PR tire
1 WG7600616020 [9.00-20-16PR tire] 9.00-20-16PR tire
1 WG9100610024 [11.00-20-18PR tire] 11.00-20-18PR tire
1 WG9112619012 [12.00-20-18PR tire] 12.00-20-18PR tire
1 WG9114619015 [12.00-24-18PR tire] 12.00-24-18PR tire
4 AZ9100610062 [8.25x22.5 Disc wheel] 8.25x22.5 Disc wheel
4 AZ9100610065 [9.0x22.5 Disc wheel] 9.0x22.5 Disc wheel
4 BZ9100610161 [8.0-20 Disc wheel] 8.0-20 Disc wheel
4 DZ9114610024 [Disc wheel] Disc wheel
4 WG9100610061 [7.50V-20 Disc wheel] 7.50V-20 Disc wheel
4 WG9112610062 [8.5-20 Disc wheel] 8.5-20 Disc wheel
4 WG9114610061 [8.5-24 Disc wheel] 8.5-24 Disc wheel
5 WG9100610011-1 [8.0-20 Side ring] 8.0-20 Side ring
5 WG9100610061-1 [7.50V-20 Side ring] 7.50V-20 Side ring
5 WG9112610062-1 [8.5-20 Side ring] 8.5-20 Side ring
5 WG9114610061-1 [8.5-24 Side ring] 8.5-24 Side ring
6 17600610014 [Plate for valve] Plate for valve
6 AZ9100610014 [Plate for valve] Plate for valve
6 AZ9112610014 [Plate for valve] Plate for valve
7 WG9100610001 [Valve extension] Valve extension
7 WG9100610001 [Valve extension] Valve extension
8 AZ9100617001 [Valve extension] Valve extension
8 AZ9100617001 [Valve extension] Valve extension
9 AZ9112610090 [Cover for front wheel] Cover for front wheel
9 AZ9112610090 [Cover for front wheel] Cover for front wheel
10 AZ9112610083 [Protection cap] Protection cap

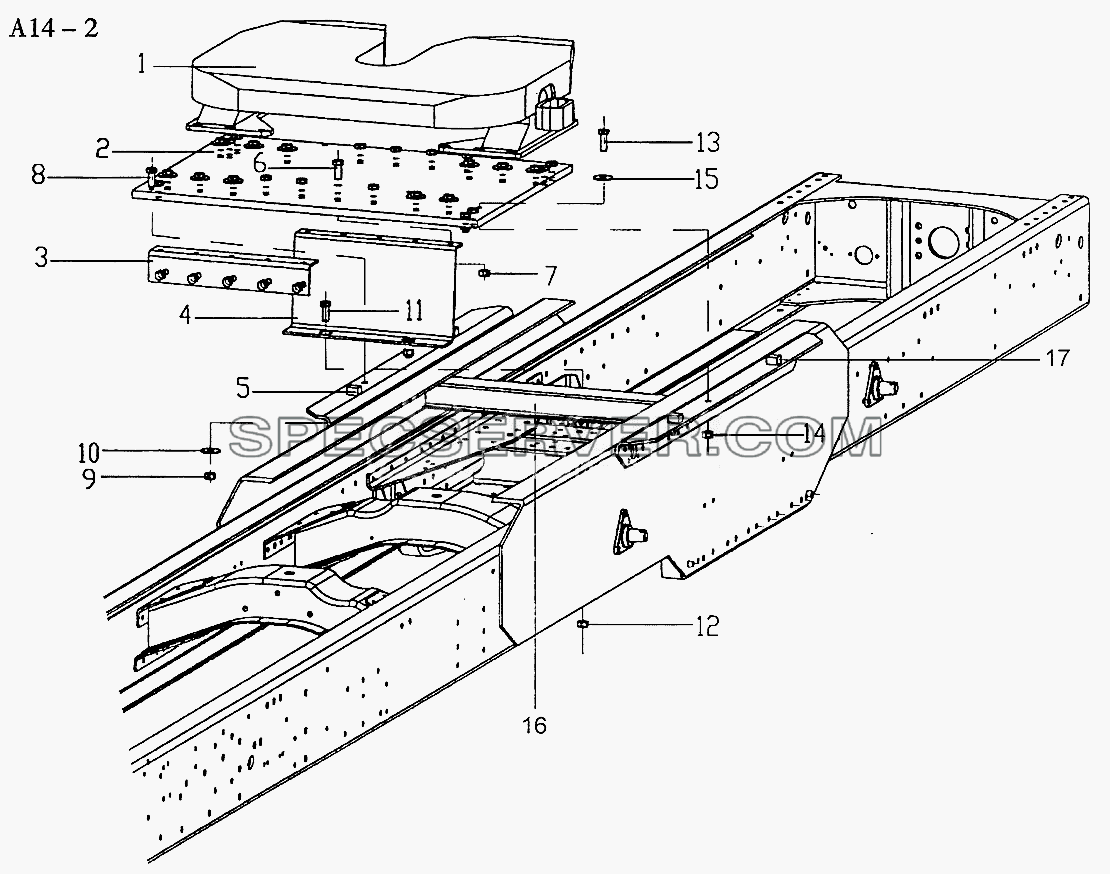

Запчасти: 6x4, 6x6, 8x4 FIFTH WHEEL ASSEMBLY (A14-2) для Sinotruk 6x4 Tractor (371)

6x4, 6x6, 8x4 FIFTH WHEEL ASSEMBLY (A14-2) для Sinotruk 6x4 Tractor (371) (список запасных частей)

6x4, 6x6, 8x4 FIFTH WHEEL ASSEMBLY (A14-2) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG9112930002 [Fifth wheel] Fifth wheel
1 WG9114930021 [Fifth wheel] Fifth wheel
2 WG9114510044 [Plate] Plate
3 199114512868 [Plate] Plate
4 199114510247 [Plate] Plate
5 199100510102 [Plate] Plate
6 Q151C1245 [Screw] Screw
7 190003888457 [Nut] Nut
8 Q151B1870 [Screw] Screw
9 190003888466 [Nut] Nut
10 1-99-907-063 [Washer] Washer
11 Q151C1235 [Screw] Screw
12 190003888457 [Nut] Nut
13 Q15181680TF2 [Screw] Screw
14 190003888459 [Nut] Nut
15 1-99-907-063 [Washer] Washer
16 19914930116 [Cross member] Cross member
17 1780 S30009 [Plate] Plate

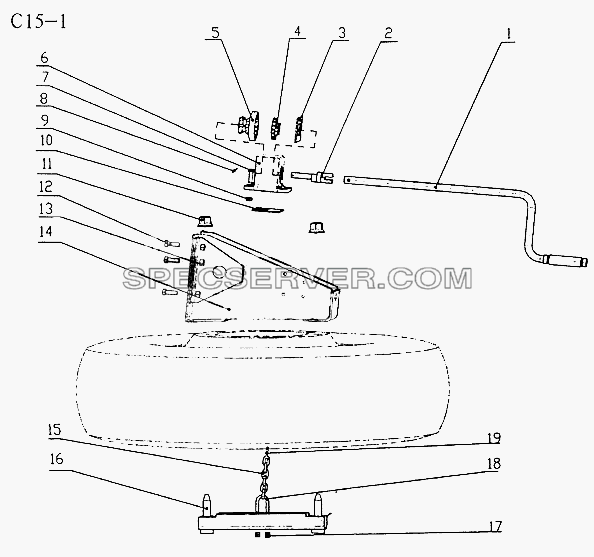

Запчасти: SPARE WHEEL CARRIER (C15-1) для Sinotruk 6x4 Tractor (371)

SPARE WHEEL CARRIER (C15-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

SPARE WHEEL CARRIER (C15-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- AZ9719860018 [Drive device] Drive device
1 AZ9719860014 [Cranker] Cranker
2 AZ9719860012 [Shaft] Shaft
3 17017860022 [Locking sheet] Locking sheet
4 17017860023 [Drive wheeI] Drive wheeI
5 17017860024 [Driven wheel] Driven wheel
6 AZ9719860007 [Housing] Housing
7 Q150B1035 [Screw] Screw
8 Q5004030 [Split pin] Split pin
9 Q33210 [Nut] Nut
10 17017860027 [Cover] Cover
11 WG9003884160 [Wheel nut] Wheel nut
12 Q150B1235 [Screw] Screw
13 Q33212 [Nut] Nut
14 AZ9719860021 [Bracket] Bracket
15 17017860031 [Cable] Cable
16 AZ9112860046 [Screw] Screw
17 Q340B08 [Nut] Nut
18 AZ9112860097 [Hook] Ноок
19 Q5004030 [Split pin] Split pin
TRAILING AXLE WITH AIR SUSPENSION, SELF STEERING, PNEUMATIC LIFTING DEVICE (C16-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

TRAILING AXLE WITH AIR SUSPENSION, SELF STEERING, PNEUMATIC LIFTING DEVICE (C16-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

TRAILING AXLE WITH AIR SUSPENSION, SELF STEERING, PNEUMATIC LIFTING DEVICE (C16-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 190003888457 [Nut] Nut
- 190003888458 [Nut] Nut
- 190003888458 [Nut] Nut
- 190003888467 [Nut] Nut
- 190003888467 [Nut] Nut
- 190003888749 [Nut] Nut
- AZ9636410060 [Bracket right] Bracket right
- AZ9636520024 [Positioning pin] Positioning pin
- AZ9636520033 [Top brace rod right] Top brace rod right
- AZ9636520034 [Bottom brace rod right] Bottom brace rod right
- AZ9738520000 [HOWO air suspension assembly] HOWO air suspension assembly
- AZ9738520009 [Bracket right] Bracket right
- AZ9738520013 [Support right] Support right
- AZ9738520014-1 [Spring] Spring
- Q151B0825 [Screw] Screw
- Q151B0825 [Screw] Screw
- Q151B1245 [Screw] Screw
- Q151B1460 [Screw] Screw
- Q151B1460 [Screw] Screw
- Q151B20120TF2 [Screw] Screw
- Q151B20200TF2 [Screw] Screw
- Q2541020 [Screw] Screw
- Q40108 [Washer] Washer
- Q40108 [Washer] Washer
- WG9636520029 [Washer] Washer
- WG9636520048 [Washer] Washer
1 AZ9738520011 [Cross member] Cross member
2 AZ9738520001 [Stop bracket] Stop bracket
3 WG9012520011 [Stop] Stop
4 AZ9636520009 [Siphon C] Siphon C
5 AZ9738520006 [Top cover] Top cover
6 AZ9738520010 [Support left] Support left
7 AZ9636520024 [Top brace rod left] Top brace rod left
8 AZ9636520027 [Bottom brace rod left] Bottom brace rod left
9 AZ9636520007 [Lifting siphon] Lifting siphon
10 AZ9738520008 [Bracket left] Bracket left
11 AZ9636520021 [Plastic washer] Plastic washer
12 Q151B1660 [Screw] Screw
13 190003888459 [Nut] Nut
14 AZ9636520028 [Bolt] Bolt
15 AZ9738520014 [Shock absorber] Shock absorber
16 AZ9636520035 [Bracket right] Bracket right
17 AZ9636520036 [Bracket left] Bracket left
18 AZ9636520019 [Spring seat left] Spring seat left
19 AZ9636520045 [Spring seat right] Spring seat right
20 AZ9636520046 [Bush] Bush
21 AZ9636520022 [Bolt] Bolt
22 Q381B18 [Nut] Nut
23 Q5000445 [Split pin] Split pin
24 AZ9636410061 [Bracket left] Bracket left
25 AZ9100430218 [Tie rod] Tie rod
26 AZ9128710002 [Pneutronic valve] Pneutronic valve
27 AZ9632710001 [Bracket for pneutronic valve] Bracket for pneutronic valve
4x2, 6x2, 6x4 STEERING LINKAGE (B6-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

4x2, 6x2, 6x4 STEERING LINKAGE (B6-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

4x2, 6x2, 6x4 STEERING LINKAGE (B6-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 199100430030 [Drag link] Drag link
1 AZ9100430211 [Drag link] Drag link
1 WG9100430011 [Drag link] Drag link
2 AZ9100430218 [Tie rod cross tube assembly] Tie rod cross tube assembly
6 Q387B20T15 [Castle nut] Castle nut
7 Q5004036 [Cotter pin] Cotter pin
