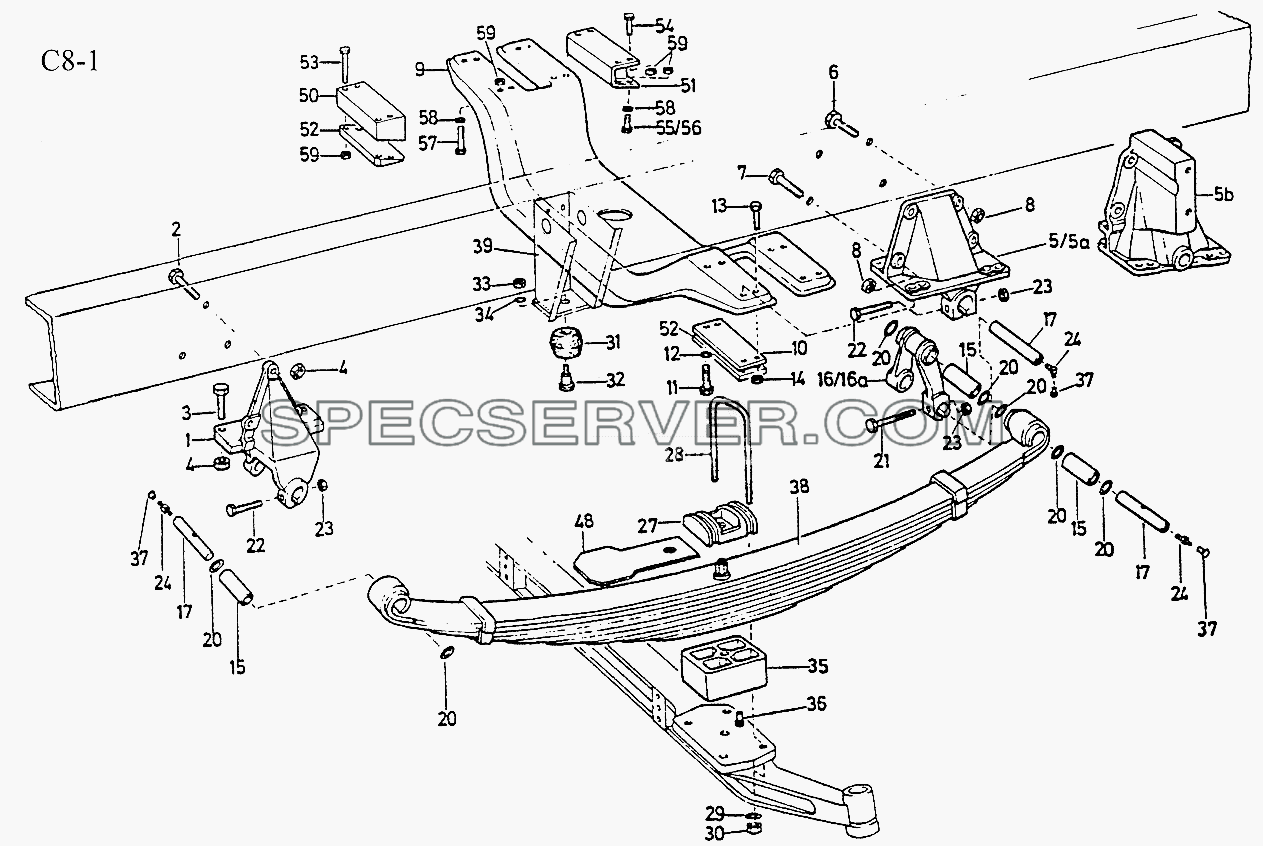

№		Номер детали	Наименование запчасти
-		AZ9232520011 [Spring bracket rear,right]	Spring bracket rear,right
-		Q150B1230 [Screw]	Screw
-		Q150B1240 [Screw]	Screw
-		Q33212 [Lock nut]	Lock nut
1		AZ9719520005 [Spring bracket front]	Spring bracket front
2		Q151B1665 [Screw]	Screw
3		Q151B1650 [Screw]	Screw
4		19003888459 [Nut]	Nut
5		AZ9232520010 [Spring bracket rear,left]	Spring bracket rear,left
6		Q151B1650 [Screw]	Screw
8		190003888459 [Lock nut]	Lock nut
9		WG9114510510 [Cross member]	Cross member
10		199100520025 [Plate]	Plate
13		Q151G1260 [Screw]	Screw
14		190003888457 [Lock nut]	Lock nut
15		WG9000520078 [Bush]	Bush
16		WG9100520034 [Spring shackle front C]	Spring shackle front C
17		WG9100520065 [Spring bolt]	Spring bolt
20		1680 520050 [Washer]	Washer
21		Q151C1270 [Screw]	Screw
22		Q151C1275 [Screw]	Screw
23		190003888457 [Nut]	Nut
24		190003963115 [Grease nipple]	Grease nipple
26		190003963127 [Grease nipple]	Grease nipple
27		WG80 52 0002 [Plate]	Plate
28		199014520259 [Spring clip]	Spring clip
28		AZ9100520015 [Spring clip]	Spring clip
29		1680 52 0056 [Washer]	Washer
30		190003888626 [Lock nut]	Lock nut
31		WG9323520010 [Spring stop]	Spring stop
32		1880520019 [Screw]	Screw
33		Q340B10 [Nut]	Nut
34		Q40310 [Spring washer]	Spring washer
38		WG9100520002 [Front spring C,left]	Front spring C,left
38		WG9100520042 [Front spring C,right]	Front spring C,right
38		WG9725520072 [Front spring C,left]	Front spring C,left
38		WG9725520073 [Front spring C,right]	Front spring C,right
39		AZ9731520034 [Bracket for spring stop]	Bracket for spring stop

6x4, 8x4 SWIVEL SPRING AND SUSPENSION (C8-4) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

6x4, 8x4 SWIVEL SPRING AND SUSPENSION (C8-4-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199014520188 [Retaining plate of bearing]	Retaining plate of bearing
-		199014520193 [Space washer]	Space washer
-		199014520194 [Space washer]	Space washer
-		199014520204 [Dift.sheet]	Dift.sheet
-		199014520293 [Bracket right]	Bracket right
-		199014520303 [Space washer]	Space washer
-		199014520306 [Space washer]	Space washer
-		99114520059 [Space washer]	Space washer
-		AZ9100520008 [Space washer]	Space washer
-		AZ9638520002 [Bracket right, frowt]	Bracket right, frowt
-		AZ9638520003 [Bracket left, rear]	Bracket left, rear
-		AZ9638520004 [Bracket right, rear]	Bracket right, rear
-		AZ9725520002 [Bracket right, front]	Bracket right, front
-		AZ9725520003 [Bracket left, rear]	Bracket left, rear
-		AZ9725520004 [Bracket right, rear]	Bracket right, rear
-		AZ9725520012 [Bracket right, front]	Bracket right, front
-		AZ9725520017 [Bracket right, front]	Bracket right, front
-		AZ9725520018 [Bracket left, rear]	Bracket left, rear
-		AZ9725520019 [Bracket right, rear]	Bracket right, rear
-		AZ9725520022 [Balance shaft C with housing (inc.1-20,55)]	Balance shaft C with housing (inc.1-20,55)
-		AZ9725520058 [Bracket left, rear]	Bracket left, rear
-		AZ9725520059 [Bracket right, rear]	Bracket right, rear
-		AZ9725520100 [Balance shaft C with housing (inc.1-20,55)]	Balance shaft C with housing (inc.1-20,55)
-		AZ9725520110 [Balance shaft C with housing (inc.1-20,55)]	Balance shaft C with housing (inc.1-20,55)
-		Q150B1035 [Screw]	Screw
-		Q150B1460 [Screw]	Screw
-		Q340B14 [Nut]	Nut
-		Q40314 [Spring washer]	Spring washer
-		WG9114520041 [Screw]	Screw
1		AZ9232520004 [Balance shaft]	Balance shaft
3		Q5211645 [Pin]	Pin
4		WG9014520227 [Stud]	Stud
5		190003871353 [Nut]	Nut
6		199114520035 [Balance shaft housing]	Balance shaft housing
6		199114520233 [Balance shaft housing]	Balance shaft housing
7		199114520136 [Bearing sealing cover]	Bearing sealing cover
8		1614130062 [Sealing ring]	Sealing ring
9		AZ9114520223 [Sealing ring]	Sealing ring
10		AZ9114520222 [Ring]	Ring
11		199014520191 [Bush]	Bush
12		199014520192 [Space washer]	Space washer
13		199014520265 [Stop washer]	Stop washer
14		Q171B1655TF2 [Screw]	Screw
15		190003962021 [Screw]	Screw
15		190003962021 [Screw]	Screw
16		Q150B0810 [Screw]	Screw
17		Q72308T5F [Gasket]	Gasket
18		199014520311 [Cover]	Cover
19		Q150B0820 [Screw]	Screw
20		Q40308 [Spring washer]	Spring washer
22		199114520234 [Spring clip]	Spring clip
22		AZ9725520037 [Spring clip]	Spring clip
22		AZ9725520053 [Spring clip]	Spring clip
22		AZ9725520055 [Spring clip]	Spring clip
23		1880340022 [Washer]	Washer
24		190003888749 [Lock nut]	Lock nut
25		AZ9638520005 [Spring clip plate]	Spring clip plate
26		199000520006 [Guide bolt]	Guide bolt
27		AZ9638520001 [Bracket left, frowt]	Bracket left, frowt
27		AZ9725520001 [Bracket lef, front]	Bracket lef, front
27		AZ9725520011 [Bracket lef, front]	Bracket lef, front
28		Q151B22230 [Screw]	Screw
30		199114520038 [Bottom brace rod C]	Bottom brace rod C
30		DZ9114520175 [Bottom brace rod C]	Bottom brace rod C
30		DZ9114520175 [Bottom brace rod C]	Bottom brace rod C
30		WG9114521174 [Bottom brace rod C]	Bottom brace rod C
31		Q151B2090 [Screw]	Screw
32		190003803974 [Screw]	Screw
33		199114520169 [Top brace rod C]	Top brace rod C
33		DZ9114520174 [Top brace rod C]	Top brace rod C
33		WG9114521175 [Top brace rod C]	Top brace rod C
34		Q151B20200 [Screw]	Screw
35		190003888467 [Lock nut]	Lock nut
37		AZ9114520091 [Stop C]	Stop C
38		Q340B10 [Nut]	Nut
39		Q40310 [Spring washer]	Spring washer
45		199014520224 [Dift.sheet]	Dift.sheet
45		WG9232520005 [Dift.sheet]	Dift.sheet
46		199014520224 [Dift.sheet]	Dift.sheet
47		Q151C1260 [Screw]	Screw
48		190003888457 [Lock nut]	Lock nut
49		Q151C1255 [Screw]	Screw
50		Q40312 [Spring washer]	Spring washer
51		AZ9114520098 [Stop bracket]	Stop bracket
51		AZ9232520003 [Stop bracket]	Stop bracket
54		199014520019 [Bolt]	Bolt
55		WG9114520042 [Ball bearing]	Ball bearing
56		199014520217 [Bracket]	Bracket
57		199014520265 [Lock washer]	Lock washer
59		WG9232520008 [Self-stop rear spring C]	Self-stop rear spring C
59		WG9232520028 [Self-stop rear spring C]	Self-stop rear spring C
59		WG9232520232 [Self-stop rear spring C]	Self-stop rear spring C
59		WG9638520008 [Self-stop rear spring C]	Self-stop rear spring C
59		WG9725520010 [Self-stop rear spring C]	Self-stop rear spring C
59		WG9731520013 [Self-stop rear spring C]	Self-stop rear spring C
60		199100520112 [Plate]	Plate
61

№		Номер детали	Наименование запчасти
-		Q150B1035 [Screw]	Screw
-		Q150B1460 [Screw]	Screw
37		AZ9114520091 [Stop C]	Stop C
51		AZ9114520098 [Stop bracket]	Stop bracket
51		AZ9232520003 [Stop bracket]	Stop bracket
66		AZ9114520098 [Stop bracket]	Stop bracket
66		AZ9232520002 [Stop bracket]	Stop bracket

4x2, 6x4 STABLIZER, SHOCK ABSORBER FRONT (C8-5) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9719680003 [Stabilizer C]	Stabilizer C
2		1880680024 [Connect plate]	Connect plate
3		WG880680027 [Plate]	Plate
4		199100680068 [Rubber bearing]	Rubber bearing
5		Q5211424 [Bolt]	Bolt
6		Q150B1095TF2Q [Screw]	Screw
7		Q40310 [Spring washer]	Spring washer
10		WG9100680055 [Plate]	Plate
11		199100680069 [Screw]	Screw
12		Q40214 [Washer]	Washer
13		190003888458 [Lock nut]	Lock nut
16		199100680057 [Screw]	Screw
17		Q40016 [Washer]	Washer
18		190003888459 [Lock nut]	Lock nut
19		AZ9719680013 [Bracket C]	Bracket C
20		Q151C1240 [Screw]	Screw
21		190003888457 [Lock nut]	Lock nut
22		190003936012 [Washer]	Washer
23		199100680065 [Bracket]	Bracket
24		Q151B1660 [Screw]	Screw
26		199012680025 [Fork]	Fork
27		190003933242 [Snap ring]	Snap ring
28		199012680009 [Screw]	Screw
29		Q40116 [Washer]	Washer
30		90003888459 [Nut]	Nut
31		WG9719680008 [Shock absorber bracket C]	Shock absorber bracket C
32		Q151C1240 [Screw]	Screw
33		199100680021 [Plate]	Plate
34		190003888457 [Lock nut]	Lock nut
35		199100680036 [Screw]	Screw
36		Q40016 [Washer]	Washer
37		190003888459 [Lock nut]	Lock nut
38		WG9100680001 [Shock absorber]	Shock absorber
39		190003963112 [Grease nipple]	Grease nipple
41		Q40316 [Washer]	Washer

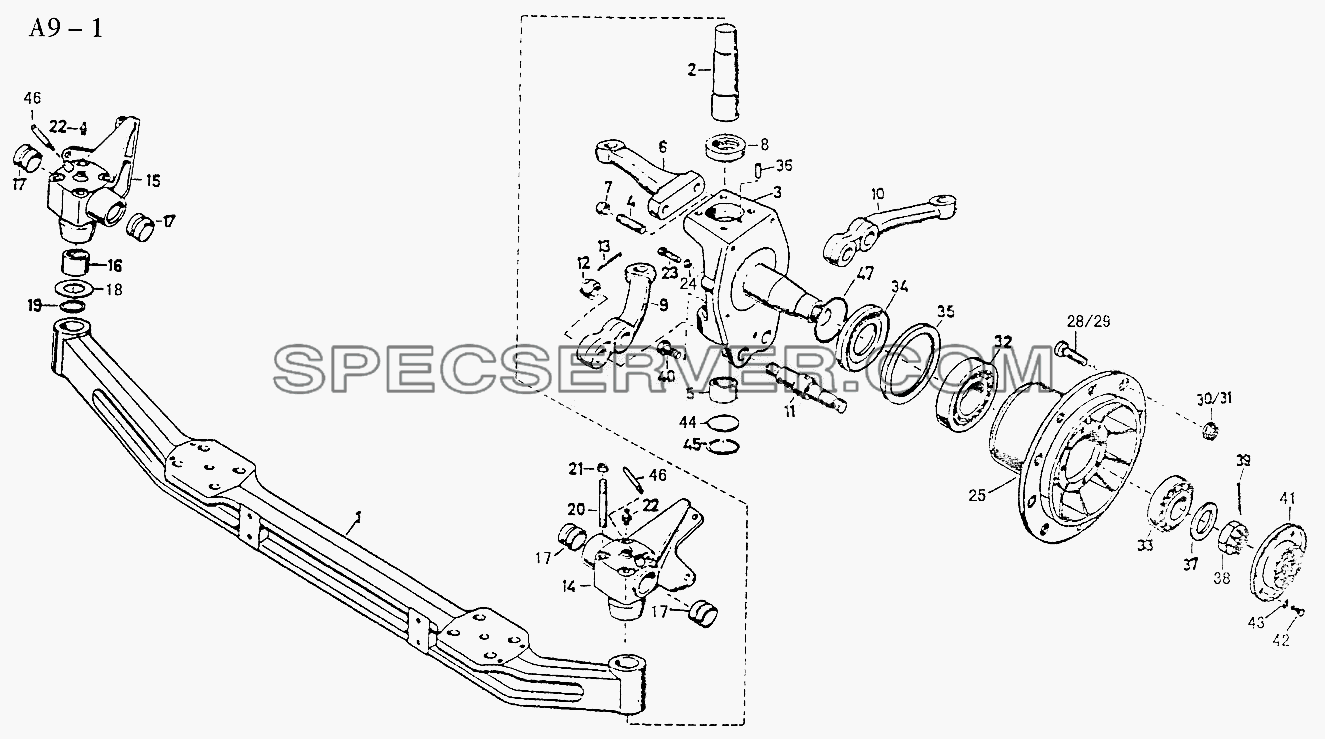

FRONT AXLE (A9-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1880 410054 [Front axle]	Front axle
-		199112410058 [Right knuckle assembly]	Right knuckle assembly
-		1F7140.100102 [6.5T Front steering axle]	6.5T Front steering axle
-		AH1941..00101 [6.5T Front steering axle with ABS]	6.5T Front steering axle with ABS
-		AH71141.00701 [HOW0 7T Front steering axle with ABS]	HOW0 7T Front steering axle with ABS
-		AH71141.00705 [HOWO front steering axle]	HOWO front steering axle
-		AZ9719410054 [Front axle]	Front axle
-		WG9112410019 [Ring gear for ABS]	Ring gear for ABS
1		1880 410103 [Front axle STEYR]	Front axle STEYR
1		AZ9719410103 [Front axle C HOWO]	Front axle C HOWO
2		1880 410031 [Knuckle pin]	Knuckle pin
3		199112410057 [Left knuckle assembly]	Left knuckle assembly
4		1880 410060 [Stud]	Stud
5		1880 410029 [Bushing]	Bushing
6		199000410001 [Steering Arm]	Steering Arm
6		199000410045 [Steering Arm]	Steering Arm
6		199014410001 [Steering Arm]	Steering Arm
6		199114410001 [Steering Arm]	Steering Arm
6		AZ9719410001 [Steering knuckle arm]	Steering knuckle arm
7		Q33018 [Nut fastener]	Nut fastener
8		WG880 410049 [Beating]	Beating
9		1880 410041 [Tie Rod Arm (left)]	Tie Rod Arm (left)
9		AZ9160410121 [Tie Rod Arm (left)]	Tie Rod Arm (left)
10		1880 410040 [Tie Rod Arm (right)]	Tie Rod Arm (right)
10		AZ9160410120 [HOWO Tie rod arm (right)]	HOWO Tie rod arm (right)
11		1880 410038 [Brake shoe pin]	Brake shoe pin
12		Q381B27 [Castle Nut]	Castle Nut
13		Q5005050 [Cotter pin]	Cotter pin
14		AZ9100410032 [Bracket assembly (left)]	Bracket assembly (left)
15		AZ9100410036 [Bracket assembly (right)]	Bracket assembly (right)
16		1880 410035 [Bushing]	Bushing
17		AZ9100340017 [Complex bushing]	Complex bushing
18		1880 410094 [Shim]	Shim
18		1880 410095 [Shim]	Shim
18		1880 410096 [Shim]	Shim
18		1880 410097 [Shim]	Shim
18		1880 410104 [Shim]	Shim
18		1880 410105 [Shim]	Shim
18		1880 410106 [Shim]	Shim
18		1880 410107 [Shim]	Shim
18		1880 410108 [Shim]	Shim
19		1880 410052 ["O"ring]	"O"ring
20		1880 410075 [Stud]	Stud
21		Q33014 [Nut]	Nut
22		Q701B70 [Grease fitting]	Grease fitting
23		1880 410059 [Adjusting bolt]	Adjusting bolt
24		Q351B14T15 [Nut]	Nut
25		199112410009 [Front hub]	Front hub
29		AZ9100410104 [Wheel bolt]	Wheel bolt
30		WG9003889160 [Nut]	Nut
32		32314 [Bearing]	Bearing
33		32310 [Bearing]	Bearing
34		199000410114 [Spacers]	Spacers
35		AZ9100410061 [Seal]	Seal
36		Q5211016 [Pin]	Pin
37		AZ9100410062 [Washer]	Washer
38		AZ9100411140 [Knuckle lock nut]	Knuckle lock nut
39		Q5006370 [Cotter pin]	Cotter pin
40		Q151C1220 [Cap screw]	Cap screw
41		1880 410043 [Cap]	Сар
42		Q150B0816 [Cap screw]	Cap screw
43		Q40308 [Spring shim]	Spring shim
44		1880 410100 [Cap]	Сар
45		Q43056 [Spacers]	Spacers

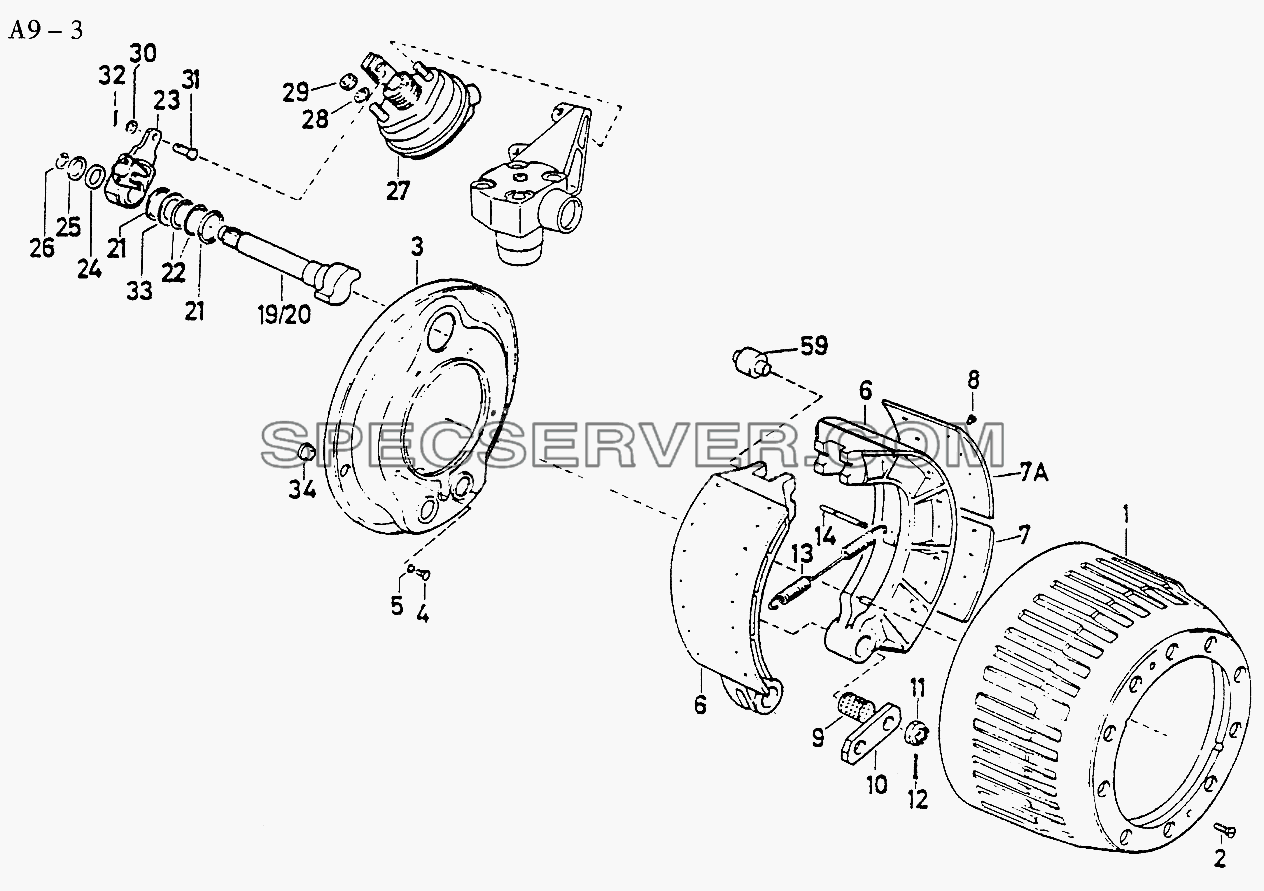

FRONT WHEEL BRAKE (A9-3) для Sinotruk 6x4 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1990000440018 [Brake shoe]	Brake shoe
-		AZ9100349994 [Bracket]	Bracket
-		AZ9100349995 [Bracket]	Bracket
-		Q150B0818 [Screw]	Screw
-		Q33408 [Nut]	Nut
-		WG9000360101 [Diaphragm cyl.right]	Diaphragm cyl.right
1		AZ9112440001 [Brake drum]	Brake drum
2		Q2541025 [Bolt]	Bolt
3		1880 440007 [Dust shield]	Dust shield
3		199112440006 [Dust shield]	Dust shield
4		Q150B0816 [Screw]	Screw
5		Q40308 [Shim]	Shim
6		199000440031 [Brake shoe C]	Brake shoe C
6		199112440073 [Brake shoe C]	Brake shoe C
7		199112440065 [Brake lining]	Brake lining
7		199112440066 [Brake lining]	Brake lining
7		WG9100440027 ["T" brake lining]	"T" brake lining
7		WG9100440029 ["T" brake lining]	"T" brake lining
8		189000340068 [Rivet]	Rivet
9		WG880 440006 [Bushing]	Bushing
10		1880 440008 [Washer]	Washer
11		Q381B24 [Castle nut]	Castle nut
12		Q5005045 [Cotter pin]	Cotter pin
13		AZ9100440060 [Return spring]	Return spring
14		1880 440032 [Return spring pin]	Return spring pin
15		199112440018 [Bushing]	Bushing
19		199100440001 [Camshaft (left)]	Camshaft (left)
20		199100440002 [Camshaft (right)]	Camshaft (right)
21		1880 440010 [Washer]	Washer
21		AZ9100440011 [Washer]	Washer
21		AZ9100440012 [Washer]	Washer
22		1880 340023 ["O"seal ring]	"O"seal ring
23		AZ9100440005 [Slack adjuster]	Slack adjuster
23		WG9100440023 [Automatic rod adjuster]	Automatic rod adjuster
24		1880 340022 [Shim]	Shim
25		1 80 320028 [Shim]	Shim
25		1 80 320029 [Shim]	Shim
25		1 80 320030 [Shim]	Shim
25		1 80 320046 [Shim]	Shim
26		190003933116 [Washer]	Washer
27		WG9000360100 [Diaphragm cyl.left]	Diaphragm cyl.left
28		Q41216 [Shim]	Shim
29		Q340B16 [Nut]	Nut
30		Q40114 [Flat shim]	Flat shim
31		Q5101440 [Pin]	Pin
32		Q5004022 [Cotter]	Cotter
33		1880 440015 [Spacers]	Spacers
34		1880 340037 [Plug]	Plug
59		199000340027 [Roller]	Roller
