№		Номер детали	Наименование запчасти
1		AZ9130240010 [Gear shift knob]	Gear shift knob
1		AZ9130240270 [Gear shift knob]	Gear shift knob
1		AZ9624240010 [Gear shift knob]	Gear shift knob
2		AZ9130240220 [Shift lever]	Shift lever
3		1792002240075 [Sleeve]	Sleeve
4		AZ9130240002 [Dust proof cover]	Dust proof cover
5		AZ9130240241 [Support plate]	Support plate
6		Q2630520 [Screw]	Screw
7		AZ9130240201 [Rubber seat]	Rubber seat
8		AZ9123240208 [Joint bearing]	Joint bearing
9		AZ9123240109 [Dust proof cover]	Dust proof cover
10		AZ9003886879 [Nut]	Nut
11		AZ9123240120 [Bracket]	Bracket
12		Q43042 [Snap ring]	Snap ring
13		AZ9123240106 [Cover]	Cover
14		Q43118 [Snap ring]	Snap ring
15		AZ9123240107 [Shift shaft]	Shift shaft
16		AZ9130240253 [Bracket]	Bracket
17		WG9130240251 [Shift bracket]	Shift bracket
17		WG9130240261 [Shift bracket]	Shift bracket
17		WG9130240263 [Shift bracket]	Shift bracket
18		Q150B1035 [Screw]	Screw
19		Q33210 [Nut]	Nut
20		1680 260012 [Pin]	Pin
21		190003936620 [Snap ring]	Snap ring
22		WG130240218 [Shift remote bar]	Shift remote bar
22		WG9130240224 [Shift remote bar]	Shift remote bar
22		WG9130240230 [Shift remote bar]	Shift remote bar
22		WG9130240233 [Shift remote bar]	Shift remote bar
22		WG9130240318 [Shift remote bar]	Shift remote bar
22		WG9130240324 [Shift remote bar]	Shift remote bar
22		WG9130240326 [Shift remote bar]	Shift remote bar
23		Q341B14T13F2 [Nut]	Nut
24		199112240085 [Ball joint]	Ball joint
25		Q33210 [Nut]	Nut
26		199112240165 [Support]	Support
27		WG9100240090 [Ball joint]	Ball joint
28		Q340B12 [Nut]	Nut
29		199112240122 [Ball joint]	Ball joint
30		190003871313 [Nut (left)]	Nut (left)
31		1-99-951-036 [Bolt M12]	Bolt M12
32		Q33210 [Nut]	Nut
33		AZ9130240248 [Gasket]	Gasket

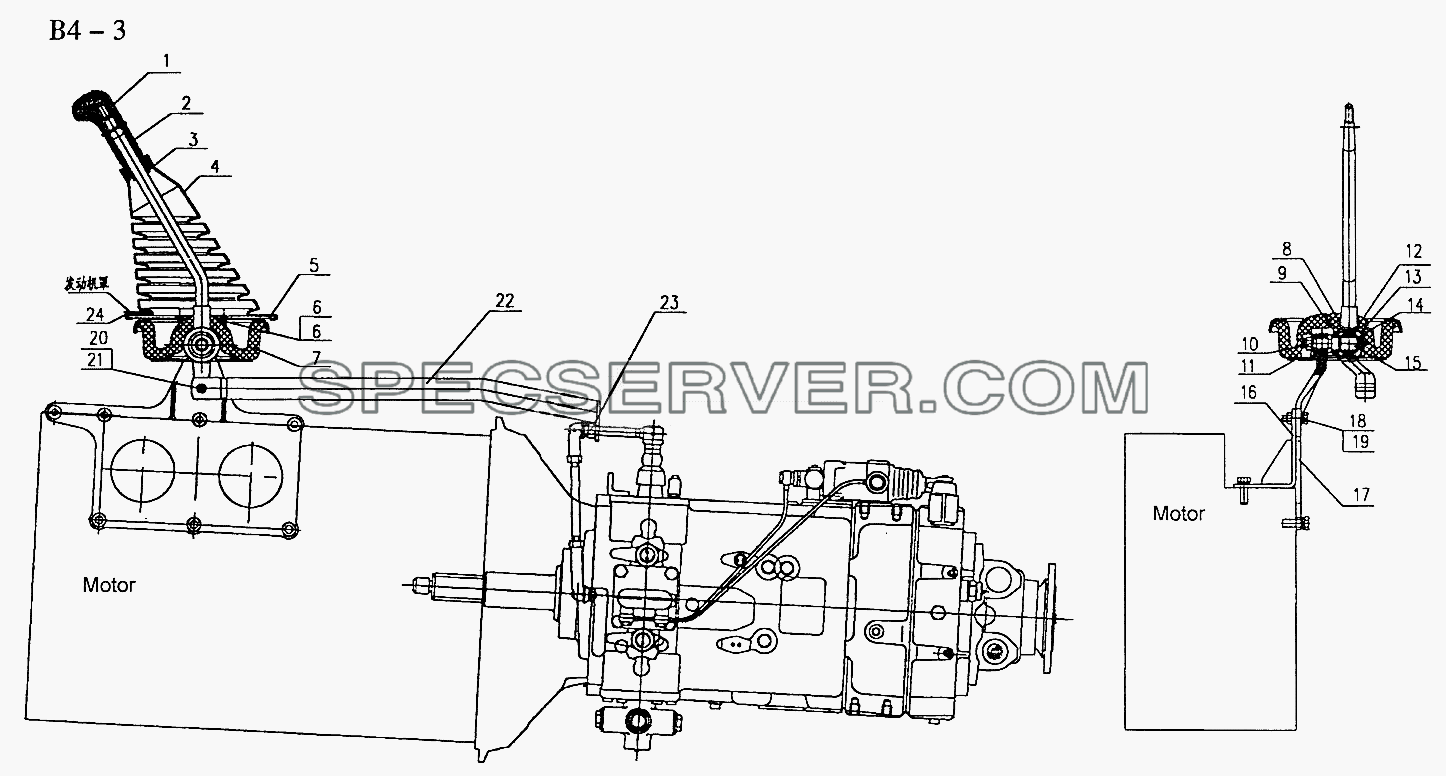

ZF GEAR-CHANGE SYSTEM (B4-3) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9130240010 [Gear shift knob]	Gear shift knob
1		AZ9130240236 [Gear shift knob]	Gear shift knob
1		AZ9624240010 [Gear shift knob]	Gear shift knob
2		AZ9130240220 [Shift lever]	Shift lever
3		179200240075 [Sleeve]	Sleeve
4		AZ9130240002 [Dust proof cover]	Dust proof cover
5		AZ9130240241 [Support plate]	Support plate
6		Q2630520 [Screw]	Screw
7		AZ9130240201 [Rubber seat]	Rubber seat
8		AZ9130240208 [Joint bearing]	Joint bearing
9		AZ9123240109 [Dust proof cover]	Dust proof cover
10		AZ9003886879 [Nut]	Nut
11		AZ9123240120 [Bracket]	Bracket
12		Q43042 [Snap ring]	Snap ring
13		AZ9123240106 [Cover]	Cover
14		Q43118 [Snap ring]	Snap ring
15		AZ9123240107 [Shift shaft]	Shift shaft
16		AZ9130240253 [Bracket]	Bracket
17		WG9130240251 [Shift bracket]	Shift bracket
17		WG9130240261 [Shift bracket]	Shift bracket
17		WG9130240263 [Shift bracket]	Shift bracket
18		Q150B1035 [Screw]	Screw
19		Q33210 [Nut]	Nut
20		1680 260012 [Pin]	Pin
21		190003936620 [Snap ring]	Snap ring
22		WG9130240227 [Shift remote bar]	Shift remote bar
22		WG9219240001 [Shift remote bar]	Shift remote bar
22		WG9232240001 [Shift remote bar]	Shift remote bar
22		WG9638240001 [Shift remote bar]	Shift remote bar
22		WG9638240003 [Shift remote bar]	Shift remote bar
22		WG9638240006 [Shift remote bar]	Shift remote bar
23		Q341B14 [Nut]	Nut
24		AZ9130240248 [Gasket]	Gasket

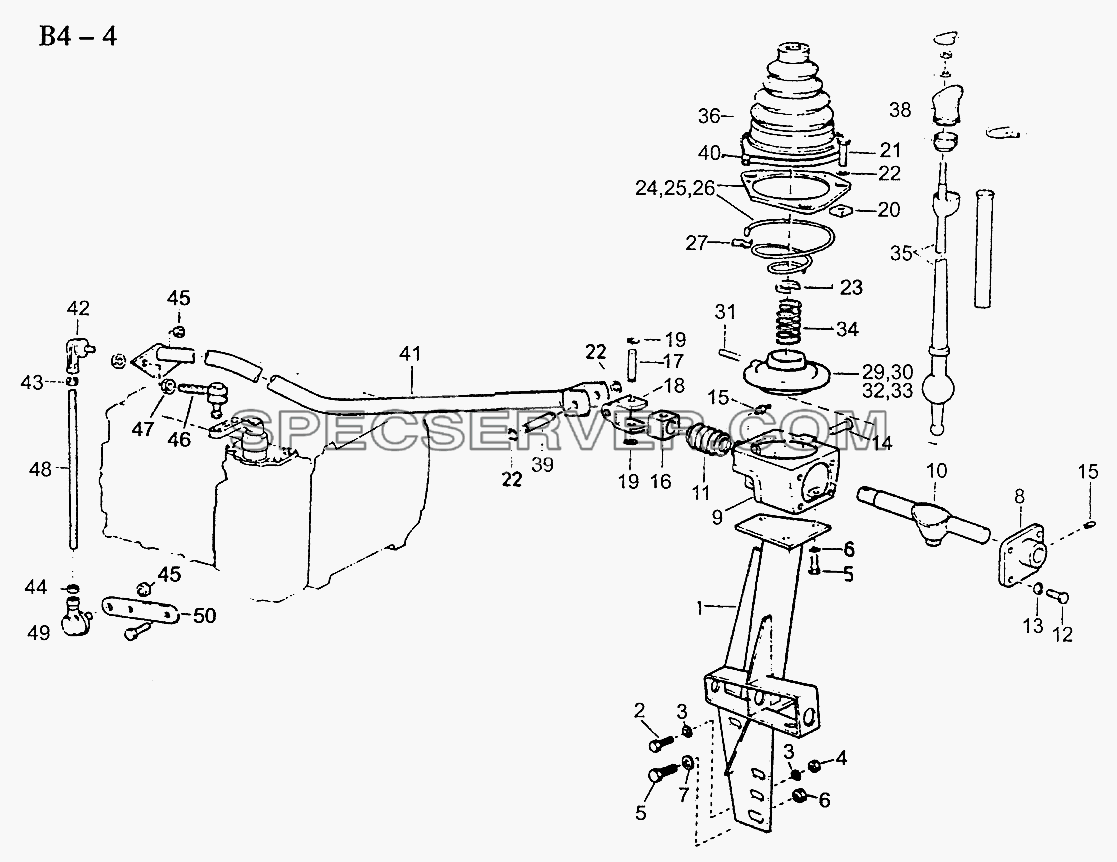

GEAR-CHANGE SYSTEM FOR DRIVE RIGHT (B4-4) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9100240105 [Bracket]	Bracket
1		AZ9100240200 [Bracket]	Bracket
2		Q150B1240TF2 [Screw]	Screw
3		Q40114 [Plane washer]	Plane washer
4		Q33212 [Nut]	Nut
5		Q151B1640 [Screw]	Screw
6		190003888459 [Lock nut]	Lock nut
7		1680 520060 [Washer]	Washer
8		199012240118 [Flange]	Flange
9		199012240274 [Gear shift lug]	Gear shift lug
10		199112240060 [Push rod]	Push rod
11		1-99-964-006 [Dust proof cover]	Dust proof cover
12		Q150B0820 [Screw]	Screw
13		Q40308 [Spring washer]	Spring washer
14		190003903211 [Bolt]	Bolt
15		190003963112 [Grease nipple]	Grease nipple
16		1780 240011 [Connection]	Connection
17		1680 260011 [Pin]	Pin
18		1680 260007 [Joint fork]	Joint fork
19		190003936620 [Washer]	Washer
20		1193 260056 [Plate]	Plate
21		Q218B1055 [Screw]	Screw
22		Q40110 [Plane washer]	Plane washer
23		199100240005 [Washer]	Washer
24		199100240001 [Plate C]	Plate C
25		199112240002 [Plate]	Plate
26		AZ9112210279 [Spring]	Spring
27		1-99-974-004 [Clamp]	Clamp
28		115000180015 [Clamp]	Clamp
29		199112240097 [Shift bearing C]	Shift bearing C
30		199112240062 [Bearing cover]	Bearing cover
31		199102240200 [Pin]	Pin
32		Q43062 [Spring washer]	Spring washer
33		199012240099 [Bearing cover]	Bearing cover
34		1-99-976-021 [Spring]	Spring
35		199100240100 [Shift lever]	Shift lever
35		AZ9100240100 [Shift lever]	Shift lever
36		199112240023 [Siphon]	Siphon
37		179200240075 [Cable canal]	Cable canal
38		AZ9100240061 [Gear shift knob]	Gear shift knob
38		AZ9115240015 [Gear shift knob]	Gear shift knob
38		AZ9123240214 [Gear shift knob]	Gear shift knob
39		1680 260012 [Joint bolt]	Joint bolt
40		190003989365 [Tube Clamp]	Tube Clamp
41		AZ9100240270 [Shift remote bar]	Shift remote bar
41		AZ9240240001 [Shift remote bar]	Shift remote bar
42		WG9100240090 [Ball joint]	Ball joint
43		Q340B12 [Nut]	Nut
44		190003871313 [Nut (left)]	Nut (left)
45		Q33210 [Nut]	Nut
46		199112240085 [Ball joint]	Ball joint
47		Q341B14T13F2 [Nut]	Nut
48		1-99-951-042 [Bolt]	Bolt
49		199112240122 [Ball joint]	Ball joint
50		199112240165 [Plate]	Plate
50		AZ9112240165 [Plate]	Plate

ZF GEAR CHANGE SYSTEM BY CABLE FOR DRIVE RIGHT (B4-5) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q218B1045 [Screw]	Screw
-		Q340B08 [Nut]	Nut
-		WG9232240006 [Shift device]	Shift device
-		WG9232240008 [Shift lever]	Shift lever
1		17600240008 [Gear shift knob]	Gear shift knob
1		AZ9123240214 [Gear shift knob]	Gear shift knob
2		179200240075 [Cable canal]	Cable canal
3		199112240023 [Dust proof cover]	Dust proof cover
4		190003989365 [Clip]	Clip
5		Q218B1035 [Screw]	Screw
6		Q40310 [Washer]	Washer
7		Q150B0850 [Screw]	Screw
8		Q150B0835 [Screw]	Screw
9		Q40308 [Washer]	Washer
10		AZ9232240005 [Connecting plate]	Connecting plate
11		WG9232240010 [Operating assembly]	Operating assembly
12		WG9716240006 [Gear shift cable]	Gear shift cable
13		WG9716240007 [Gear change cable]	Gear change cable
14		1397 350169 [Bracket]	Bracket
15		Q150B0635 [Screw]	Screw
16		Q40306 [Washer]	Washer
17		Q340B06 [Nut]	Nut
18		1188 730187 [Clamp]	Clamp
19		AZ9719240017 [Sleeve]	Sleeve
20		WG9719240008 [U clamp]	U clamp
21		Q150B0835 [Screw]	Screw
22		Q40108 [Washer]	Washer
23		AZ9719240026 [Gear shift bracket without assistor]	Gear shift bracket without assistor
23		AZ9719240027 [Gear shift bracket with assistor]	Gear shift bracket with assistor
24		AZ9719240029 [Gear change bracket]	Gear change bracket
25		AZ9719240023 [Gear shift lever]	Gear shift lever
26		AZ9719240117 [Support rod]	Support rod
27		AZ9719240114 [Gear change rod]	Gear change rod
28		AZ9719240118 [Gear shift]	Gear shift

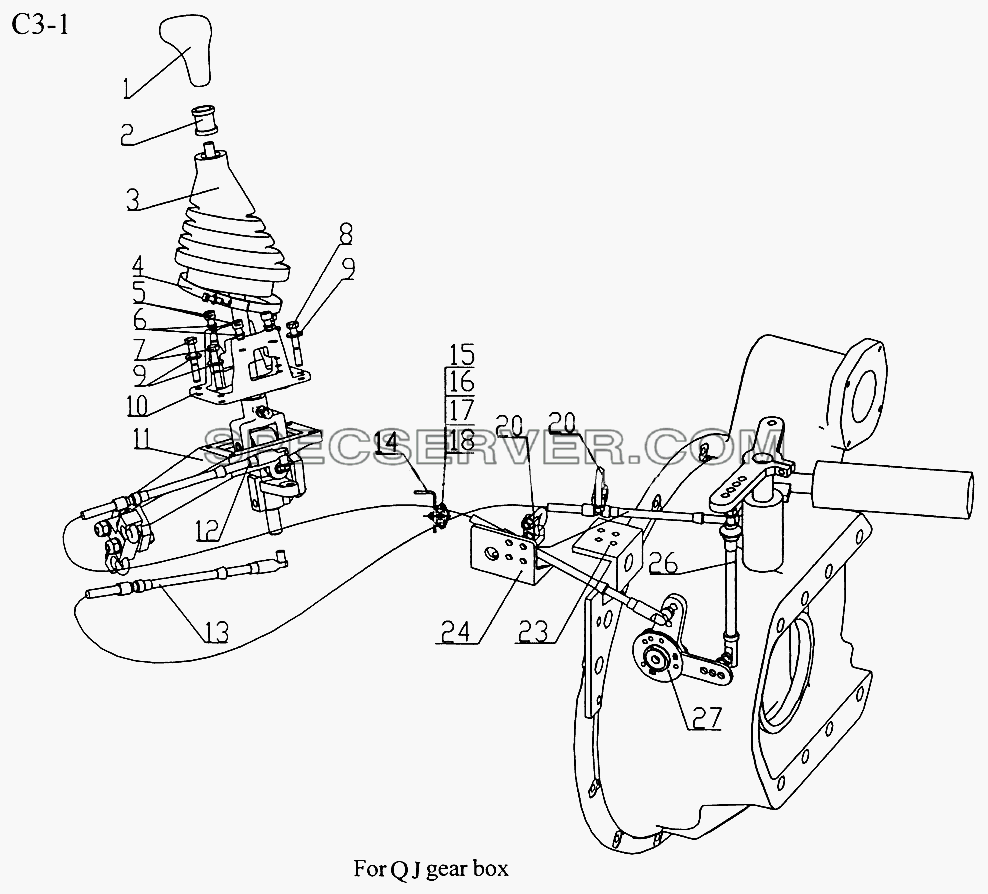

GEARBOX GEAR CHANGE SYSTEM (C3-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9716240008 [Operator]	Operator
-		WG9719240028 [Operator]	Operator
-		WG9725240009 [Gear shift lever]	Gear shift lever
-		WG9725240009 [Gear shift lever]	Gear shift lever
1		AZ9100240060 [Gear shift knob]	Gear shift knob
1		AZ9100240061 [Gear shift knob]	Gear shift knob
1		AZ9123240211 [Gear shift knob]	Gear shift knob
1		AZ9123240214 [Gear shift knob]	Gear shift knob
1		AZ9716240001 [Gear shift knob]	Gear shift knob
2		179200240075 [Cable sleeve]	Cable sleeve
3		AZ9719240002 [Siphon]	Siphon
4		190003989318 [Circlip]	Circlip
5		Q218B0825 [Screw]	Screw
6		Q40308 [Spring washer]	Spring washer
7		Q150B0850 [Screw]	Screw
8		Q150B0835 [Screw]	Screw
9		Q40308 [Spring washer]	Spring washer
10		AZ9719240032 [Connecting block]	Connecting block
11		WG9716240010 [Operator assembly]	Operator assembly
11		WG9719240031 [Operator assembly]	Operator assembly
12		WG9716240011 [Positioning cable]	Positioning cable
12		WG9719240007 [Positioning cable]	Positioning cable
12		WG9719240111 [Positioning cable]	Positioning cable
13		WG9716240013 [Gear shift cable]	Gear shift cable
13		WG9719240112 [Gear shift cable]	Gear shift cable
13		WG9725240008 [Gear shift cable]	Gear shift cable
14		1397 350169 [Angle]	Angle
15		Q150B0840 [Screw]	Screw
16		Q40308 [Spring washer]	Spring washer
17		Q340B08 [Nut]	Nut
18		1188 730187 [Clamp]	Clamp
19		AZ9719240017 [Sleeve]	Sleeve
20		WG9719240008 [Clamp]	Clamp
21		Q150B0835 [Screw]	Screw
22		Q40108 [Washer]	Washer
23		AZ9717240027 [Bracket for gear shift cable]	Bracket for gear shift cable
23		AZ9719240026 [Bracket for gear shift cable]	Bracket for gear shift cable
23		AZ9725240024 [Bracket for gear shift cable]	Bracket for gear shift cable
24		AZ9719240025 [Bracket for positioning cable]	Bracket for positioning cable
24		AZ9719240029 [Bracket for positioning cable]	Bracket for positioning cable
25		AZ9719240023 [Positioning lever]	Positioning lever
26		WG9719240117 [Support bar]	Support bar
27		WG9719240116 [Positioning bar]	Positioning bar
28		WG9719240118 [Gear shift bar]	Gear shift bar
29		AZ9725240026 [Protect sleeve for cable]	Protect sleeve for cable

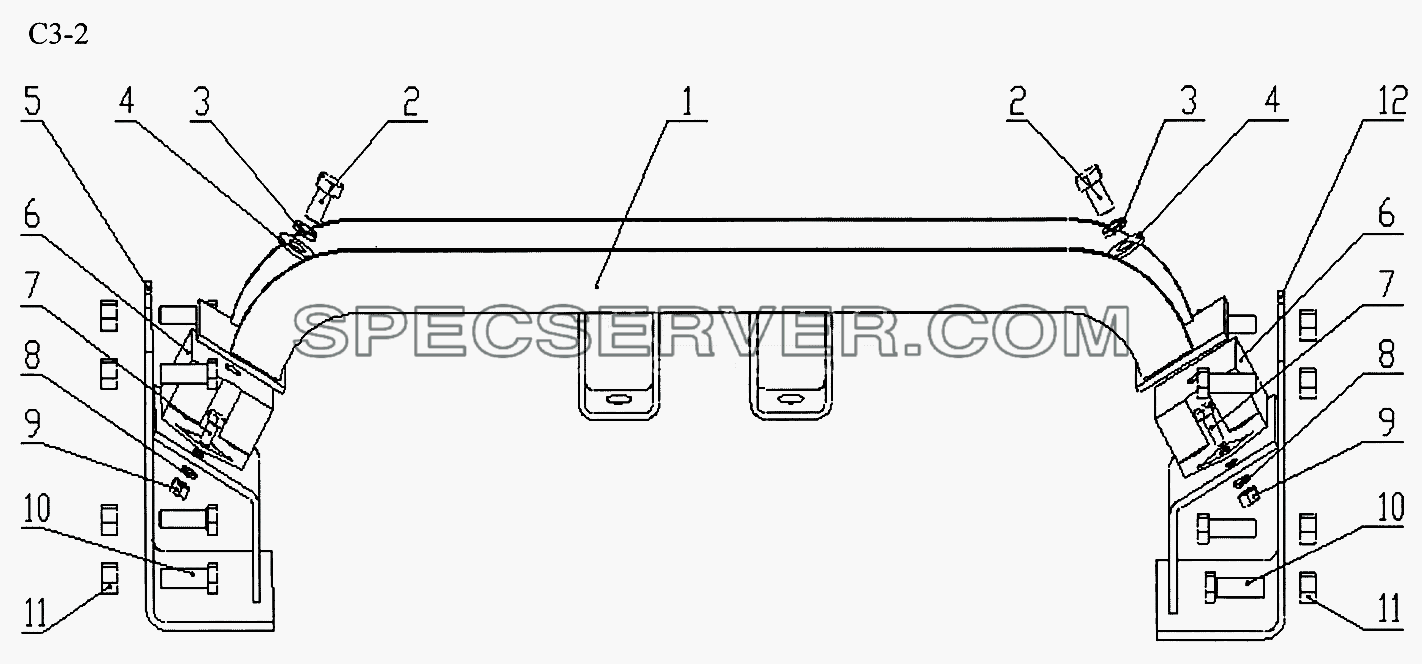

GEARBOX SUSPENSION (C3-2) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9725590008 [Cross member]	Cross member
1		AZ9725590090 [Cross member]	Cross member
1		AZ9725596010 [Cross member]	Cross member
1		AZ9731596160 [Cross member]	Cross member
2		Q150B1222 [Screw]	Screw
3		Q40312 [Spring washer]	Spring washer
4		1480A 360058 [Washer]	Washer
5		AZ9725590063 [Left bracket]	Left bracket
5		AZ9725590093 [Left bracket]	Left bracket
5		AZ9725590095 [Left bracket]	Left bracket
5		AZ9725596120 [Left bracket]	Left bracket
5		AZ9725596140 [Left bracket]	Left bracket
5		AZ9731596170 [Left bracket]	Left bracket
6		WG1680590095 [Support front]	Support front
7		Q150B0822 [Screw]	Screw
8		Q40308 [Spring washer]	Spring washer
9		Q340B08 [Nut]	Nut
10		Q150B1235 [Screw]	Screw
11		Q33212 [Nut]	Nut
12		AZ9725590018 [Bracket]	Bracket
12		AZ9725590060 [Right bracket]	Right bracket
12		AZ9725590094 [Right bracket]	Right bracket
12		AZ9725590096 [Right bracket]	Right bracket
12		AZ9725596130 [Right bracket]	Right bracket
12		AZ9725596150 [Right bracket]	Right bracket
12		AZ9731596180 [Right bracket]	Right bracket
