№		Номер детали	Наименование запчасти
1		1269307299 [Gasket]	Gasket
5		0750132006 [Cut off valve]	Cut off valve
5		0750132008 [Cut off valve]	Cut off valve
20		0630302091 [Spring disc]	Spring disc
21		0636015129 [Screw]	Screw
25		0634601205 [Gasket]	Gasket
26		0637834032 [Joint]	Joint
27		0637835026 [Female screw]	Female screw
31		0632702470 [Tecalan tube]	Tecalan tube
40		0632311228 [Champ]	Champ

5S-111GP, 5S-150GP, 4S-130GP HOUSING FOR RANGE CHANGE GROUP (A6-9) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		0636010192 [Screw]	Screw
2		1269331037 [Gear change housing]	Gear change housing
3		1269331054 [Housing]	Housing
9		1269331036 [Gasket]	Gasket
10		0731201459 [Cly.pin]	Cly.pin
23		0730150161 [Screw plug]	Screw plug
24		0501305443 [Sensor]	Sensor
26		0736301022 [Screw plug]	Screw plug
28		0736305016 [M-screw plug]	M-screw plug
46		0769140003 [Spacer disc]	Spacer disc
47		1269304043 [Screen sheet]	Screen sheet
47		2128304010 [Screen sheet]	Screen sheet
49		1269331035 [Gasket]	Gasket
60		1269331024 [Pressure tube]	Pressure tube
66		0636104069 [Cyl.screw]	Cyl.screw
70		0636010277 [Screw]	Screw
71		0636015120 [Screw]	Screw
72		0636015129 [Screw]	Screw
76		0636011102 [Screw]	Screw
77		0636016028 [Screw]	Screw
78		0636011105 [Screw]	Screw

5S-111GP, 5S-150GP, 4S-130GP WHEELS FOR RANGE CHANGE GROUP (A6-10) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
2		1269232010 [Output shaft]	Output shaft
2		2128232001 [Output shaft]	Output shaft
2		2159232001 [Output shaft]	Output shaft
9		1269332036 [Planet wheel shaft]	Planet wheel shaft
10		0501305887 [Washer]	Washer
11		0730103846 [Intermediate disc]	Intermediate disc
14		0735470057 [Needle roller]	Needle roller
15		1286298002 [Planet wheel set]	Planet wheel set
15		1286298902 [Planet wheel set]	Planet wheel set
15		2128298002 [Planet wheel set]	Planet wheel set
16		Q5280526 [Spring pin]	Spring pin
17		Q5280326 [Spring pin]	Spring pin
24		0730160759 [Distance ring]	Distance ring
25		0769144049 [Snap ring set]	Snap ring set
26		0635330050 [Ball bearing]	Ball bearing
27		0769140072 [Spacer disc set]	Spacer disc set
35		1269332055 [Ring gear]	Ring gear
36		1269332054 [Intermed. Carrier]	Intermed. Carrier
37		0730505053 [Lock wire]	Lock wire
38		1269233010 [Clutch hub]	Clutch hub
38		2159233001 [Clutch hub]	Clutch hub
41		1269328289 [Synchr. ring]	Synchr. ring
41		2159328002 [Synchr. ring]	Synchr. ring
42		1269333057 [Detend]	Detend
42		2159333004 [Detend]	Detend
48		0732040386 [Helical spring]	Helical spring
48		0732040736 [Helical spring]	Helical spring
49		0732040385 [Helical spring]	Helical spring
49		0732040929 [Helical spring]	Helical spring
50		1240304278 [Pressure piece]	Pressure piece
50		1269328234 [Pressure piece]	Pressure piece
51		0769144037 [Locking ring set]	Locking ring set
55		1269333047 [Sliding sleeve]	Sliding sleeve
55		2159555001 [Sliding sleeve]	Sliding sleeve
56		1269333048 [Clutch hub]	Clutch hub
56		2159333002 [Clutch hub]	Clutch hub
62		0769140186 [Washer]	Washer
65		0635333049 [Ball bearing]	Ball bearing
66		0630503020 [Snap ring]	Snap ring
67		1269328096 [Baffle plate]	Baffle plate
70		0730160758 [Distance ring]	Distance ring
85		1269328229 [Speeldometer]	Speeldometer
100		109304212 [Output flange]	Output flange
100		1269338020 [Output flange]	Output flange
100		1269338020-1 [Ф165 toothed flange]	Ф165 toothed flange
100		1269338028 [Output flange]	Output flange
100		1269338028-1 [Ф180 toothed flange]	Ф180 toothed flange
110		1240304117 [Washer]	Washer
115		0636016012 [Screw]	Screw
116		1250304353 [Locking plate]	Locking plate

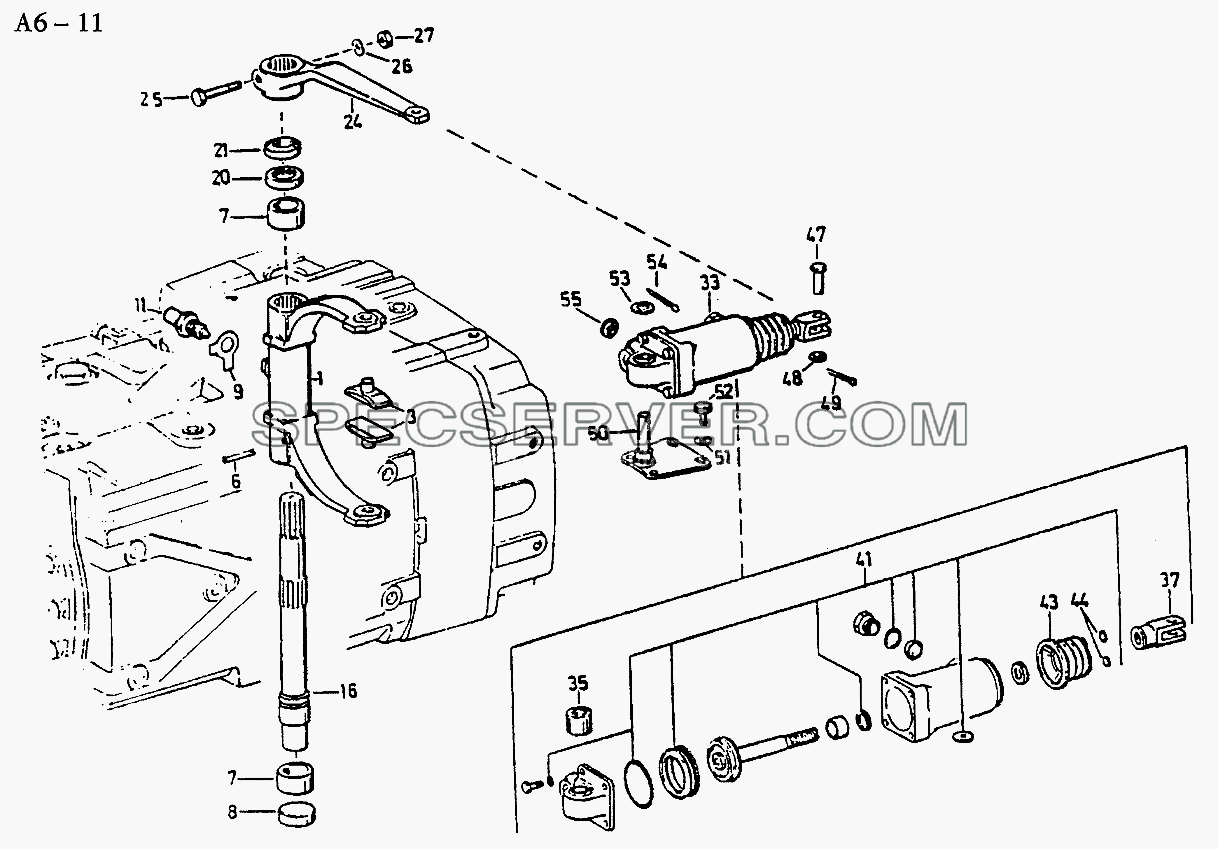

5S-111GP, 5S-150GP, 4S-130GP SHIFTING FOR RANGE CHANGE GROUP (A6-11) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1269328288 [Gear shift fork]	Gear shift fork
1		2159328001 [Gear shift fork]	Gear shift fork
3		1295334027 [Sliding pad]	Sliding pad
6		0631329086 [Spring pin]	Spring pin
7		0730260355 [Bush]	Bush
8		0630361078 [Sealing cover]	Sealing cover
9		0630603010 [Locking plate]	Locking plate
11		1269288045 [Spring load bolt]	Spring load bolt
16		1269334002 [Gear shift lever]	Gear shift lever
20		0634300355 [Shaft seal]	Shaft seal
21		0634307405 [Scraper ring]	Scraper ring
24		1269328252 [Gear shift lever]	Gear shift lever
25		0636010092 [Screw]	Screw
27		0637006016 [Nut]	Nut
27		0637006018 [Nut]	Nut
33		0750132019 [Cylinder]	Cylinder
35		0634308009 [Absorber sleeve]	Absorber sleeve
37		0501305189 [Ford head]	Ford head
41		0501298046 [Repair set]	Repair set
43		0734320116 [Siphon]	Siphon
44		0501304049 [Screen]	Screen
47		0631202086 [Bolt]	Bolt
48		0630001065 [Washer]	Washer
49		0631701145 [Spilt pin]	Spilt pin
49		Q43114 [Snap ring]	Snap ring
50		1229201016 [Cylinder suspension]	Cylinder suspension
52		0636015278 [Screw]	Screw
53		0630001052 [Washer]	Washer
54		0631701145 [Spilt pin]	Spilt pin

5S-111GP, 5S-150GP, 4S-130GP REAR COVER (A6-12) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1269338019 [Speedometer cover]	Speedometer cover
1		1269338095 [Speedometer cover]	Speedometer cover
9		1269338030 [Gashet]	Gashet
10		0769140011 [Spacer disc set]	Spacer disc set
20		0630302091 [Spring dosc]	Spring dosc
21		0636015127 [Screw]	Screw
22		0636015114 [Screw]	Screw
26		0636610087 [Stud]	Stud
27		0636610079 [Stud]	Stud
28		0637006022 [Nut]	Nut
47		0734310109 [Shaft seal]	Shaft seal
47		0750111004 [Shaft seal]	Shaft seal
49		0734300093 [Shaft seal]	Shaft seal
49		0750111074 [Shaft seal]	Shaft seal
56		1250308057 [Speedometer pinion]	Speedometer pinion
58		1250308007 [Speedometer flexible]	Speedometer flexible
61		0634316057 [O-ring]	O-ring
62		1250308017 [Speedometer connector]	Speedometer connector
66		0631306713 [Cylinder pin]	Cylinder pin
67		0634300185 [Shaft seal ring]	Shaft seal ring
71		0125308131 [Screw]	Screw
71		0125308201 [Screw]	Screw
72		0737006978 [Adjusting screw]	Adjusting screw
90		1238308201 [Gasket]	Gasket
91		1238308165 [Cover]	Cover
93		0636011026 [Screw]	Screw
100		0636301048 [Screw plug]	Screw plug
101		0501002226 [Differential]	Differential

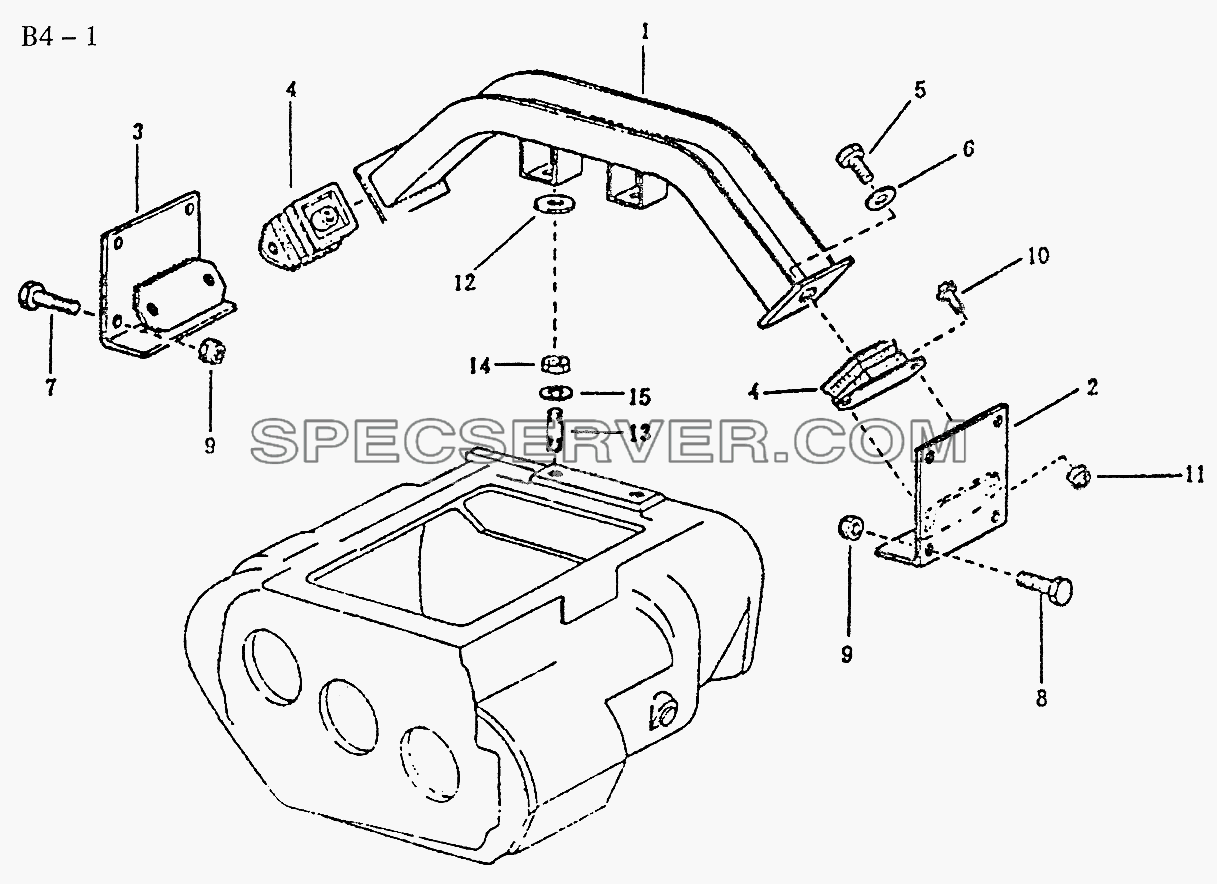

FULLER GEARBOX SUSPENSION (B4-1) для Sinotruck (полного) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9631590017 [Cross member]	Cross member
1		AZ9631590020 [Cross member]	Cross member
1		WG9112590099 [Cross member]	Cross member
1		WG9112590100 [Cross member]	Cross member
1		WG9112591100 [Cross member]	Cross member
2		AZ9625590003 [Left bracket C]	Left bracket C
2		AZ9631590013 [Left bracket C]	Left bracket C
2		AZ9631590023 [Left bracket C]	Left bracket C
2		WG9112590096 [Left bracket C]	Left bracket C
2		WG9112590110 [Left bracket C]	Left bracket C
2		WG9112591096 [Left bracket C]	Left bracket C
3		AZ9625590004 [Right bracket C]	Right bracket C
3		AZ9625590014 [Right bracket C]	Right bracket C
3		AZ9631590024 [Right bracket C]	Right bracket C
3		WG9112590095 [Right bracket C]	Right bracket C
3		WG9112591095 [Right bracket C]	Right bracket C
3		WG9112950111 [Right bracket C]	Right bracket C
4		WG1680590095 [Support front]	Support front
5		Q151B1220 [Screw]	Screw
6		Q40312 [Washer]	Washer
7		Q151B1455 [Screw]	Screw
8		Q151B1455 [Screw]	Screw
9		190003888458 [Nut]	Nut
10		Q150B0820 [Screw]	Screw
11		Q33208 [Nut]	Nut
12		1480A360058 [Washer]	Washer
13		Q1231630 [Bolt]	Bolt
14		Q33216 [Nut]	Nut
15		Q40116 [Washer]	Washer
