If the Battery Is Dead

Jump Starting Procedure

Han

lin
g the U

expected

Once your vehicle's engine has started, remove the jumper cables in the following
order.

Disconnect the jumper cable from your vehicle's ground.

Disconnect the other end of the jumper cable from the booster battery

terminal.

Disconnect the jumper cable from your vehicle's battery

terminal.

Disconnect the other end of the jumper cable from the booster battery

terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

What to Do After the Engine Starts

The Vehicle Stability Assist

(VSA

) system, Vehicle

Stability Assist

(VSA

)

OFF

, Adaptive Cruise Control

(ACC) with Low Speed Follow

, safety support and low

tire pressure/ TPMS

indicators may come on in amber

along with a message in the gauge when you set the
power mode to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

* Not available on all models

780

Han

lin
g the U

expected

Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the

(

position.

Set the parking brake.

Set the power mode to VEHICLE OFF.

Remove the built-in key from the keyless
remote.

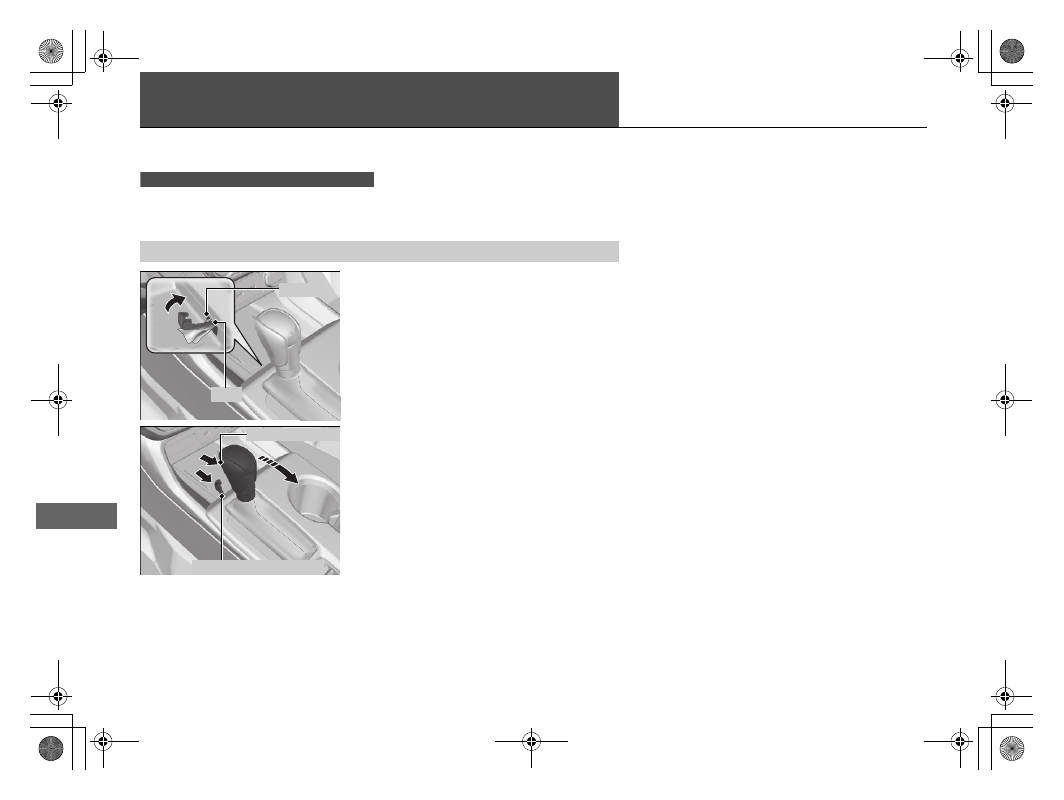

Wrap a cloth around the tip of the built-in
key. Put it into the shift lock release slot as
shown in the image, and remove the cover.

Insert the key into the shift lock release slot.

While pushing the key in, press the shift
lever release button, and place the shift
lever into

(

The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.

■

Releasing the Lock

Continuously variable transmission models

Slot

Cover

Release Button

Shift Lock Release Slot

781

Continued

Han

lin
g the U

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:

•

The temperature gauge is at the

mark or the engine suddenly loses power.

•

The

Engine temperature too hot. Do not drive. Allow engine to cool.

message appears on the driver information interface.

•

Steam or spray comes out of the engine compartment.

■

First thing to do

Immediately park the vehicle in a safe place.

Turn off all accessories and turn on the hazard warning lights.

No steam or spray present:

Keep the engine running and open the hood.

Steam or spray is present:

Turn off the engine and wait until it subsides.

Then, open the hood.

Models with Auto Idle Stop

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge at
the

mark may damage the engine.

NOTICE

Continuing to drive with the

Engine temperature

too hot. Do not drive. Allow engine to cool.

message on the driver information interface may
damage the engine.

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

Models with B-type meter

All models

Models with B-type meter

All models

Overheating

How to Handle Overheating

782

Han

lin
g the U

expected

■

Next thing to do

Check that the cooling fan is operating and
stop the engine once the

Engine

temperature too hot. Do not drive.
Allow engine to cool.

message on the

driver information interface disappears.

If the cooling fan is not operating,
immediately stop the engine.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

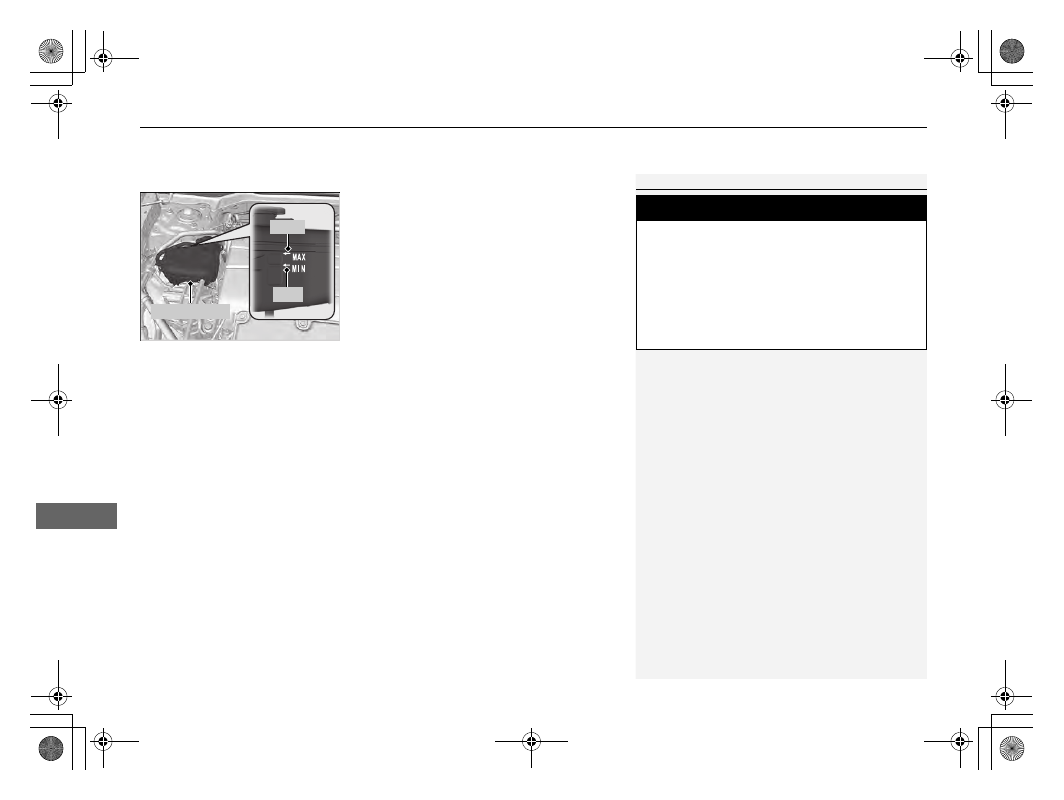

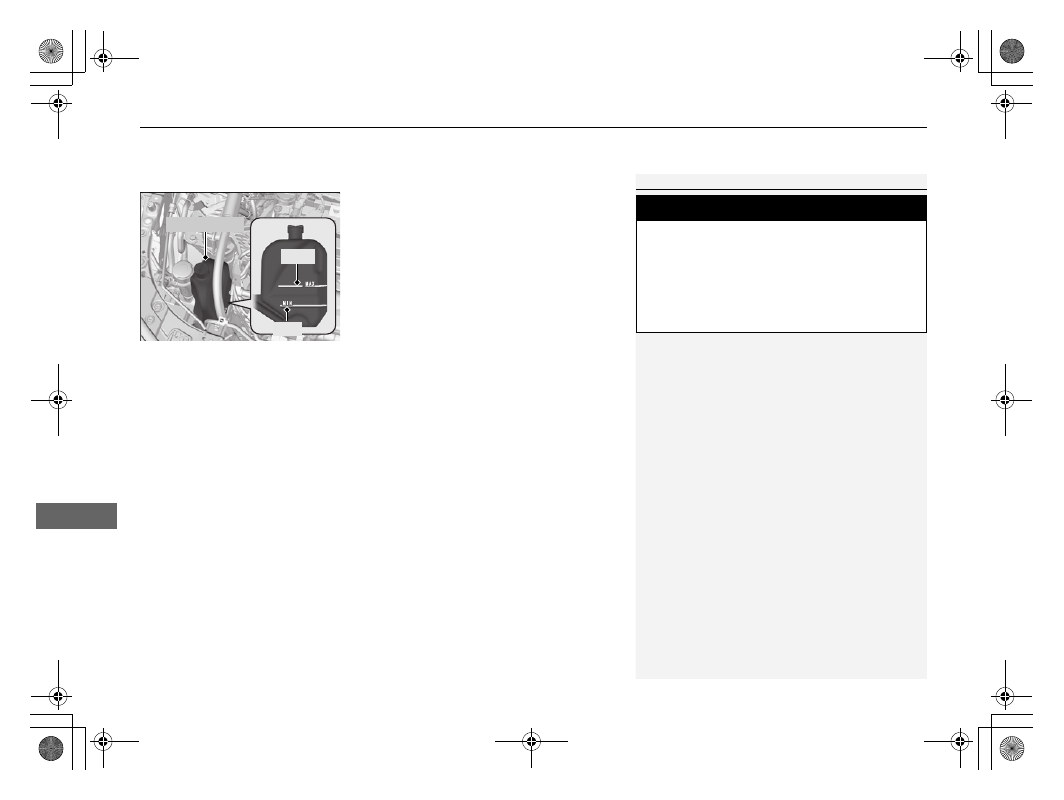

If the coolant level in the reserve tank is
low, add coolant until it reaches the

MAX

mark.

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the driver information
interface.
If the

Engine temperature too hot. Do not drive. Allow engine to cool.

message does not appear, resume driving. If it appears again, contact a dealer for
repairs.

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

MAX

Reserve Tank

MIN

783

Overheating

How to Handle Overheating

Continued

Han

lin
g the U

expected

How to Handle Overheating

Overheating symptoms are as follows:

•

The temperature gauge is at the

mark or the engine suddenly loses power.

•

The

Engine temperature too hot. Do not drive. Allow engine to cool.

message appears on the driver information interface.

•

Steam or spray comes out of the engine compartment.

■

First thing to do

Immediately park the vehicle in a safe place.

Turn off all accessories and turn on the hazard warning lights.

No steam or spray present:

Keep the engine running and open the hood.

Steam or spray is present:

Turn off the engine and wait until it subsides.

Then, open the hood.

Models without Auto Idle Stop

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge at
the

mark may damage the engine.

NOTICE

Continuing to drive with the

Engine temperature

too hot. Do not drive. Allow engine to cool.

message on the driver information interface may
damage the engine.

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

Overheating

How to Handle Overheating

784

Han

lin
g the U

expected

■

Next thing to do

Check that the cooling fan is operating and
stop the engine once the temperature
gauge goes down.

If the cooling fan is not operating,
immediately stop the engine.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

If the coolant level in the reserve tank is
low, add coolant until it reaches the

MAX

mark.

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
reserve tank cap with a heavy cloth and
open the cap. If necessary, add coolant
up to the base of the filler neck, and put
the cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge has gone down, resume driving. If it has not gone down,
contact a dealer for repairs.

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

WARNING

Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the reserve tank
cap.

MAX

Reserve Tank

MIN

785

Han

lin
g the U

expected

Indicator Coming On/Blinking

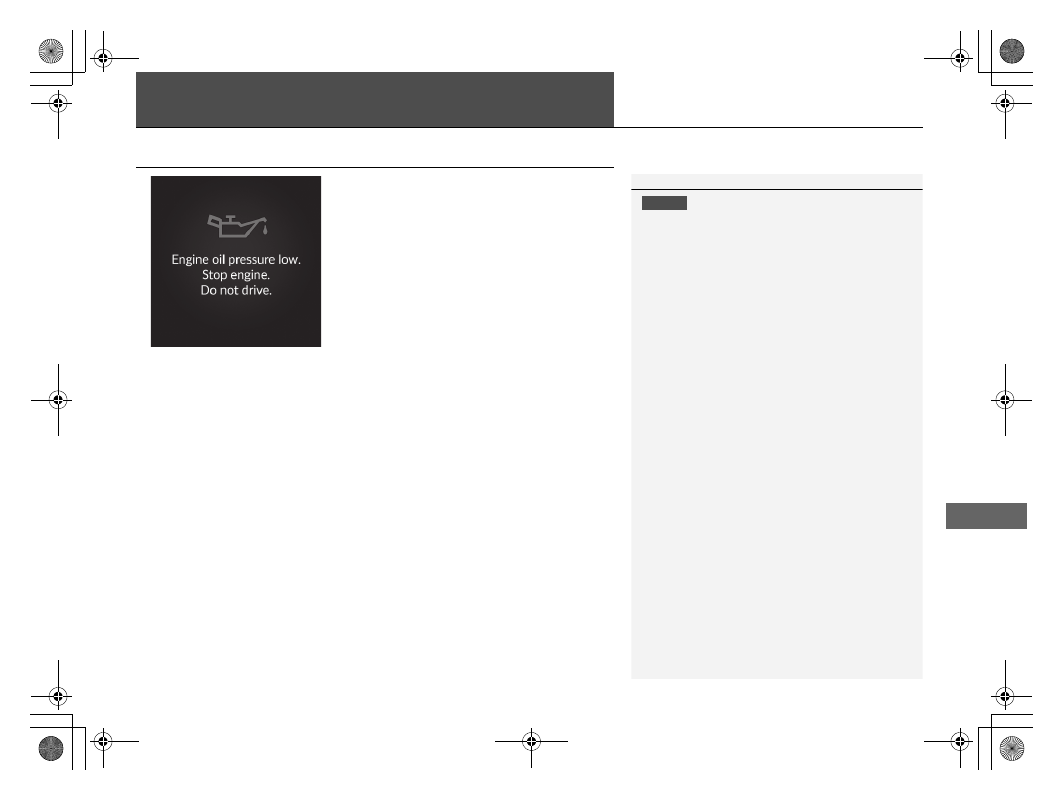

If the Engine oil pressure low Warning Appears

■

Reasons for the warning to appear

Appears when the engine oil pressure is low.

■

What to do as soon as the warning
appears

Immediately park the vehicle on level
ground in a safe place.

If necessary, turn the hazard warning lights
on.

■

What to do after parking the vehicle

Stop the engine and let it sit for
approximately three minutes.

Open the hood and check the oil level.

Add oil as necessary.

Oil Check

P. 704

Start the engine and check the

Engine oil

pressure low

warning.

The warning disappears: Start driving
again.

The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.

If the Engine

oil pressure low

Warning Appears

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

786

Indicator Coming On/Blinking

If the Charging System Indicator Comes On

Han

lin
g the U

expected

If the Charging System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when there is a problem with the charging system.

■

What to do when the indicator comes on

Stop in a safe place and have your vehicle checked by a dealer
immediately.

If the Malfunction Indicator Lamp Comes On or Blinks

■

Reasons for the indicator lamp to come on or blink

•

Comes on when there is a problem with the engine emissions control
system.

•

Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

787

Indicator Coming On/Blinking

If the Brake System Indicator (Red) Comes On or Blinks

Han

lin
g the U

expected

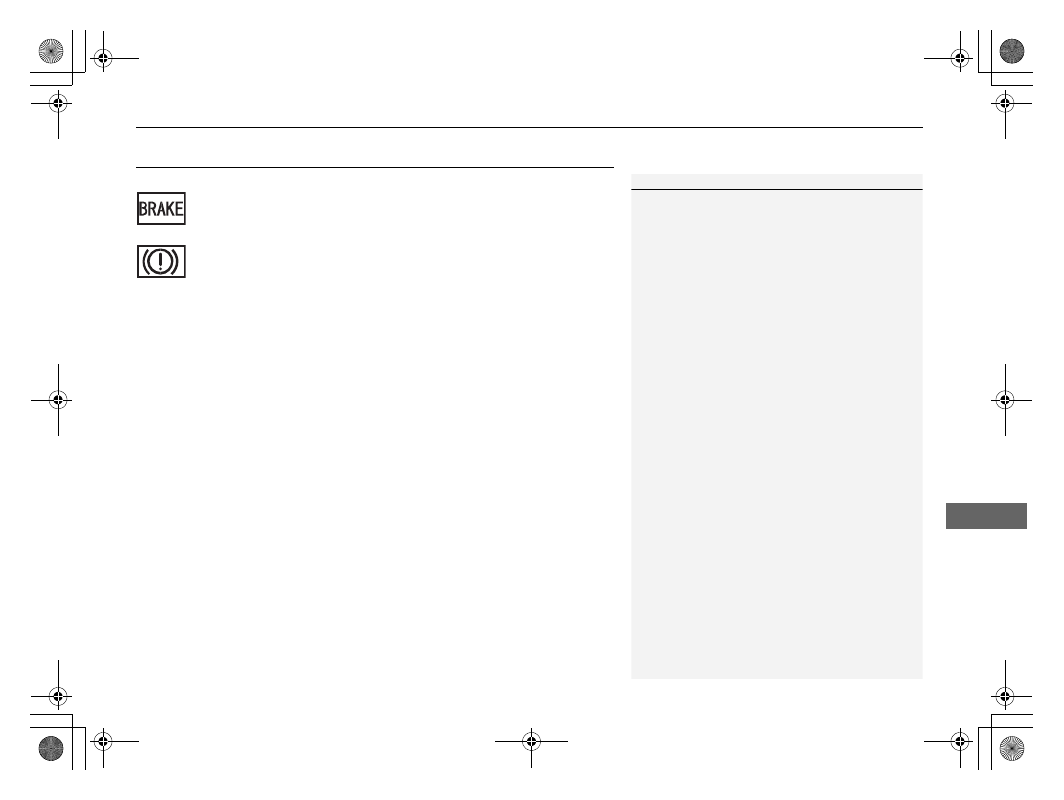

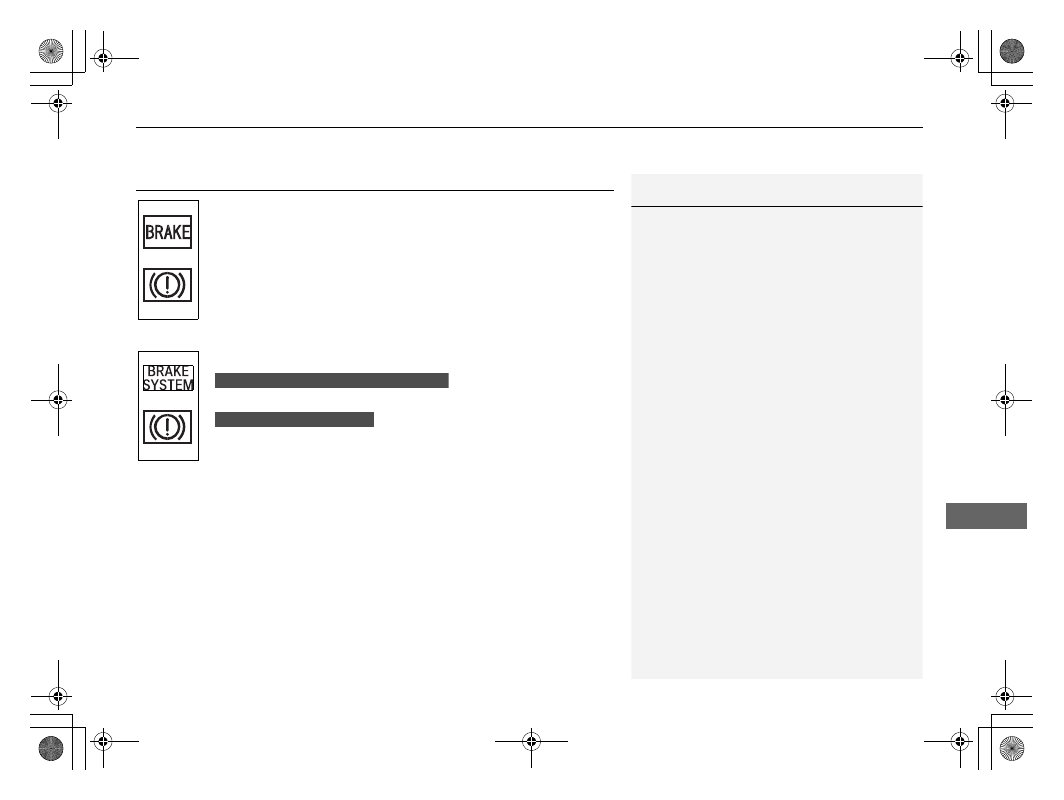

If the Brake System Indicator (Red) Comes On or Blinks

■

Reasons for the indicator to come on

•

The brake fluid is low.

•

There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.

•

If normal, check the brake fluid level the next time you stop.

•

If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.

■

Reasons for the indicator to blink

There is a problem with the electric parking brake system.

■

What to do when the indicator blinks

Avoid using the parking brake and have your vehicle checked by a dealer
immediately.

If the Brake System Indicator (Red) Comes On or Blinks

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.

If the brake system indicator (red) and

ABS

indicator

come on simultaneously, the electronic brake
distribution system is not working. This can result in
vehicle instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work.
Avoid using the parking brake and have your vehicle
checked by a dealer immediately.

If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On

P. 789

U.S.

Canada

(Red)

788

Indicator Coming On/Blinking

If the Electric Power Steering (EPS) System Indicator Comes On

Han

lin
g the U

expected

If the Electric Power Steering (EPS) System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when there is a problem with the EPS system.

■

What to do when the indicator comes on

•

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

•

Do not drive

displays on the driver information interface,

immediately stop in a safe place and contact a dealer.

789

Indicator Coming On/Blinking

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On

Han

lin
g the U

expected

If the Brake System Indicator (Red) Comes On or Blinks at the
Same Time When the Brake System Indicator (Amber) Comes On

■

If the brake system indicator (red) comes on or blinks at the

same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically.

Parking Brake

P. 646

•

If the brake system indicator (red) continuously comes on or blinks at

the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

To prevent the vehicle from moving.

Put the transmission into

(

Put the transmission into

(

•

If only the brake system indicator (red) is turned off, avoid using the

parking brake and have your vehicle checked by a dealer immediately.

If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.

U.S.

Canada

(Red)

U.S.

Canada

(Amber)

Continuously variable transmission models

Manual transmission models

790

Indicator Coming On/Blinking

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

lin
g the U

expected

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire

is installed, the indicator will either come on or

it will first blink for about one minute, then stay on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

Calibrate the TPMS after the tire pressure is adjusted.

TPMS Calibration

P. 529

If the compact spare tire

causes the indicator to come on, change the

tire to a regular tire. The indicator goes off after calibrating the TPMS.

■

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire

causes the indicator to first blink, and then stay on, change

the tire to a regular tire. The indicator goes off after calibrating the
TPMS.

TPMS Calibration

P. 529

U.S. models

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

* Not available on all models

791

Continued

Han

lin
g the U

expected

Fuses

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any applicable fuse is blown.

Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.

■

Engine Compartment Fuse Box

Fuse Box

Tab

792

Fuses

Fuse Locations

Han

lin
g the U

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

BATTERY

125 A

—

40 A

—

40 A

F/BOX OPTION

60 A

—

40 A

F/BOX OPTION2

40 A

DC/DC2

(30 A)

F/BOX MAIN

60 A

—

40 A

—

40 A

—

40 A

RR DEFROSTER

40 A

—

40 A

HTR MTR

40 A

—

40 A

—

30 A

ABS/VSA MTR

40 A

DC/DC

(30 A)

—

30 A

IG MAIN

30 A

—

30 A

R/M2

30 A

ST MAGNETIC SW

30 A

WIPER

30 A

EPS

70 A

R/M1

RFC

30 A

50 A

ABS/VSA FSR

40 A

MAIN FAN

R/M1

30 A

F/BOX MAIN2

40 A

SUB FAN

—

30 A

—

IG MAIN2

30 A

—

ACTIVE EXHAUST VALVE

—

7.5 A

EVP

(30 A)

AUDIO SUB

(7.5 A)

—

H/STRG

(10 A)

—

FR FOG

(10 A)

MG CLUTCH

10 A

(10 A)

WASHER

15 A

HORN

10 A

BACK UP

15 A

AUDIO

(15 A)

Circuit Protected

Amps

*1:Models with Auto Idle Stop
*2:Models without Auto Idle Stop

—

RFC RLY CL+

—

7.5 A

DBW

15 A

EOP

(20 A)

BACKUP FI-ECU

10 A

IGP

15 A

TCU

(15 A)

LCM L

(15 A)

INJ

—

(15 A)

—

STOP

10 A

LCM R

(15 A)

IG COIL

15 A

—

HAZARD

15 A

AUDIO SUB VST

(7.5 A)

—

AUDIO VST MAIN

(30 A)

BACKUP2

—

(30 A)

—

VBACT

(10 A)

IGPS [LAF]

10 A

Circuit Protected

Amps

* Not available on all models

793

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

*1:Models with Auto Idle Stop
*2:Models without Auto Idle Stop

Circuit Protected

Amps

IG1 MON2

7.5 A

(7.5 A)

—

BACKUP2

(30 A)

* Not available on all models

794

Fuses

Fuse Locations

Han

lin
g the U

expected

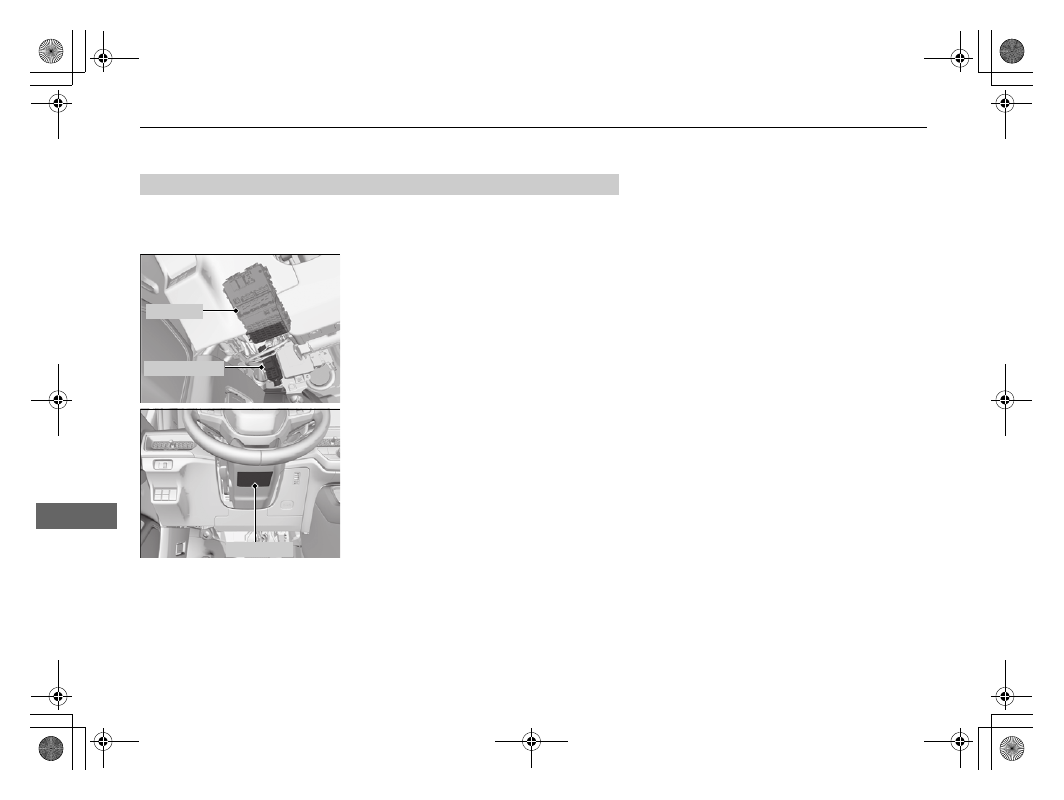

Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.

■

Interior Fuse Box

Fuse Box

Sub Fuse Box

Fuse Label

* Not available on all models

795

Fuses

Fuse Locations

Han

lin
g the U

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

P/W DR

20 A

P/W AS

20 A

P/W RR R

20 A

P/W RR L

20 A

OPTION

10 A

SRS

10 A

T/G MTR / TRUNK ACT

10 A

—

FR ACC SOCKET

20 A

DOOR LOCK

20 A

METER

10 A

OPTION3 (ST CUT)

10 A

OPTION2 (RR WIP)

(10 A)

OPTION6 (VB SOL)

10 A

DR DOOR UNLOCK

(10 A)

SUNROOF

(20 A)

SBW1

(10 A)

—

RR FOG

(10 A)

CARGO ACC SOCKET

(20 A)

SMART

10 A

DR DOOR LOCK

(10 A)

SBW2

(7.5 A)


10 A

SRS

10 A

ACG / D/V / ST CUT RLY

20 A

OPTION5

10 A

FUEL PUMP

15 A

L SIDE DOOR UNLOCK

10 A

R SIDE DOOR UNLOCK

10 A

—

OPTION3 (SUNSHADE)

(20 A)

IGA2

(15 A)

—

R SIDE DOOR LOCK

10 A

P/SEAT REC / RR HI

(20 A)

P/SEAT SLIDE / FR HI

(20 A)

—

BACK LT

—

(10 A)

A/C

10 A

DRL

10 A

ACC

10 A

ACC KEY LOCK

10 A

L SIDE DOOR LOCK

10 A

H/SEAT

20 A

AS P/SEAT REC

(20 A)

P/LUMBER DR

(10 A)

P/LUMBER AS

(10 A)

Circuit Protected

Amps

*1:Models with Auto Idle Stop
*2:Models without Auto Idle Stop

RR H/SEAT

(20 A)

AS P/SEAT SLI

(20 A)

OPTION1 / FUEL LID

10 A

AUDIO AMP

(30 A)

ADS

(30 A)

Circuit Protected

Amps

BACKUP2 MAIN

(10 A)

AUDIO SUB VST

(7.5 A)

ACC VST

(10 A)

VST 1

(10 A)

AUDIO VST

(15 A)

EOP

(20 A)

—

VST 2

(10 A)

Circuit Protected

Amps

Sub Fuse Box

* Not available on all models

796

Fuses

Inspecting and Changing Fuses

Han

lin
g the U

expected

Inspecting and Changing Fuses

Set the power mode to VEHICLE OFF.
Turn headlights and all accessories off.

Remove the fuse box cover.

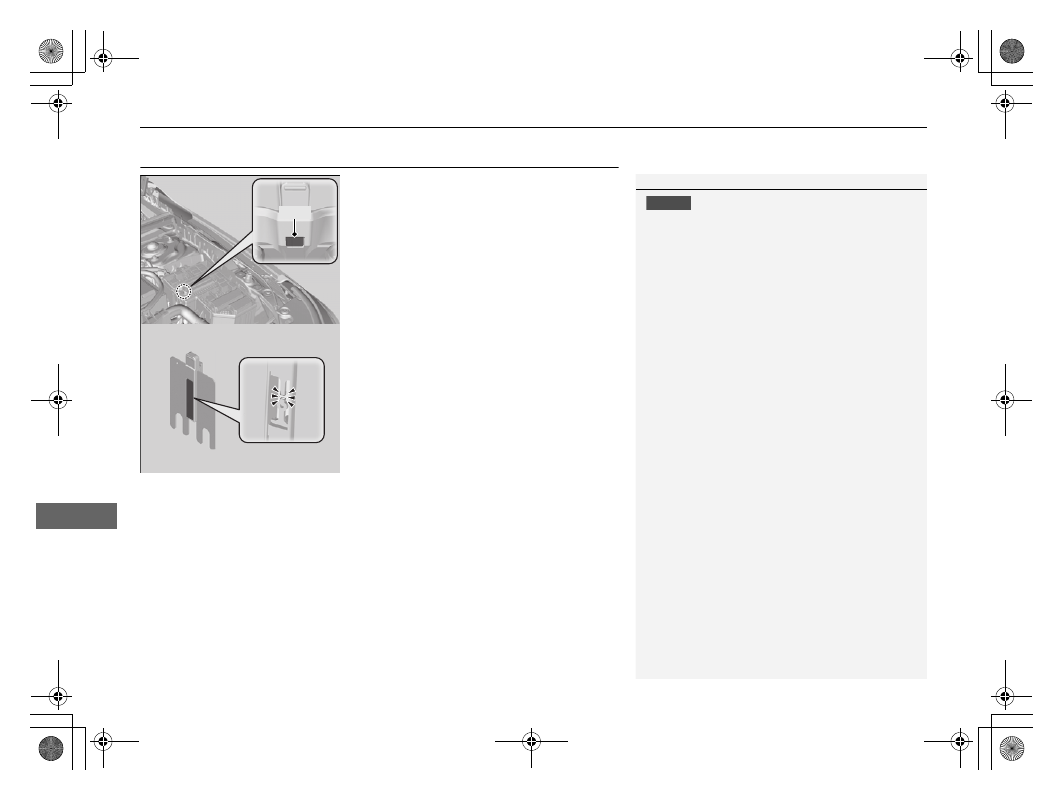

Check the main fuse in the engine
compartment fuse box.

Look at the fuse through the hole.

If the fuse is blown, have it replaced by a
dealer.

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.

Fuse Locations

P. 791

Replace with a fuse of the same specified amperage.

Main Fuse

Hole

797

Fuses

Inspecting and Changing Fuses

Han

lin
g the U

expected

Check the combined fuses in the engine
compartment fuse box.

Look into the space between the fuses.

If the fuse is blown, have it replaced by a
dealer.

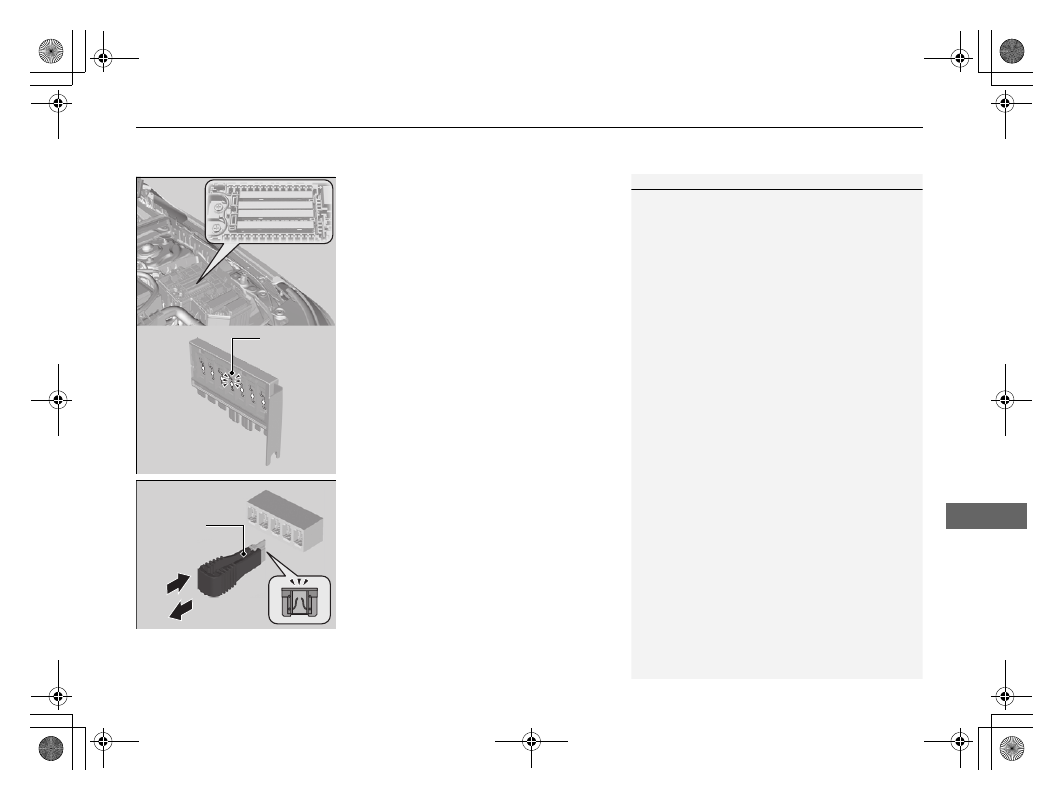

Inspect the small fuses in the engine
compartment and the vehicle interior.

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

Inspecting and Changing Fuses

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined Fuse

Blown Fuse

Fuse Puller

798

Han

lin
g the U

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flatbed equipment

The operator loads your vehicle on the back of a truck.

This is the best way to transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground.

This is an acceptable way to

tow your vehicle.

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment.

Parking Brake

P. 646

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

799

Han

lin
g the U

expected

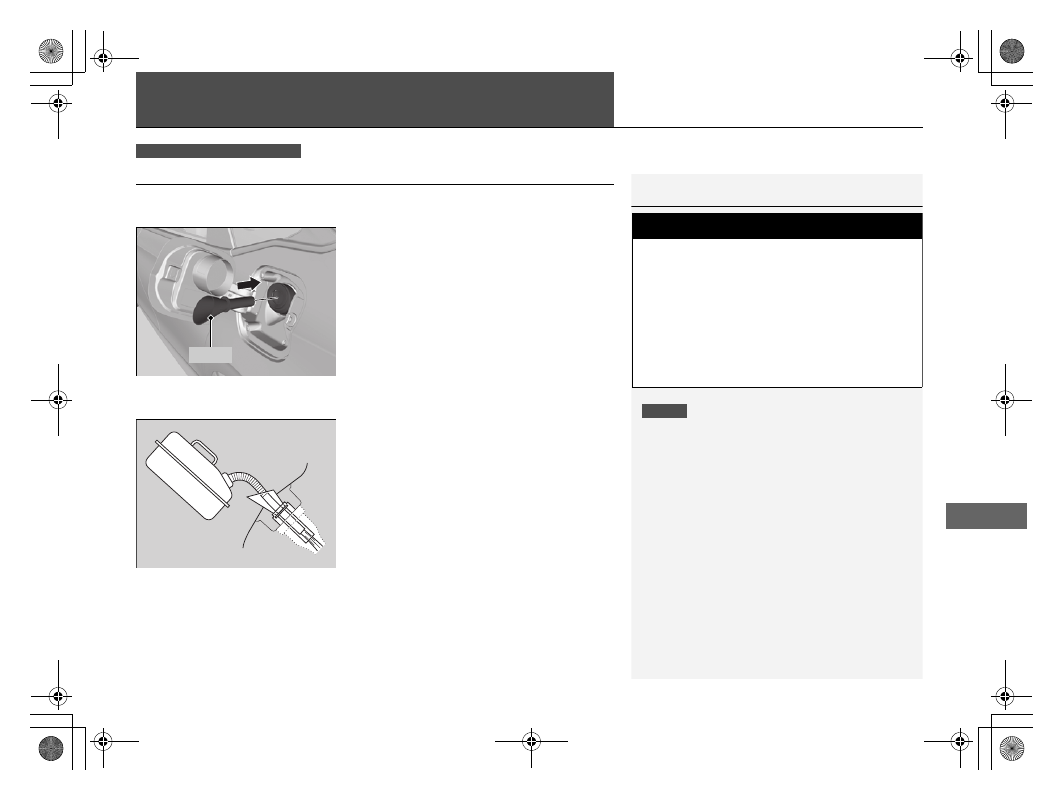

If You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

Open the hatch and remove the cover on
the left side of cargo area.

Pull the release cord toward you.

The release cord unlocks the fuel fill door
when it is pulled.

Open the fuel fill door.

How to Refuel

P. 677

■

What to Do If Unable to Unlock the Fuel Fill Door

What to Do If Unable to Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Release Cord

800

Han

lin
g the U

expected

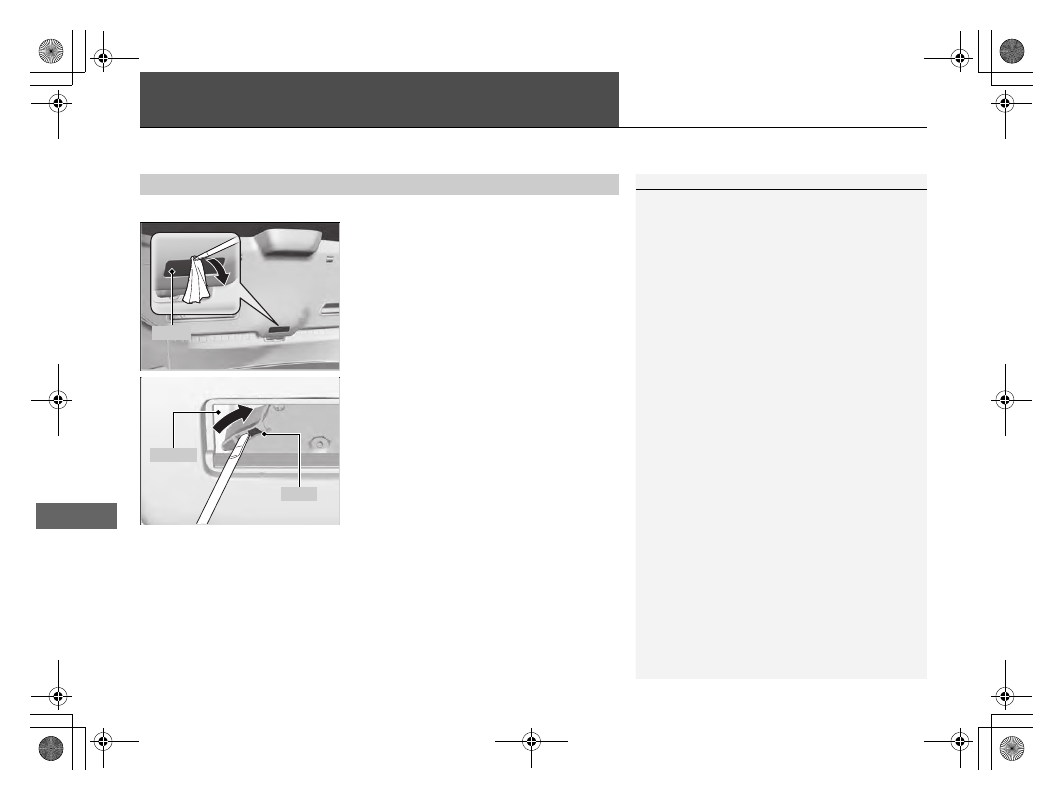

If You Cannot Open the Hatch

If you cannot open the hatch, use the following procedure.

Use a flat-tip screwdriver and remove the
cover on the back of the hatch.

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

To open the hatch, push the hatch while
sliding the lever with the flat-tip screw
driver.

■

What to Do If Unable to Open the Hatch

What to Do If Unable to Open the Hatch

After taking these steps, contact a dealer to have
your vehicle checked.

When you open the hatch from inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.

Cover

Sliding

Lever

801

Han

lin
g the U

expected

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

Turn off the engine.

Open the fuel fill door.

How to Refuel

P. 674

Take the funnel out of the tool case in the
cargo area.

Types of Tools

P. 750

Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.

Make sure that the end of the funnel
goes down along with the filler pipe.

Fill the tank with fuel from the portable fuel
container.

Pour fuel carefully so you do not spill any.

Remove the funnel from the filler neck.

Wipe up any fuel from the funnel before
storing it.

Shut the fuel fill door by hand.

Models with capless fuel filler

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

•

Stop the engine, and keep heat, sparks,
and flames away.

•

Handle fuel only outdoors.

•

Wipe up spills immediately.

Funnel

802

This page intentionally left blank.

803

Information

This chapter includes your vehicle's specifications, locations of identification numbers, and other

information required by regulation.

Specifications

.................................... 804

Identification Numbers

Vehicle Identification Number (VIN),

Engine Number, and Transmission
Number ......................................... 806

Devices that Emit Radio Waves

....... 808

Reporting Safety Defects

................. 810

Emissions Testing

Testing of Readiness Codes.............. 811

Warranty Coverages

........................ 814

Authorized Manuals

......................... 817

Customer Service Information

......... 818

Open Source License

........................ 819

804

Info

ation

Specifications

■

Vehicle Specifications

*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop

■

Air Conditioning

*1: 1.5 L engine models
*2: 2.0 L engine models

Model

Civic

*1 *2

Civic TYPE R

No. of Passengers:
Front

Rear

*1 *2

Total

*1 *2

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver's
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver's
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver's
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

15.3 - 17.1 oz (435 - 485 g)

Lubricant Type

RB100EV-01(POE)

ND-OIL 14 (POE)

Quantity

6.41 - 7.32 cu-in (105 - 120 cm

)

6.71 - 7.5 cu-in (110 - 123 cm

)

■

Engine Specifications

*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop

■

Fuel

*1: Models with auto idle stop
*2: Models without auto idle stop

■

Washer Fluid

*1: Models with auto idle stop
*2: Models without auto idle stop

Displacement

91.38 cu-in (1,498 cm

)

121.76 cu-in (1,996 cm

)

*2*3

Spark Plugs

NGK

DILKAR8P8SY

DILKAR7H11GS

DILKAR7G11GS

ILZKAR8J8SY

DENSO

DXE22HQR-D11S

Type

Unleaded gasoline, pump octane number
87 or higher

Unleaded premium gasoline, pump octane
number 91 or higher

Fuel Tank Capacity

12.39 US gal (46.9 L)

12.4 US gal (47.0 L)

Tank Capacity

U.S.:

1.6 US qt (1.5 L)

Canada:

1.6 US qt (1.5 L)

4.8 US qt (4.5 L)

■

Light Bulbs

Headlights (Low Beam)

LED

Headlights (High Beam)

LED

Fog Lights

LED

Parking/Daytime Running Lights

LED

Front Side Marker Lights

LED

Front Turn Signal Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Brake Lights

LED

Rear Turn Signal Lights

21 W (Amber)

Rear Side Marker Lights

LED

Back-Up Lights

16 W

Taillights

LED

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Map Lights

LED

Ceiling Light

LED

Vanity Mirror Lights

2 W

Center Console Light

LED

Glove Box Light

LED

Cargo Area Light

5 W

Foot Lights

LED

Ambient Lights

LED

* Not available on all models

805

Specifications

Info

ation

■

Brake/Clutch

Fluid

■

Continuously Variable Transmission

Fluid

*1: 1.5 L engine models
*2: 2.0 L engine models

■

Manual Transmission Fluid

*1: Models with auto idle stop
*2: Models without auto idle stop

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2

Capacity

Change

3.9 US qt (3.7 L)

2.9 US qt (2.7 L)

Specified

Honda MTF

Capacity

Change

2.0 US qt (1.9 L)

2.32 US qt (2.2 L)

■

Engine Oil

*1: 1.5 L engine models
*2: 2.0 L engine models with auto idle stop
*3: 2.0 L engine models without auto idle stop

■

Engine Coolant

*1: CVT models with1.5 L engine
*2: MT models with1.5 L engine
*3: 2.0 L engine models with auto idle stop
*4: 2.0 L engine models without auto idle stop

Recommended

Honda Genuine Motor Oil 0W-20

*1*2*3

API Premium-grade 0W-20 detergent
oil

*1*2

API service SN or higher grade 0W-20

Capacity

Change

3.4 US qt (3.2 L)

4.2 US qt (4.0 L)

5.28 US qt (5.0 L)

Change
including
filter

3.7 US qt (3.5 L)

4.4 US qt (4.2 L)

5.71 US qt (5.4 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.51 US gal (5.72 L)

1.48 US gal (5.59 L)

1.56 US gal (5.90 L)

(change including the remaining
0.17 US gal (0.65 L) in the reserve tank)
1.76 US gal (6.65 L)

(change including the remaining 0.20 US gal
(0.75 L) in the reserve tank)

■

Tire

*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: Models with 18 inch wheel
*4: Models with 19 inch wheel

Regular

Size

215/55R16 93H

215/50R17 91H

235/40R18 91W

265/30ZR19 93Y

Pressure
psi (kPa [kgf/cm

])

Front
32 (220 [2.2])

*1 *2

33 (230 [2.3])

35 (240 [2.4])

Rear
32 (220 [2.2])

*1 *2 *3

33 (230 [2.3])

Compact
Spare

Size

T125/80D16 97M

*1 *2

T125/85D16 99M

Pressure
psi (kPa [kgf/cm

])

60 (420 [4.2])

Wheel Size

Regular

16 x 7J

17 x 7J

18 x 8J

19 x 9 1/2J

Compact Spare

16 x 4T

* Not available on all models

806

Info

ation

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle's VIN, engine number, and transmission number are
shown as follows.

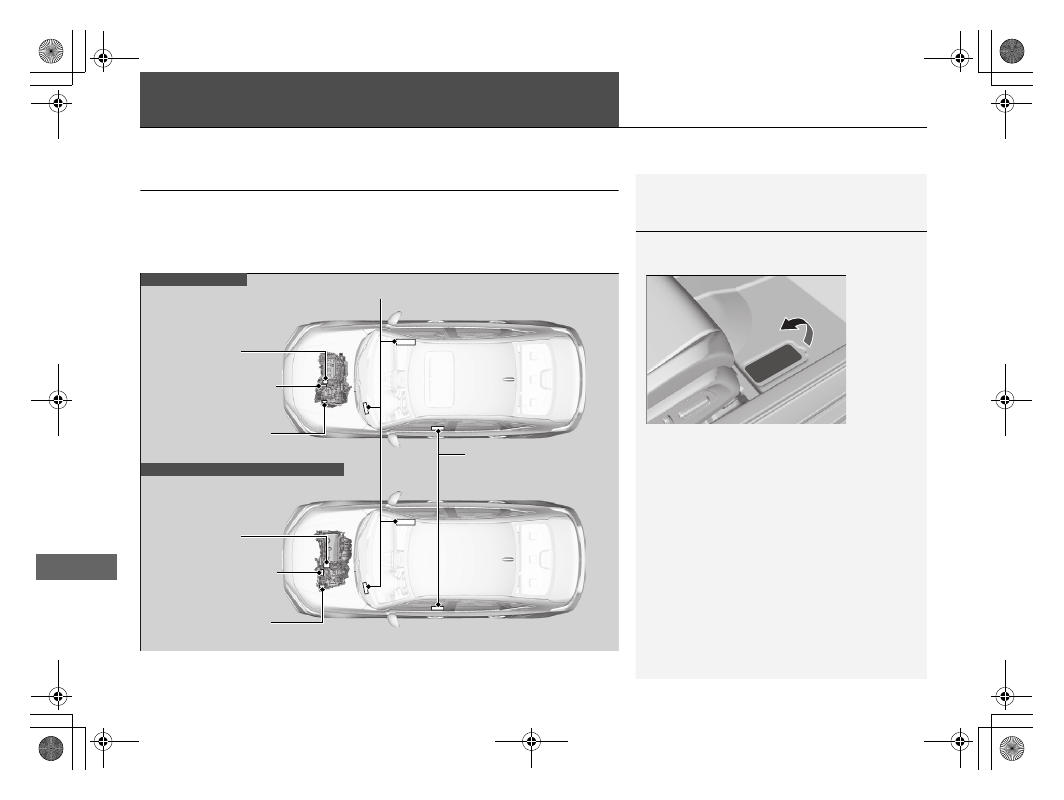

Vehicle Identification Number (VIN), Engine Number, and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Vehicle Identification Number

Engine Number

Certification Label/
Vehicle Identification
Number

2.0 L engine models with Auto Idle Stop

1.5 L engine models

Continuously Variable
Transmission Number

Engine Number

Continuously Variable
Transmission Number

Manual Transmission
Number

807

Identification Numbers

Vehicle Identification Number (VIN), Engine Number, and Transmission Number

Info

ation

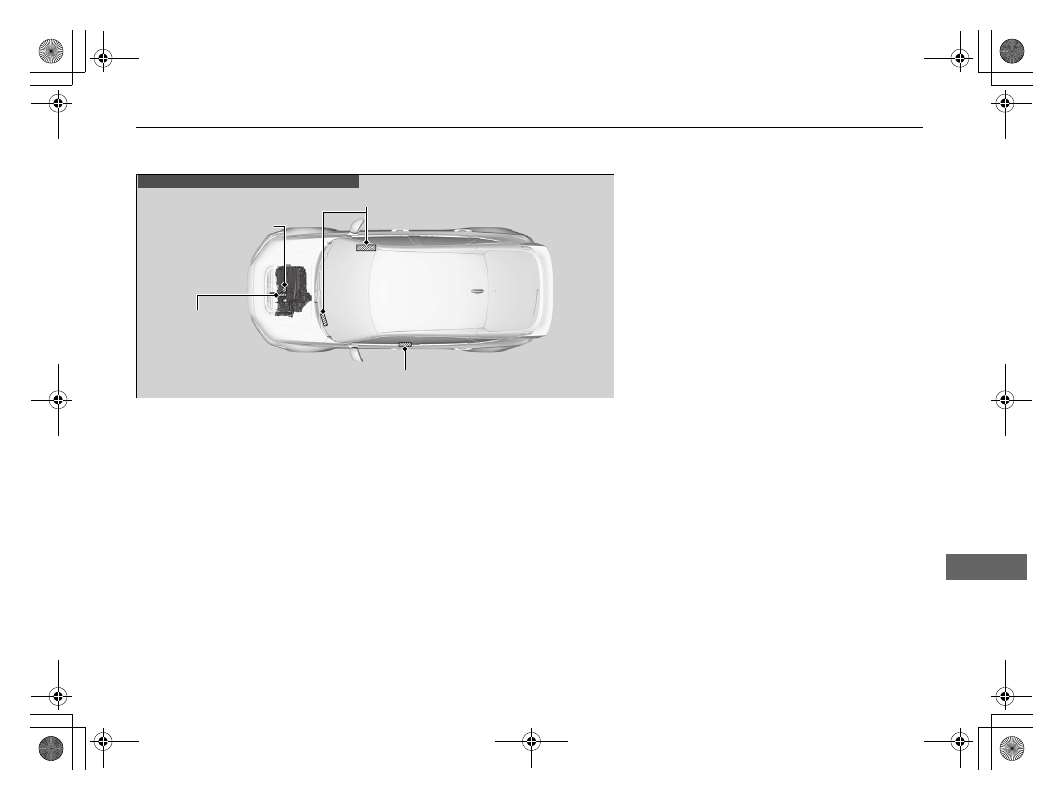

2.0 L engine models without Auto Idle Stop

Engine Number

Vehicle Identification Number

Manual
Transmission
Number

Certification Label/Vehicle Identification Number

808

Info

ation

Devices that Emit Radio Waves

Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

809

Devices that Emit Radio Waves

Info

ation

Wireless Charger

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Any changes or modifications (including the antennas) to this device that are not expressly approved by the manufacturer may void the
user's authority to operate the equipment.
This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna
must not be co-located or operating in conjunction with any other antenna or transmitter.

* Not available on all models

810

Info

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to

http://www.safercar.gov

; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,

Washington, DC 20590. You can also obtain other information about motor vehicle safety from

http://www.safercar.gov

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada's Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to

http://www.tc.gc.ca/roadsafety

811

Continued

Info

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle has readiness code as part of the onboard self diagnostic system.
Some states use these codes for testing to verify whether your vehicle's emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.

To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

Fill the gas tank to approximately 3/4 full.

Park the vehicle and leave the engine off for 6 hours or more.

Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).

Start the engine without touching the accelerator pedal, and let it idle for
20 seconds.

Keep the vehicle in

(

(continuously variable transmission) or

(

(manual

transmission). Increase the engine speed to 2,000 rpm, and hold it there for
about 3 minutes.

Let the engine idle with your foot off the accelerator for 20 seconds.

Testing of Readiness Codes

The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see a dealer.

1.5 L engine models

812

Emissions Testing

Testing of Readiness Codes

Info

ation

Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in

(

(continuously variable transmission) or 5th (manual). Do not use cruise

Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.

Park the vehicle and leave the engine off for 30 minutes.

Fill the gas tank to approximately 3/4 full.

Park the vehicle and leave the engine off for 6 hours or more.

Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).

Start the engine without touching the accelerator pedal, and let it idle for
20 seconds.

Keep the vehicle in

(

(continuously variable transmission) or

(

(manual

transmission). Increase the engine speed to 2,000 rpm, and hold it there for
about 3 minutes.

Let the engine idle with your foot off the accelerator for 20 seconds.

Drive in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.

2.0 L engine models

813

Emissions Testing

Testing of Readiness Codes

Info

ation

Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in

(

(continuously variable transmission) or 5th (manual). Do not use cruise

control. When traffic allows, drive for 90 seconds without moving the
accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do
this for a continuous 90 seconds because of traffic conditions, drive for at least
30 seconds, then repeat it two more times (for a total of 90 seconds). While the
vehicle is traveling in this speed range, shift to 6th gear and then accelerate and
decelerate 5 times, each time making sure you do not exceed 60 mph (97 km/h).

Park the vehicle and let the engine idle for 1 minute without using the
accelerator pedal.

10.

Park the vehicle and leave the engine off for 30 minutes.

814

Info

ation

Warranty Coverages

■

U.S. Owners

Your new vehicle is covered by these warranties:

New Vehicle Limited Warranty –

covers your new vehicle, except for the

emissions control systems and accessories, against defects in materials and
workmanship.

Emissions Control Systems Defects Warranty and Emissions Performance
Warranty –

these two warranties cover your vehicle's emissions control systems.

Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.

Seat Belt Limited Warranty –

a seat belt that fails to function properly is covered

by a limited warranty. Please read your warranty booklet for details.

Rust Perforation Limited Warranty –

all exterior body panels are covered against

rusting from the inside out for the specified time period, regardless of mileage.

Accessory Limited Warranty –

Honda accessories are covered under this

warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.

Replacement Parts Limited Warranty –

covers all Honda replacement parts

against defects in materials and workmanship.

815

Warranty Coverages

Continued

Info

ation

Replacement Battery Limited Warranty –

provides prorated coverage for a

replacement battery purchased from your dealer.

Replacement Muffler Lifetime Limited Warranty –

provides coverage for as

long as the purchaser of the muffler owns the vehicle.

Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle's original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.

■

Statement on Warranty Coverage for Aftermarket and Recycled Parts

The Magnuson-Moss Warranty Act, 15 U.S.C. s.2301 et seq., makes it illegal for
motor vehicle manufacturers to void a motor vehicle warranty or deny warranty
coverage solely because an aftermarket or recycled part has been used to repair the
vehicle or someone other than the authorized service provider performed service on
the vehicle. This provision does not apply to a new motor vehicle purchased solely
for commercial or industrial use.

Under federal law, a manufacturer may deny warranty coverage and charge for
repairs to a vehicle if it is discovered that an aftermarket or recycled part installed on
the vehicle is defective or was installed incorrectly and caused damage to another
part of the vehicle otherwise covered under warranty. The Federal Trade
Commission requires that a manufacturer demonstrate that an aftermarket or
recycled part or service performed by a person other than an authorized service
provider caused damage to another part of the vehicle otherwise covered under
warranty before denying warranty coverage. Additionally, federal law allows a
manufacturer to void a motor vehicle warranty or deny warranty coverage if the
manufacturer provides the article or service to consumers free of charge under the
warranty or the manufacturer has secured a waiver from the Federal Trade
Commission.

816

Warranty Coverages

Info

ation

■

Canadian Owners

Please refer to the warranty manual that came with your vehicle.

■

EPA Contact Information

An owner may obtain further information concerning emission warranties or report
violations of the terms of the emission warranties by contacting:

Director,
Light-Duty Vehicle Center,
U.S. Environmental Protection Agency,
Attention: Warranty Claim
2000 Traverwood Drive,
Ann Arbor, MI 48105;
complianceinfo@epa.gov

817

Info

ation

Authorized Manuals

■

Service Express

For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit

www.techinfo.honda.com

for pricing and options.

■

For U.S. Owners

Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at 1 (800) 782-4356 (credit card orders only), or online at

www.helminc.com

■

For Canadian Owners

Please contact a dealer to order any manuals that you may require.

818

Info

ation

Customer Service Information

Honda dealership personnel are trained professionals able to deal with any problems
you may encounter with your vehicle. If, however, you are faced with a problem that
they cannot resolve to your satisfaction, contact Honda Customer Services.

U.S. Owners

American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop CHI-5
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009

Canadian Owners

Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: Honda_cr@ch.honda.com

In Puerto Rico and the U.S. Virgin
Islands

Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-7546

In Guam

Triple J Autogroup
157 S.Marine Corps Drive
Tamuning, GU 96913
Tel: (671) 648-2277

In Saipan, Commonwealth of the
Northern Mariana Islands

Joeten Motor Company, Inc.
P.O. Box 500680
Saipan, MP 96950
Tel: (670) 234-5562

Customer Service Information

When you call or write, please give us the following
information:

•

Vehicle Identification Number

Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number

P. 806

•

Date of purchase

•

Odometer reading of your vehicle

•

Your name, address, and telephone number

•

A detailed description of the problem

•

Name of the dealer who sold the vehicle to you

819

Info

ation

Open Source License

Meter Open Source License

The software embedded in this product includes open source software. Refer to the
following website for details regarding the open source software.

https://www.nippon-seiki.co.jp/business_ic_meter/

TCU Open Source License

Free/Open Source Software Information
This product contains Free/Open Source Software (FOSS).
The licence information and/or the source code of such FOSS can be found at the
following URL.

https://www.denso.com/global/en/opensource/tcu/honda/

* Not available on all models

Content .. 22 23 24
