Honda Accord Hybrid (2022 year). Manual in english - page 29

463

uu

Honda Sensing

®

u

Low Speed Braking Control

*

Driving

■

Examples of situations where the sonar sensors cannot detect obstacles

•

The sonar sensors are dirty (covered by snow, water, mud, etc.).

•

The vehicle is too hot or cold.

•

The steering wheel is turned sharply when approaching the obstacle at an angle.

■

Examples of other cases where the system may not work correctly

•

The vehicle is tilted due to heavy load in the trunk or rear seats.

•

Bad weather conditions such as heavy rain, fog, snow, sandstorms, etc.

•

The ambient temperature/humidity is too high or low.

•

When going down a very steep slope.

•

When close to other vehicles with sonar sensors or other objects that emit
ultrasonic waves.

■

Situations where the system may activate even without risk of a collision

•

When passing through short or narrow gates.

•

When driving on uneven surfaces, grassy areas, or places with steps.

•

When a sloped pillar or wall is protruding from a high position.

•

When there are obstacles next to the road.

•

When driving toward flags, curtains, tree branches, railroad crossing bars, etc.

•

When driving on flooded roads.

464

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

Adaptive Cruise Control (ACC) with Low Speed
Follow

Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours and, if the detected vehicle comes to a stop, can decelerate
and stop your vehicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with Low Speed Follow slows your vehicle by applying the brakes, your
vehicle’s brake lights will illuminate.

1

Adaptive Cruise Control (ACC) with Low Speed Follow

Important Reminder

As with any system, there are limits to ACC with Low
Speed Follow. Use the brake pedal whenever
necessary, and always keep a safe interval between
your vehicle and other vehicles.

For directions on the proper handling of the radar
sensor, refer to the following page.

2

Radar Sensor

 P. 501

3

WARNING

Improper use of ACC with Low Speed
Follow can lead to a crash.

Use ACC with Low Speed Follow only when
driving on expressways or freeways and in
good road and weather conditions.

3

WARNING

ACC with Low Speed Follow has limited
braking capability and may not stop your
vehicle in time to avoid a collision with a
vehicle that quickly stops in front of you.

Always be prepared to apply the brake
pedal if the conditions require.

When to use

■

Vehicle speed for ACC with Low Speed Follow:

A vehicle is detected ahead

within ACC with Low Speed Follow range

 – ACC with Low Speed Follow

operates at speeds up to 90 mph (145 km/h).

No vehicle is detected within ACC with Low Speed Follow range

 – ACC with

Low Speed Follow operates at the speed of 25 mph (40 km/h) or above.

■

Shift position for ACC with Low Speed Follow: In

(

D

.

The radar sensor is

at the lower part of

the front bumper.

The camera is

located behind

the rearview

mirror.

Continued

465

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

■

How to activate the system

1

Adaptive Cruise Control (ACC) with Low Speed Follow

You can read about handling information for the
camera equipped with this system.

2

Front Sensor Camera

 P. 499

ACC with Low Speed Follow may not work properly
under certain conditions.

2

ACC with Low Speed Follow Conditions
and Limitations

 P. 470

When not using ACC with Low Speed Follow: Turn
off adaptive cruise by pressing the

 button.

Do not use ACC with Low Speed Follow under the
following conditions:

•

On roads with heavy traffic or while driving in
continuous stop and go traffic.

•

On roads with sharp turns.

•

On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC with Low Speed Follow will not apply
the brakes to maintain the set speed.

•

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

How to use

■

Press the

 button on

the steering wheel.

 (white) is on in the

instrument panel.

ACC with Low Speed

Follow is ready to use.

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

466

Driving

When driving at about 25 mph (40 km/h) or above:

Take your foot off the pedal

and press the

SET/–

 button when you reach the desired speed. The moment you release

the button, the set speed is fixed, and ACC with Low Speed Follow begins.

When driving slower than about 25 mph (40 km/h):

If the vehicle is moving

and the brake pedal is not depressed, pressing the button fixes the set speed to
about 25 mph (40 km/h) regardless of current vehicle speed. If the vehicle is
stationary, you can set the vehicle speed even with the brake pedal depressed.

When ACC with Low Speed Follow starts
operating, the vehicle icon, interval bars and set
speed appear on the driver information interface.

When you use ACC with Low Speed Follow,
Straight Driving Assist (a feature of the Electric
Power Steering system) is activated.
By enabling the steering system to
automatically compensate for natural steering
pull, Straight Driving Assist makes it easier for
you to keep your vehicle in a straight line.

■

To Set the Vehicle Speed

1

To Set the Vehicle Speed

You can switch the displayed set speed
measurements on the driver information interface or
audio/information screen between mph and km/h.

2

Speed/Distance Units

 P. 154

2

Customized Features

 P. 357

The Vehicle Stability Assist

TM

 (VSA

®

) system, Vehicle

Stability Assist

TM

 (VSA

®

) OFF, adaptive cruise control

(ACC) with low speed follow, safety support, and low
tire pressure/TPMS indicators may come on in amber
along with a message in the driver information
interface when you set the power mode to ON after
reconnecting the 12-volt battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

On when ACC with

Low Speed Follow

begins

Press and release

SET/−

 Button

 (green) is on.

Set Vehicle Speed

Set Vehicle

Interval

 (green)

Continued

467

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

■

There is a vehicle ahead

ACC with Low Speed Follow monitors if a vehicle ahead of you enters the ACC with
Low Speed Follow range. If a vehicle is detected doing so, the ACC with Low Speed
Follow system maintains or decelerates your vehicle’s set speed in order to keep the
vehicle’s set following interval from the vehicle ahead.

2

To Set or Change Following-Interval

 P. 474

When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.

■

When in Operation

1

When in Operation

If the vehicle ahead of you slows down abruptly, or if
another vehicle cuts in front of you, the beeper
sounds, a message appears on the driver information
interface, and the head-up warning lights

*

 flash.

Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Head-up warning

lights

*

Beep

ACC with Low Speed Follow Range: 394 ft. (120 m)

A vehicle icon appears on the

driver information interface

* Not available on all models

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

468

Driving

■

There is no vehicle ahead

Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC with Low Speed Follow
accelerates your vehicle to the set speed, and
then maintains it.

■

When you depress the accelerator pedal

You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alert even if a vehicle is in the ACC with Low Speed Follow range.
ACC with Low Speed Follow stays on unless you cancel it. Once you release the
accelerator pedal, the system resumes an appropriate speed for keeping the
following interval while a vehicle ahead is within the ACC with Low Speed Follow
range.

1

When in Operation

Even if the interval between your vehicle and the
vehicle detected ahead is short, ACC with Low Speed
Follow may start accelerating your vehicle under the
following circumstances:

•

The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.

•

A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.

You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC with
Low Speed Follow detecting range. A vehicle detect
beep on and off can be selected.

2

Customized Features

 P. 357

Limitations

You may need to use the brake to maintain a safe
interval when using ACC with Low Speed Follow.
Additionally, ACC with Low Speed Follow may not
work properly under certain conditions.

2

ACC with Low Speed Follow Conditions
and Limitations

 P. 470

A vehicle icon with dotted-line

contour appears on the driver

information interface

Continued

469

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

■

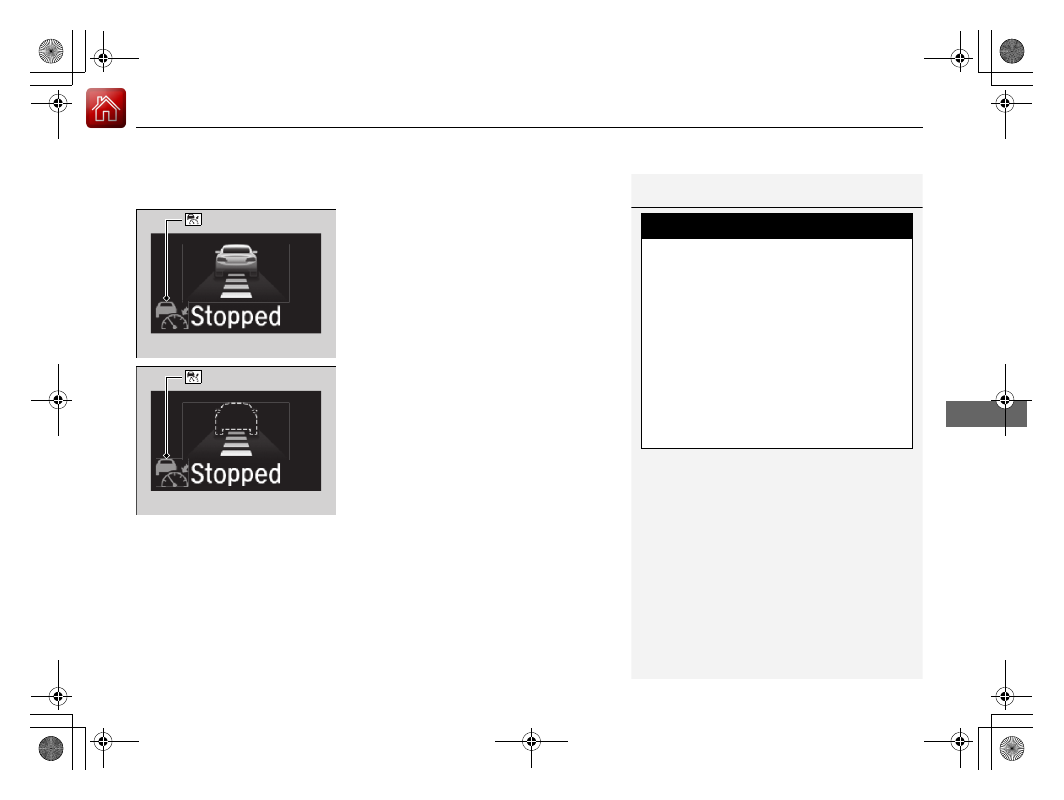

A vehicle detected ahead is within ACC with Low Speed Follow range and
slows to a stop

Your vehicle also stops, automatically. The

Stopped

 message appears on the driver

information interface.
When the vehicle ahead of you starts again,
the vehicle icon on the driver information
interface blinks. If you press the

RES/+

 or

SET/–

 button, or depress the accelerator

pedal, ACC with Low Speed Follow operates
again within the prior set speed.
If no vehicle is ahead of you before you
resume driving, depressing the accelerator
pedal will resume operation of ACC with Low
Speed Follow within the prior set speed.

1

A vehicle detected ahead is within ACC with Low Speed Follow
range and slows to a stop

3

WARNING

Exiting a vehicle that has been stopped
while the ACC with Low Speed Follow
system is operating can result in the
vehicle moving without operator
control.

A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.

Never exit a vehicle when the vehicle is
stopped by ACC with Low Speed Follow.

 (green)

 (green)

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

470

Driving

The system may automatically shut off under certain conditions. Some examples of
these conditions are listed below. Other conditions may reduce some of the ACC
with Low Speed Follow functions.

2

Front Sensor Camera

 P. 499

2

Radar Sensor

 P. 501

■

Environmental conditions

•

Driving in bad weather (rain, fog, snow, etc.).

■

Roadway conditions

•

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).

■

Vehicle conditions

•

The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.

•

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, etc.).

•

The camera temperature gets too high.

•

The parking brake is applied.

•

The radar sensor cover is dirty.

•

The vehicle is tilted due to a heavy load or suspension modifications.

•

Tire chains are installed.

■

ACC with Low Speed Follow Conditions and Limitations

1

ACC with Low Speed Follow Conditions and Limitations

If you need the radar sensor to be repaired, or
removed, or the radar sensor cover is strongly
impacted, turn off the system by pressing the



button and take your vehicle to a dealer.

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

471

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Continued

Driving

■

Detection limitations

•

A vehicle suddenly crosses in front of you.

•

The interval between your vehicle and the vehicle ahead of you is too short.

•

A vehicle cuts in front of you at a slow speed, and it brakes suddenly.

•

You accelerate rapidly and approach the vehicle ahead of you at high speed.

•

The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.

•

There are animals in front of your vehicle.

•

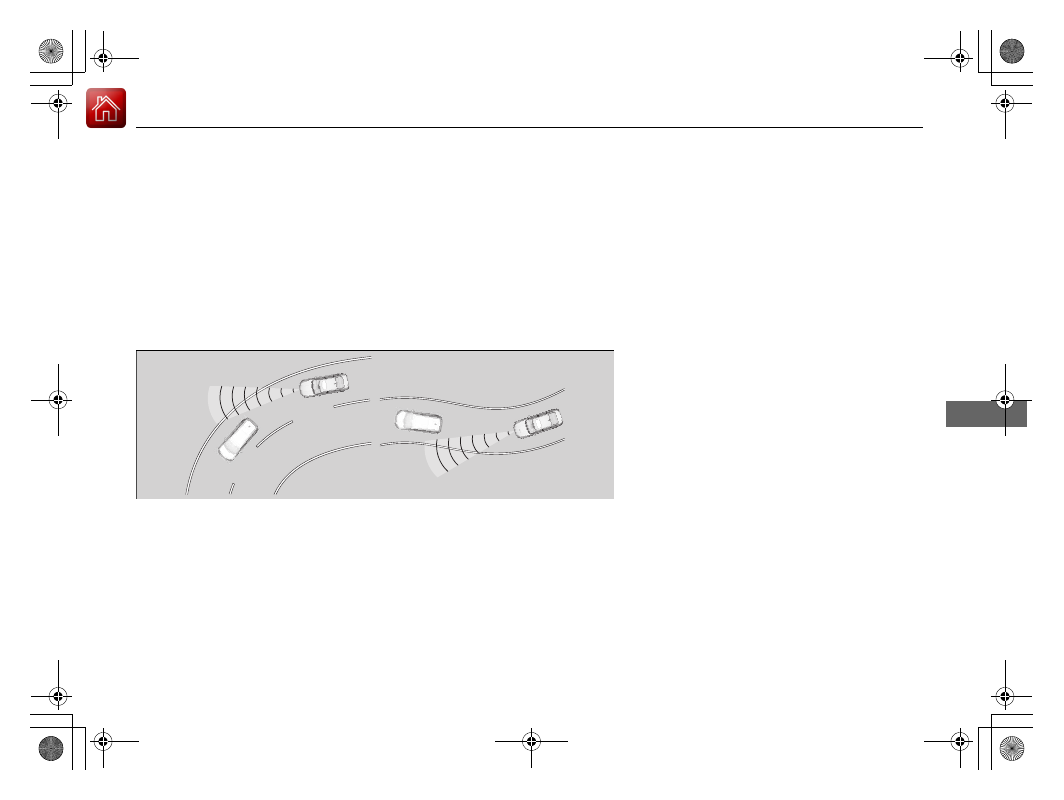

You drive on a curved or winding or undulating road that makes it difficult for the
sensor to properly detect a vehicle in front of you.

•

The speed difference between your vehicle and a vehicle in front of you is
significantly large.

•

An oncoming vehicle suddenly comes in front of you.

•

Your vehicle abruptly crosses over in front of an oncoming vehicle.

472

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

•

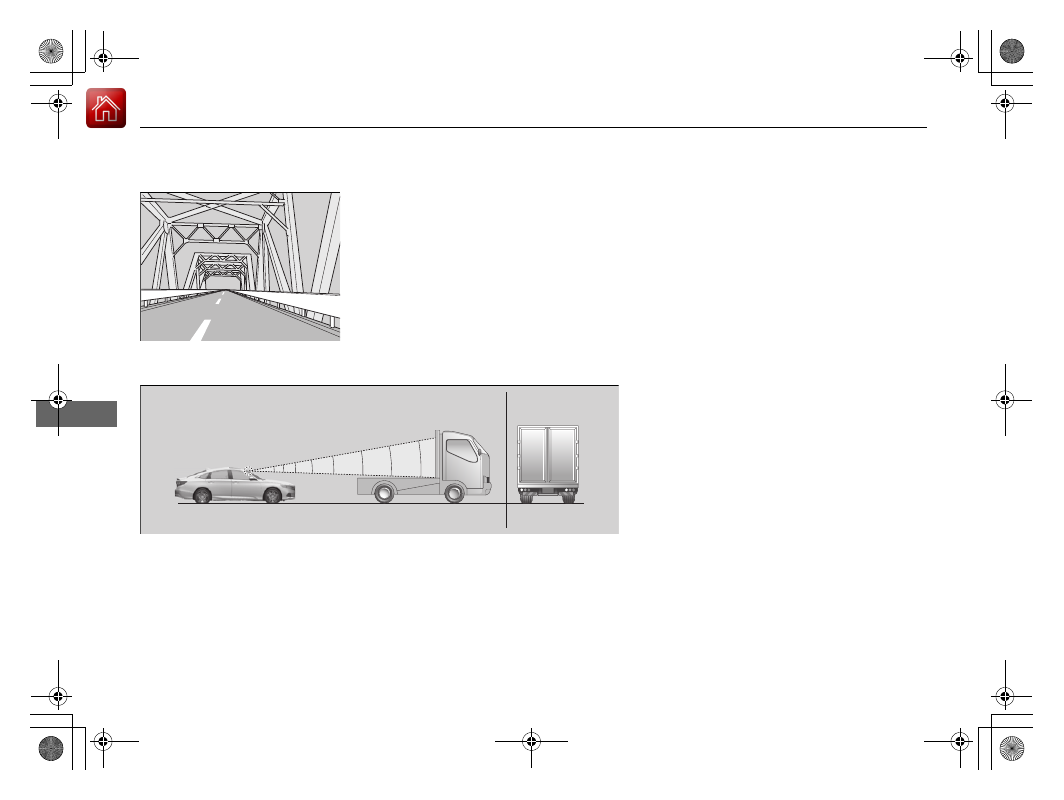

Driving through a narrow metal bridge.

•

The vehicle ahead of you brakes suddenly.

•

The vehicle ahead of you has a unique shape.

•

Your vehicle or the vehicle ahead of you is driving on one edge of the lane.

Sensor detects upper section of

an empty carrier truck.

Panel truck,

tanker truck, etc.

Continued

473

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

Increase or decrease the vehicle speed using the

RES/+

 or

SET/–

 button on the

steering wheel.

•

Each time you press the

RES/+

 or

SET/–

 button, the vehicle speed is increased or

decreased by about 1 mph or 1 km/h accordingly.

•

If you keep pressing the

RES/+

 or

SET/–

 button, the vehicle speed increases or

decreases by about 5 mph or 5 km/h accordingly.

■

To Adjust the Vehicle Speed

1

To Adjust the Vehicle Speed

If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC with Low Speed
Follow may not accelerate your vehicle. This is to
maintain the set interval between your vehicle and
the vehicle ahead.

When you depress the accelerator pedal and then
push and release the

SET/–

 button, the current speed

of the vehicle is set.

To increase speed

To decrease speed

474

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

Press the interval button to change the ACC
with Low Speed Follow following-interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through extra
long, long, middle, and short following-
intervals.

Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requirements set by local
regulation.

■

To Set or Change Following-Interval

Interval

Button

475

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Continued

Driving

The higher your vehicle’s following-speed is, the longer the short, middle, long or
extra long following-interval becomes. See the following examples for your
reference.

When your vehicle stops automatically because a vehicle detected ahead of you has
stopped, the interval between the two vehicles will vary based on the ACC with Low
Speed Follow interval setting.

Following-Interval

When the Set Speed is:

50 mph (80 km/h)

65 mph (104 km/h)

Short

83 feet

25 meters

1.1 sec

100 feet

31 meters

1.1 sec

Middle

110 feet

33 meters

1.5 sec

137 feet

42 meters

1.5 sec

Long

154 feet

47 meters

2.1 sec

200 feet

61 meters

2.1 sec

Extra
Long

207 feet

63 meters

2.9 sec

272 feet

83 meters

2.9 sec

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

476

Driving

To cancel ACC with Low Speed Follow, do any
of the following:

•

Press the

CANCEL

 button.

u

The

 indicator (green) on the driver

information interface changes to the



indicator (white).

•

Press the

 button.

u

 indicator (green) goes off.

•

Depress the brake pedal while the vehicle is
moving forward.

u

The

 indicator (green) on the driver

information interface changes to the



indicator (white).

■

To Cancel

1

To Cancel

Resuming the prior set speed: After you have
canceled ACC with Low Speed Follow, you can
resume the prior set speed while it is still displayed.
Press the

RES/+

 button.

The set speed cannot be set or resumed when ACC
with Low Speed Follow has been turned off using the

 button. Press the

 button to activate the

system, then set the desired speed.

CANCEL



Button



Button

Continued

477

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

Driving

■

Automatic cancellation

The beeper sounds and a message appears on the driver information interface when
ACC with Low Speed Follow is automatically canceled. Any of these conditions may
cause the ACC with Low Speed Follow to automatically cancel:

•

Bad weather (rain, fog, snow, etc.)

•

When the radar sensor at the lower part of the front bumper gets dirty.

•

The vehicle ahead of you cannot be detected.

•

An abnormal tire condition is detected, or the tires are skidding.

•

Driving on a mountainous road, or driving off road for extended periods.

•

Abrupt steering wheel movement.

•

When the ABS, VSA

®

, CMBS

TM

, or Low Speed Braking Control system

*

 is

activated.

•

When the ABS or VSA

®

 system indicator comes on.

•

When the vehicle is stopped on a very steep slope.

•

When you manually apply the parking brake.

•

When the detected vehicle within the ACC with Low Speed Follow range is too
close to your vehicle.

•

The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.

•

When the Maximum Load Limit is exceeded.

•

When passing through an enclosed space, such as tunnel.

•

The vehicle has repeatedly applied the brakes to maintain the set speed (for
example, you are descending a long slope).

The ACC with Low Speed Follow automatic cancellation can be also triggered by the
following causes. In these cases, the parking brake will be automatically applied.

•

The driver’s seat belt is unfastened when the vehicle is stationary.

•

The vehicle stops for more than 10 minutes.

•

The power system is turned off.

1

Automatic cancellation

Even though ACC with Low Speed Follow has been
automatically canceled, you can still resume the prior
set speed. Wait until the condition that caused ACC
with Low Speed Follow to cancel improves, then
press the

SET/–

 button.

* Not available on all models

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC) with Low Speed Follow

478

Driving

Press and hold the interval button for one
second.

Cruise Mode Selected

 appears on

the driver information interface for two
seconds, and then the mode switches to
Cruise.
The

 indicator comes on.

•

White: The system is standby.

•

Green: The system is on.

To switch back to ACC with Low Speed
Follow, press and hold the interval button
again for one second.

■

When to use

Desired speed in a range above roughly 25 mph (40 km/h).

■

To Switch ACC with Low Speed Follow to Cruise Control

1

To Switch ACC with Low Speed Follow to Cruise Control

Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following-interval from a vehicle
ahead of you.

You can switch the displayed set speed
measurements on the driver information interface or
audio/information screen between mph and km/h.

2

Speed/Distance Units

 P. 154

2

Customized Features

 P. 357

 (white)

 (white)

ACC with

Low Speed

Follow ON

Cruise

Control ON

Interval Button
