If the Battery Is Dead

Jump Starting Procedure

608

Han

lin
g the U

expected

Once your vehicle’s engine has started, remove the jumper cables in the following
order.

Disconnect the jumper cable from your vehicle’s ground.

Disconnect the other end of the jumper cable from the booster battery

terminal.

Disconnect the jumper cable from your vehicle’s battery

terminal.

Disconnect the other end of the jumper cable from the booster battery

terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

What to Do After the Engine Starts

The Vehicle Stability Assist

(VSA

) system, Vehicle

Stability Assist

(VSA

)

OFF

, adaptive cruise control

(ACC) with Low Speed Follow, safety support and
low tire pressure/TPMS indicators may come on in
amber along with a message in the driver information
interface when you set the power mode to ON after
reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.

609

Continued

Han

lin
g the U

expected

Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the

(

position.

Set the parking brake.

Remove the built-in key from the keyless
remote.

Open the center pocket.

Center Pocket

P. 225

Remove the cover in the center pocket.

Wrap a cloth around the tip of the built-in
key. Put it into the shift lock release slot (as
shown in the image) and remove the cover.

■

Releasing the Lock

Continuously variable transmission models

Models without wireless charger

Cover

Models without wireless charger

Slot

Cover

All models

611

Continued

Han

lin
g the U

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:

•

The temperature gauge pointer is at the

mark or the engine suddenly loses

power.

•

The

Engine Temperature Too Hot. Do Not Drive. Allow Engine To Cool.

message appears on the driver information interface.

•

Steam or spray comes out of the engine compartment.

■

First thing to do

Immediately park the vehicle in a safe place.

Turn off all accessories and turn on the hazard warning lights.

No steam or spray present:

Keep the engine running and open the hood.

Steam or spray is present:

Turn off the engine and wait until it subsides.

Then, open the hood.

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
pointer at the

mark may damage the engine.

Continuing to drive with the

Engine Temperature

Too Hot. Do Not Drive. Allow Engine To Cool.

message on the driver information interface may
damage the engine.

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

Overheating

How to Handle Overheating

612

Han

lin
g the U

expected

■

Next thing to do

Check that the cooling fan is operating and
stop the engine once the temperature
gauge pointer comes down.

If the cooling fan is not operating,
immediately stop the engine.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

If the coolant level in the reserve tank is
low, add coolant until it reaches the

MAX

mark.

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge pointer has come down, resume driving. If it has not come
down, contact a dealer for repairs.

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

MAX

Reserve Tank

MIN

613

Han

lin
g the U

expected

Indicator, Coming On/Blinking

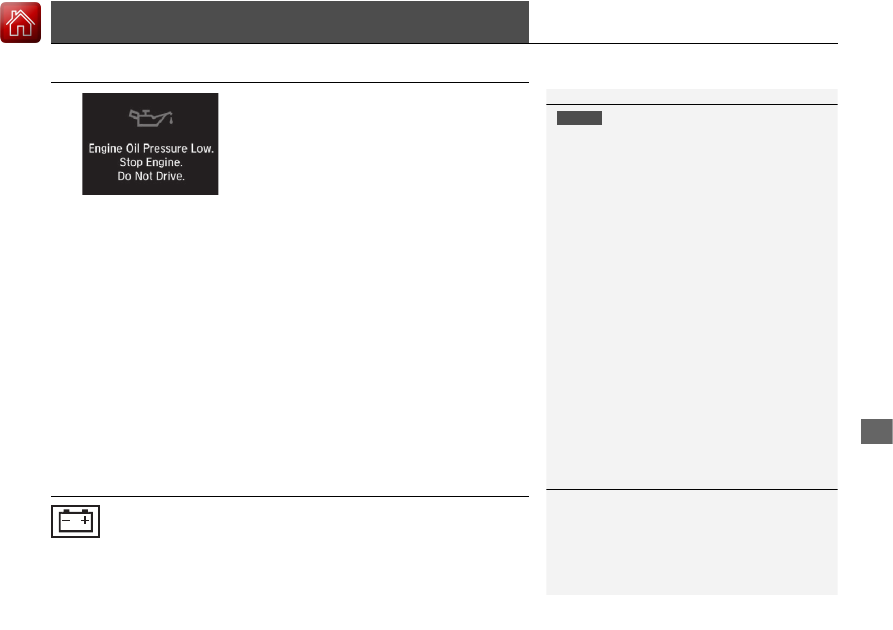

If the Low Oil Pressure Warning Appears

■

Reasons for the warning to appear

Appears when the engine oil pressure is low.

■

What to do as soon as the warning
appears

Immediately park the vehicle on level
ground in a safe place.

If necessary, turn the hazard warning lights
on.

■

What to do after parking the vehicle

Stop the engine and let it sit for
approximately three minutes.

Open the hood and check the oil level.

Add oil as necessary.

Oil Check

P. 552

Start the engine and check the low oil
pressure warning.

The warning disappears: Start driving
again.

The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.

If the Charging System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when there is a problem with the charging system.

■

What to do when the indicator comes on

Stop in a safe place and have your vehicle checked by a dealer
immediately.

If the Low Oil Pressure Warning Appears

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

614

Indicator, Coming On/Blinking

If the Malfunction Indicator Lamp Comes On or Blinks

Han

lin
g the U

expected

If the Malfunction Indicator Lamp Comes On or
Blinks

■

Reasons for the indicator lamp to come on or blink

•

Comes on when there is a problem with the engine emissions control
system.

•

Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

615

Indicator, Coming On/Blinking

If the Brake System Indicator (Red) Comes On or Blinks

Han

lin
g the U

expected

If the Brake System Indicator (Red) Comes On or
Blinks

■

Reasons for the indicator to come on

•

The brake fluid is low.

•

There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.

•

If normal, check the brake fluid level the next time you stop.

•

If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.

■

Reasons for the indicator to blink

There is a problem with the electric parking brake system.

■

What to do when the indicator blinks

Avoid using the parking brake and have your vehicle checked by a dealer
immediately.

If the Brake System Indicator (Red) Comes On or Blinks

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary, downshift
the gears.

If the brake system indicator (red) and

ABS

indicator

come on simultaneously, the electronic brake
distribution system is not working. This can result in
vehicle instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work.
Avoid using the parking brake and have your vehicle
checked by a dealer immediately.

If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On

P. 616

U.S.

Canada

(Red)

616

Indicator, Coming On/Blinking

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On

Han

lin
g the U

expected

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On

■

If the brake system indicator (red) comes on or blinks at the

same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically.

Parking Brake

P. 508

•

If the brake system indicator (red) continuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

Preventing the vehicle from moving, put the transmission into

(

•

If only the brake system indicator (red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.

If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.

U.S.

Canada

(Red)

U.S.

Canada

(Amber)

618

Indicator, Coming On/Blinking

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

lin
g the U

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS, the indicator blinks for about one
minute, and then stays on.
If the compact spare tire is installed, the indicator will either come on or
it will first blink for about one minute, then stay on.

■

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

Calibrate the TPMS after the tire pressure is adjusted.

TPMS Calibration

P. 446

If the compact spare tire causes the indicator to come on, change the
tire to a full-size tire. The indicator goes off after calibrating the TPMS.

■

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to first blink, and then stay on, change the
tire to a full-size tire. The indicator goes off after calibrating the TPMS.

TPMS Calibration

P. 446

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

619

Indicator, Coming On/Blinking

If the Transmission System Indicator Blinks along with the Warning Message

Han

lin
g the U

expected

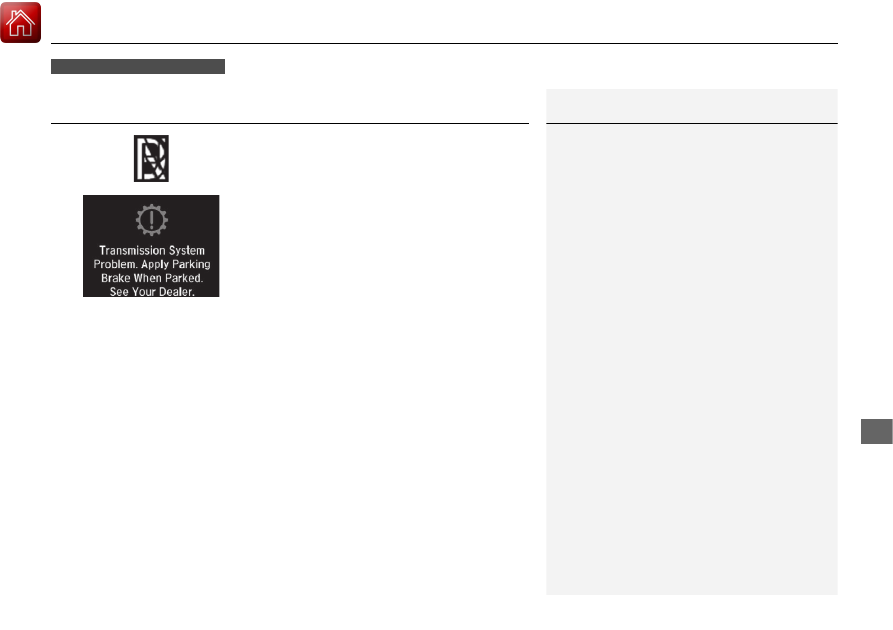

If the Transmission System Indicator Blinks along
with the Warning Message

■

Reasons for the indicator to blink

The transmission is malfunctioning.

■

What to do when the indicator blinks

•

Immediately have your vehicle inspected by
a dealer.

•

Put the transmission into

(

after starting

the engine.

Check if the

(

position on the driver

information interface and the indicator
on the

(

button light/blink.

Starting the Engine

P. 412

Automatic transmission models

If the Transmission System Indicator Blinks along with the
Warning Message

You may not be able to start the engine.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

Emergency Towing

P. 626

621

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

BATTERY

125 A

−

(70 A)

EPS

70 A

−

(30 A)

FUSE BOX MAIN 2

60 A

EBB

40 A

ABS/VSA FSR

40 A

−

(30 A)

IG MAIN1

30 A

REAR DEFROSTER

40 A

FUSE BOX MAIN 1

60 A

−

(30 A)

HEATER MOTOR

40 A

−

(40 A)

ST MG

30 A

SUB FAN MOTOR

30 A

VST1

(30 A)

VST2

(30 A)

FUSE BOX OP 2

(70 A)

−

(40 A)

FUSE BOX OP 1

60 A

−

(40 A)

MAIN FAN MOTOR

30 A

SPM2

30 A

ABS/VSA MOTOR

40 A

IG MAIN2

30 A

WIPER MOTOR

30 A

SRM1

30 A

−

STOP LIGHT

10 A

TCU

(15 A)

INJ

20 A

TCU2

(10 A)

IGP

15 A

TCU3

(10 A)

FI ECU

10 A

BATT SNSR

7.5 A

DBW

15 A

IG COIL

15 A

HAZARD

15 A

−

H/STRG

(10 A)

−

AUDIO

15 A

REAR H/SEAT

(20 A)

FR WIPER DEICER

(15 A)

Circuit Protected

Amps

BACK UP

10 A

HORN

10 A

FR FOG LIGHT

(10 A)

SHUTTER GRILLE

(7.5 A)

MG CLUTCH

10 A

WASHER MOTOR

15 A

−

ACL

(10 A)

AUDIO SUB

(7.5 A)

IGPS

7.5 A

IGPS (LAF)

7.5 A

VB ACT

7.5 A

IG1 TCU

(10 A)

IG1 FUEL PUMP

20 A

IG1 ABS/VSA

7.5 A

IG1 ACG

10 A

IG1 ST MOTOR

10 A

IG1 MONITOR

7.5 A

BACK UP2

(30 A)

Circuit Protected

Amps

* Not available on all models

623

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

■

Circuit protected and fuse rating

Circuit Protected

Amps

−

L SIDE DOOR UNLOCK

10 A

R SIDE DOOR UNLOCK

10 A

ACC

10 A

ACC KEY LOCK

7.5 A

SRS

10 A

−

IG HOLD2

(10 A)

SMART

10 A

−

L SIDE DOOR LOCK

10 A

DR DOOR LOCK

(10 A)

R SIDE DOOR LOCK

10 A

OPTION

10 A

DRL

10 A

CTR ACC SOCKET

(20 A)

MOON ROOF

(20 A)

−

SBW ECU

(10 A)

DR DOOR UNLOCK

(10 A)

−

PREMIUM AMP

(20 A)

−

IG HOLD3

(15 A)

DR P/SEAT SLI

(20 A)

AS P/SEAT SLI

(20 A)

OPTION2

10 A

METER

10 A

OPTION1

10 A

DR P/SEAT REC

(20 A)

AS P/SEAT REC

(20 A)

DR P/LUMBAR

(10 A)

−

AVS

(20 A)

OPTION

10 A

ADS

(20 A)

−

SRS

10 A

−

HUD

(10 A)

DOOR LOCK

20 A

FR ACC SOCKET

20 A

RR R P/W

20 A

RR L P/W

20 A

Circuit Protected

Amps

AS P/W

20 A

DR P/W

20 A

−

Circuit Protected

Amps

* Not available on all models

Honda Accord (2022 year). Manual in english - page 38
