uu

Child Safety

u

Safety of Larger Children

82

Safe Driving

If a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.

Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:

•

Make sure you read and fully understand the instructions and safety information
in this manual.

•

Move the front passenger seat as far back as possible.

•

Have the child sit upright and well back in the seat.

•

Check that the seat belt is properly positioned so that the child is secure in the
seat.

■

Monitoring child passengers

We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be reminded to fasten their seat belts and sit up
properly.

■

Booster Seats

1

Booster Seats

When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.

Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.

■

Protecting Larger Children - Final Checks

83

Safe Driving

Exhaust Gas Hazard

Carbon Monoxide Gas

The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.

■

Have the exhaust system inspected for leaks whenever

•

The exhaust system is making an unusual noise.

•

The exhaust system may have been damaged.

•

The vehicle is raised for an oil change.

When you operate a vehicle with the tailgate open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.

1.

Select the fresh air mode.

2.

Select the

 mode.

3.

Set the fan speed to high.

4.

Set the temperature control to a comfortable setting.

Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.

1

Carbon Monoxide Gas

An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately after starting the engine.

3

WARNING

Carbon monoxide gas is toxic.

Breathing it can cause unconsciousness and
even kill you.

Avoid any enclosed areas or activities that
expose you to carbon monoxide.

84

Safe Driving

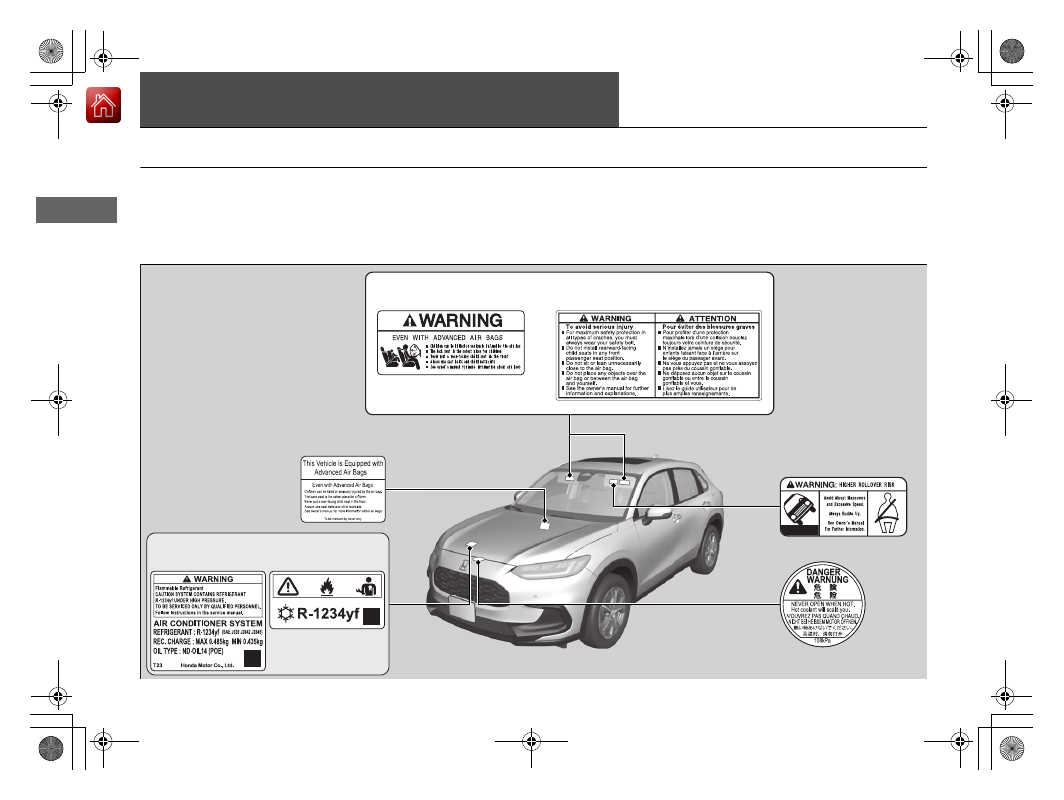

Safety Labels

Label Locations

These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.

If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.

U.S. models only

Dashboard

Radiator Cap

Sun Visor

U.S. models only

Sun Visor

U.S. models

Canadian models

Air Conditioner System

U.S. models

Canadian models

86

In

strum

e

nt Pa

nel

Indicators

Indicators come on/blink depending on the condition of the vehicle. Messages may
display on the Driver Information Interface at the same time. Please take the
appropriate action outlined in the message, such as contacting a dealer.

87

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Parking Brake and
Brake System
Indicator (Red)

Parking Brake and
Brake System
Indicator (Amber)

U.S.

Canada

U.S.

Canada

Automatic Brake
Hold System Indicator

Automatic Brake Hold
Indicator

U.S.

Canada

*1 : When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the engine

has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in the
owner's manual.



 P. 88

*1

Malfunction Indicator
Lamp

Charging System
Indicator

Anti-lock Brake System
(

ABS

) Indicator

Seat Belt Reminder
Indicator

Low Fuel Indicator
(Amber)

Vehicle Stability Assist

TM



(VSA

®

) System Indicator

Vehicle Stability Assist

TM



(VSA

®

)

OFF

 Indicator

Supplemental Restraint
System Indicator

Auto High-Beam
Indicator

Low Tire Pressure/TPMS
Indicator

*

Electric Power Steering
(EPS) System Indicator

Turn Signal and Hazard
Warning Indicators

Lights On Indicator

High Beam Indicator

System Message Indicator

Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (Amber)

Lane Keeping Assist System
(LKAS) Indicator (Amber)

Safety Support Indicator
(Green/Gray)



 P. 90



 P. 90



 P. 90



 P. 91



 P. 91

*1

*1



 P. 95

*1

Shift Position Indicator



 P. 91

Transmission System
Indicator



 P. 91



 P. 92



 P. 92



 P. 93



 P. 93



 P. 96



 P. 94

*1

*1



 P. 94

*1



 P. 93



 P. 99

*1



 P. 96



 P. 96



 P. 96

Immobilizer System
Indicator
Security System Alarm
Indicator



 P. 97



 P. 98



 P. 100



 P. 103

*1

Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (White/
Green)



 P. 99

*1

Lane Keeping Assist
System (LKAS) Indicator
(White/Green)



 P. 100

*1

Safety Support Indicator
(Amber)



 P. 101

*1

Cruise Mode Indicator
(White/Green)



 P. 99

*1

Low Temperature
Indicator



 P. 92



 P. 97

*1

*1

ECON

 Mode Indicator



 P. 98

NORMAL

 Mode Indicator



 P. 98

SNOW

 Mode Indicator



 P. 98

Hill Descent Control System
Indicator (White/Green)



 P. 98

*1

*1

*1

*1

*1

* Not available on all models

88

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Parking Brake and
Brake System
Indicator (Red)

●

Comes on when the parking brake is
applied, and goes off when it is released.

●

The beeper sounds and the indicator comes on if
you drive with the parking brake applied.

●

Comes on for about 30 seconds when you apply
the electric parking brake while the power mode is
in ACCESSORY or VEHICLE OFF, then goes off.

●

Stays on for about 30 seconds when you set the
power mode to VEHICLE OFF while the electric
parking brake is applied, then goes off.

●

Comes on when the brake fluid level is low.

●

Comes on while driving

 - Make sure the parking

brake is released. Stop in a safe place and check the
brake fluid level.

2

What to do when the indicator comes on
while driving

 P. 624

U.S.

Canada

(Red)

89

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Parking Brake and
Brake System
Indicator (Red)

●

Comes on if there is a problem with the
brake system.

●

Comes on along with the ABS indicator

 - Have

your vehicle checked by a dealer.

2

If the Brake System Indicator (Red) Comes On
or Blinks

 P. 624

●

Comes on along with the Parking Brake and
Brake System Indicator (amber)

 - Immediately

stop in a safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you normally do.

2

If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On

 P. 626

●

Blinks and the Parking Brake and Brake System
Indicator (amber) comes on at the same time

 -

There is a problem with the electric parking brake
system. The parking brake may not be set.
Avoid using the parking brake and have your
vehicle checked by a dealer immediately.

2

If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On

 P. 626

U.S.

Canada

(Red)

90

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Parking Brake and
Brake System
Indicator (Amber)

●

Comes on if there is a problem with a system
related to braking other than the
conventional brake system.

●

Comes on while driving

 - Avoid high speeds and

sudden braking. Take the vehicle to a dealer
immediately.

●

Comes on if there is a problem with the
electric parking brake system and/or the
automatic brake hold system.

●

Stays on constantly

 - Avoid using the parking

brake and have your vehicle checked by a dealer
immediately.

●

Comes on if the brake system is deactivated
temporarily after the battery has been
disconnected, then re-connected.

●

Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.

Automatic Brake
Hold System
Indicator

●

Comes on when the automatic brake hold
system is on.

2

Automatic Brake Hold

 P. 532

Automatic Brake
Hold Indicator

●

Comes on when the automatic brake hold is
activated.

2

Automatic Brake Hold

 P. 532

U.S.

Canada

(Amber)

U.S.

Canada

91

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Malfunction
Indicator Lamp

•

After you have set the power mode to ON,
the vehicle performs system checks.
However, if the readiness codes have not
been set by that time, this indicator will blink
five times and then go off.

•

Readiness codes are part of the on-board
diagnostics for the emissions control systems.

2

Testing of Readiness Codes

 P. 645

●

Comes on if there is a problem with the
emissions control systems.

●

Blinks when a misfire in the engine’s
cylinders is detected.

2

If the Malfunction Indicator Lamp Comes On
or Blinks

 P. 623

Charging System
Indicator

•

Comes on when there is a problem with the
charging system.

•

Stop in a safe place and contact a dealer
immediately.

2

Checking the Battery

 P. 592

2

If the Charging System Indicator Comes On



P. 623

Shift Position
Indicator

•

Indicates the current shift position.

2

Shifting

 P. 427

Transmission
System Indicator

•

Blinks if the transmission system has a
problem.

•

Have your vehicle checked by a dealer immediately.

92

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Seat Belt
Reminder
Indicator

•

Blinks and the beeper sounds for a few
seconds if you are not wearing a seat belt
when you set the power mode to ON, then
the indicator comes on.

•

If the front passenger is not wearing a seat
belt, the indicator comes on a few seconds
later.

•

Comes on for a while when the rear seat
belt is unfastened while the power mode in
ON.

•

Blinks while driving if you and/or any
passenger has not fastened a seat belt. The
beeper sounds and the indicator blinks at
regular intervals.

•

The beeper stops and the indicator goes off when
you and the passengers fasten their seat belts.

•

Stays on after you and/or the passengers has
fastened the seat belt(s)

- A detection error may

have occurred in the sensor. Have your vehicle
checked by a dealer.

2

Seat Belt Reminder

 P. 41

Low Fuel Indicator
(Amber)

•

Comes on when the fuel reserve is running
low (approximately 2.1 U.S. gal./8.0 Liter
left).

•

Comes on

- Refuel your vehicle as soon as

possible.

●

Blinks if there is a problem with the fuel
gauge.

•

Have your vehicle checked by a dealer.

Low Temperature
Indicator

•

Comes on when the engine coolant
temperature is low.

•

If the indicator stays on after the engine has
reached normal operating temperature, there may
be a problem with the temperature sensors. Have
your vehicle inspected by a dealer.

93

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Anti-lock Brake
System (

ABS

)

Indicator

•

Comes on if there is a problem with the
ABS.

•

Stays on constantly

- Have your vehicle checked

by a dealer. With this indicator on, your vehicle still
has normal braking ability but no anti-lock
function.

2

Anti-lock Brake System (ABS)

 P. 535

Supplemental
Restraint System
Indicator

•

Comes on if a problem with any of the
following is detected:

-

Supplemental Restraint System

-

Side airbag system

-

Side curtain airbag system

-

Seat belt tensioner

•

Stays on constantly

- Have your vehicle checked

by a dealer.

Electric Power
Steering (EPS)
System Indicator

•

Comes on if there is a problem with the EPS
system.

•

Stays on constantly

- Have your vehicle checked

by a dealer.

•

Do not drive displays on the driver
information interface

- Immediately stop in a

safe place and contact a dealer.

2

If the Electric Power Steering (EPS) System
Indicator Comes On

 P. 625

94

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Vehicle Stability
Assist

TM

 (VSA

®

)

System Indicator

●

Blinks when VSA

®

 is active.

—

●

Comes on if there is a problem with the
VSA

®

 system, brake assist system, hill start

assist, or agile handling assist.

●

Stays on constantly

- Have your vehicle checked

by a dealer.

2

Vehicle Stability Assist

TM

 (VSA

®

), aka

Electronic Stability Control (ESC), System



P. 434

2

Hill start assist system

 P. 423

2

Brake Assist System

 P. 536

2

Agile Handling Assist

 P. 436

●

Comes on if the VSA

®

 system is deactivated

temporarily after the battery has been
disconnected, then re-connected.

●

Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.

Vehicle Stability
Assist

TM

 (VSA

®

)

OFF

 Indicator

●

Comes on when you partially disable VSA

®

.

2

VSA

®

 On and Off

 P. 435

95

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Low Tire Pressure/
TPMS Indicator

●

May come on briefly if the power mode is
set to ON and the vehicle is not moved
within 45 seconds, to indicate the
calibration process is not yet complete.

●

Comes on and stays on when:

-

One or more tires’ pressures are
determined to be significantly low.

-

The system has not been calibrated.

●

Comes on while driving

- Stop in a safe place,

check tire pressures, and inflate the tire(s) if
necessary.

●

Stays on after the tires are inflated to the
recommended pressures

- The system needs to

be calibrated.

2

TPMS Calibration

 P. 439

●

Blinks for about one minute, and then stays
on if there is a problem with the TPMS, or
when a compact spare tire is temporarily
installed.

●

Blinks and remains on

- Have your vehicle

checked by a dealer. If the vehicle is fitted with a
compact spare tire, get your regular tire repaired or
replaced and put back on your vehicle as soon as
you can.

●

Comes on if the TPMS is deactivated
temporarily after the battery has been
disconnected, then reconnected.

●

Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.

U.S.
models

96

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

Turn Signal and
Hazard Warning
Indicators

•

Blinks when you operate the turn signal
lever.

•

Blinks along with all turn signals when you
press the hazard warning button.

•

Does not blink or blinks rapidly

 - Have your

vehicle checked by a dealer.

Lights On
Indicator

•

Comes on when the parking, tail, and other
external lights are on.

2

Lights

 P. 166

High Beam
Indicator

•

Comes on when the high beam headlights
are on.

—

Auto High-Beam
Indicator

•

Comes on when all the operating conditions
of the auto high-beam are met.

2

Auto High-Beam

 P. 171

97

uu

Indicators

u

Continued

In

strum

e

nt Pa

nel

*1:Canadian models only: Apply and hold the brake pedal before selecting the ON mode.

Indicator

Name

On/Blinking

Explanation

Immobilizer
System Indicator

●

Blinks if the immobilizer system cannot
recognize the key information.

•

Blinks

- You cannot start the engine. Set the

power mode to VEHICLE OFF

*1

, then select the ON

mode again.

•

Repeatedly blinks

- The system may be

malfunctioning. Have your vehicle checked by a
dealer.

•

Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.

Security System
Alarm Indicator

●

Blinks when the security system alarm has
been set.

2

Security System Alarm

 P. 156

U.S.

Canada

Indicator

Indicator

U.S.

Canada

Indicator

Indicator

98

uu

Indicators

u

In

strum

e

nt Pa

nel

Indicator

Name

On/Blinking

Explanation

ECON

 Mode

Indicator

•

Comes on when you set the drive mode to

ECON

.

2

Drive Mode Switch

 P. 429

NORMAL

 Mode

Indicator

•

Comes on when you set the drive mode to

NORMAL

.

2

Drive Mode Switch

 P. 429

SNOW

 Mode

Indicator

•

Comes on when you set the drive mode to

SNOW

.

2

Drive Mode Switch

 P. 429

Hill Descent
Control System
Indicator (White/
Green)

•

Lights up in white when the hill descent
control system is on and ready to use.

•

Lights up in green when the hill descent
control system is in operation.

2

Hill Descent Control System

 P. 432

System Message
Indicator

•

Comes on along with a beep when a
problem is detected. A system message on
the driver information interface appears at
the same time.

•

While the indicator is on, press the

 (home)

button, and select

Warnings

 to see the message

again.

2

Accessing contents in the display

 P. 107

•

Refer to the Indicators information in this chapter
when a system message appears on the driver
information interface. Respond to the message
accordingly.

•

The driver information interface will not return to
the normal screen unless the warning is canceled,
or the

 (home) button is pressed.
