Honda Ridgeline (2022 year). Manual in english - page 30





Continued

479

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.

When the System Detects a Vehicle

1

When the System Detects a Vehicle

If the

 on the lower right changes to

 in amber

when the transmission is in

(

R

, mud, snow or ice,

etc. may have accumulated in the vicinity of the
sensor. The system is temporarily canceled. Check the
bumper corners for any obstructions, and thoroughly
clean the area if necessary.

If the

 comes on when the transmission is in

(

R

there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.

If the display remains the same with the transmission
in

(

R

, there may be a problem with the rear camera

system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.

Wide View

Normal View

Arrow Icon

Top Down View

480

uu

Parking Your Vehicle

u

Cross Traffic Monitor

*

Driving

Tap to turn the system on and off. The
indicator (green) comes on with the system
on.
You can also switch the system on and off
using the audio/information screen.

2

Customized Features

 P. 298

Cross Traffic Monitor On and Off

Cross Traffic Monitor icon

481

Continued

Driving

Multi-View Rear Camera

About Your Multi-View Rear Camera

The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into

(

R

.

You can view three different camera modes on the rearview display.
Touch the appropriate icon to switch the mode.

: Wide view mode
: Normal view mode
: Top down view mode

Multi-View Rear Camera Display Area

1

About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

You can change the

Fixed Guideline

 and

Dynamic

Guideline

 settings.

2

Customized Features

 P. 298

Fixed Guideline
On:

Guidelines appear when you put the

transmission into

(

R

.

Off:

Guidelines do not appear.

Dynamic Guideline
On:

Guidelines move according to the steering wheel

direction.

Off:

Guidelines do not move.

Guidelines

Bumper

Camera

Approx. 39 inches (1 m)

Approx. 20 inches (50 cm)

Wide View Mode

Normal View Mode

Top Down View Mode

482

uu

Multi-View Rear Camera

u

About Your Multi-View Rear Camera

Driving

If you were last using Wide view mode or Normal view mode, the same view
mode will be activated the next time you put the transmission into

(

R

.

If you were using Top down view mode before you turned off the engine, Wide
view mode will be activated the next time you set the power mode to ON and put
the transmission into

(

R

.

If you were using Top down view mode and 10 seconds elapsed after you took
the transmission out of

(

R

, Wide view mode will be activated the next time you

put the transmission into

(

R

.

If you were using Top down view mode and put the transmission back into

(

R



within 10 seconds after you took it out of

(

R

, Top down view mode will be

activated.

483

Driving

Refueling

Fuel Information

Fuel recommendation

Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.

Top tier detergent gasoline

Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.

Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid buildup of deposits in your engine and emission
control system.

For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit

www.toptiergas.com

.

Fuel tank capacity: 19.5 US gal (73.8 L)

Unleaded gasoline, pump octane number 87 or higher

1

Fuel Information

NOTICE

We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.

Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service. Some
gasoline today is blended with oxygenates such as
ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.

484

uu

Refueling

u

How to Refuel

Driving

How to Refuel

Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle.

1.

Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.

2.

Turn off the engine.

3.

Press the fuel fill door release button.

u

The fuel fill door opens.

1

How to Refuel

The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diameter tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.

The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.

Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

Stop the engine, and keep heat, sparks,
and flames away.

Handle fuel only outdoors.

Wipe up spills immediately.

Press

485

uu

Refueling

u

How to Refuel

Driving

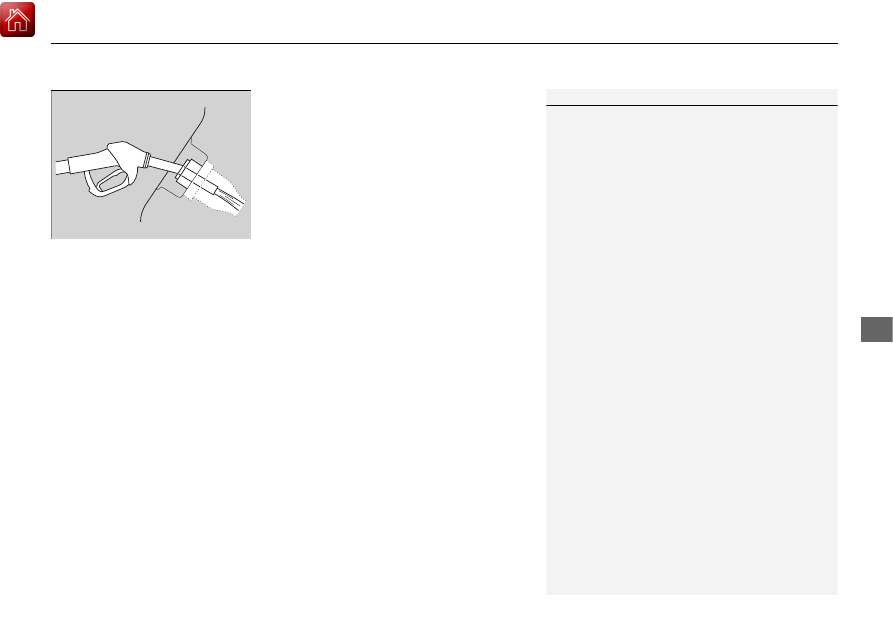

4.

Place the end of the filler nozzle on the
lower part of filler opening, then insert it
slowly and fully.

u

Make sure that the end of the filler
nozzle goes down along with the filler
pipe.

u

Keep the filler nozzle level.

u

When the tank is full, the filler nozzle will
click off automatically.

u

If you do not fill up the tank to full,
always add a minimum of 3.5 US gal
(13.3 L) of fuel.

u

After filling, wait about five seconds
before removing the filler nozzle.

5.

Shut the fuel fill door by hand.

1

How to Refuel

If the filler nozzle keeps turning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try filling at another pump. If
this does not fix the problem, consult a dealer.

If you repeatedly fill the tank with less than the
specified minimum amount of fuel, the malfunction
indicator lamp may come on. If this happens, have
your vehicle checked by a dealer.

If you have to refuel your vehicle from a portable
container, use the funnel provided with your vehicle.

2

Refueling From a Portable Fuel Container



P. 571

486

Driving

Fuel Economy and CO

2

 Emissions

Improving Fuel Economy and Reducing CO

2



Emissions

Achieving fuel economy and reducing CO

2

 emissions is dependent on several

factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.

You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
multi-information display.

Use engine oil with the viscosity recommended.

2

Recommended Engine Oil

 P. 499

Maintain the specified tire pressure.

Do not load the vehicle with excess cargo.

Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.

Maintenance and Fuel Economy

1

Improving Fuel Economy and Reducing CO

2

 Emissions

Direct calculation is the recommended method to
determine actual fuel consumed while driving.

In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit

https://www.nrcan.gc.ca

 and search for “fuel

consumption testing” in the search field at the top of
the page.

Miles driven

Gallons of

fuel

Miles per

Gallon

100

Liters of

fuel

Kilometers

driven

L per 100 km

487

Maintenance

This chapter discusses basic maintenance.

Before Performing Maintenance

Inspection and Maintenance ............ 488
Safety When Performing Maintenance ...489
Parts and Fluids Used in Maintenance

Service ........................................... 490

Maintenance Minder

TM

..................... 491

Maintenance Under the Hood

Maintenance Items Under the Hood....496
Opening the Hood ........................... 497
Engine Compartment Cover............. 498
Recommended Engine Oil ................ 499
Oil Check ......................................... 500
Adding Engine Oil ............................ 501
Changing the Engine Oil and Oil Filter...502

Engine Coolant ................................ 504
Transmission Fluid............................ 506
Brake Fluid....................................... 507
Refilling Window Washer Fluid......... 507

Replacing Light Bulbs

....................... 508

Checking and Maintaining Wiper

Blades

.......................................... 514

Checking and Maintaining Tires

Checking Tires ................................. 516
Tire and Loading Information Label ... 517
Tire Labeling .................................... 517

DOT Tire Quality Grading (U.S. Vehicles).... 519

Wear Indicators................................ 521

Tire Service Life................................ 521
Tire and Wheel Replacement ........... 522
Tire Rotation.................................... 523
Winter Tires ..................................... 524

Battery

............................................... 525

Remote Transmitter Care

Replacing the Remote Battery .......... 527

Climate Control System Maintenance

.......528

Cleaning

Interior Care .................................... 529
Exterior Care.................................... 531

Accessories and Modifications

........ 535

488

Main

tenan

ce

Before Performing Maintenance

Inspection and Maintenance

For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)

Routine inspections

Perform inspections before long distance trips, when washing the vehicle, or when
refueling.

2

Maintenance

 P. 25

Periodic inspections

Check the brake fluid level monthly.

2

Checking the Brake Fluid

 P. 507

Check the tire pressure monthly. Examine the tread for wear and foreign objects.

2

Checking and Maintaining Tires

 P. 516

Check the operation of the exterior lights monthly.

2

Replacing Light Bulbs

 P. 508

Check the condition of the wiper blades at least every six months.

2

Checking and Maintaining Wiper Blades

 P. 514

Types of Inspection and Maintenance

1

Inspection and Maintenance

Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.

According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the multi-information display.

2

Maintenance Service Items

 P. 494

If you want to perform complex maintenance tasks
that require more skills and tools, you can purchase a
subscription to the Service Express website at

www.techinfo.honda.com

.

2

Authorized Manuals

 P. 584

If you want to perform maintenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.

U.S. models

489

uu

Before Performing Maintenance

u

Safety When Performing Maintenance

Main

tenan

ce

Safety When Performing Maintenance

Some of the most important safety precautions are given here. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether you should perform a given task.

To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.

Never leave rags, towels, or other flammable objects under the hood.

u

Heat from the engine and exhaust can ignite them, causing a fire.

To clean parts, use a commercially available degreaser or parts cleaner, not
gasoline.

Wear eye protection and protective clothing when working with the battery or
compressed air.

Engine exhaust contains carbon monoxide, which is poisonous and can kill you.

u

Only operate the engine if there is sufficient ventilation.

The vehicle must be in a stationary condition.

u

Make sure your vehicle is parked on level ground, the parking brake is set, and
the engine is off.

Be aware that hot parts can burn you.

u

Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.

Be aware that moving parts can injure you.

u

Do not start the engine unless instructed, and keep your hands and limbs away
from moving parts.

u

Do not open the hood while the Auto Idle Stop function is activated.

Maintenance Safety

Vehicle Safety

1

Safety When Performing Maintenance

3

WARNING

Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.

Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.

3

WARNING

Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.

Always follow the procedures and
precautions in this owner’s manual.

490

uu

Before Performing Maintenance

u

Parts and Fluids Used in Maintenance Service

Main

tenan

ce

Parts and Fluids Used in Maintenance Service

The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.

1

Parts and Fluids Used in Maintenance Service

NOTICE

Do not press the engine cover forcibly. This may
damage the engine cover and component parts.

491

Continued

Main

tenan

ce

Maintenance Minder

TM

Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the multi-information display.
You can view them on the engine oil life screen at any time.

To Use Maintenance Minder

TM

1.

Set the power mode to ON.

2.

Press the

 (Information) button until the engine oil life appears on the

multi-information display.

Displaying the Maintenance Minder Information

1

Displaying the Maintenance Minder Information

Based on the engine operating conditions, the
remaining engine oil life is calculated and displayed
as a percentage.

There is a list of maintenance main and sub items you
can view on the multi-information display.

2

Maintenance Service Items

 P. 494

Displayed Engine Oil

Life (%)

Calculated Engine Oil

Life (%)

100

100 to 91

90

90 to 81

80

80 to 71

70

70 to 61

60

60 to 51

50

50 to 41

40

40 to 31

30

30 to 21

20

20 to 16

15

15 to 11

10

10 to 6

5

5 to 1

0

0

Remaining Engine Oil Life

Maintenance Service Items

Press the



(Information) button

492

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

Maintenance Minder Messages on the Multi-Information

Display

Maintenance Message

Oil Life Display

Explanation

Information

-

100%

When you select the Maintenance
Minder screen, it displays the
percentage of engine oil life
remaining.

-

Maintenance Due Soon

15%

The remaining engine oil life is 15 to
6 percent. Once you switch the

display by pressing the



(Information) button, this message
will go off.

The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and serviced
soon.

493

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Continued

Main

tenan

ce

The system message indicator (

) comes on along with the Maintenance Minder message.

Maintenance Message

Oil Life Display

Explanation

Information

Maintenance Due Now

5%

The remaining engine oil life is 5 to 1

percent. Pressing the



(Information) button to switch to
another display.

The engine oil has almost reached the
end of its service life, and the
maintenance items should be inspected
and serviced as soon as possible.

Maintenance Past Due

Negative Distance

The remaining engine oil life has
passed its service life, and a negative
distance appears after driving over
10 miles (U.S. models) or 10 km
(Canadian models). Pressing the

 (Information) button to

switch to another display.

The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.

U.S.

Canada

494

uu

Maintenance Minder

TM

u

To Use Maintenance Minder

TM

Main

tenan

ce

Maintenance Service Items

1

Maintenance Service Items

Independent of the maintenance message in the
multi-information display, replace the brake fluid
every 3 years.

Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.

Maintenance Minder Message

System Message
Indicator

Sub Items

Main
Item

*1: If the message

Maintenance Due Now

 does not appear more than 12 months after the display

is reset, change the engine oil every year.

# : See information on maintenance and emissions warranty in the first column on page

581

.

*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and

from diesel-powered vehicles, replace every 15,000 miles (24,000 km).

CODE

Maintenance Main Items

A

Replace engine oil

*1

B

Replace engine oil

*1

 and oil filter

Inspect front and rear brakes

Check parking brake adjustment

Inspect tie rod ends, steering gearbox, and boots

Inspect suspension components

Inspect driveshaft boots

Inspect brake hoses and lines (Including ABS/VSA

®

)

Inspect all fluid levels and condition of fluids

Inspect exhaust system

#

Inspect fuel lines and connections

#

*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission

temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder

TM

. If you regularly drive your vehicle under these conditions, have the transmission

fluid changed at every 30,000 miles (48,000 km) or 2 years.

*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under

-20°F, -29°C), or towing a trailer, replace every 60,000 miles (U.S.) / 100,000 km (Canada).

*6: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of

mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder

TM

. If you regularly drive your vehicle under these conditions,

have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).

CODE

Maintenance Sub Items

1

Rotate tires

2

Replace air cleaner element

*2

Replace dust and pollen filter

*3

Inspect drive belt

3

Replace transmission fluid and transfer fluid

*, *4

4

Replace spark plugs

Replace timing belt and inspect water pump

*5

Inspect valve clearance

5

Replace engine coolant

6

Replace rear differential fluid

*, *6

* Not available on all models















Content      ..     28      29      30      31     ..
