Honda Ridgeline (2022 year). Manual in english - page 27





431

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Continued

Driving

Vehicle conditions

Headlight lenses are dirty or the headlights are not properly adjusted.

The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.

The inside of the windshield is fogged.

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire, etc.).

When tire chains are installed.

The vehicle is tilted due to a heavy load or suspension modifications.

The camera temperature gets too high.

Driving with the parking brake applied.

When the radar sensor behind the emblem gets dirty.

The vehicle is towing a trailer.

432

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

Detection limitations

A vehicle or pedestrian suddenly crosses in front of you.

The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.

A vehicle cuts in front of you at a slow speed, and it brakes suddenly.

When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.

The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.

When there are animals in front of your vehicle.

When you drive on a curved, winding or undulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.

The speed difference between your vehicle and a vehicle or pedestrian in front of
you is significantly large.

An oncoming vehicle suddenly comes in front of you.

Another vehicle suddenly comes in front of you at an intersection, etc.

Your vehicle abruptly crosses over in front of an oncoming vehicle.

When driving through a narrow iron bridge.

When the lead vehicle suddenly slows down.

433

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Continued

Driving

When there is a group of people in front of your vehicle walking together side by
side.

Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recognizing that the person is a pedestrian.

When the pedestrian is shorter than about 3.3 feet (1 meter) or taller than about
6.6 feet (2 meters) in height.

When a pedestrian blends in with the background.

When a pedestrian is bent over or squatting, or when their hands are raised or
they are running.

When several pedestrians are walking ahead in a group.

When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).

Limitations applicable to pedestrian detection only

434

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

Automatic shutoff

CMBS

TM

 may automatically shut itself off and the CMBS

TM

 indicator comes and stays

on when:

The temperature inside the system is high.

You drive off-road or on a mountain road, or curved and winding road for an
extended period.

An abnormal tire condition is detected (incorrect tire size, flat tire, etc.).

The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.

Once the conditions that caused the CMBS

TM

 to shut off improve or are addressed

(e.g., cleaning), the system comes back on.

435

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Continued

Driving

The CMBS

TM

 may activate even when you are aware of a vehicle ahead of you, or

when there is no vehicle ahead. Some examples of this are:

When Passing

Your vehicle approaches another vehicle ahead of you and you change lanes to pass.

At an intersection

Your vehicle approaches or passes another vehicle that is making a left or right turn.

With Little Chance of a Collision

436

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

On a curve

When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.

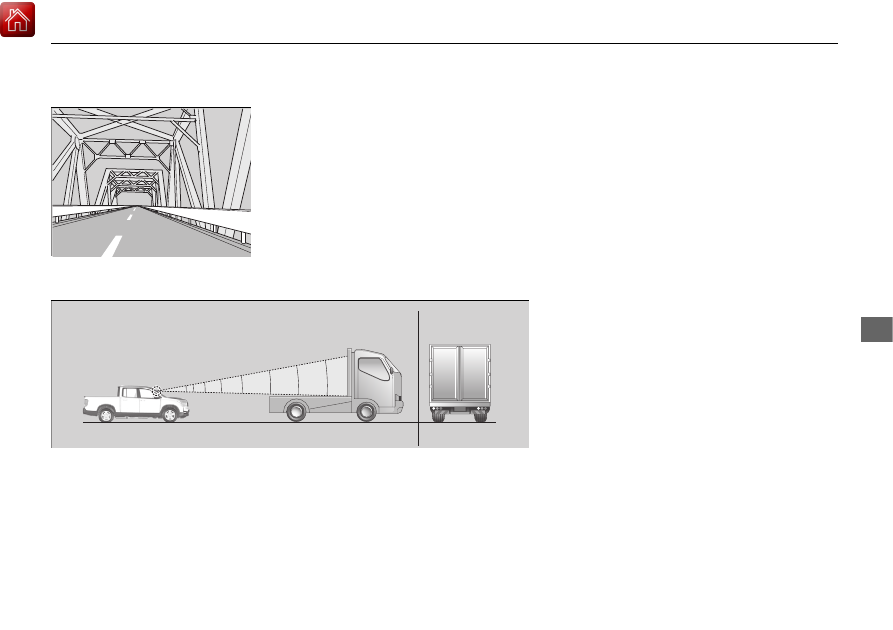

Through a low bridge at high speed

You drive under a low or narrow bridge at high speed.

437

uu

Honda Sensing

®

u

Collision Mitigation Braking System

TM

 (CMBS

TM

)

Driving

Speed bumps, road work sites, train tracks, roadside objects, etc.

You drive over speed bumps, steel road plates, etc., or your vehicle approaches train
tracks or roadside objects (such as a traffic sign and guard rail) on a curve or, when
parking, stationary vehicles and walls.

438

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

Driving

Adaptive Cruise Control (ACC)

Helps maintain a constant vehicle speed and a set following-interval behind a vehicle
detected ahead of yours, without you having to keep your foot on the brake or the
accelerator.

1

Adaptive Cruise Control (ACC)

ACC cannot be activated if Intelligent Traction
Management setting is snow, sand

*

 or mud

*

.

3

WARNING

Improper use of ACC can lead to a crash.
Use ACC only when driving on expressways
or freeways and in good road and weather
conditions.

3

WARNING

ACC has limited braking capability.

When your vehicle speed drops below
22 mph (35 km/h), ACC will automatically
cancel and no longer will apply your
vehicle's brakes.

Always be prepared to apply the brake
pedal when conditions require.

When to use

Vehicle speed for ACC: Desired speed in a range above

roughly 25 mph (40 km/h) ~

Shift position for ACC: In

(

D

 or

(

S

The radar sensor is behind
the emblem.

The camera is located
behind the rearview
mirror.

* Not available on all models

Continued

439

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

Driving

How to activate the system

1

Adaptive Cruise Control (ACC)

Important Reminder

As with any system, there are limits to ACC. Use the
brake pedal whenever necessary, and always keep a
safe interval between your vehicle and other vehicles.

For directions on the proper handling of the radar
sensor, refer to the following page.

2

Radar Sensor

 P. 467

You can read about handling information for the
camera equipped with this system.

2

Front Sensor Camera

 P. 465

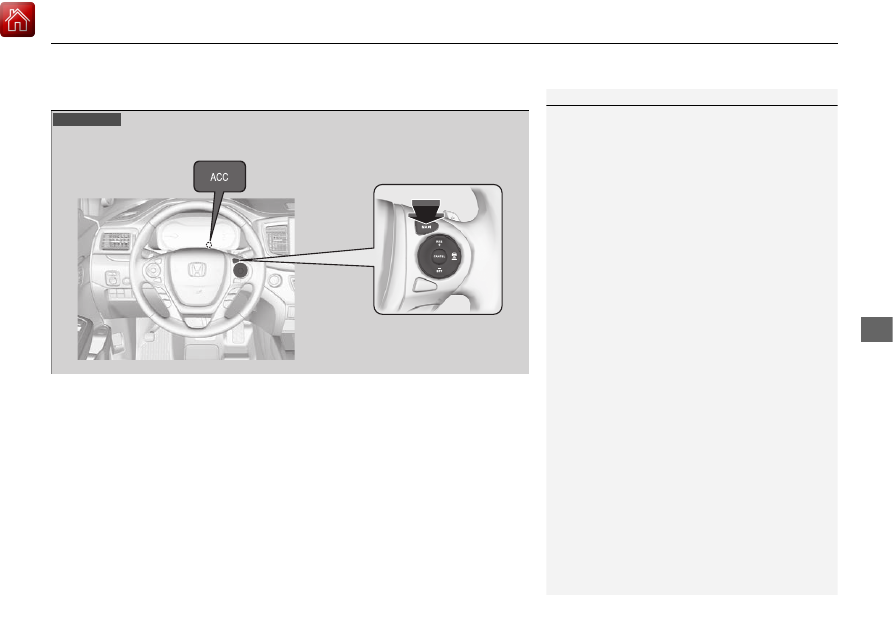

Press the

MAIN

 button on

the steering wheel.

ACC (green) is on in the
instrument panel.

ACC is ready to use.

How to use

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

440

Driving

Take your foot off the pedal and press down the

–/SET

 button when you reach the

desired speed. The moment you release the

–/SET

 button, the set speed is fixed, and

ACC begins.

When ACC starts operating, the vehicle icon,
interval bars and set speed appear on the
multi-information display.

To Set the Vehicle Speed

1

Adaptive Cruise Control (ACC)

ACC may not work properly under certain conditions.

2

ACC Conditions and Limitations

 P. 443

When not using ACC: Turn off adaptive cruise by
pressing the

MAIN

 button. This also will turn off the

Lane Keeping Assist System (LKAS).

When the

MAIN

 button is pressed, both ACC and

the Lane Keeping Assist System (LKAS) are either
turned on or off.

Do not use ACC under the following conditions:

On roads with heavy traffic or while driving in
continuous stop and go traffic.

On roads with sharp turns.

On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC will not apply the brakes to maintain
the set speed.

On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.

You can switch the displayed set speed
measurements on the audio/information screen
between mph and km/h.

2

Customized Features

 P. 298

On when ACC
begins

Press and release

–/SET

 Button

Set Vehicle
Interval

Set Vehicle
Speed

Continued

441

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

Driving

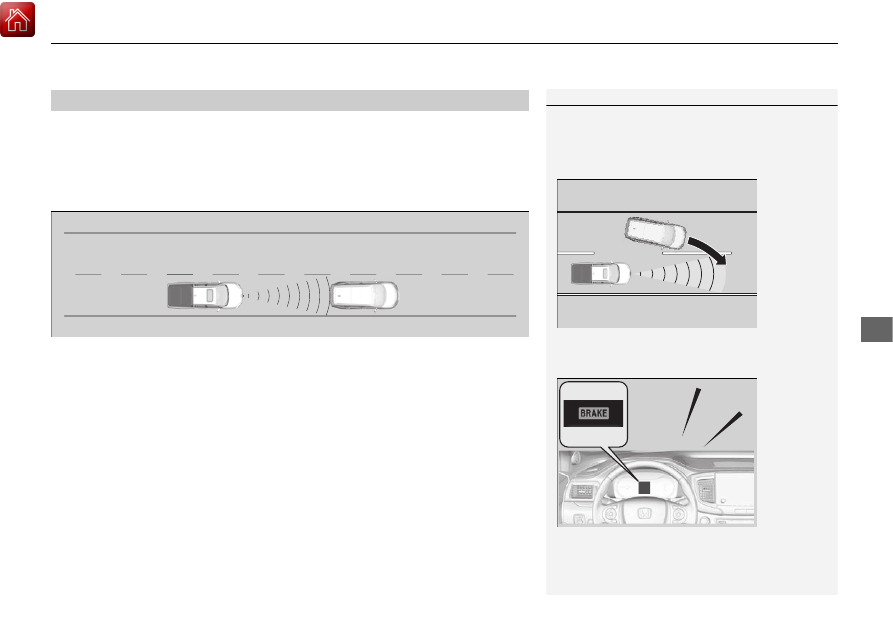

There is a vehicle ahead

ACC monitors if a vehicle ahead of you enters the ACC range. If a vehicle is detected
doing so, the ACC system maintains or decelerates your vehicle’s set speed in order
to keep the vehicle’s set following-interval from the vehicle ahead.

2

To Set or Change Following-interval

 P. 446

When in Operation

1

When in Operation

If the vehicle detected ahead of you slows down
abruptly, or if another vehicle is detected cutting in
front of you, the beeper sounds and a message
appears on the multi-information display.

Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.

Beep

ACC Range: 394 ft. (120 m)

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

442

Driving

When a vehicle whose speed is slower than
your set speed is detected in front of you, your
vehicle starts to slow down.

There is no vehicle ahead

Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from traveling at
the set speed, ACC accelerates your vehicle to
the set speed, and then maintains it.

When you depress the accelerator pedal

You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alert even if a vehicle is in the ACC range.
ACC stays on unless you cancel it. Once you release the accelerator pedal, the
system resumes an appropriate speed for keeping the following-interval while a
vehicle ahead is within the ACC range.

1

When in Operation

Even if the interval between your vehicle and the
vehicle detected ahead is short, ACC may start
accelerating your vehicle under the following
circumstances:

The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.

A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.

You can also set the system to beep when a vehicle in
front of you comes in and goes out of the ACC
detecting range. A vehicle detect beep on and off can
be selected.

2

Customized Features

 P. 298

Limitations

You may need to use the brake to maintain a safe
interval when using ACC. Additionally, ACC may not
work properly under certain conditions.

2

ACC Conditions and Limitations

 P. 443

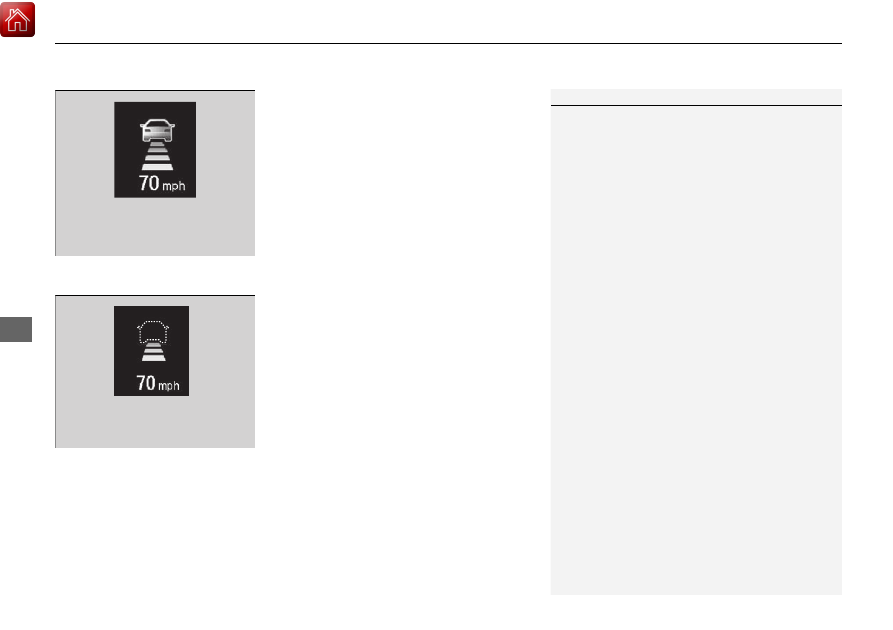

A vehicle icon appears on
the multi-information
display.

A vehicle icon with dotted-line
contour appears on the multi-
information display.

Continued

443

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

Driving

The system may automatically shut off under certain conditions. Some examples of
these conditions are listed below. Other conditions may reduce some of the ACC
functions.

2

Front Sensor Camera

 P. 465

2

Radar Sensor

 P. 467

Environmental conditions

Driving in bad weather (rain, fog, snow, etc.).

Roadway conditions

Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks, reflected
lights, road spray, high contrast).

Vehicle conditions

The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.

An abnormal tire or wheel condition (incorrect sizes, varied sizes or construction,
improperly inflated, compact spare tire, etc.).

The camera temperature gets too high.

The parking brake is applied.

The front grille is dirty.

The vehicle is tilted due to a heavy load or suspension modifications.

Tire chains are installed.

The vehicle is towing a trailer.

ACC Conditions and Limitations

1

ACC Conditions and Limitations

If you need the radar sensor to be repaired, or
removed, or the front grille is strongly impacted, turn
off the system by pressing the

MAIN

 button and take

your vehicle to a dealer.

Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).

444

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

Driving

Detection limitations

A vehicle suddenly crosses in front of you.

The interval between your vehicle and the vehicle ahead of you is too short.

A vehicle cuts in front of you at a slow speed, and it brakes suddenly.

When you accelerate rapidly and approach the vehicle ahead of you at high
speed.

The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.

There are animals in front of your vehicle.

You drive on a curved or winding or undulating road that makes it difficult for the
sensor to properly detect a vehicle in front of you.

The speed difference between your vehicle and a vehicle in front of you is
significantly large.

An oncoming vehicle suddenly comes in front of you.

Your vehicle abruptly crosses over in front of an oncoming vehicle.

445

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

Continued

Driving

Driving through a narrow iron bridge.

The vehicle ahead of you brakes suddenly.

The vehicle ahead of you has a unique shape.

Your vehicle or the vehicle ahead of you is driving on one edge of the lane.

Sensor detects upper section of
an empty carrier truck.

Panel truck,
tanker truck,
etc.

uu

Honda Sensing

®

u

Adaptive Cruise Control (ACC)

446

Driving

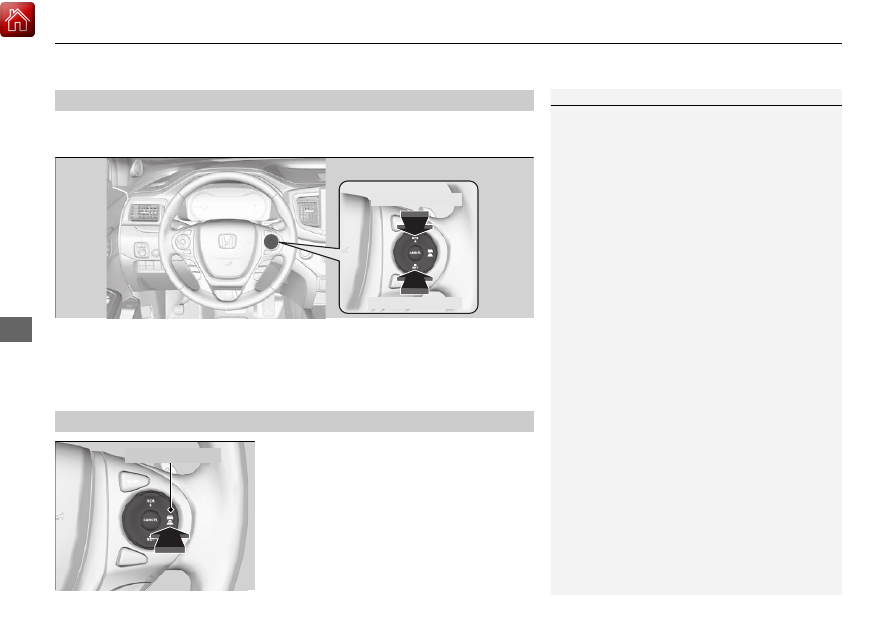

Increase or decrease the vehicle speed using the

RES/+

 or

–/SET

 buttons on the

steering wheel.

Each time you press the button, the vehicle speed is increased or decreased by
about 1 mph or 1 km/h accordingly.

If you keep the button pressed, the vehicle speed increases or decreases by about
5 mph or 5 km/h accordingly.

Press the Interval button to change the ACC
following-interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through short,
middle, long, and extra long following-
interval.

To Adjust the Vehicle Speed

1

To Adjust the Vehicle Speed

If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC may not
accelerate your vehicle. This is to maintain the set
interval between your vehicle and the vehicle ahead.

You can set the vehicle speed using the

–/SET

 button

on the steering wheel when adjusting the speed with
the accelerator and brake pedals.

To Set or Change Following-interval

To increase speed

To decrease speed

Interval Button















Content      ..     25      26      27      28     ..
