Engine Does Not Start

u

If the Keyless Remote Battery is Weak

Han

d

lin
g the U

n

expected

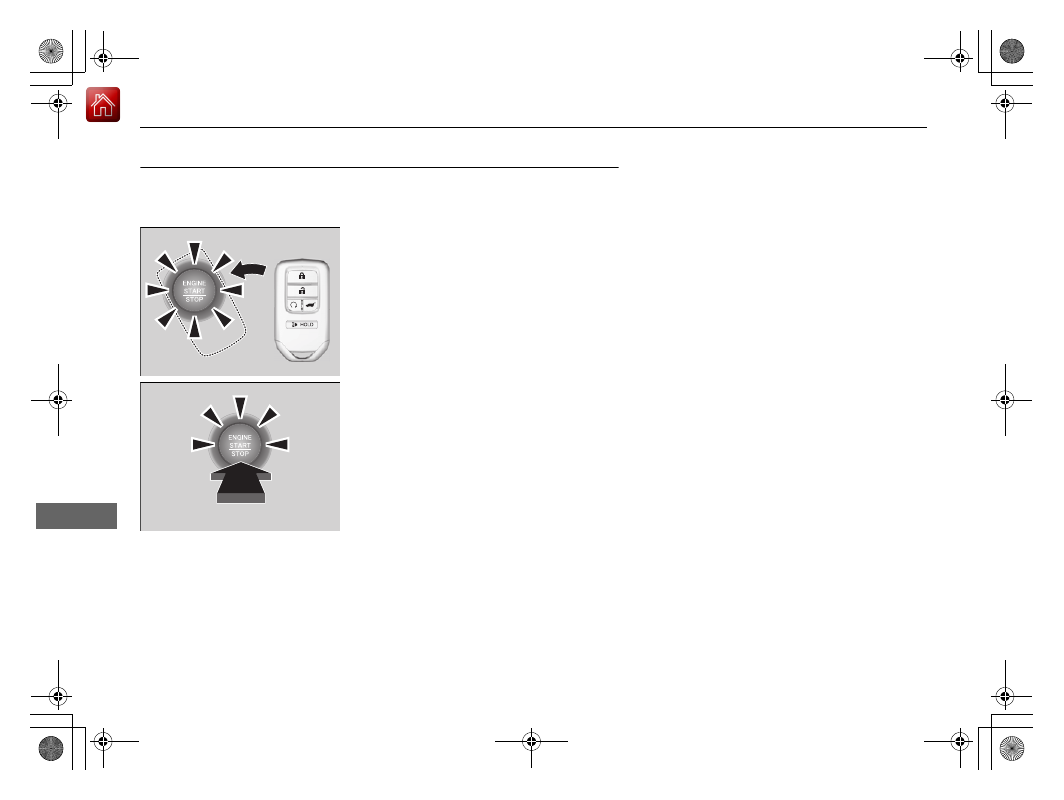

If the Keyless Remote Battery is Weak

If the beeper sounds, the

To Start, Hold Remote Near Start Button

 message

appears on the driver information interface, the

ENGINE START/STOP

 button

flashes, and the engine won’t start, start the engine as follows:

1.

Touch the center of the

ENGINE START/

STOP

 button with the

H

 logo on the keyless

remote while the

ENGINE START/STOP



button is flashing. The buttons on the
keyless remote should be facing you.

u

The

ENGINE START/STOP

 button

flashes for about 30 seconds.

2.

Depress the brake pedal and press the

ENGINE START/STOP

 button within 10

seconds after the beeper sounds and the

ENGINE START/STOP

 button changes

from flashing to on.

u

If you don’t depress the pedal, the mode
will change to ACCESSORY.

623

uu

Engine Does Not Start

u

Emergency Engine Stop

Han

d

lin
g the U

n

expected

Emergency Engine Stop

The

ENGINE START/STOP

 button may be used to stop the engine due to an

emergency situation even while driving. If you must stop the engine, do either of the
following operations:

•

Press and hold the

ENGINE START/STOP

 button for about two seconds.

•

Firmly press the

ENGINE START/STOP

 button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.

The gear position automatically changes to

(

P

 after the vehicle comes to a complete

stop. Then, the power mode changes to VEHICLE OFF.

The gear position automatically changes to

(

P

 after the vehicle comes to a complete

stop. Then, press the

ENGINE START/STOP

 button twice without depressing the

brake pedal to change the mode VEHICLE OFF.

1

Emergency Engine Stop

Do not press the

ENGINE START/STOP

 button while

driving unless it is absolutely necessary for the engine
to be turned off.
If you press the

ENGINE START/STOP

 button while

driving, the beeper sounds.

U.S. models

Canadian models

624

Han

d

lin
g the U

n

expected

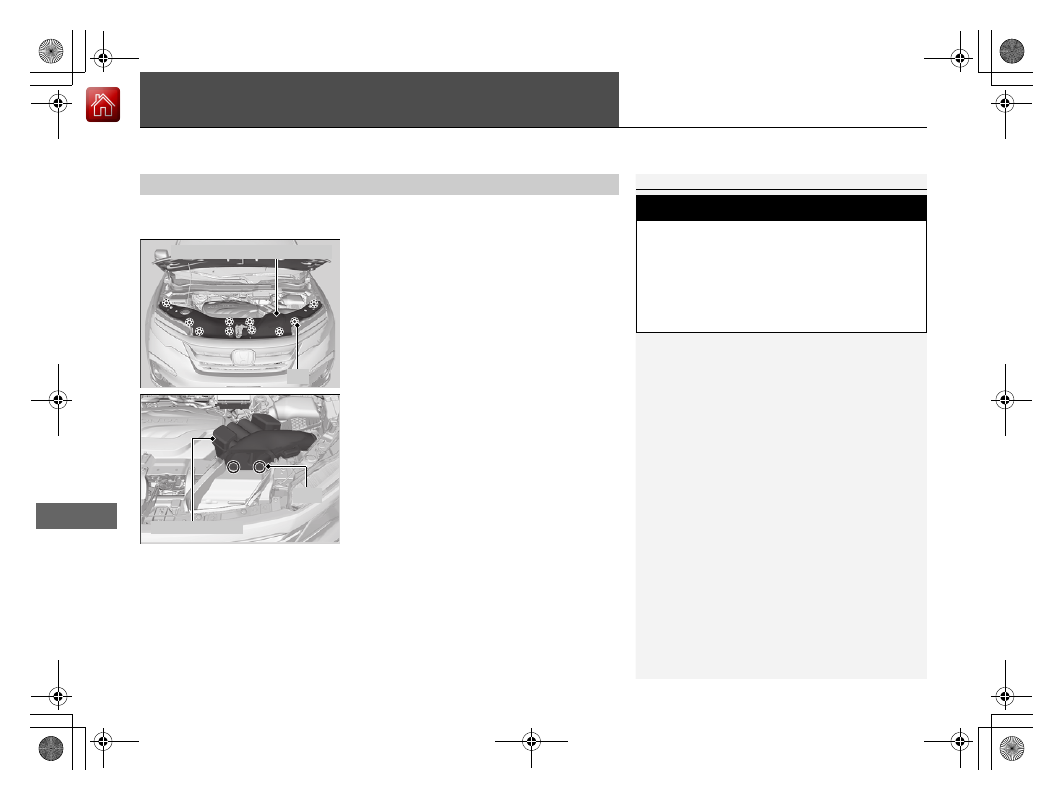

If the Battery Is Dead

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1.

Pull up on the engine compartment cover,
remove it from the pins.

2.

Remove the holding clips and the air intake
duct.

■

Jump Starting Procedure

1

If the Battery Is Dead

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.

Battery performance degrades in cold conditions and
may prevent the engine from starting.

3

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Pin

Engine Compartment Cover

Air Intake Duct

Clip

625

uu

If the Battery Is Dead

u

Continued

Han

d

lin
g the U

n

expected

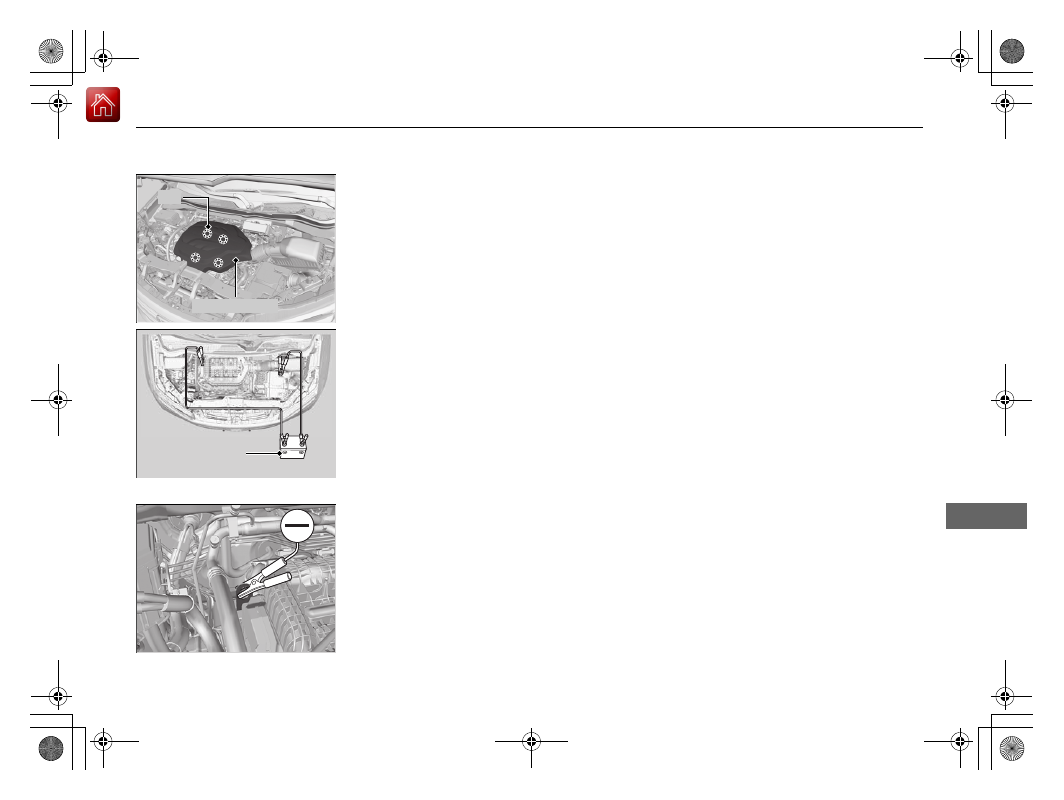

3.

Pull up on the engine cover, remove it from
the pins.

u

Start on the passenger side and lift the
outermost edge of the cover.

u

Move towards the driver side while
applying uniform upward pressure.

4.

Connect the first jumper cable to your
vehicle’s battery

+

 terminal.

5.

Connect the other end of the first jumper
cable to the booster battery

+

 terminal.

u

Use a 12-volt booster battery only.

u

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.

6.

Connect the second jumper cable to the
booster battery

-

 terminal.

7.

Connect the other end of the second
jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.

8.

If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

9.

Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.

Pin

Engine Cover

Booster Battery

626

uu

If the Battery Is Dead

u

Han

d

lin
g the U

n

expected

Once your vehicle’s engine has started, remove the jumper cables in the following
order:

1.

Disconnect the jumper cable from your vehicle’s ground.

2.

Disconnect the other end of the jumper cable from the booster battery

-



terminal.

3.

Disconnect the jumper cable from your vehicle’s battery

+

 terminal.

4.

Disconnect the other end of the jumper cable from the booster battery

+



terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

627

Continued

Han

d

lin
g the U

n

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:

•

The temperature gauge needle is at the

 mark or the engine suddenly loses

power.

•

Stop Driving When Safe. Engine Temperature Too Hot

 message appears on

the driver information interface.

•

Steam or spray comes out of the engine compartment.

■

First thing to do

1.

Immediately park the vehicle in a safe place.

2.

Turn off all accessories and turn on the hazard warning lights.

u

No steam or spray present:

Keep the engine running and open the hood.

u

Steam or spray is present:

Turn off the engine and wait until it subsides.

Then, open the hood.

1

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
needle at the

 mark may damage the engine.

Continuing to drive with the

Stop Driving When

Safe. Engine Temperature Too Hot

 message on

the driver information interface may damage the
engine.

3

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

H

H

uu

Overheating

u

How to Handle Overheating

628

Han

d

lin
g the U

n

expected

■

Next thing to do

1.

Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle goes down.

u

If the cooling fan is not operating,
immediately stop the engine.

2.

Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.

u

If the coolant level in the reserve tank is
low, remove the engine compartment
cover then add coolant until it reaches
the

MAX

 mark.

2

Engine Compartment Cover

 P. 569

u

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.

1

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

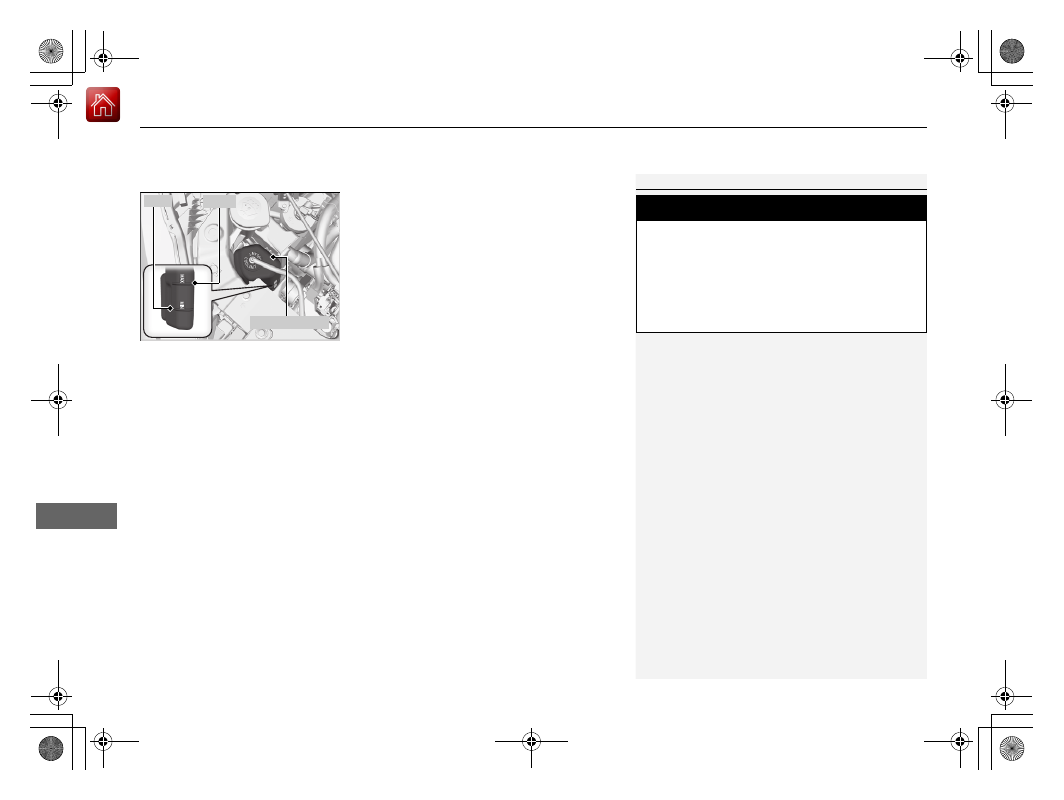

Reserve Tank

MAX

MIN

629

Han

d

lin
g the U

n

expected

Indicator, Coming On/Blinking

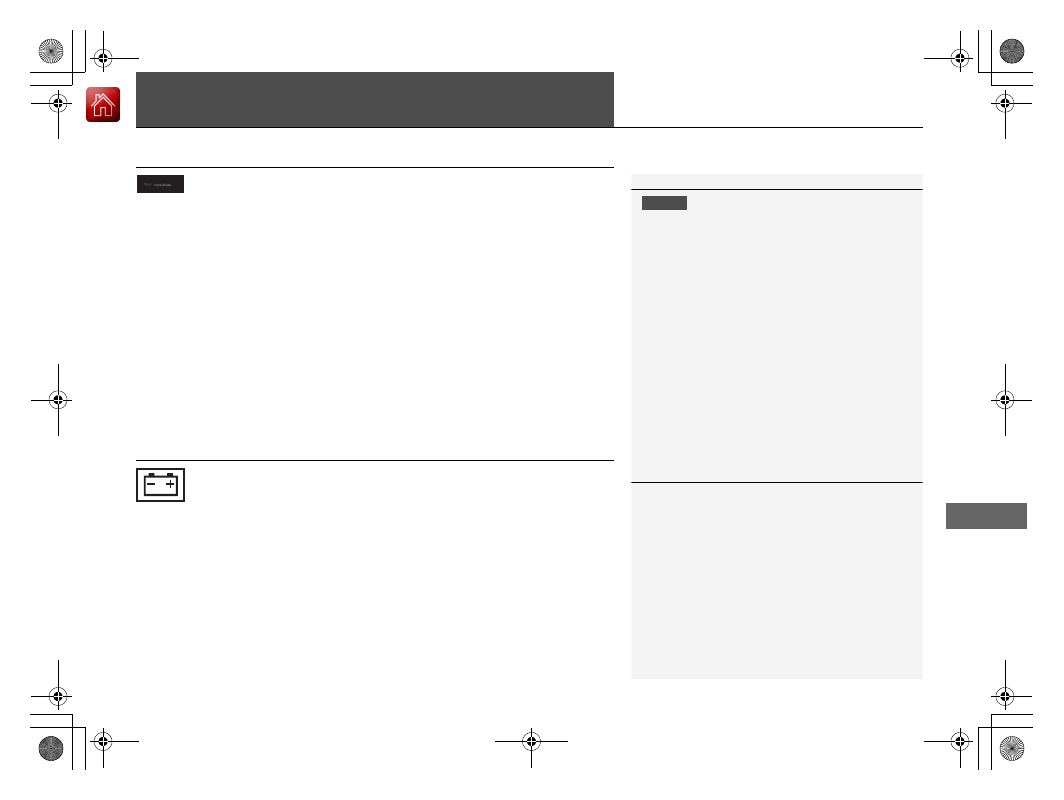

If the Low Oil Pressure Warning Appears

■

Reasons for the warning to appear

Appears when the engine oil pressure is low.

■

What to do as soon as the warning appears

1.

Immediately park the vehicle on level ground in a safe place.

2.

If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

1.

Stop the engine and let it sit for approximately three minutes.

2.

Open the hood and check the oil level.

u

Add oil as necessary.

2

Oil Check

 P. 571

3.

Start the engine and check the low oil pressure warning.

u

The warning disappears: Start driving again.

u

The warning does not disappear within 10 seconds: Immediately
stop the engine and contact a dealer for repairs.

If the Charging System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the battery is not being charged.

■

What to do when the indicator comes on

Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.

1

If the Low Oil Pressure Warning Appears

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

1

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

630

uu

Indicator, Coming On/Blinking

u

If the Malfunction Indicator Lamp Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Malfunction Indicator Lamp Comes On or Blinks

■

Reasons for the indicator lamp to come on or blink

•

Comes on when there is a problem with the engine emissions control
system.

•

Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

1

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

631

uu

Indicator, Coming On/Blinking

u

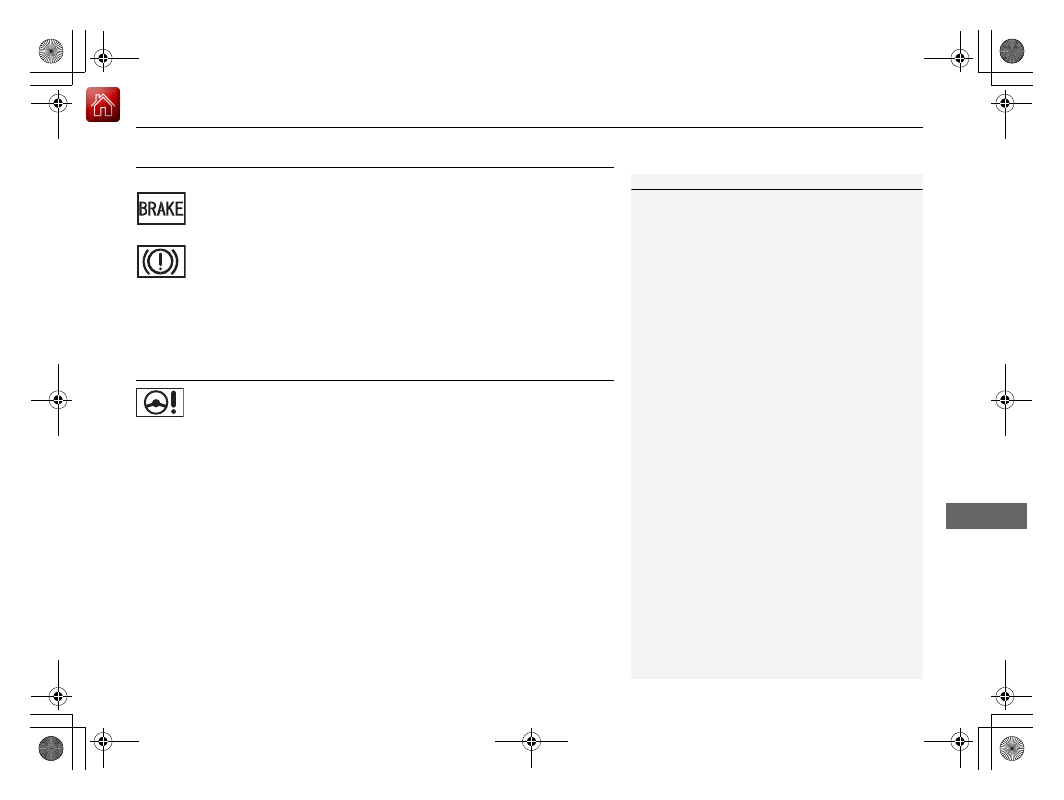

If the Brake System Indicator (Red) Comes On

Han

d

lin
g the U

n

expected

If the Brake System Indicator (Red) Comes On

■

Reasons for the indicator to come on

•

The brake fluid is low.

•

There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.

•

If normal, check the brake fluid level the next time you stop.

•

If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.

If the Electric Power Steering (EPS) System Indicator
Comes On

■

Reasons for the indicator to come on

•

Comes on when there is a problem with the EPS system.

•

If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

■

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

1

If the Brake System Indicator (Red) Comes On

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.

If the brake system indicator and

ABS

 indicator come

on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

U.S.

Canada

632

uu

Indicator, Coming On/Blinking

u

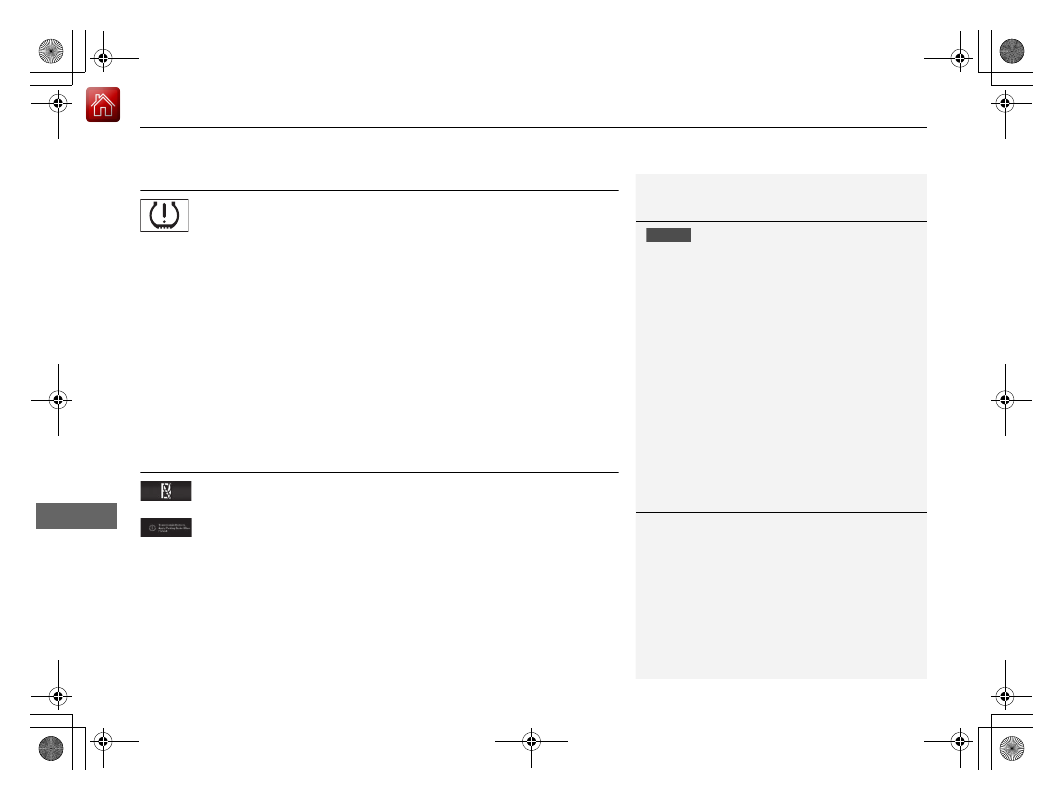

If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicator Comes On or Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one minute, and then stays on.

■

What to do when the indicator comes on

Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

■

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).

If the Transmission System Indicator Blinks along
with the Warning Message

■

Reasons for the indicator to blink

The transmission is malfunctioning.

■

What to do when the indicator blinks

•

Immediately have your vehicle inspected by a dealer.

•

Change the gear position to

(

N

 after starting the engine.

u

Check if the

(

N

 position in the instrument panel and the indicator

on the

(

N

 button light/blink.

2

Starting the Engine

 P. 454

1

If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

TPMS with Tire Fill Assist provides visual and audible
assistance during tire pressure adjustment. With the
power mode in ON, while you adjust tire pressure up
or down, the system alerts you as follows:

Below recommended pressure:

The beeper

sounds and exterior lights flash once every five
seconds.

At recommended pressure:

The beeper sounds

and exterior lights flash rapidly for ~ five seconds.

Above recommended pressure:

The beeper

sounds and lights flash twice every three seconds.

1

If the Transmission System Indicator Blinks along with the
Warning Message

You may not be able to start the engine.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

2

Emergency Towing

 P. 638

633

Continued

Han

d

lin
g the U

n

expected

Fuses

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

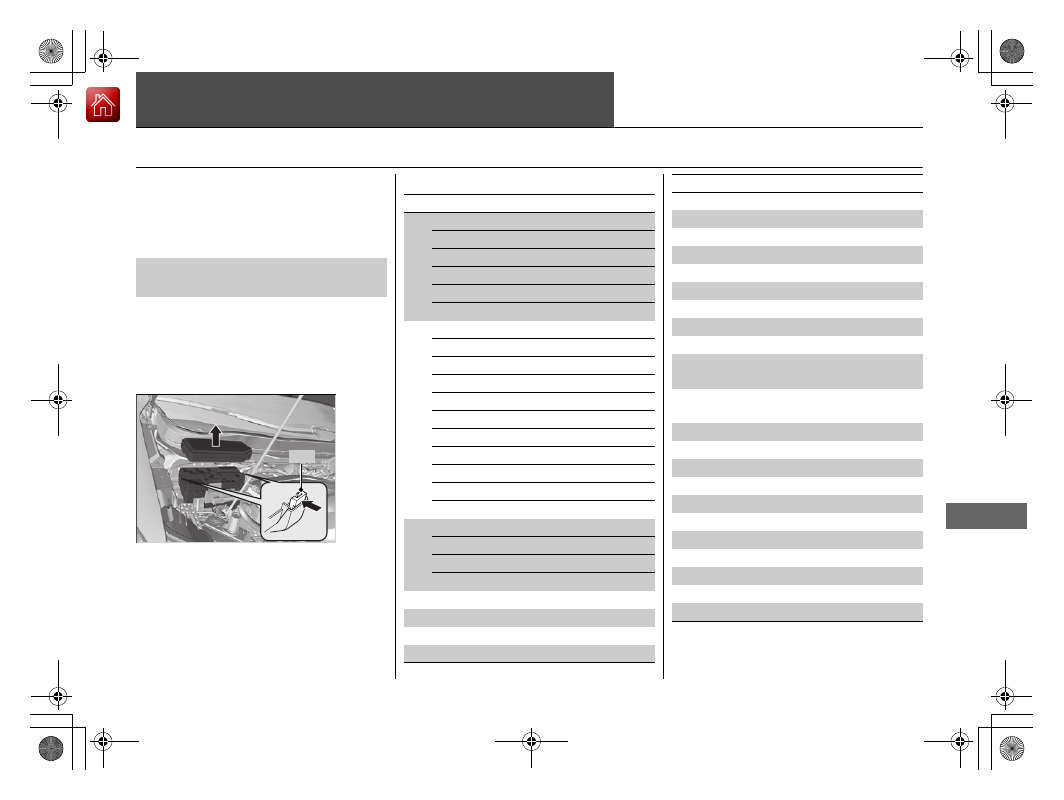

Located near the passenger's side damper
house. Push the tabs to open the box.

■

Engine Compartment Fuse

Box Type A

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

−

(70 A)

REAR BLOWER

30 A

ABS/VSA MTR

40 A

ABS/VSA FSR

20 A

MAIN FAN

30 A

MAIN FUSE

150 A

2

SUB FAN

30 A

WIP MTR

30 A

WASHER

20 A

SUNSHADE

*

(20 A)

ENGINE MOUNT

30 A

FRONT BLOWER

40 A

A/C INVERTER

*

(30 A)

STANDARD AMP

*

(30 A)

REAR DEF

40 A

−

(30 A)

PREMIUM AMP

*

(20 A)

3

−

−

−

−

−

−

−

−

4

PARKING LIGHT

10 A

5

CRUISE CANCEL SW

(7.5 A)

6

STOP LIGHT

10 A

7

FI SUB VSS

(10 A)

8

L  H/L  LO

10  A

9

−

−

10

R H/L LO

10 A

11

IGPS

7.5 A

12

INJECTOR

20 A

13

H/L LO MAIN

20 A

14

FI-ECU BACKUP

(10 A)

15

FRONT FOG

(10 A)

16

HAZARD

15 A

17

PASSENGER P/SEAT

(RECLINE)

*

(20 A)

18

PASSENGER P/SEAT

(SLIDE)

*

(20 A)

19

PREMIUM AMP

*

(20 A)

20

MG CLUTCH

7.5 A

21

MAIN RLY

15 A

22

FI SUB

15 A

23

IG COIL

15 A

24

DBW

15 A

25

SMALL/STOP MAIN

20 A

26

BACK UP

10 A

27

HTD STRG WHEEL

*

(15 A)

28

HORN

10 A

29

RADIO

15 A

Circuit Protected

Amps

* Not available on all models

634

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

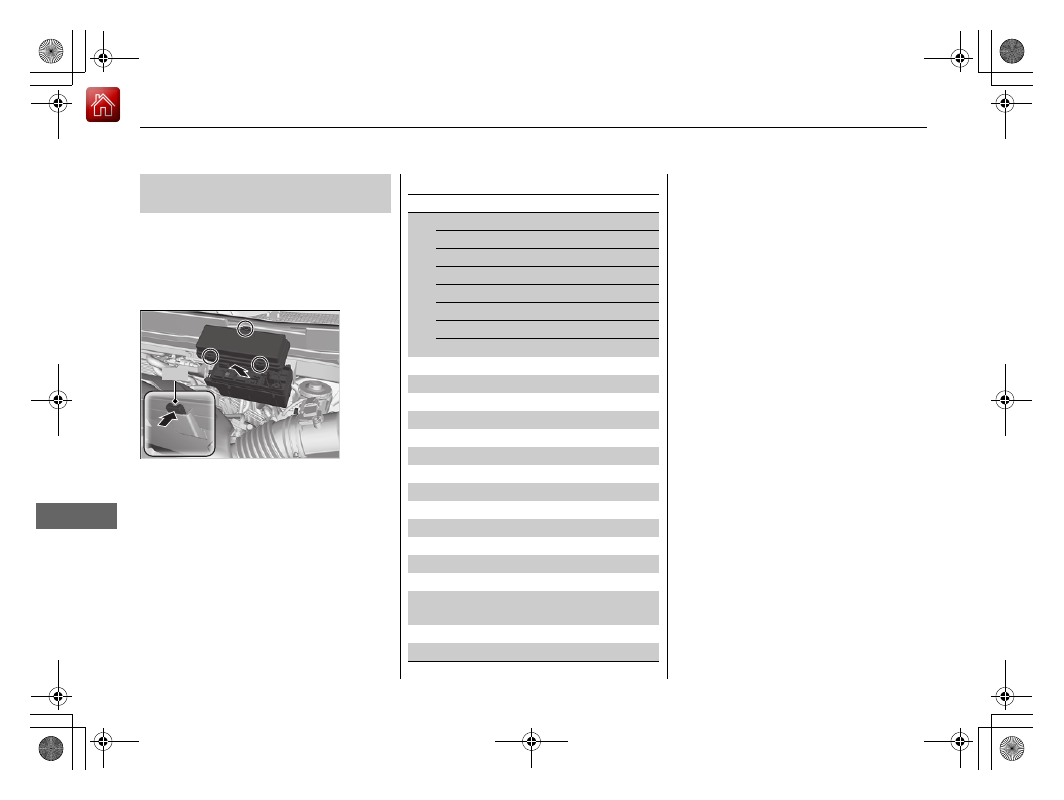

Located near the brake fluid reservoir. Push
the tabs to open the box.

■

Engine Compartment Fuse

Box Type B

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

ST CUT1

*

(40 A)

4WD

*

(20 A)

IG MAIN

30 A

IG MAIN2

30 A

P/TAILGATE MOTOR

*

(40 A)

F/B MAIN2

60 A

F/B MAIN

60 A

EPS

60 A

2

TRAILER MAIN

(30 A)

3

TRAILER E-BRAKE

(20 A)

4

BATTERY SENSOR

7.5 A

5

H/L HI MAIN

20 A

6

P/TAILGATE CLOSER

*

(20 A)

7

CTR ACC SOCKET

20 A

8

REAR ACC SOCKET

(20 A)

9

FRONT WIPER DEICER

*

(15 A)

10

ACC/IG2_MAIN

10 A

11

TRAILER CHARGE

(20 A)

12

IDLE STOP ST CUT

(30 A)

13

IDLE STOP

(30 A)

14

IDLE STOP

(30 A)

15

ELECTRONIC GEAR

SELECTOR

(15 A)

16

REAR HEATED SEAT

*

(20 A)

17

ST CUT FEED BACK

7.5 A

* Not available on all models

635

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

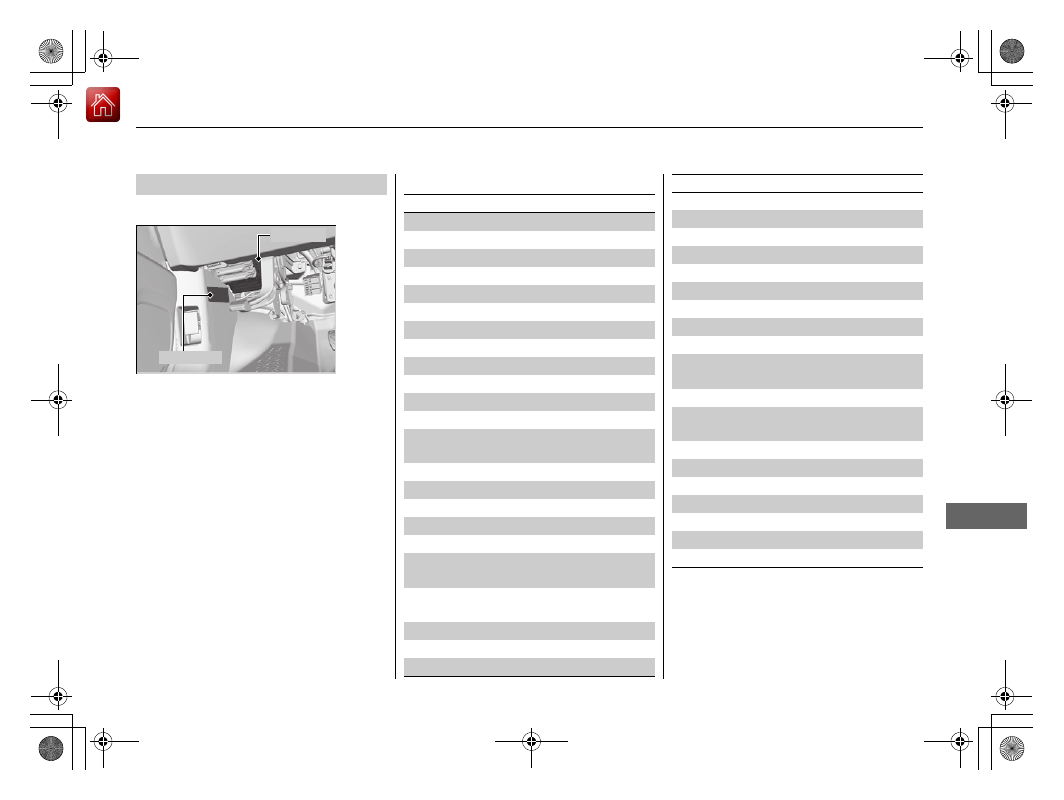

Located under the dashboard.

Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.

■

Interior Fuse Box Type A

Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

DRIVER P/WINDOW

20 A

2

DOOR LOCK

20 A

3

SMART

7.5 A

4

PASSENGER P/WINDOW

20 A

5

FRONT ACC SOCKET

20 A

6

FUEL PUMP

20 A

7

ACG

15 A

8

FRONT WIPER

7.5 A

9

IG1 SMART

7.5 A

10

SRS

10 A

11

DRIVER REAR P/WINDOW

20 A

12

−

−

13

PASSENGER REAR

P/WINDOW

20 A

14

FUEL LID

20 A

15

DRIVER P/SEAT (RECLINE)

(20 A)

16

−

(7.5 A)

17

FRONT SEAT HEATER

(20 A)

18

INTR LT

7.5 A

19

DRIVER REAR

DOOR UNLOCK

10 A

20

PASSENGER SIDE

DOOR UNLOCK

10 A

21

DRL

7.5 A

22

KEY LOCK

7.5 A

23

A/C

7.5 A

24

IG1a FEED BACK

7.5 A

25

INST PANEL LIGHTS

7.5 A

26

LUMBAR SUPPORT

(10 A)

27

PARKING LIGHTS

7.5 A

28

OPTION

10 A

29

BACK LT

7.5 A

30

REAR WIPER

10 A

31

ST MOTOR

7.5 A

32

SRS

7.5 A

33

PASSENGER SIDE

DOOR LOCK

10 A

34

DRIVER SIDE DOOR LOCK

10 A

35

DRIVER SIDE

DOOR UNLOCK

10 A

36

DRIVER P/SEAT (SLIDE)

(20 A)

37

PASSENGER H/L HI

10 A

38

DRIVER H/L HI

10 A

39

IG1b FEED BACK

7.5 A

40

ACC

7.5 A

41 DRIVER REAR DOOR LOCK

10 A

42

−

−

Circuit Protected

Amps

636

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

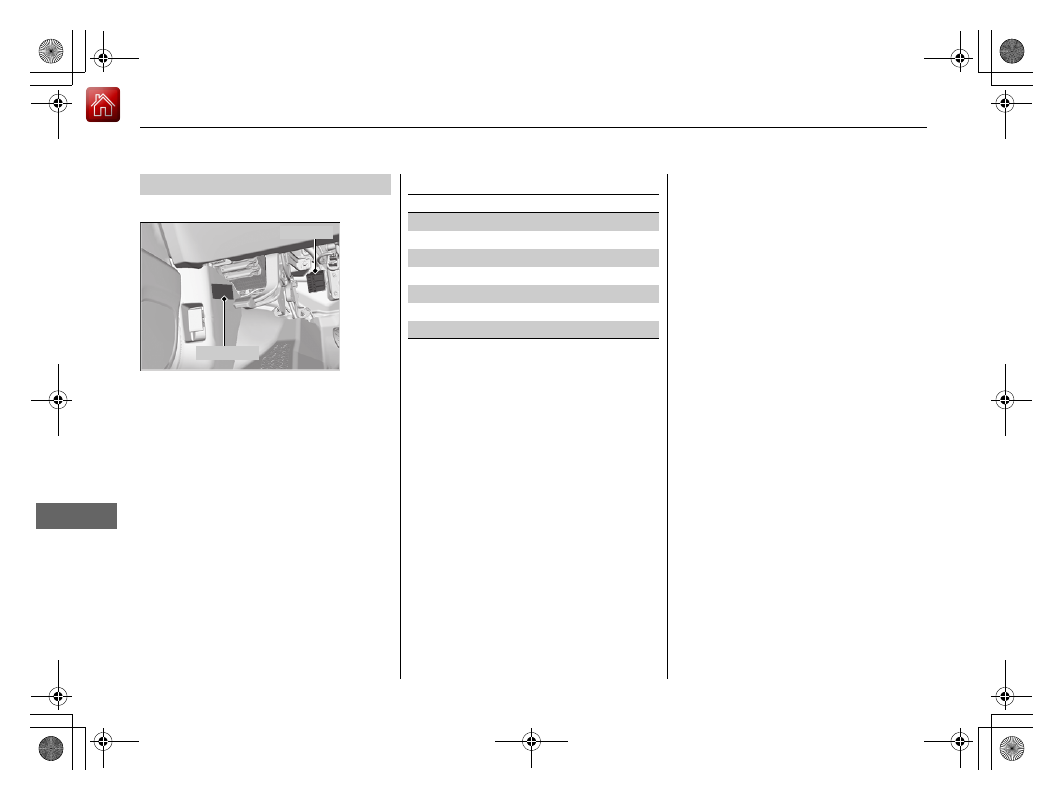

Located under the dashboard.

Fuse locations are shown on the image.
Locate the fuse in question by the fuse
number and label number.

■

Interior Fuse Box Type B

Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

A

METER

10 A

B

ABS/VSA

7.5 A

C

ACG

7.5 A

D

MICU

7.5 A

E

AUDIO

15 A

F

BACK UP

10 A

G

ACC

7.5 A

637

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

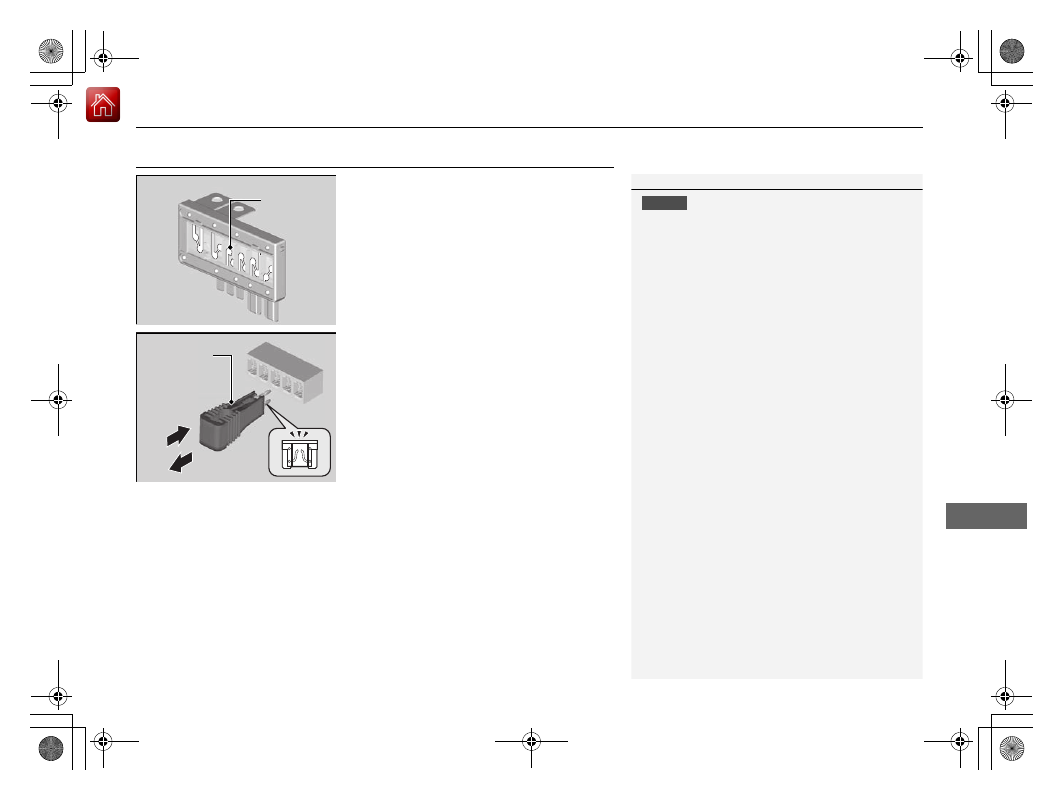

Inspecting and Changing Fuses

1.

Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.

2.

Remove the fuse box cover.

3.

Check the large fuse in the engine
compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4.

Inspect the small fuses in the engine
compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Use the charts to locate the fuse in question and
confirm the specified amperage.

2

Fuse Locations

 P. 633

Replace fuse with a spare fuse of the same specified
amperage.

There is a fuse puller in the engine compartment fuse
box.

Combined
Fuse

Blown Fuse

Fuse Puller
